Security Horn Circuit
Security Horn CircuitDESCRIPTION
When the theft deterrent system is changed from the armed state to the alarm sounding state, the theft warning ECU can sound the security horn. The horn cycles between ON and OFF at intervals of approximately 0.4 seconds.

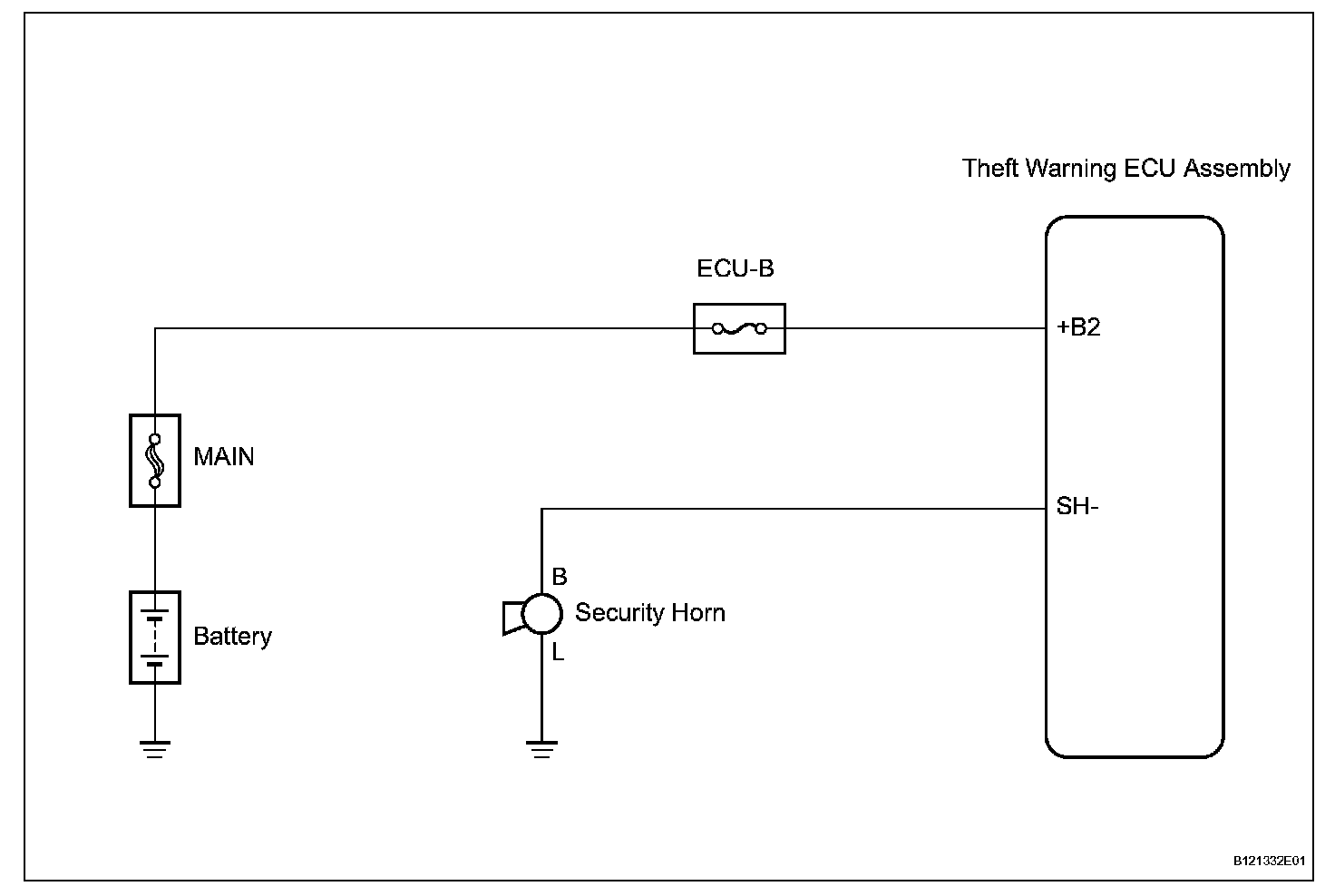

Wiring Diagram:
INSPECTION PROCEDURE

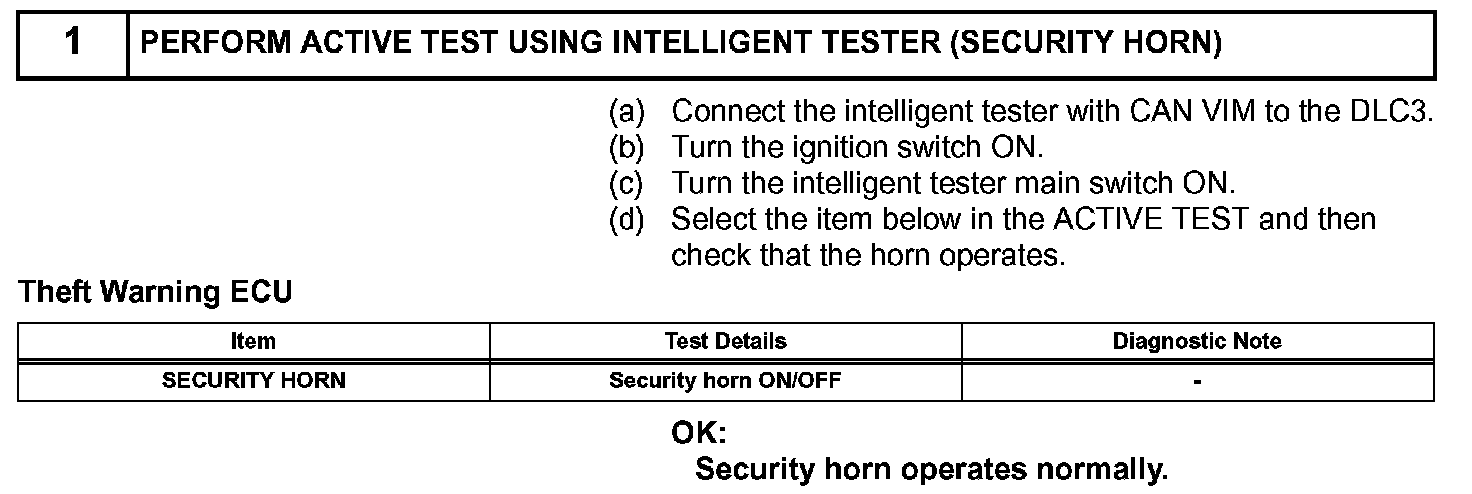

Step 1:

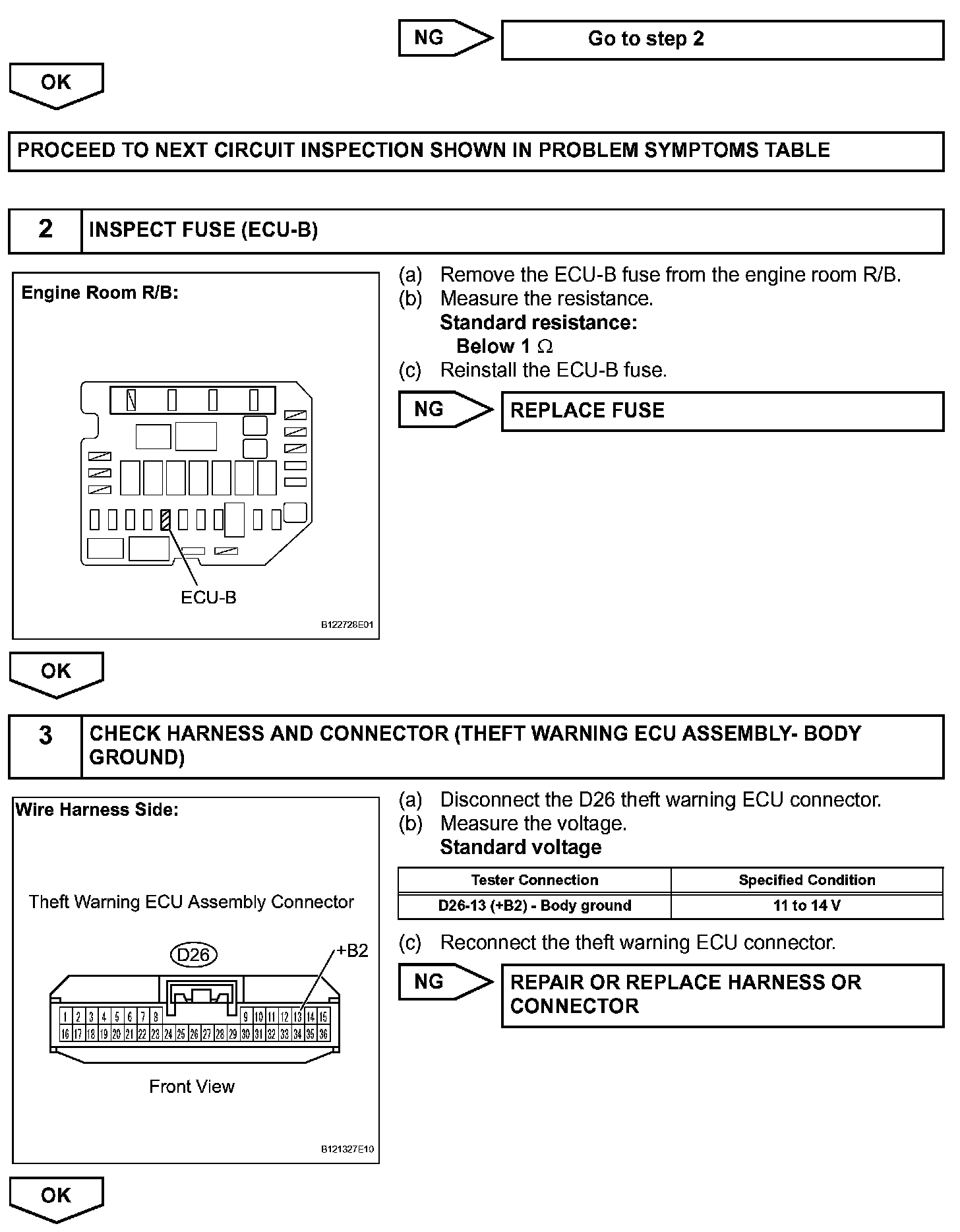

Step 1(Continued)-3:

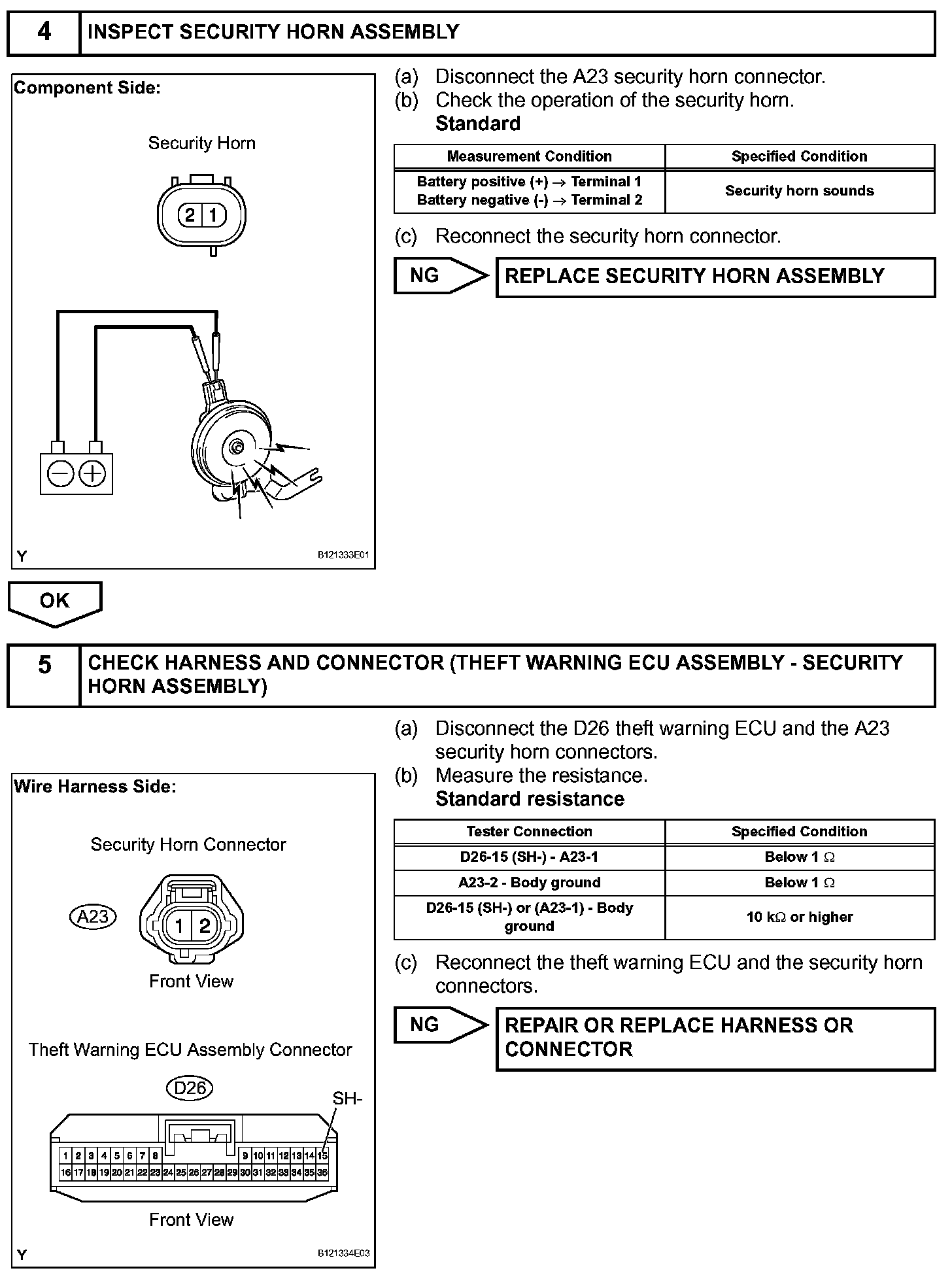

Step 4-5:

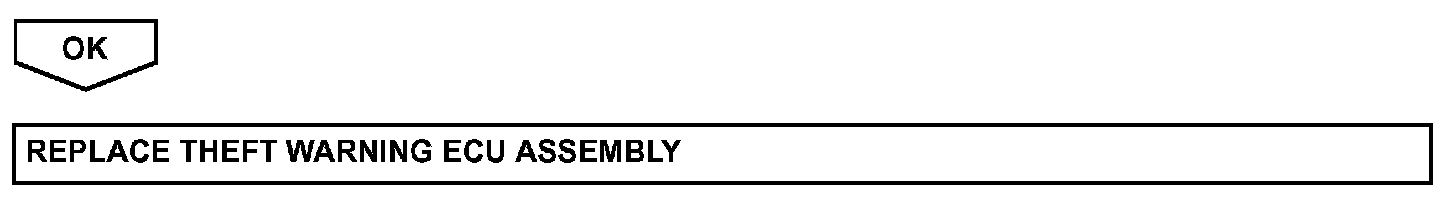

Step 5(Continued):
