Security Horn Assembly (For Sedan)

Security Horn Assembly (for Sedan):

SECURITY HORN ASSEMBLY (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

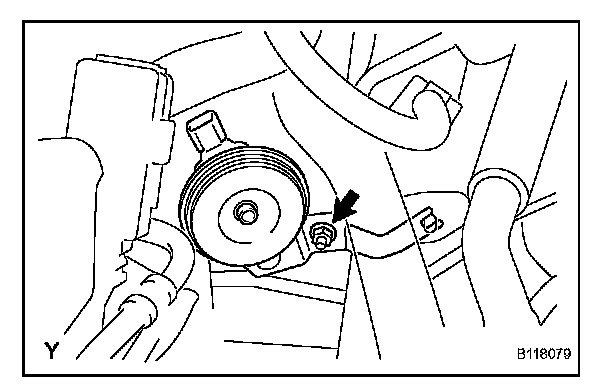

2. REMOVE SECURITY HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the nut and the security horn.

INSTALLATION

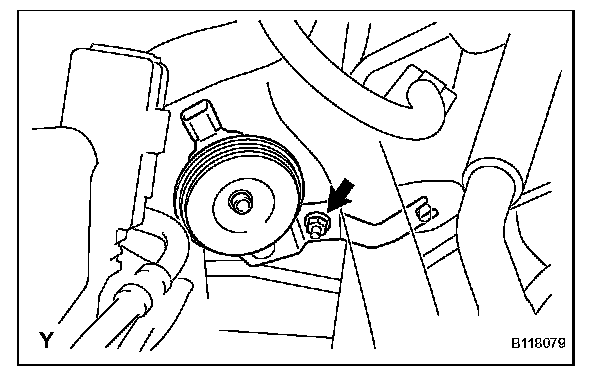

1. INSTALL SECURITY HORN ASSEMBLY
a. Install the security horn with the nut.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
