P0630

DTC P0630 VIN not Programmed or Mismatch -ECM / PCM

DESCRIPTION

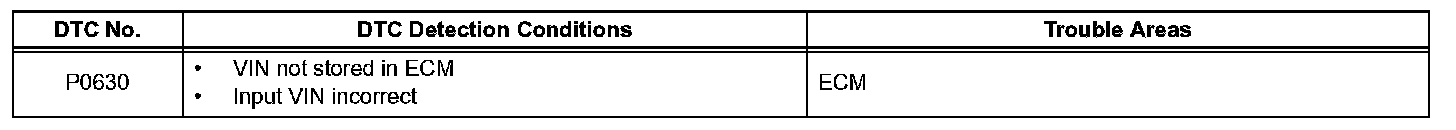

DTC Detection Conditions:

DTC P0630 is set when the Vehicle Identification Number (VIN) is not stored in the Engine Control Module (ECM) or the input VIN is incorrect. Input the VIN with the intelligent tester.

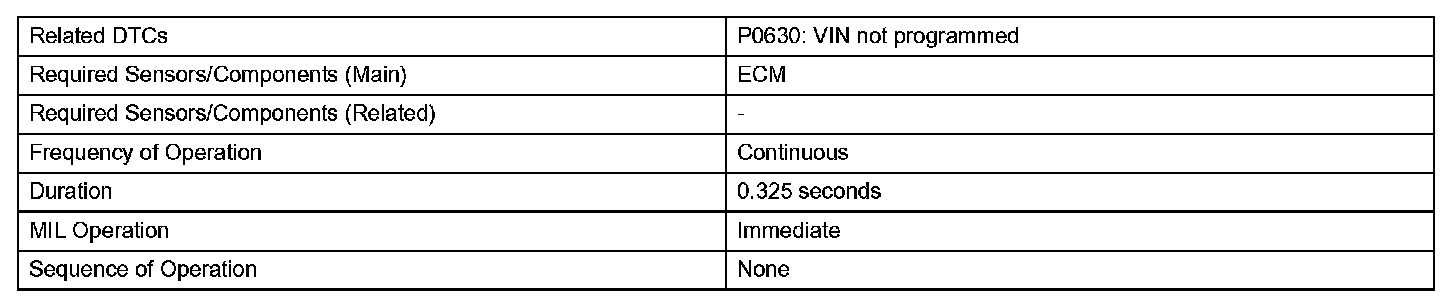

Monitor Strategy:

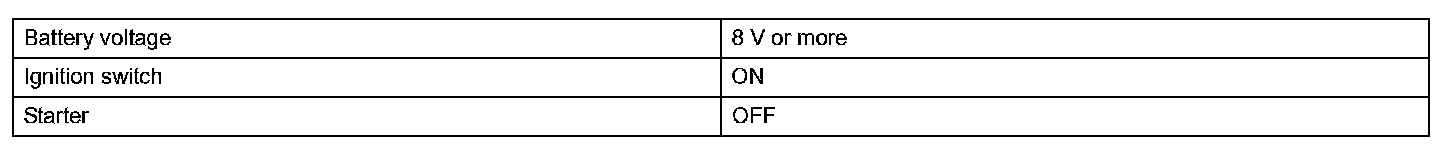

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

MONITOR DESCRIPTION

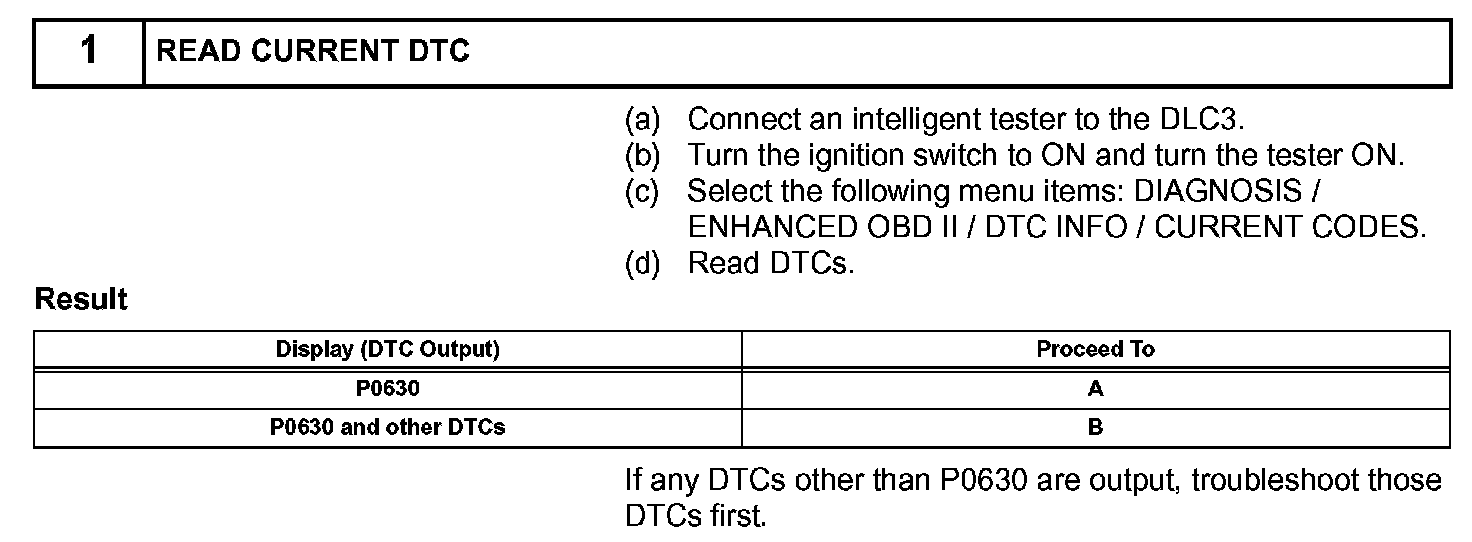

Step 1:

Step 1(Continued)-2:

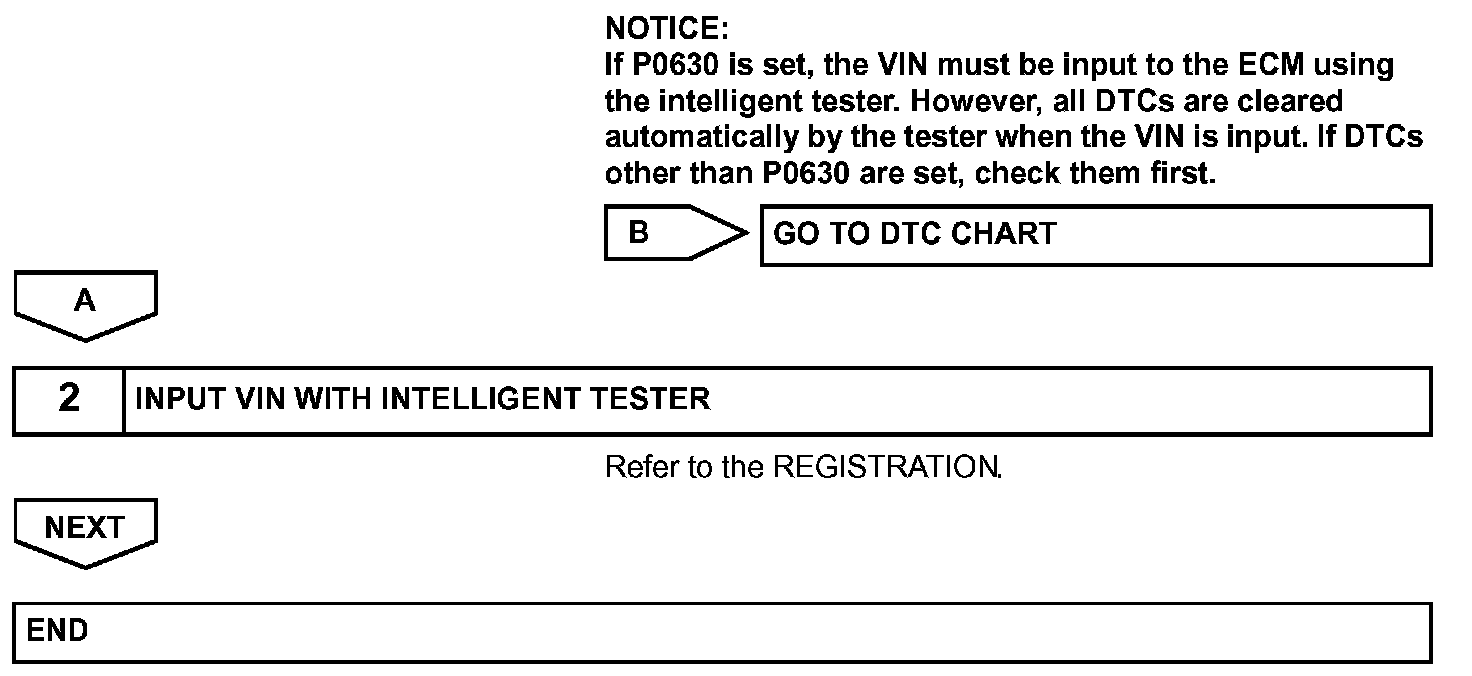

INSPECTION PROCEDURE
