Electronic Power Steering System

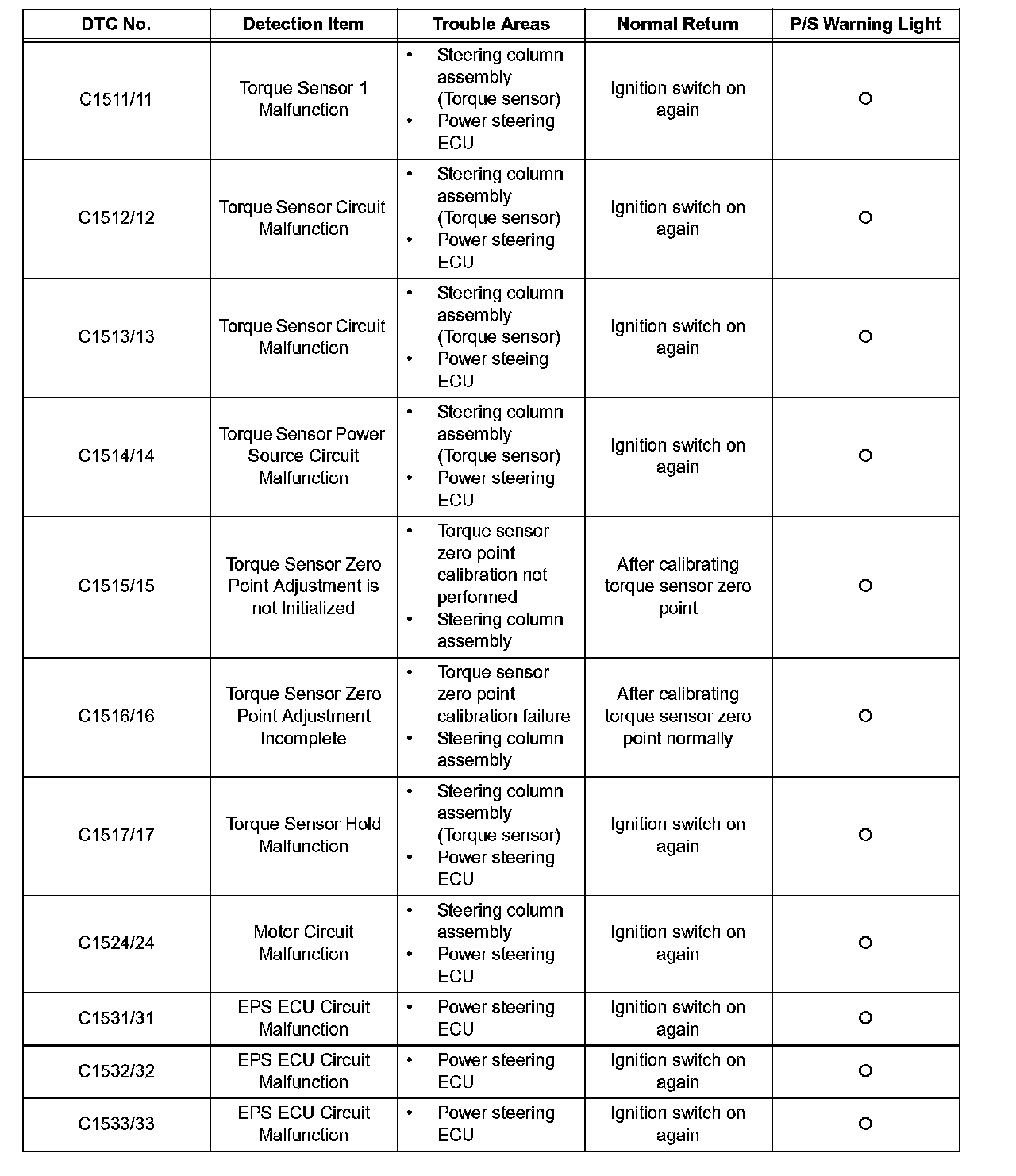

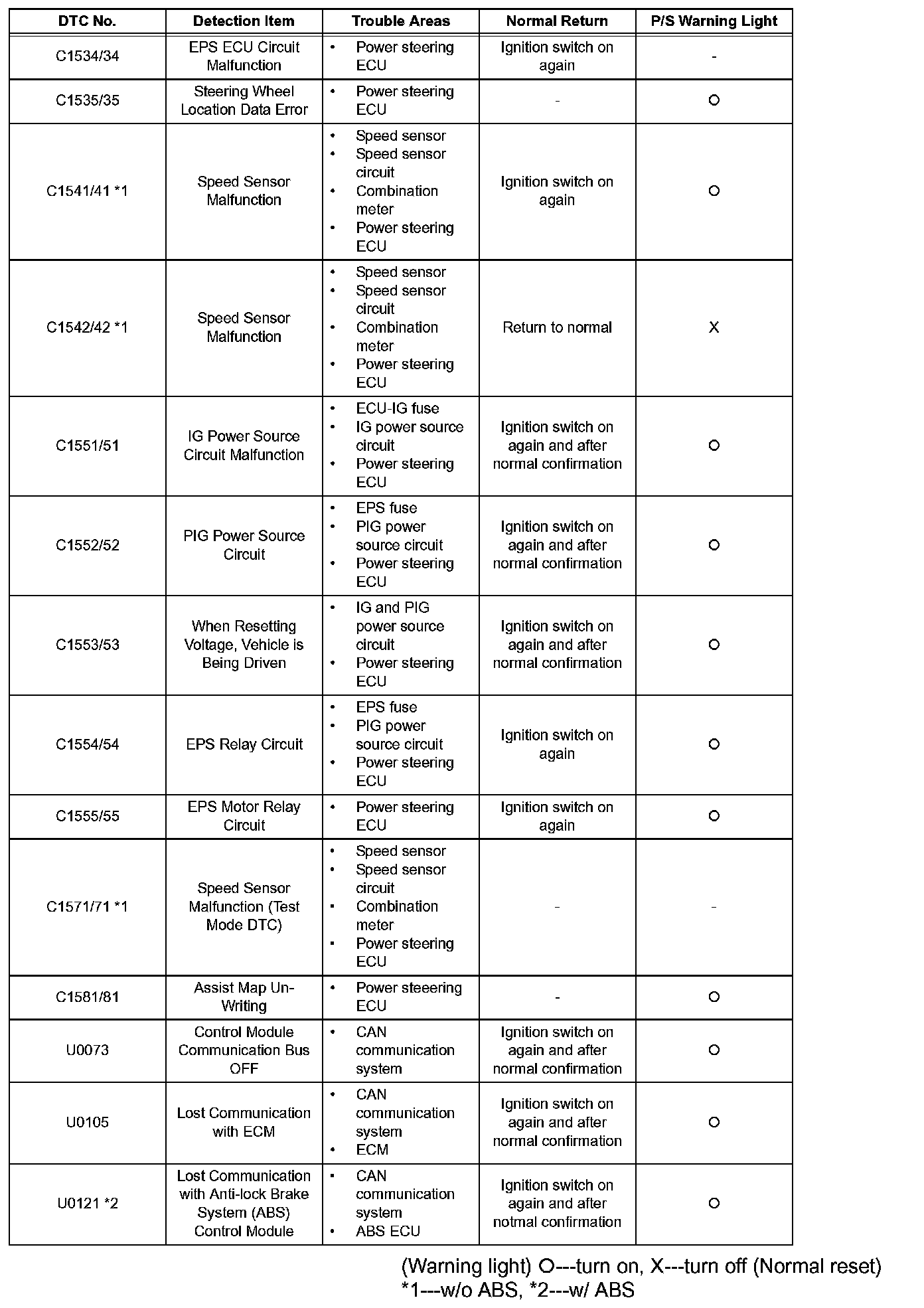

DIAGNOSTIC TROUBLE CODE CHARTHINT:
^ If any DTCs are displayed during the DTC check, inspect the circuit listed for those DTCs.
^ Test mode code C1571/71 is stored during the transition to test mode. This code does not indicate a malfunction since the code will be cleared when the ECU determines that the sensor is normal. The test mode code is cleared simultaneously when test mode is terminated.
^ The P/S warning light remains illuminated during test mode and starts blinking when the speed sensor is determined to be normal.
