ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

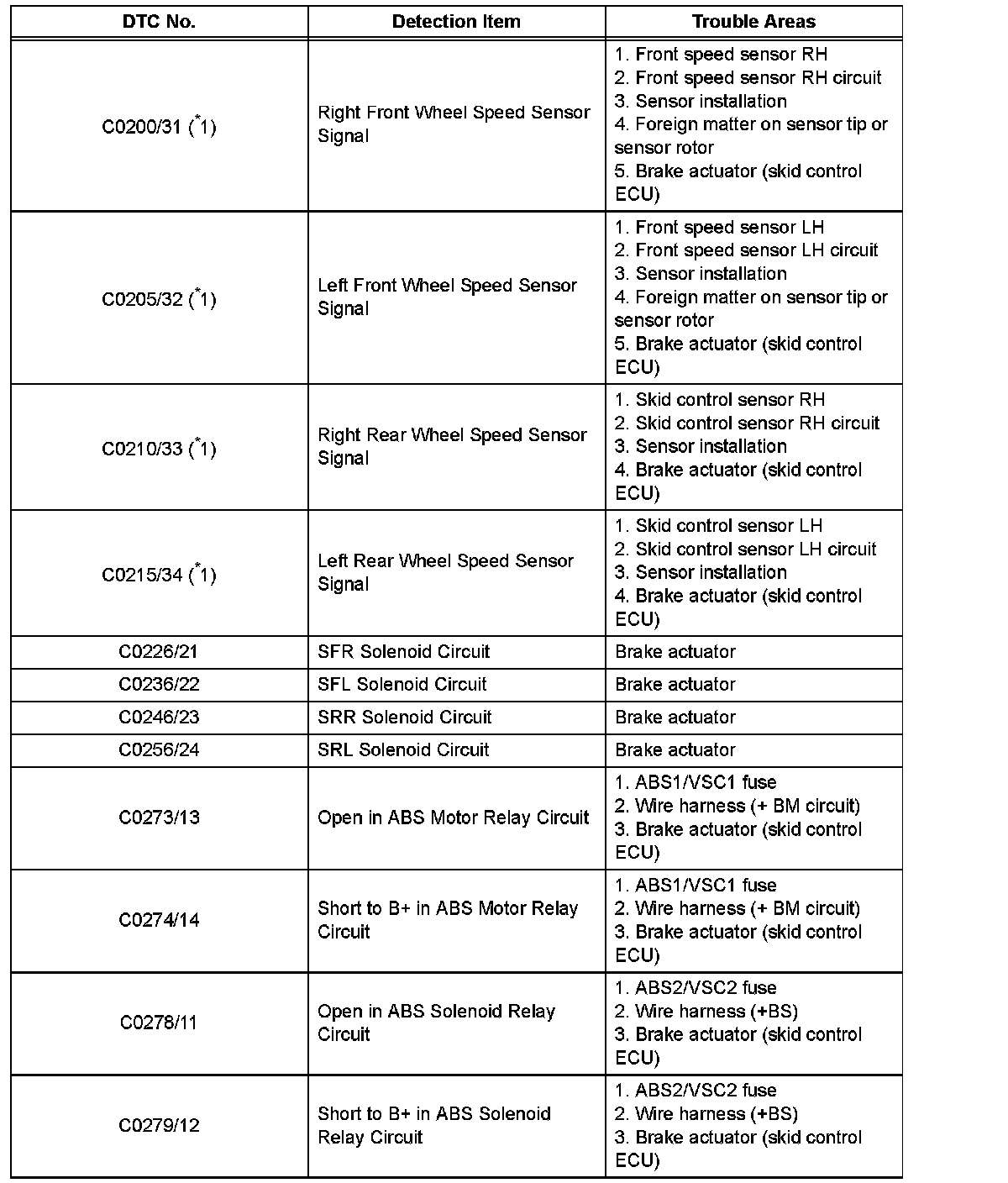

C0200/31-C0279/12:

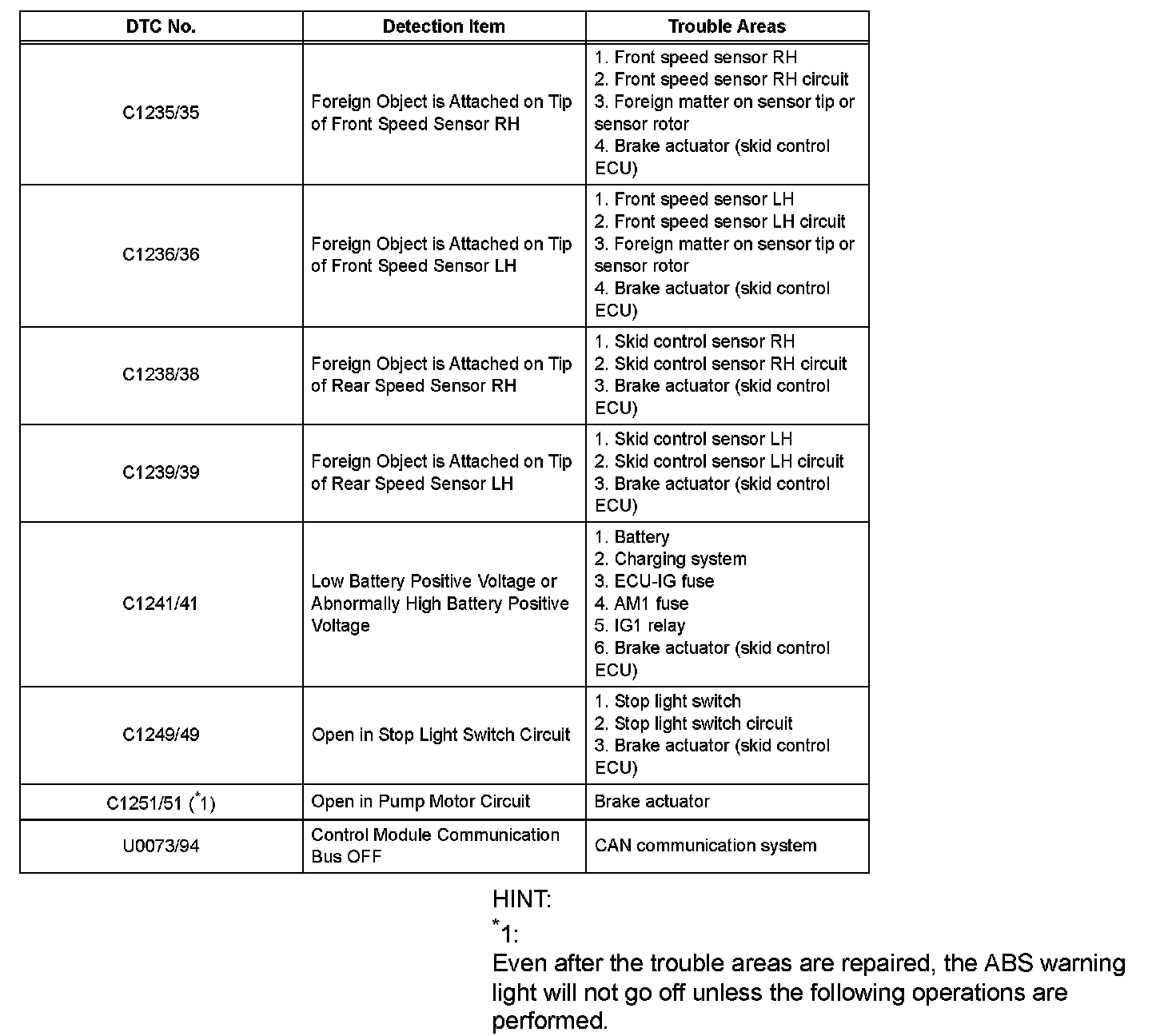

C1235/35-U0073/94:

NOTE: When replacing any parts, turn the ignition switch off.

HINT:
- If no abnormality is found when inspecting parts, check the skid control ECU and check for poor contact at ground points.
- If a DTC is displayed during the DTC check, check the circuit for the DTC listed in the table.
- When 2 or more DTCs are detected, perform circuit inspections one by one until the problem is identified.
- All DTCs in the table are detected in accordance with 1 trip detection logic.

1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC(s).

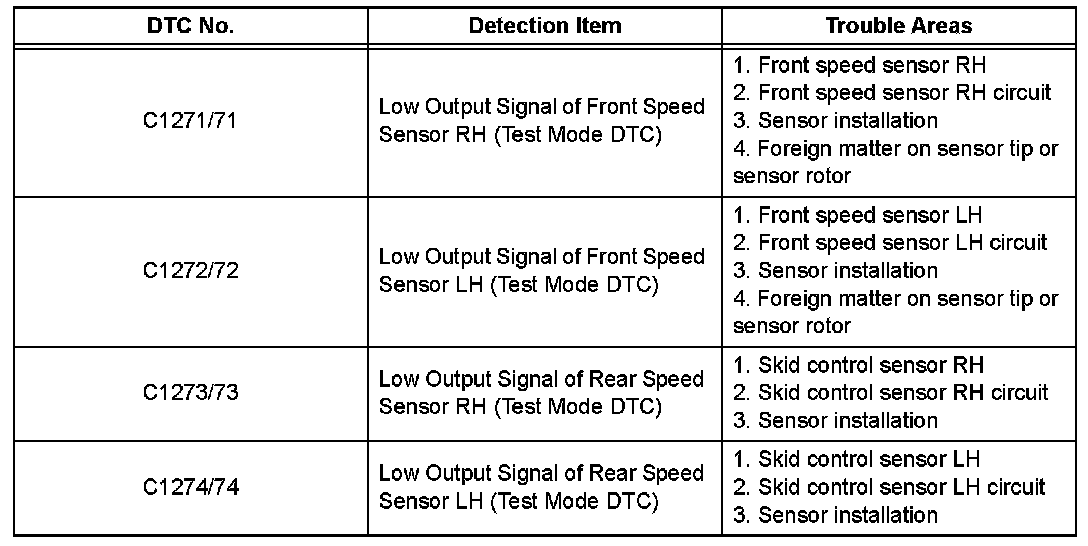

C1271/71-C1274/74:

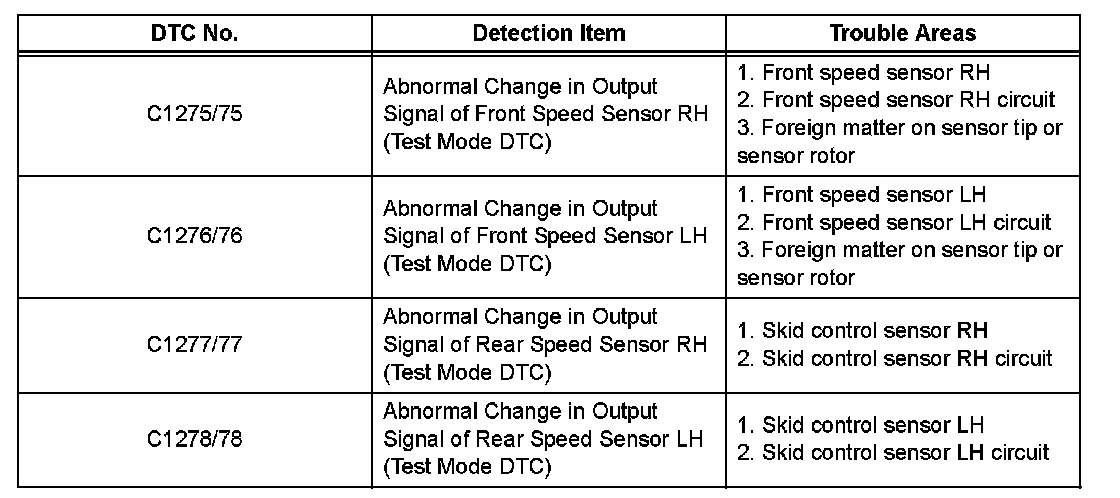

C1275/75-C1278/78:

Test Mode DTC:
