B1794

DTC B1794 Open in Occupant Classification ECU Battery Positive Line

DESCRIPTION

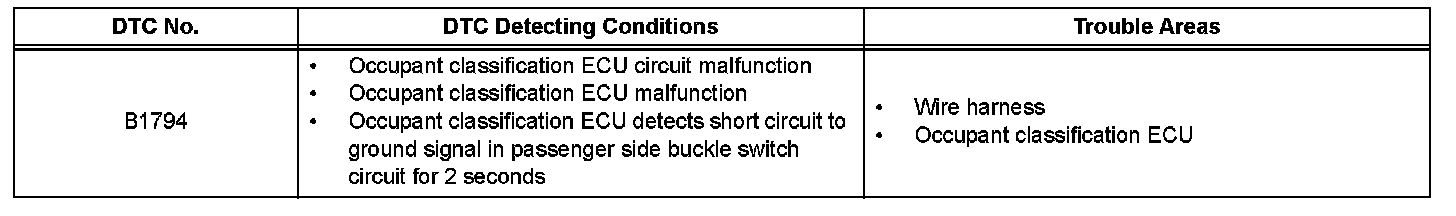

DTC Detecting Conditions:

DTC B1794 is set when a malfunction is detected in the occupant classification ECU battery positive line.

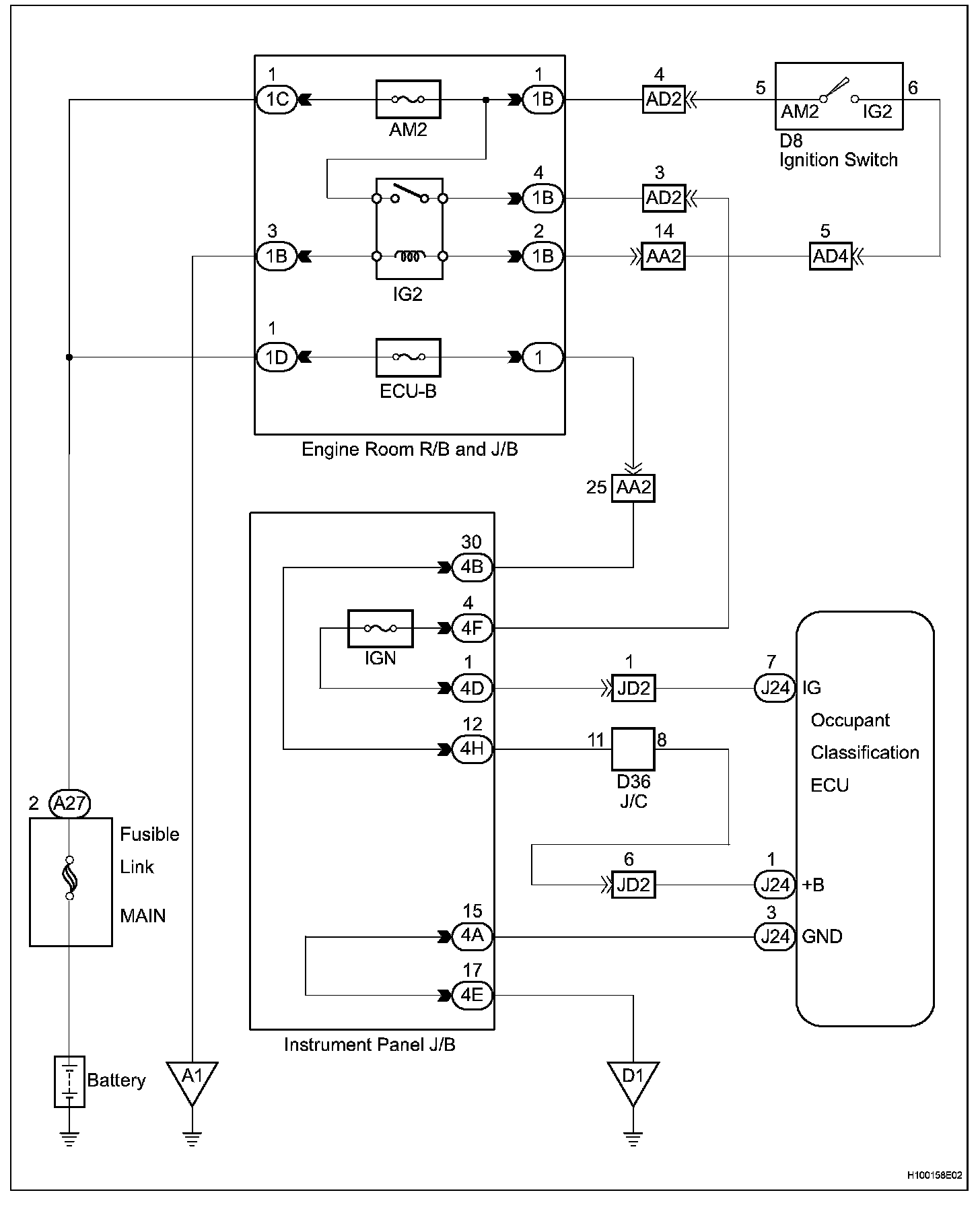

Wiring Diagram:

INSPECTION PROCEDURE

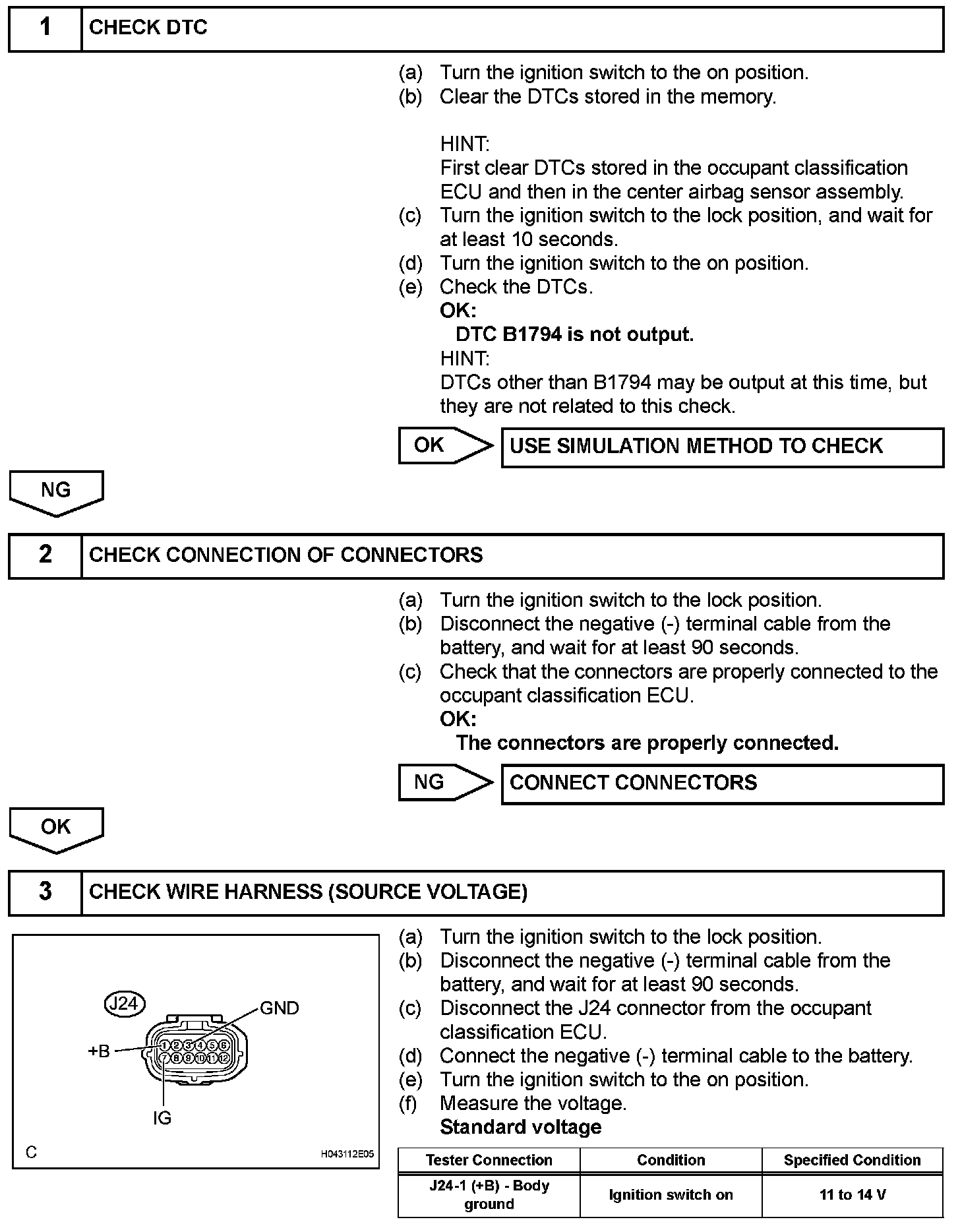

Step 1-3:

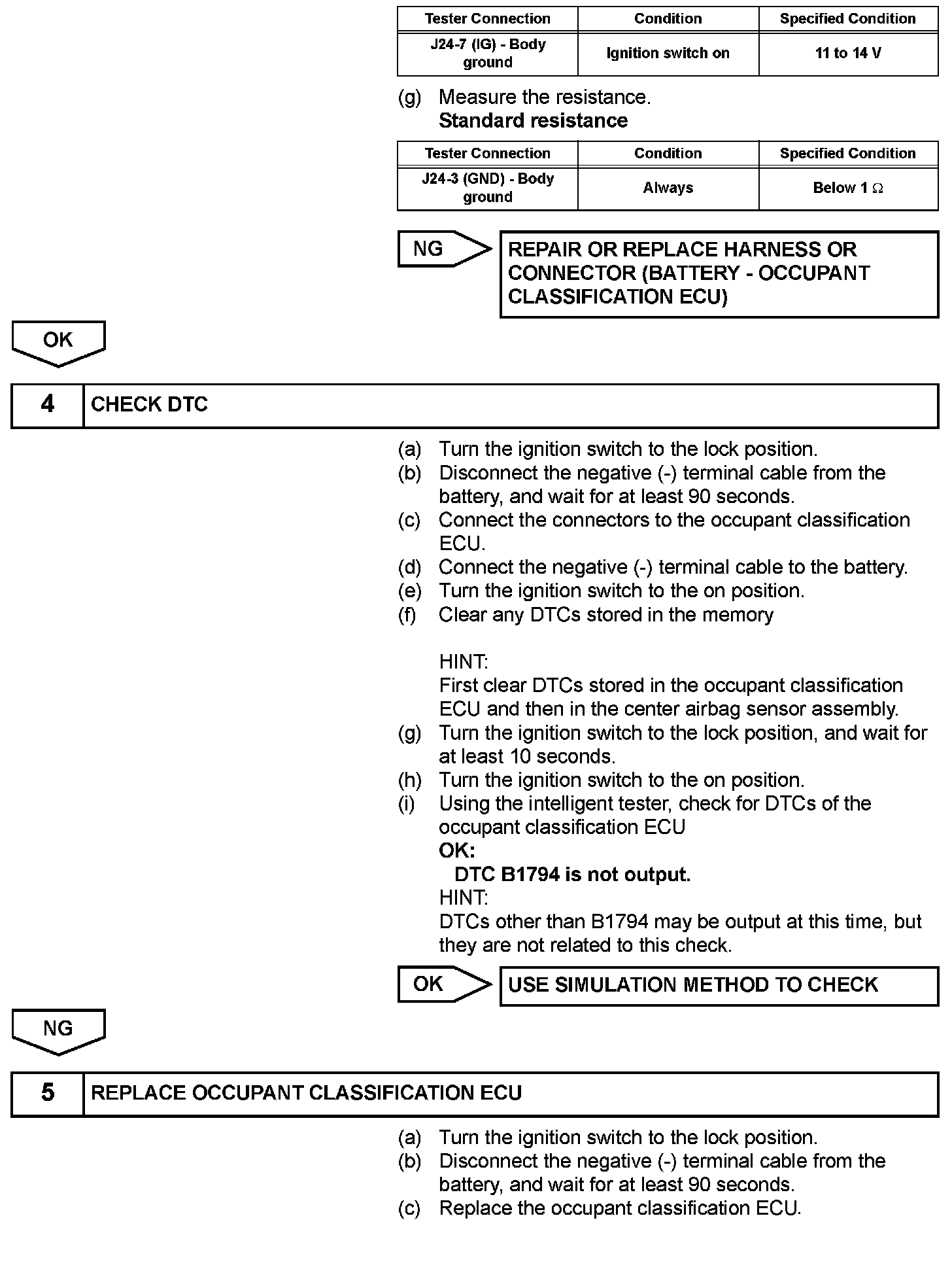

Step 3(Continued)-5:

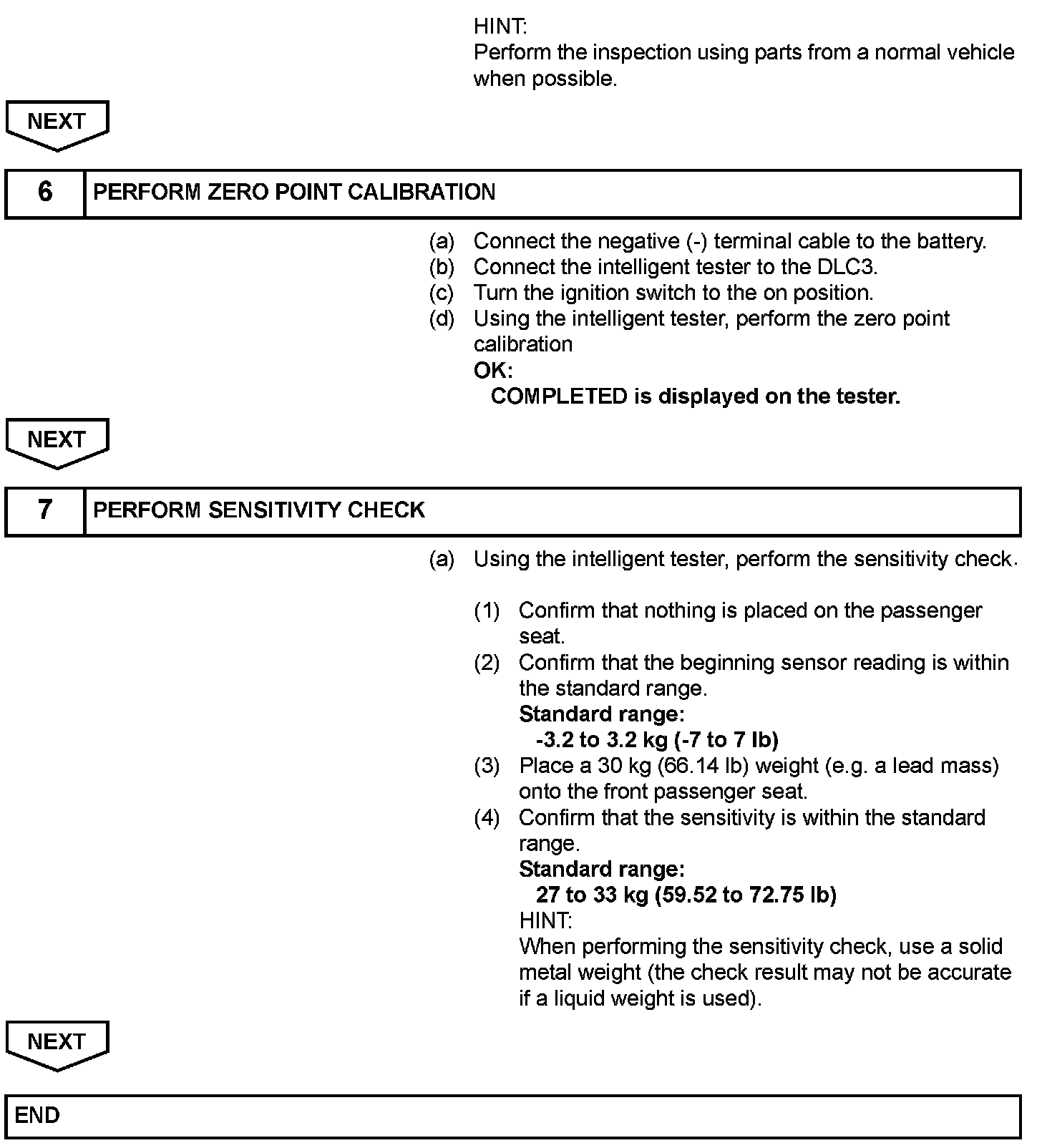

Step 5(Continued)-7:
