DTC B1793 Occupant Classification Sensor Power Supply Circuit Malfunction

DESCRIPTION

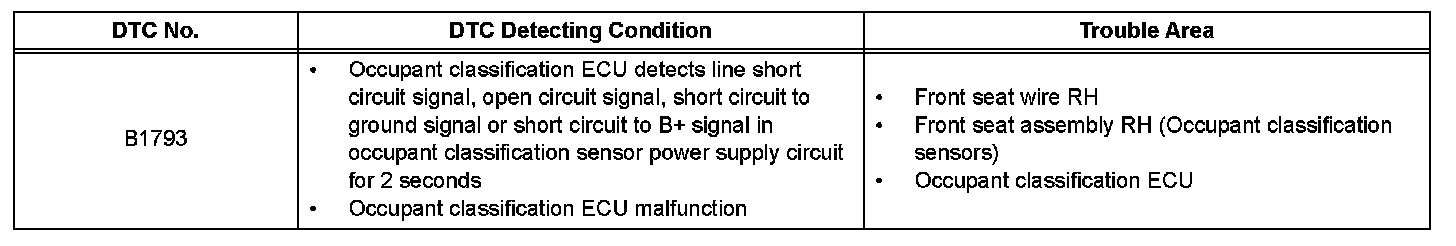

DTC Detecting Condition:

The occupant classification sensor power supply circuit consists of the occupant classification ECU and the occupant classification sensors.

DTC B1793 is recorded when a malfunction is detected in the occupant classification sensor power supply circuit.

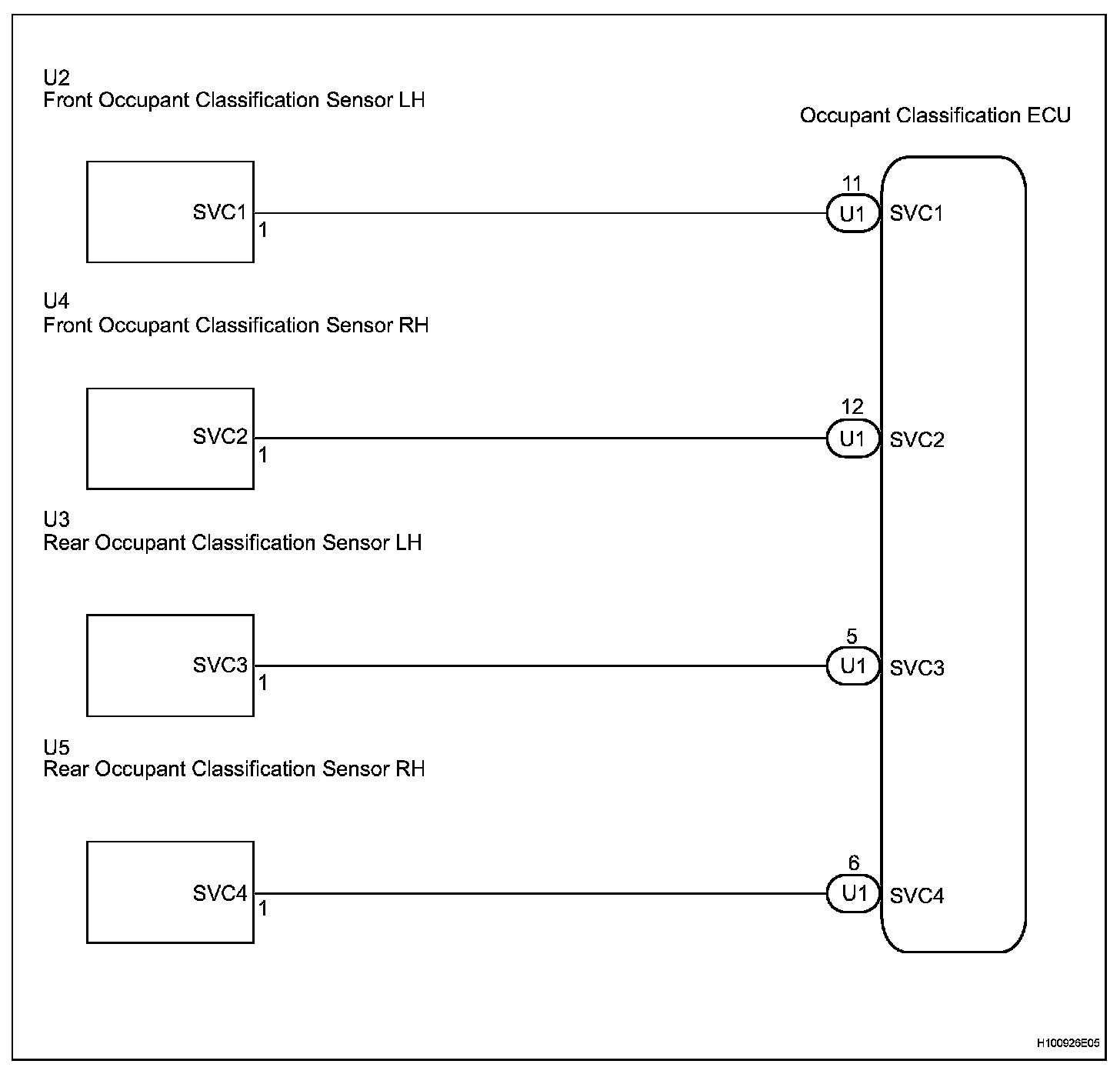

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform remove the front passenger seat installation bolts to see the under surface of the seat cushion.
- In the above case hold the seat so that it does not tip over. Holding the seat for a long period of time may cause a problem such as seat rail deformation. Hold the seat up only for as long as necessary.

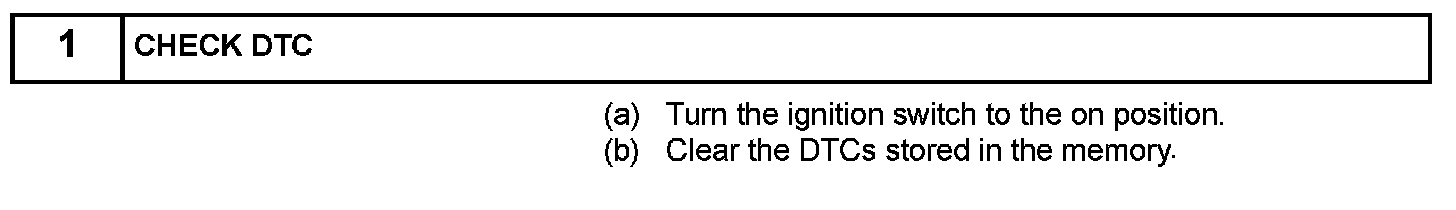

Step 1:

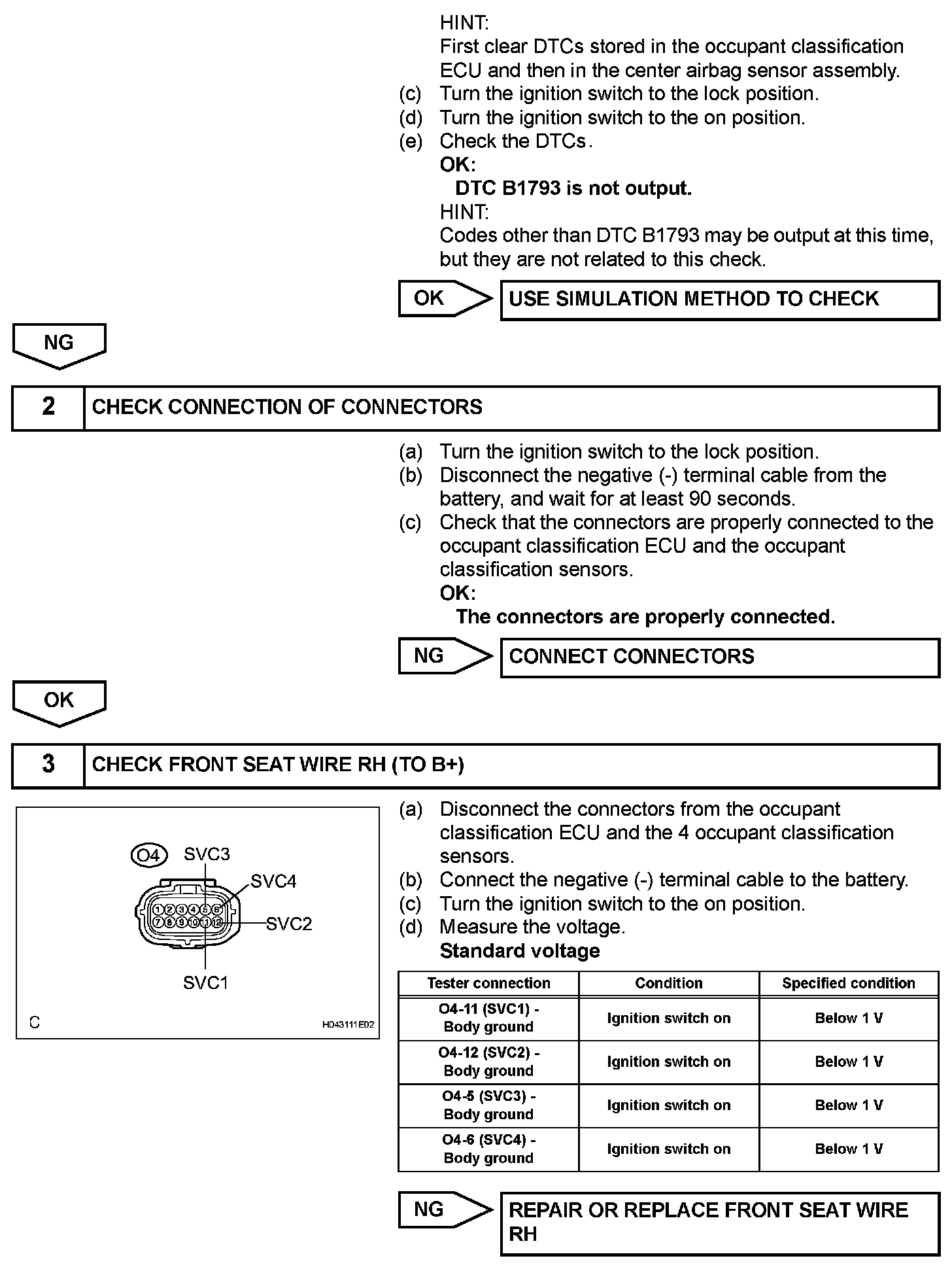

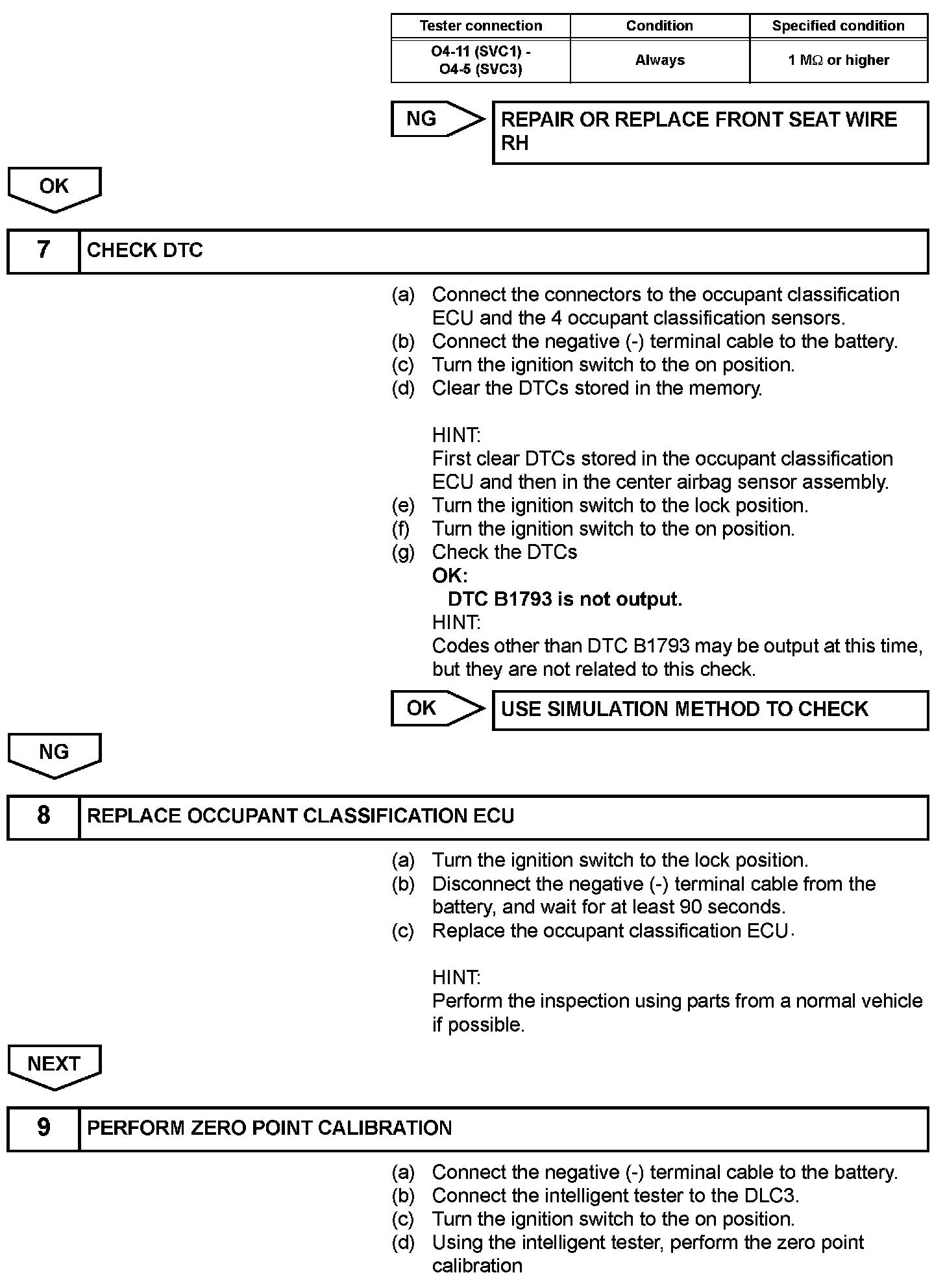

Step 1(Continued)-3:

Step 3(Continued)-4:

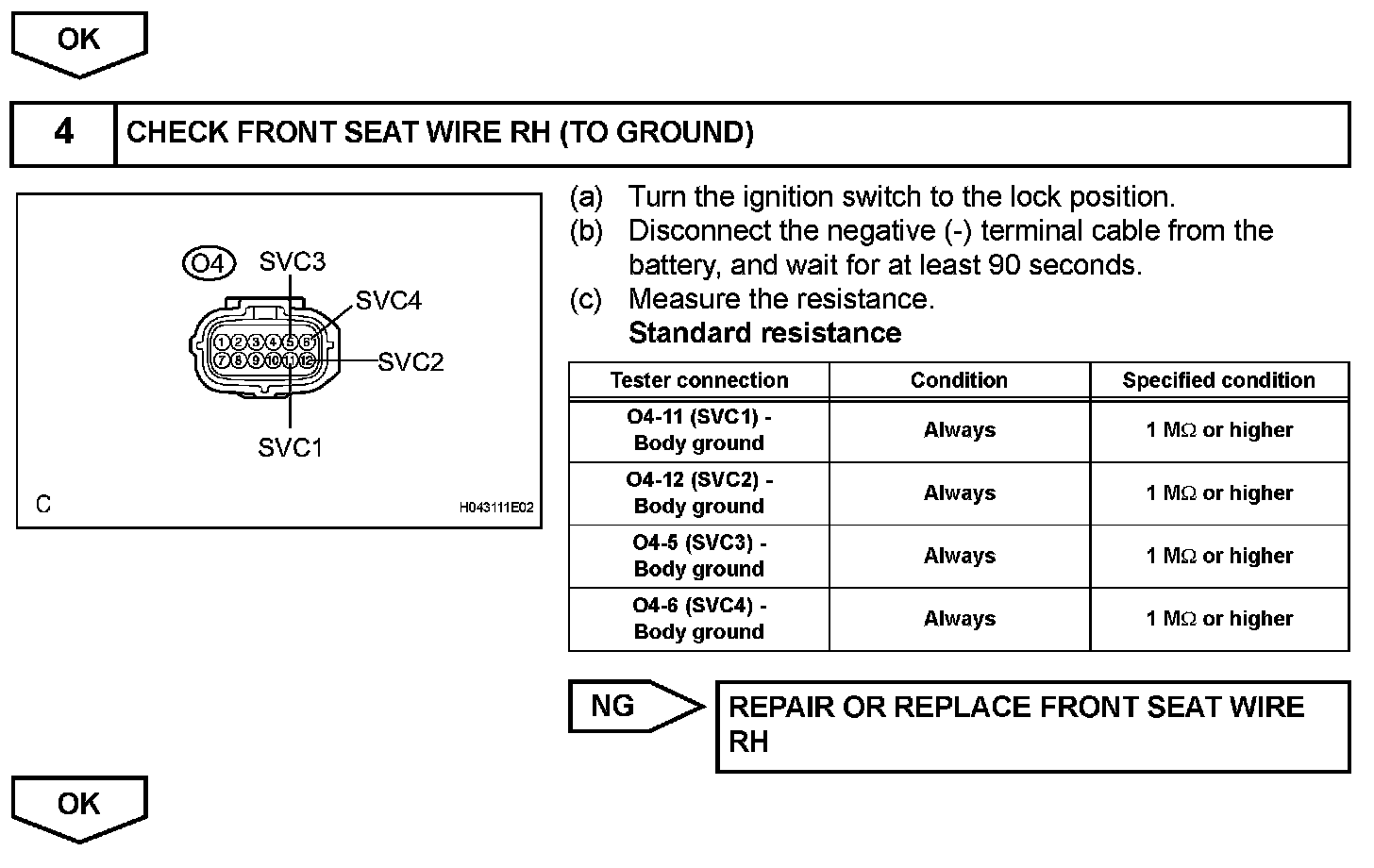

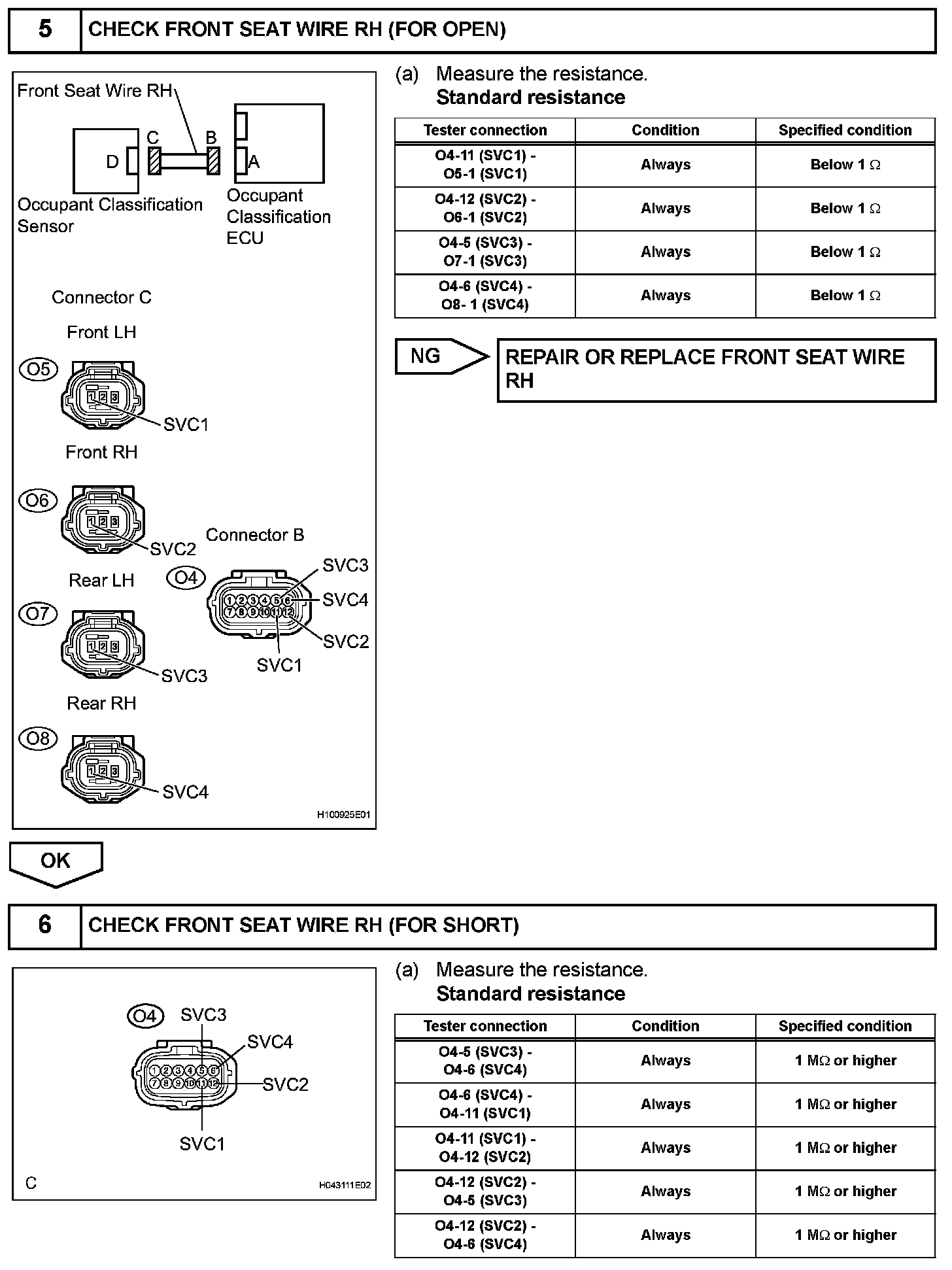

Step 5-6:

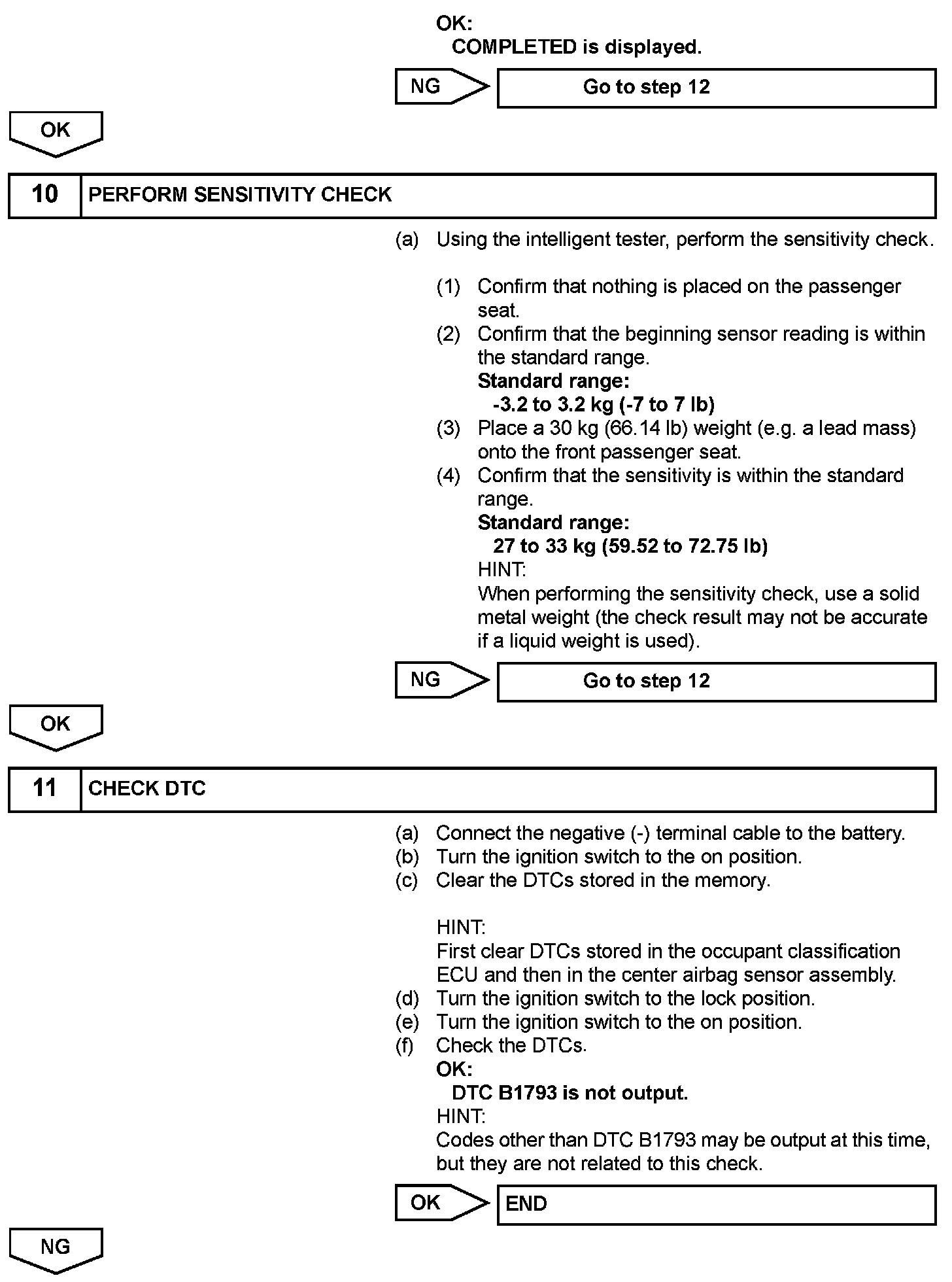

Step 6(Continued)-9:

Step 9(Continued)-11:

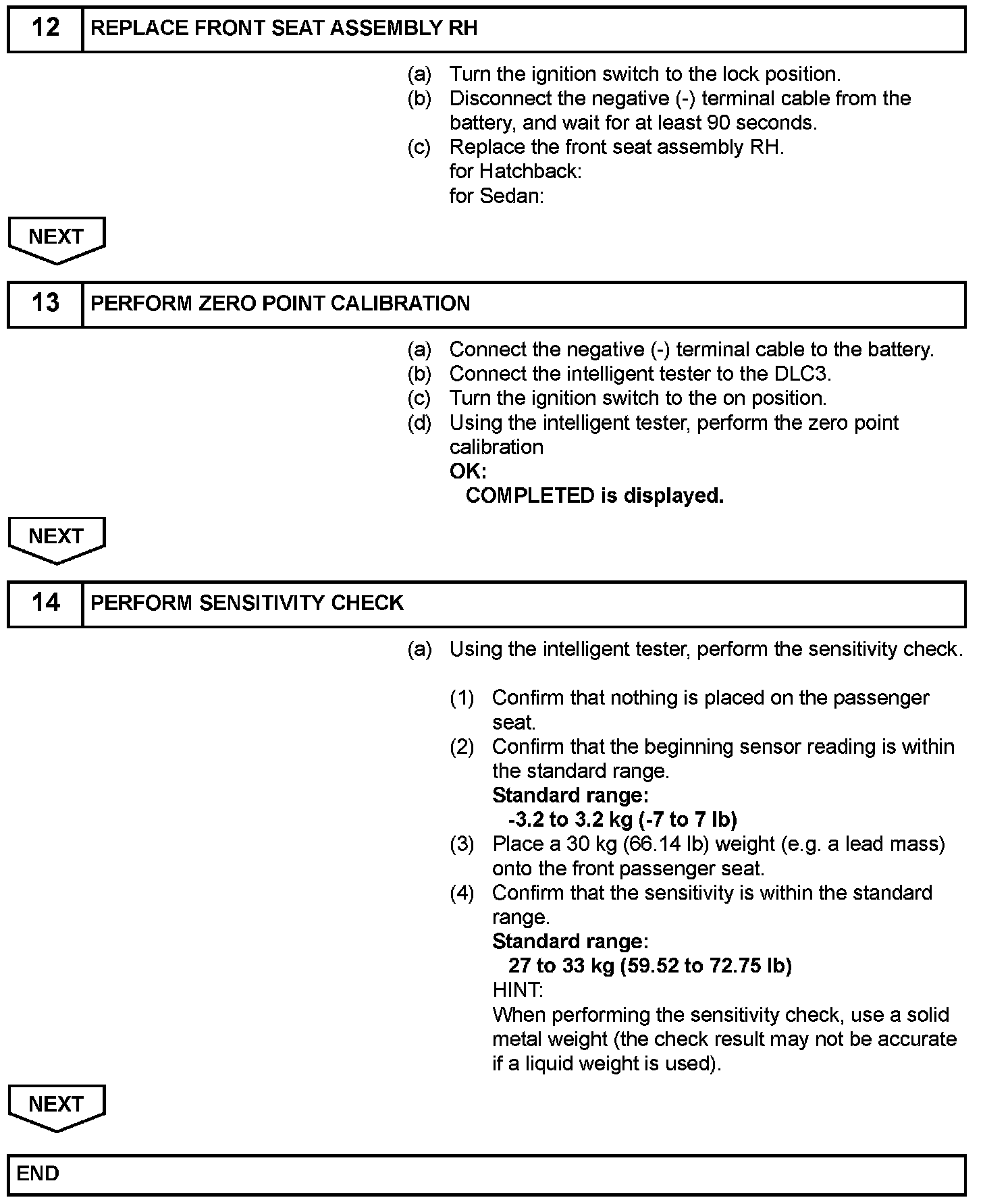

Step 12-14:
