B1787

DTC B1787 Rear Occupant Classification Sensor LH Collision Detection

DESCRIPTION

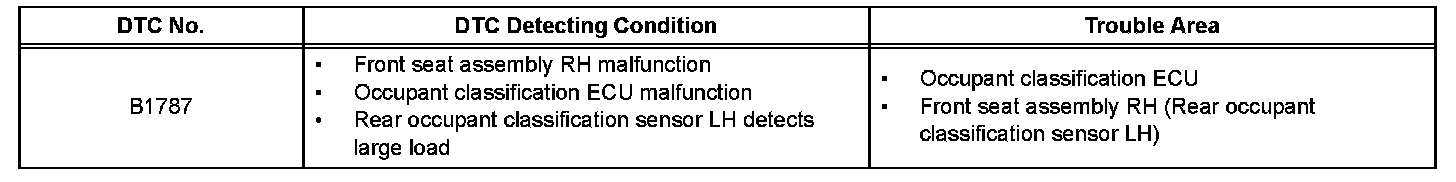

DTC Detecting Condition:

DTC B1787 is output when the occupant classification ECU receives a collision detection signal sent by the rear occupant classification sensor LH when an
accident occurs.

DTC B1787 is also output when the front seat assembly RH is subjected to a strong impact even if an actual accident does not occur.

However when the rear occupant classification sensor LH outputs a collision detection signal even if the vehicle is not in a collision DTC B1787 can be cleared by performing the zero point calibration and sensitivity check.

Therefore when DTC B1787 is output first perform the zero point calibration and sensitivity check.

Wiring Diagram:

INSPECTION PROCEDURE

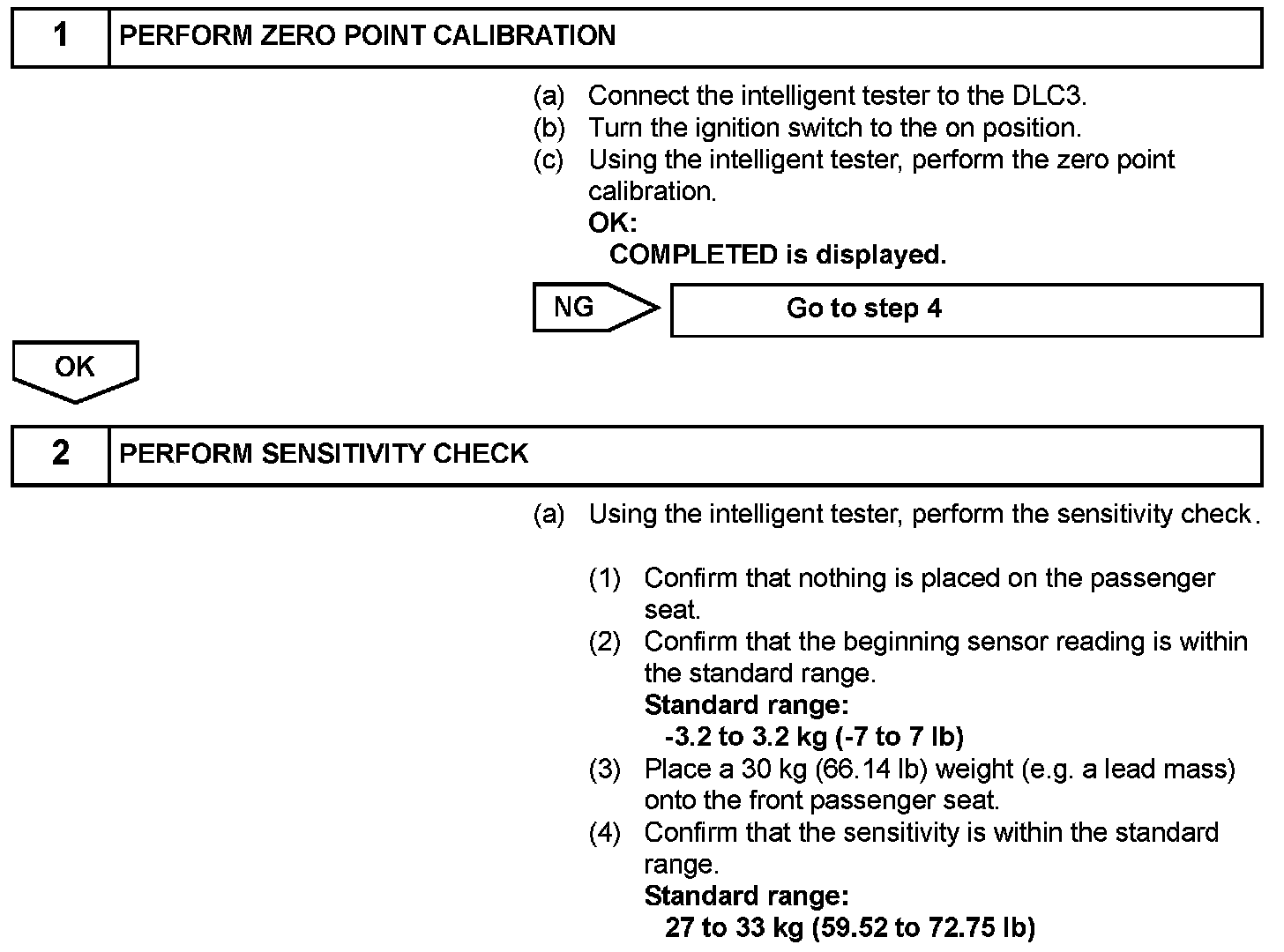

Step 1-2:

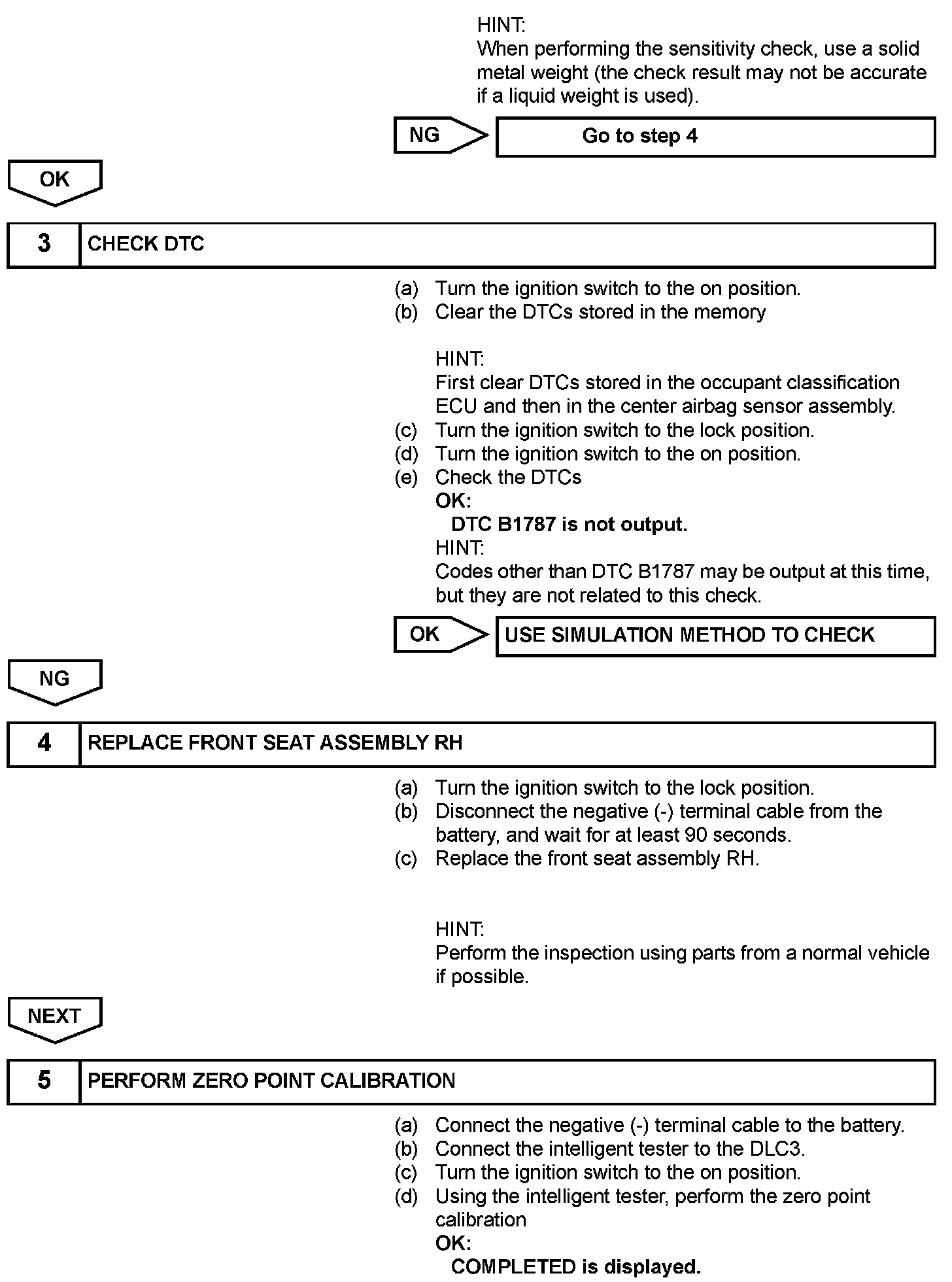

Step 2(Continued)-5:

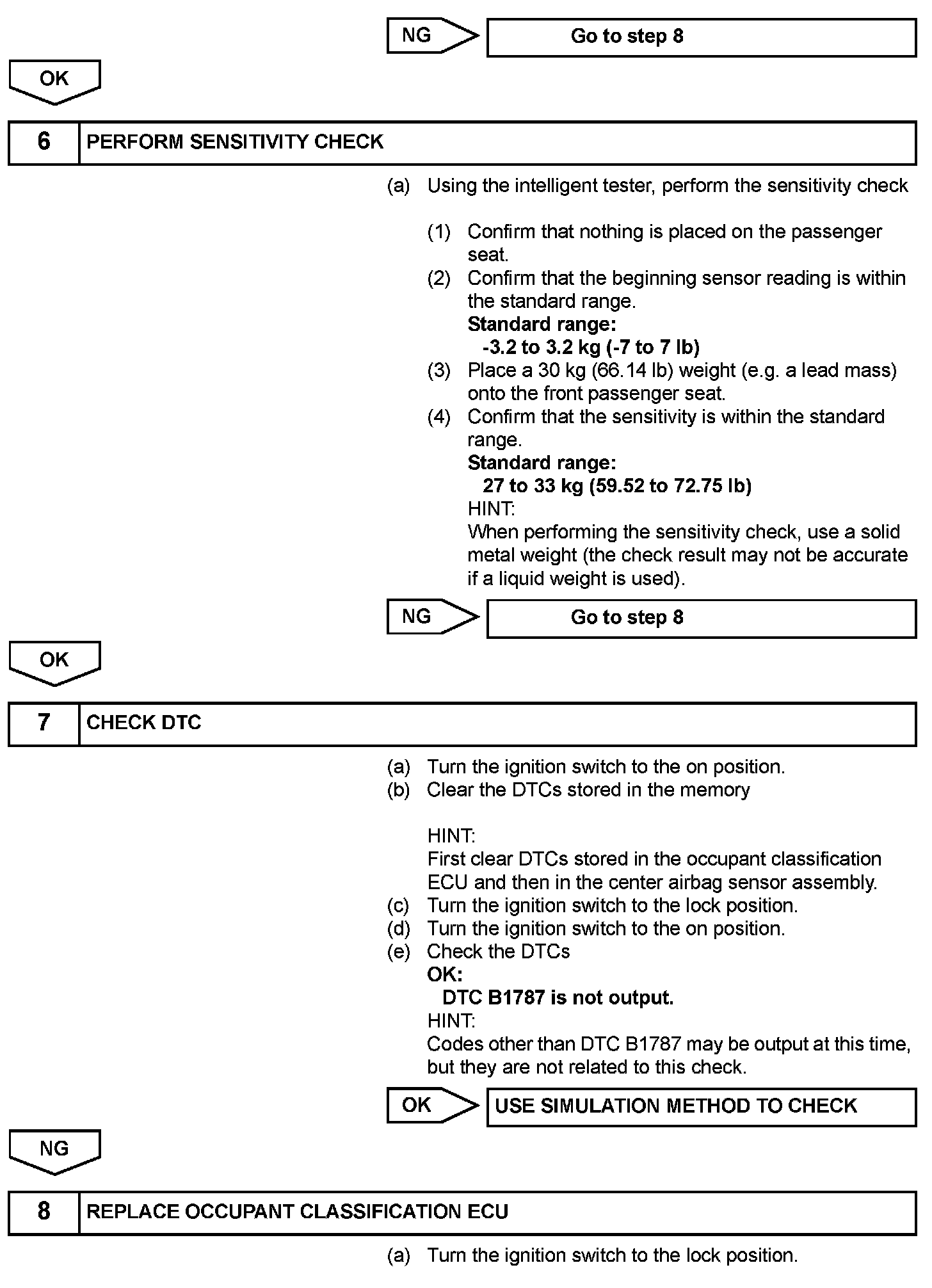

Step 5(Continued)-8:

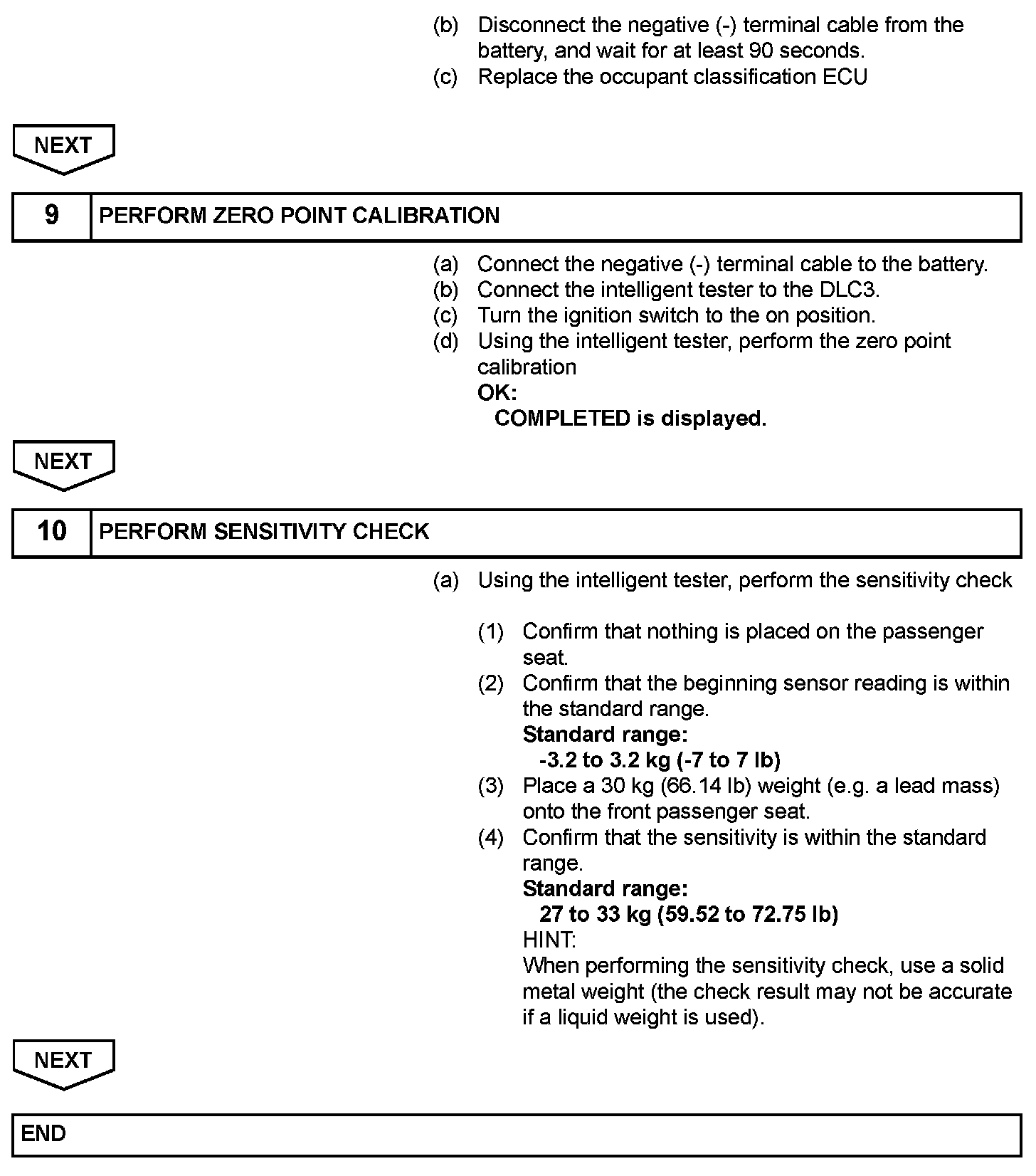

Step 8(Continued)-10:
