B1786

DTC B1786 Front Occupant Classification Sensor RH Collision Detection

DESCRIPTION

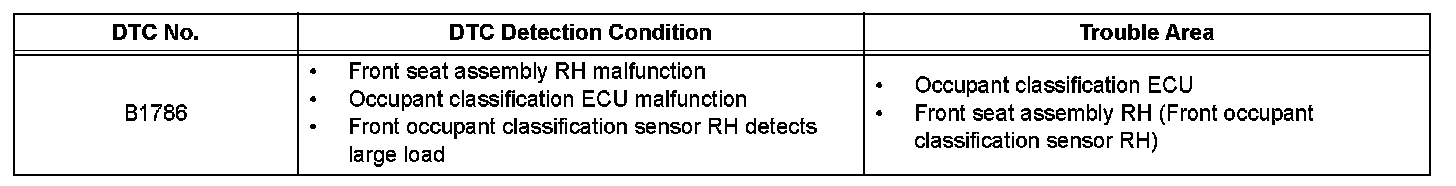

DTC Detection Condition:

DTC B1786 is output when the occupant classification ECU receives a collision detection signal sent by the front occupant classification sensor RH when an accident occurs.

DTC B1786 is also output when the front seat assembly RH is subjected to a strong impact even if an actual accident does not occur.

However when the front occupant classification sensor RH outputs a collision detection signal even if the vehicle is not in a collision DTC B1786 can be cleared by performing the zero point calibration and sensitivity check.

Therefore when DTC B1786 is output first perform the zero point calibration and sensitivity check.

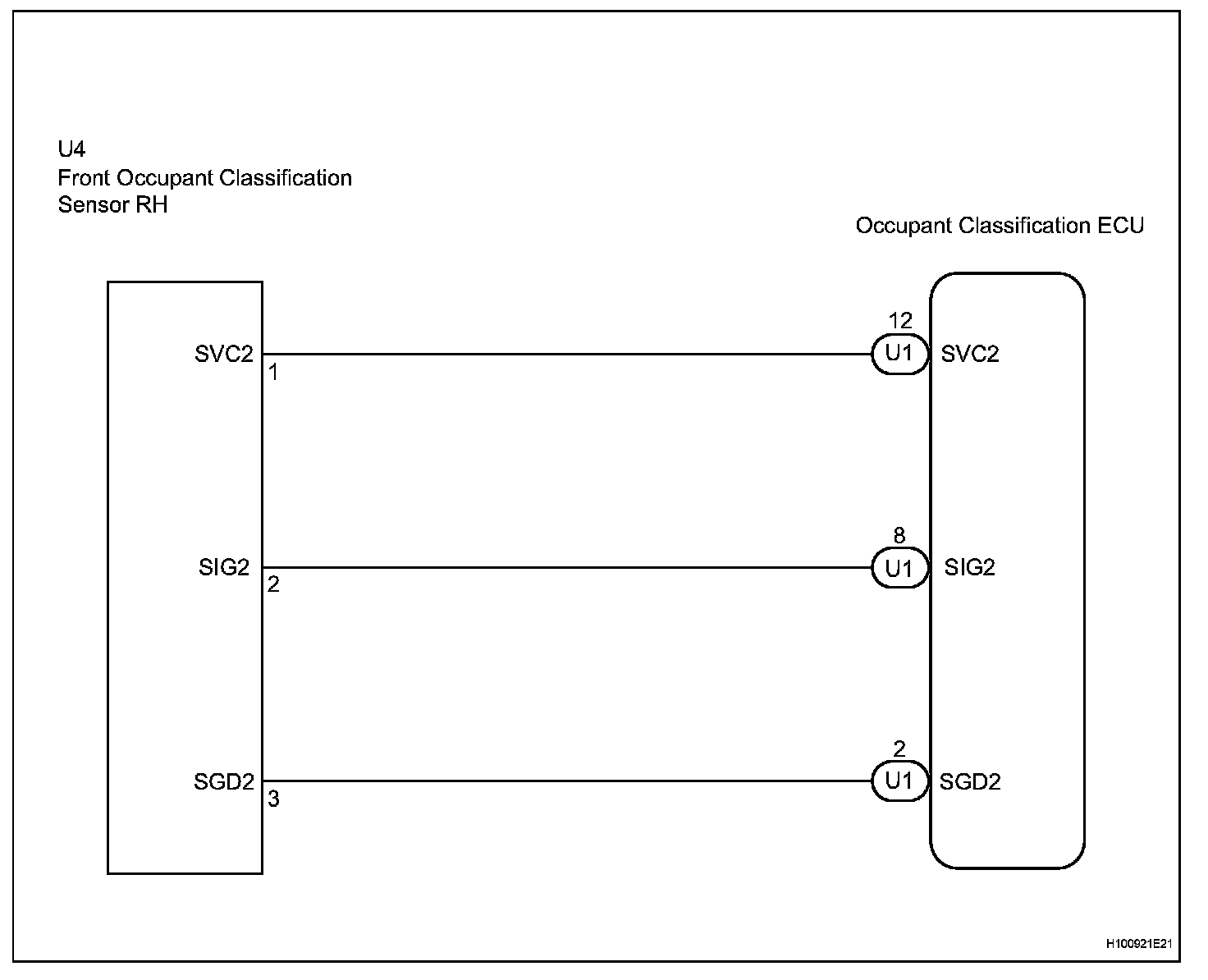

Wiring Diagram:

INSPECTION PROCEDURE

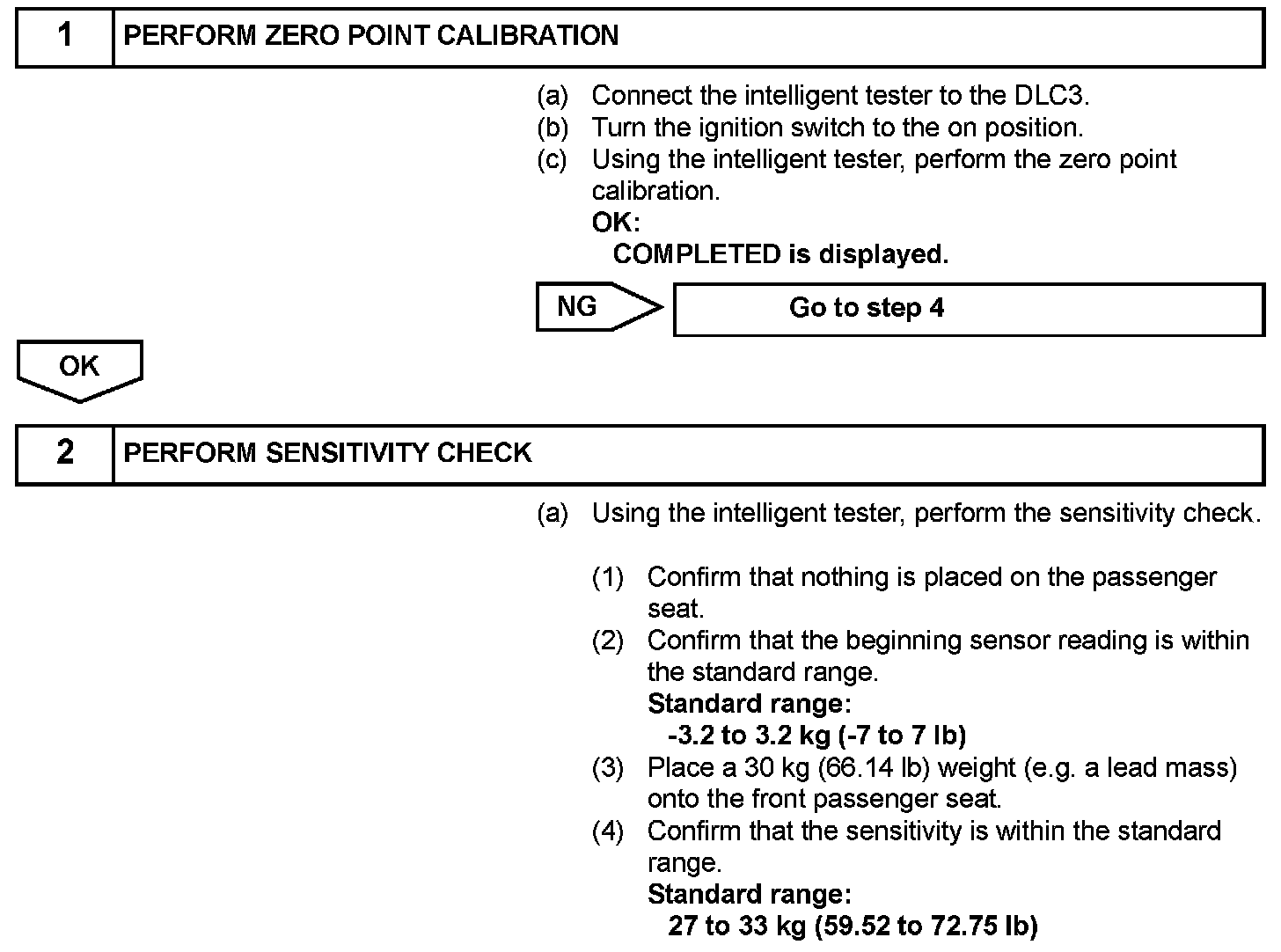

Step 1-2:

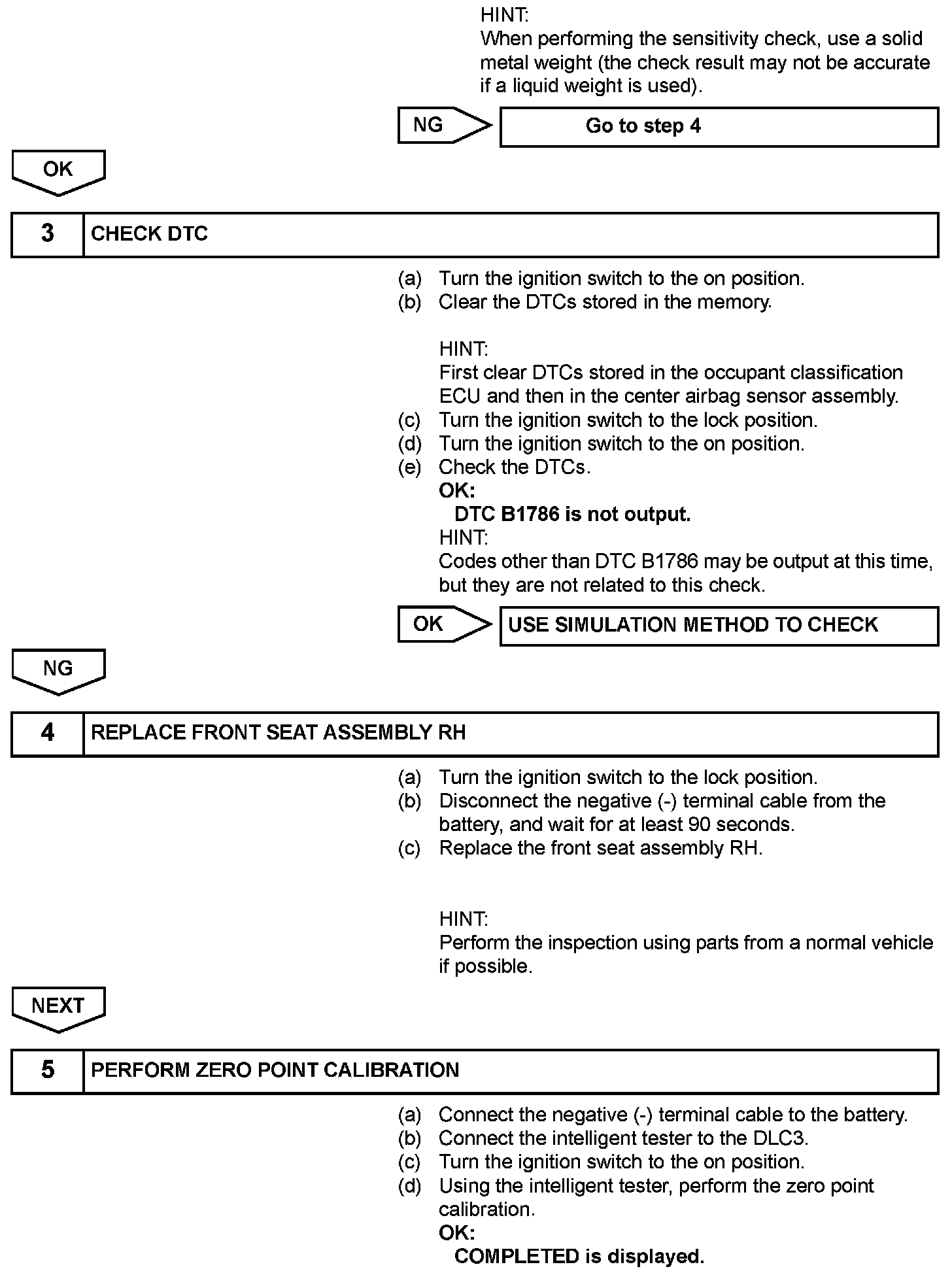

Step 2(Continued)-5:

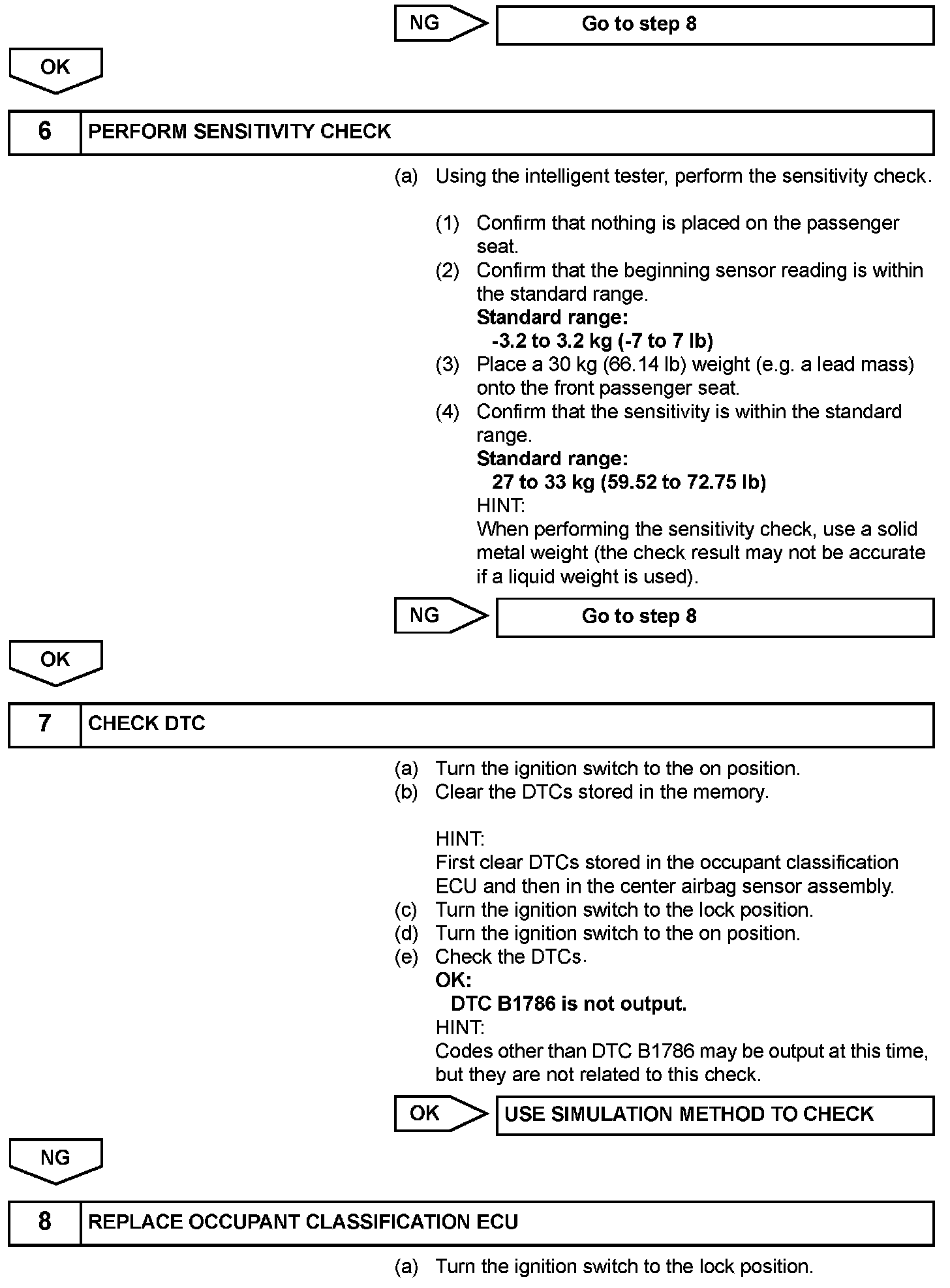

Step 5(Continued)-8:

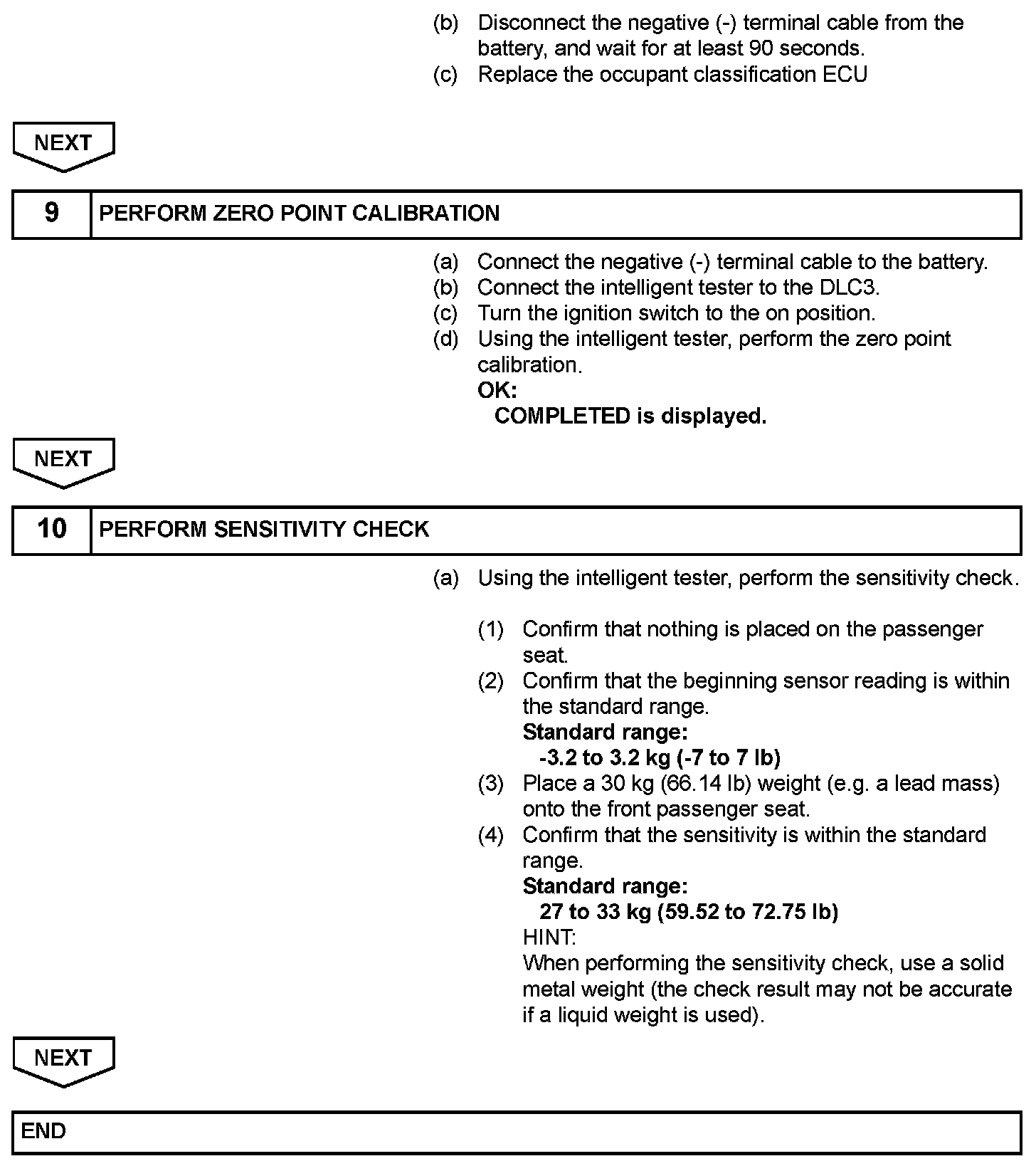

Step 8(Continued)-10:
