B1785

DTC B1785 Front Occupant Classification Sensor LH Collision Detection

DESCRIPTION

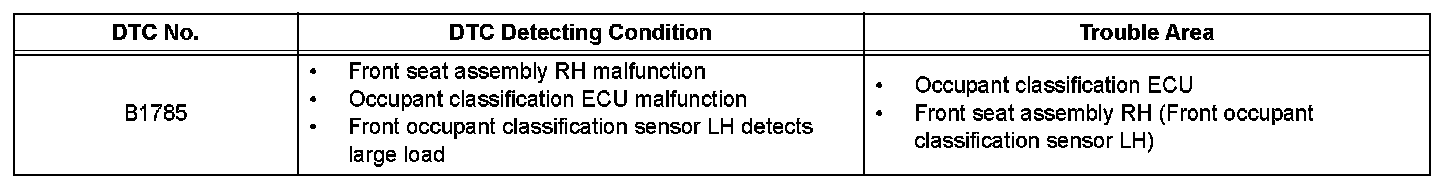

DTC Detecting Condition:

DTC B1785 is output when the occupant classification ECU receives a collision detection signal sent by the front occupant classification sensor LH when an
accident occurs.

DTC B1785 is also output when the front seat assembly RH is subjected to a strong impact even if an actual accident does not occur.

However when the front occupant classification sensor LH outputs a collision detection signal even if the vehicle is not in a collision DTC B1785 can be cleared by performing the zero point calibration and sensitivity check.

Therefore when DTC B1785 is output first perform the zero point calibration and sensitivity check.

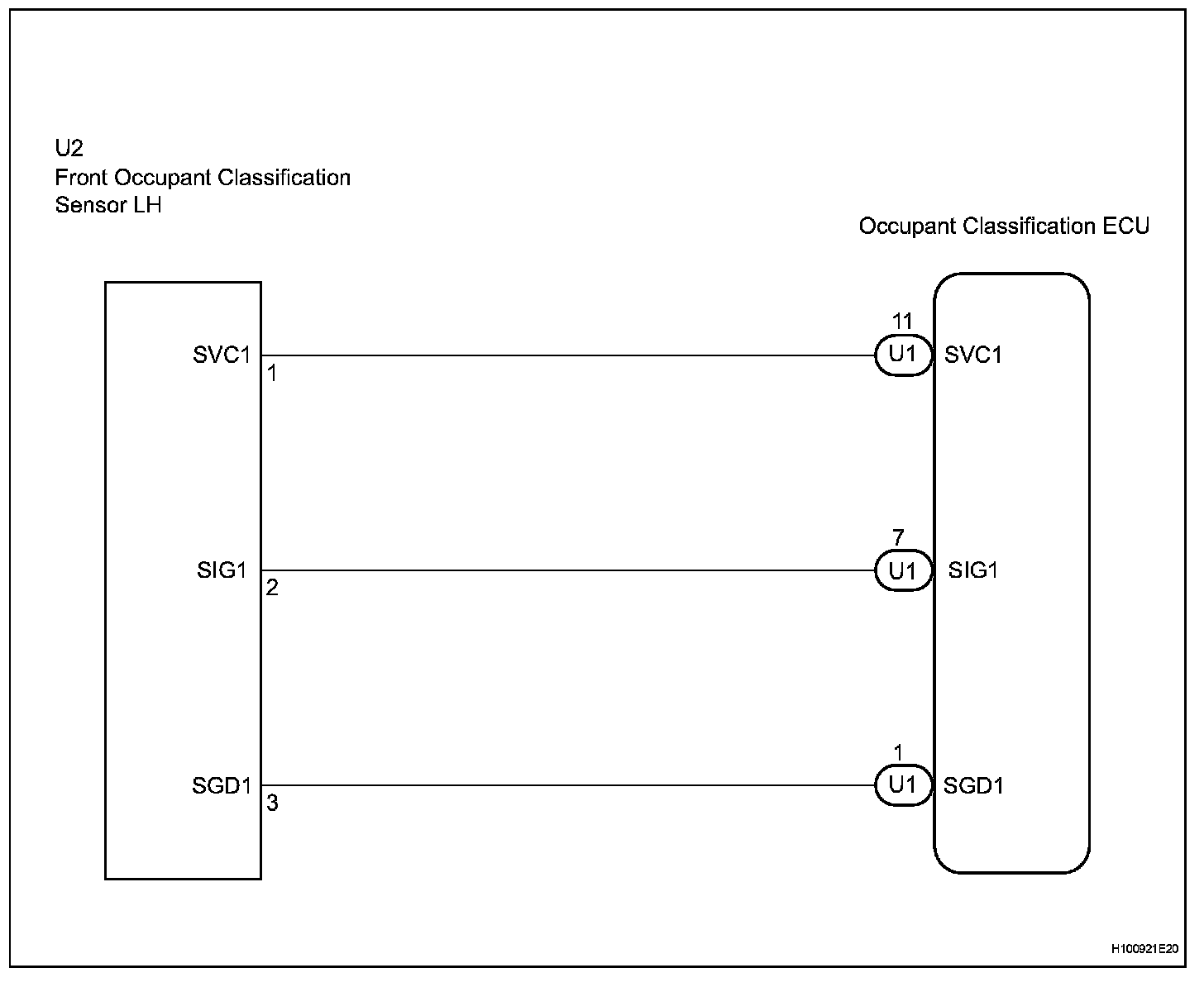

Wiring Diagram:

INSPECTION PROCEDURE

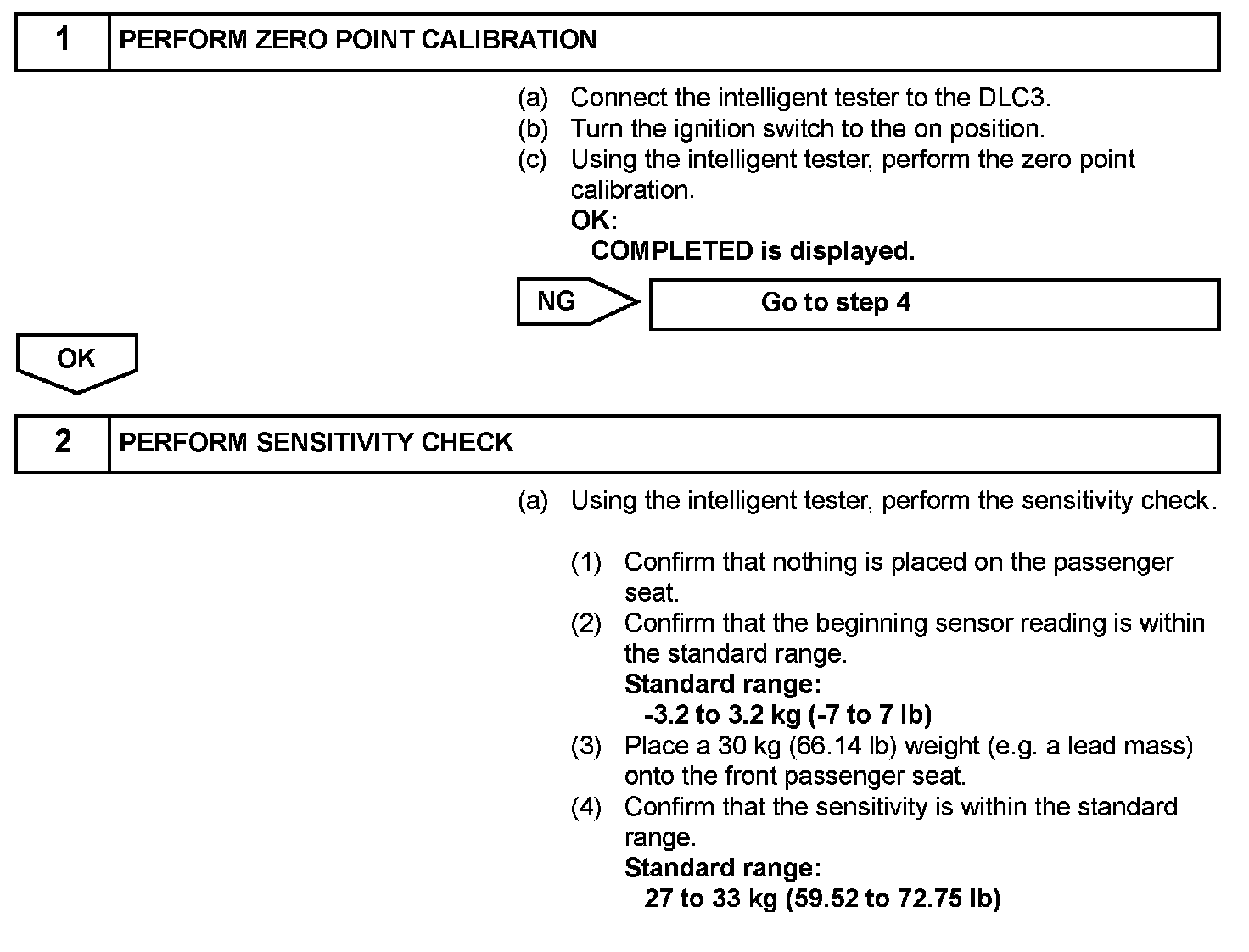

Step 1-2:

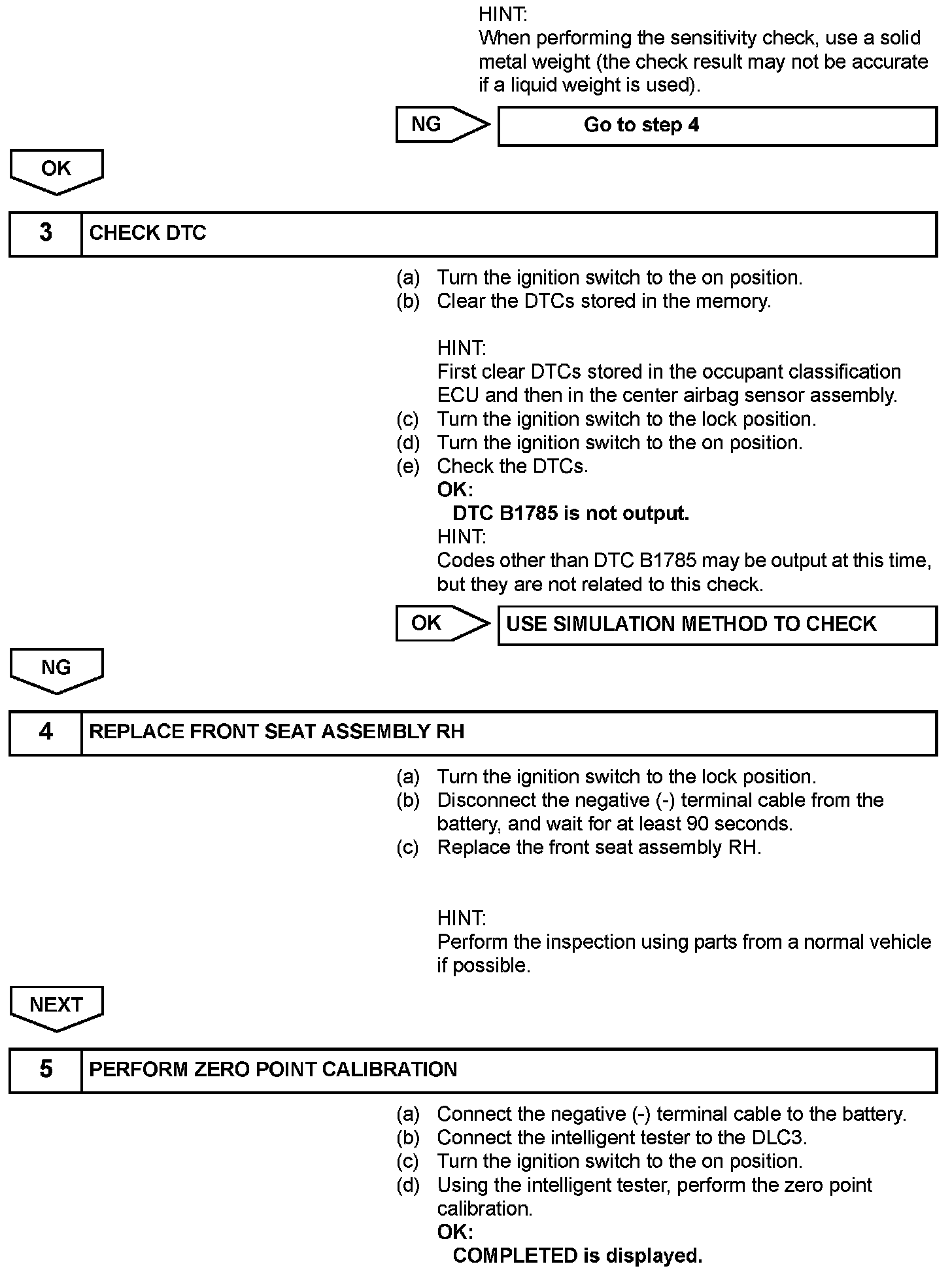

Step 2(Continued)-5:

Step 5(Continued)-8:

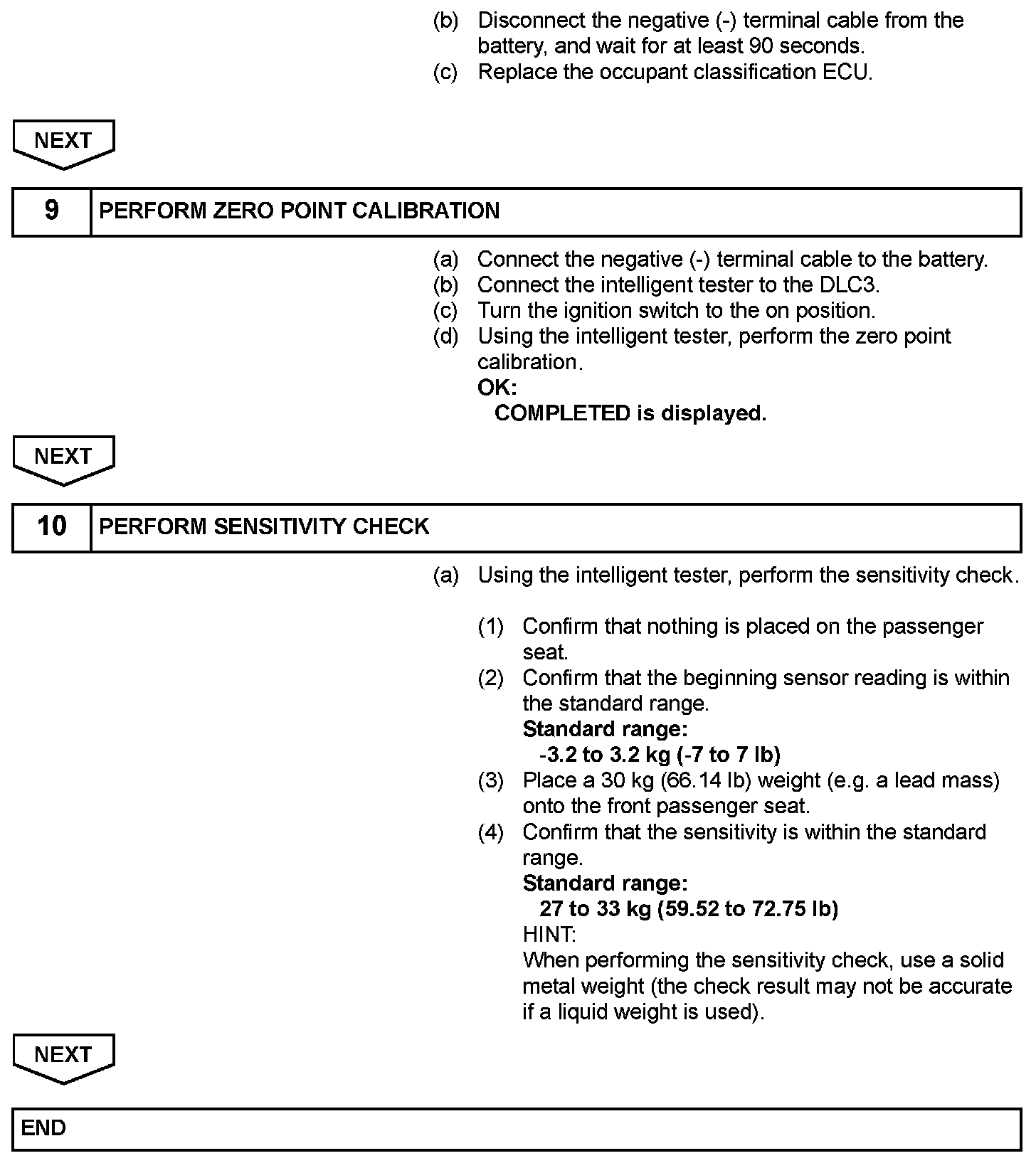

Step 8(Continued)-10:
