B1771

DTC B1771 Passenger Side Buckle Switch Circuit Malfunction

DESCRIPTION

DTC Detecting Condition:

The passenger side buckle switch circuit consists of the occupant classification ECU and the front seat inner belt assembly RH.

DTC B1771 is recorded when a malfunction is detected in the passenger side buckle switch circuit.

Troubleshoot DTC B1771 first when DTCs B1771 and B1795 are output simultaneously.

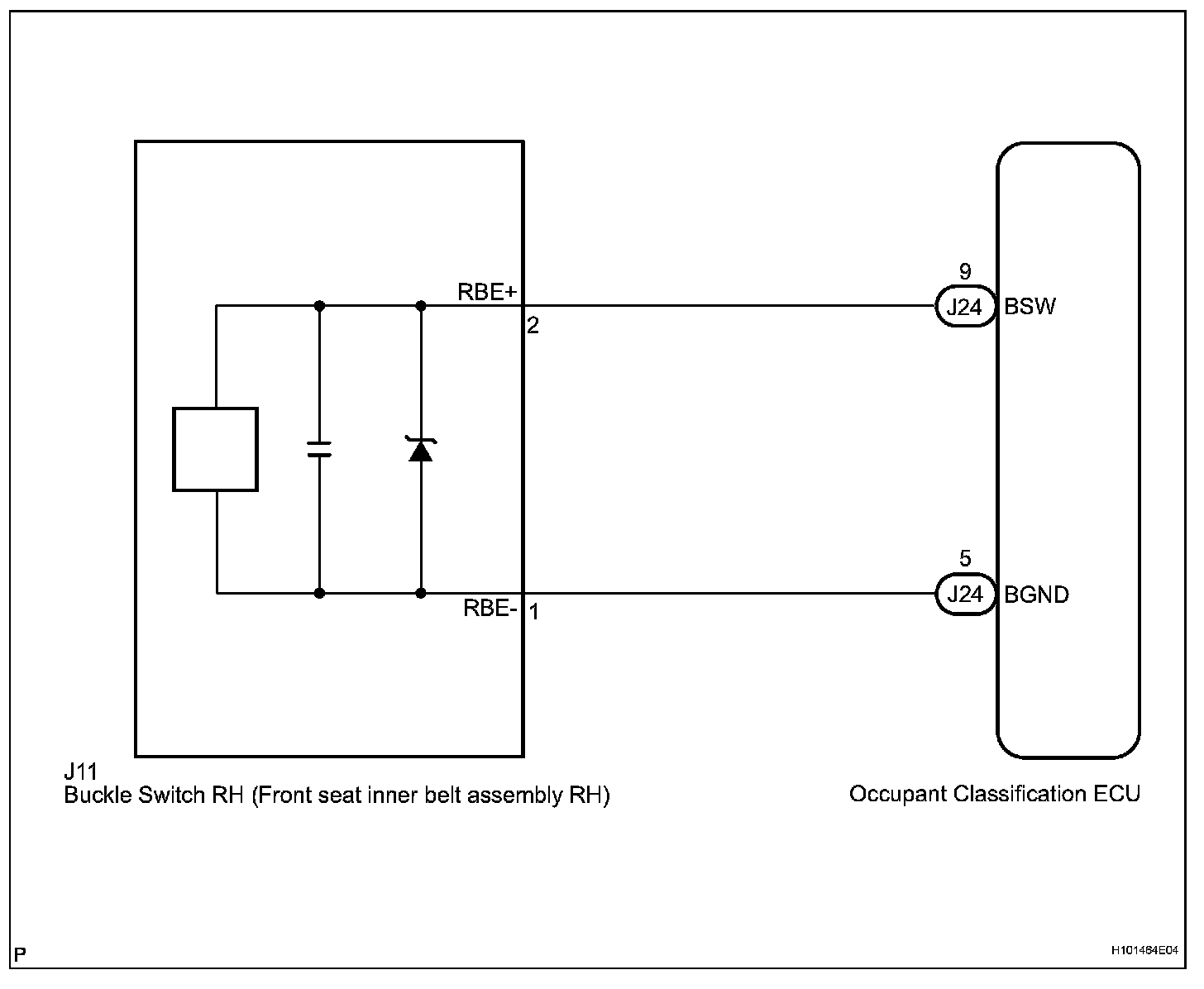

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform remove the front passenger seat installation bolts to see the under surface of the seat cushion.
- In the above case hold the seat so that it does not tip over. Holding the seat for a long period of time may cause a problem such as seat rail deformation. Hold the seat up only for as long as necessary.

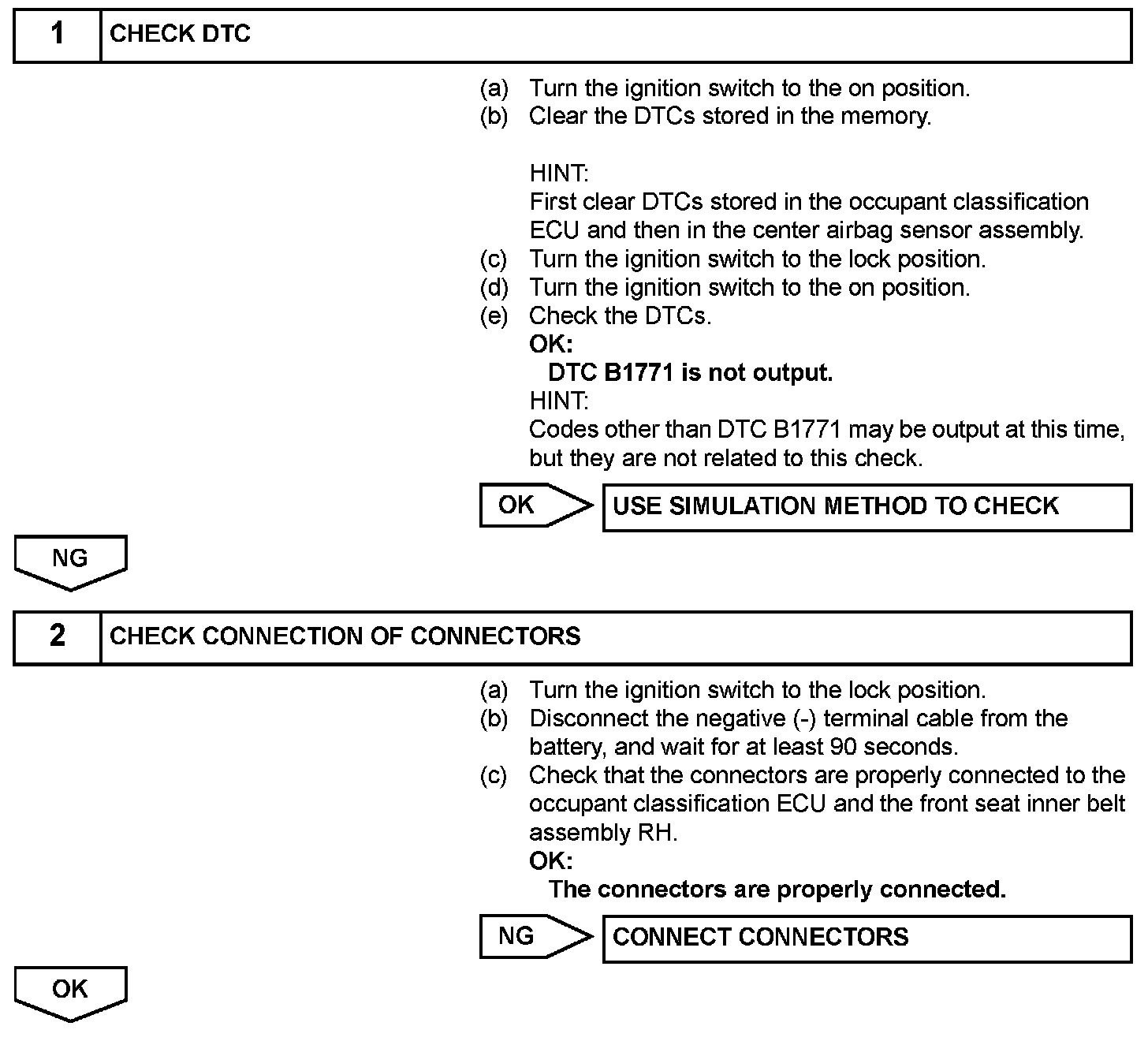

Step 1-2:

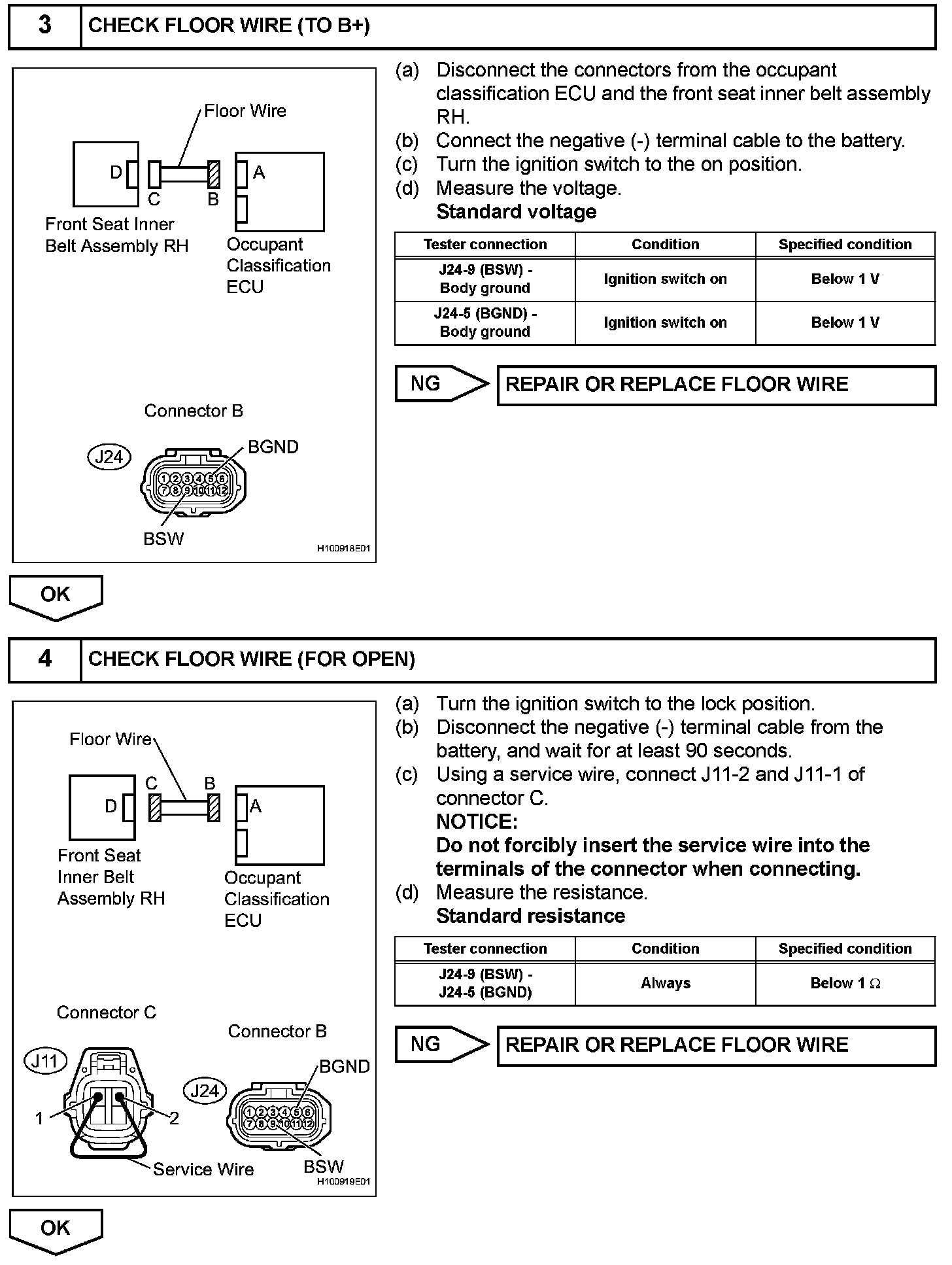

Step 3-4:

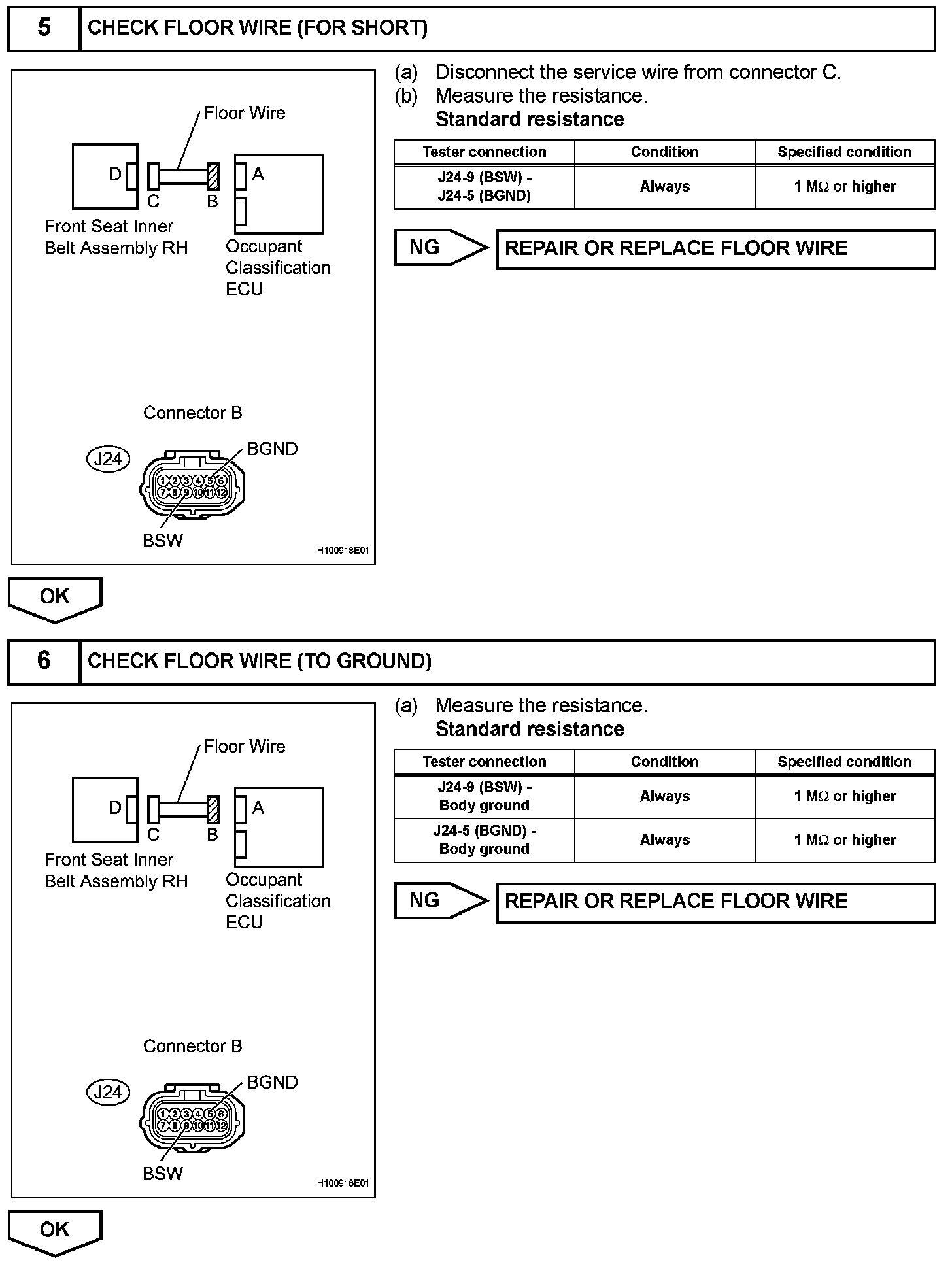

Step 5-6:

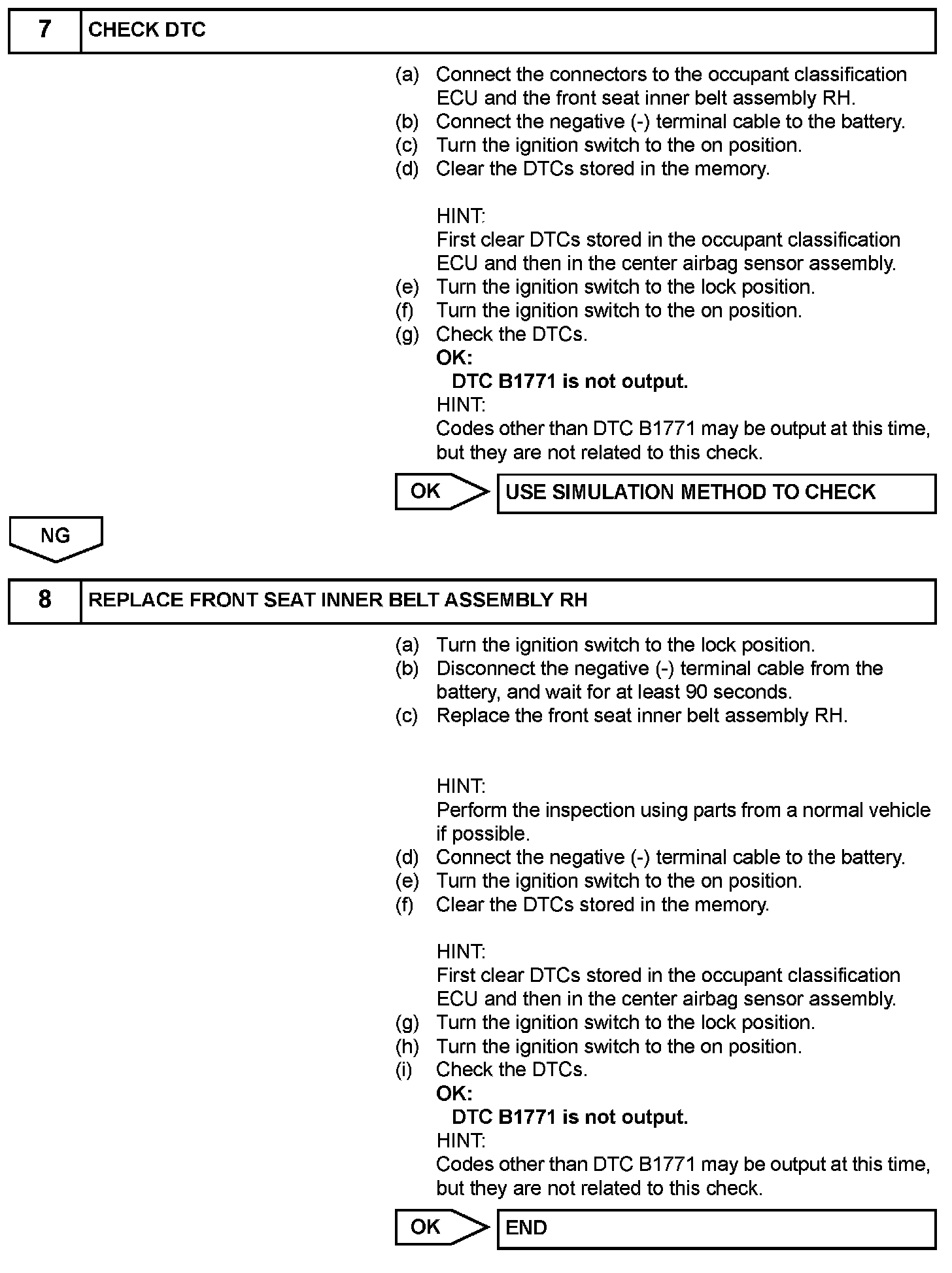

Step 7-8:

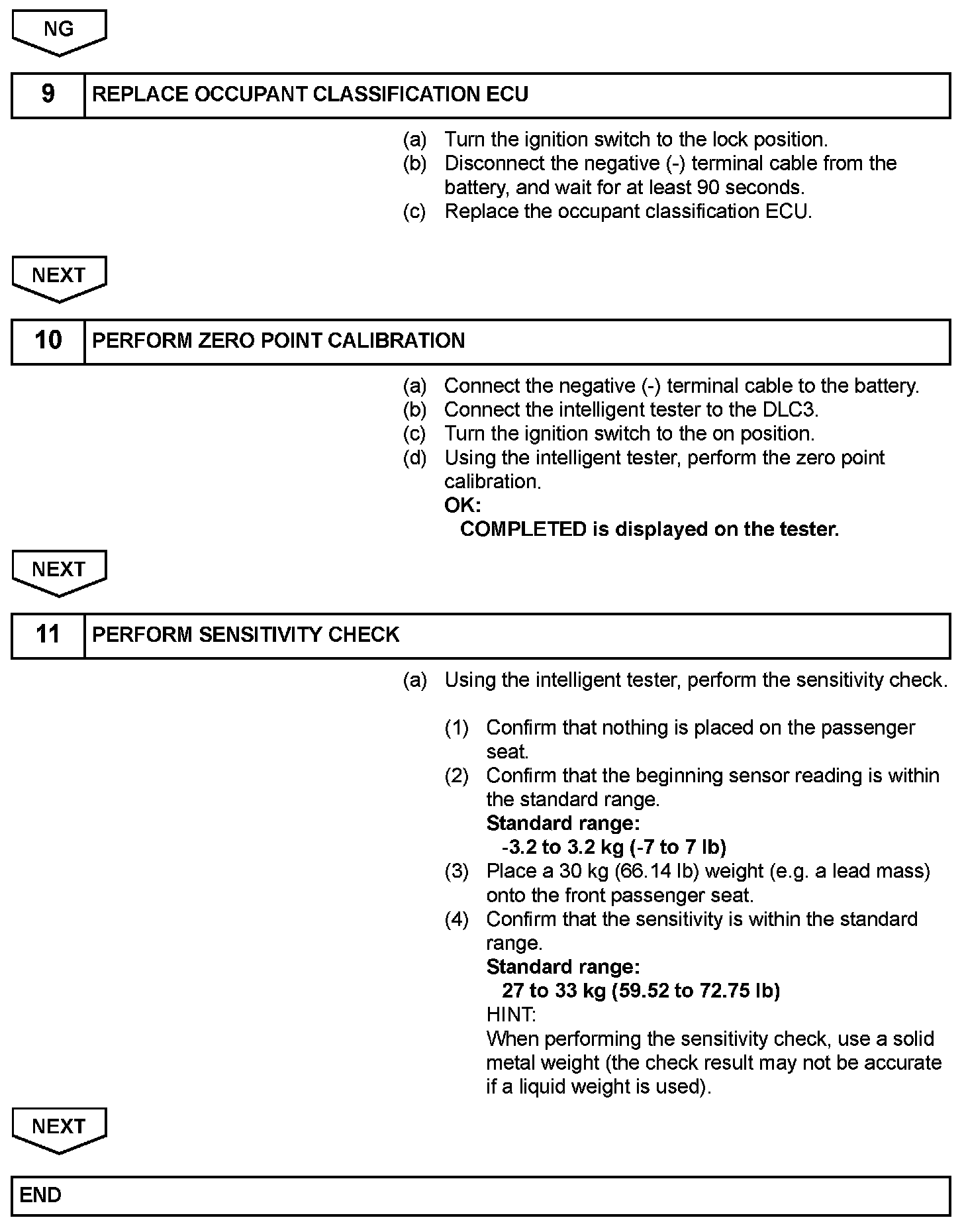

Step 8(Continued)-11:
