B1242

DTC B1242 Wireless Door Lock Tuner Circuit Malfunction

DESCRIPTION

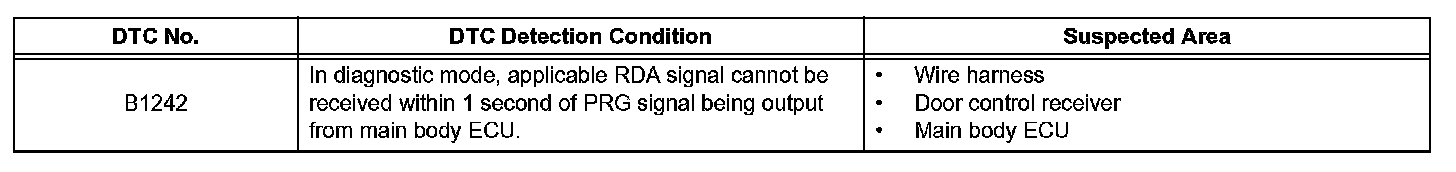

DTC Detection Condition:

The door control receiver receives signals from the transmitter and sends these signals to the main body ECU.

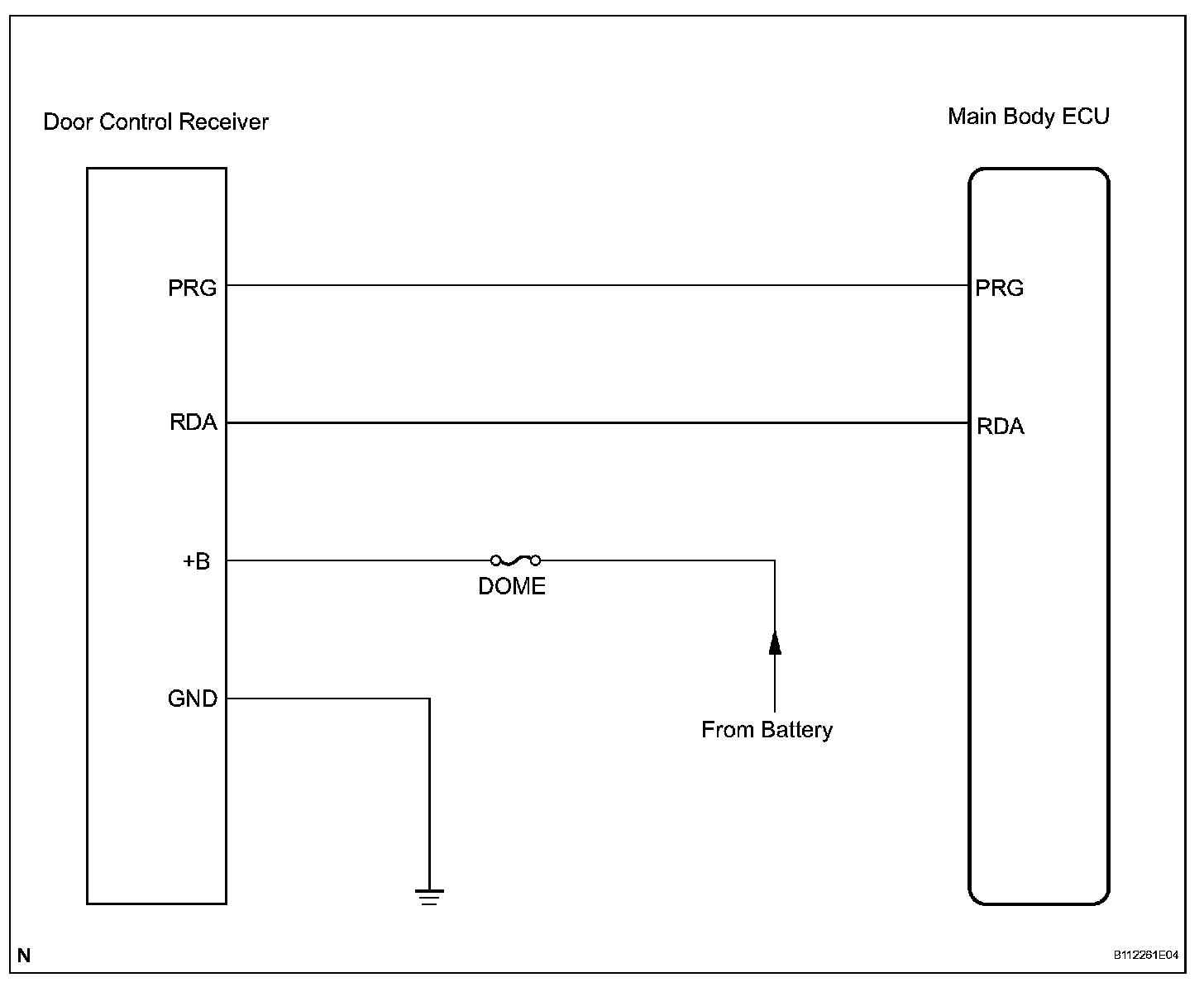

Wiring Diagram:

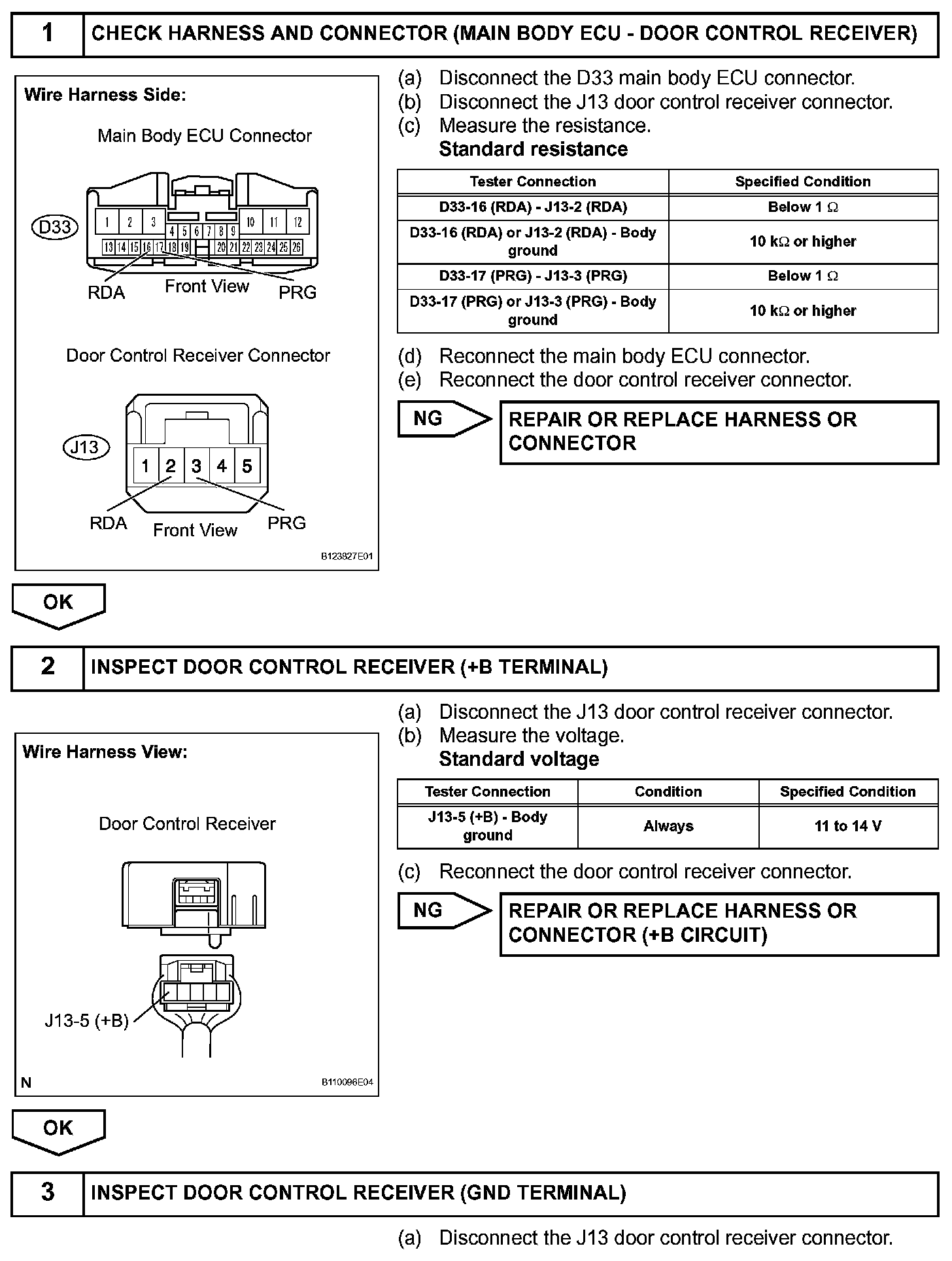

Step 1-3:

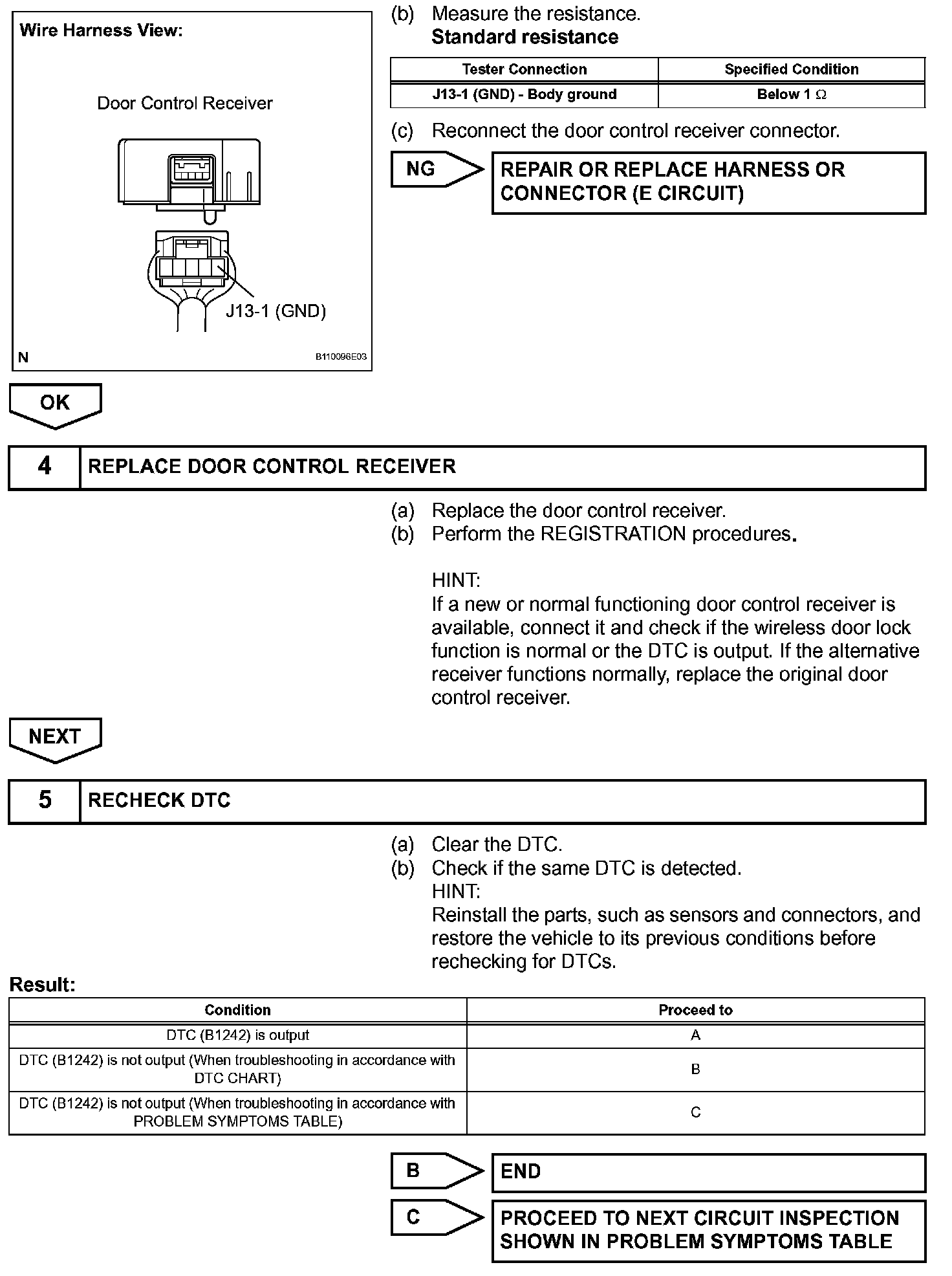

Step 3(Continued)-5:

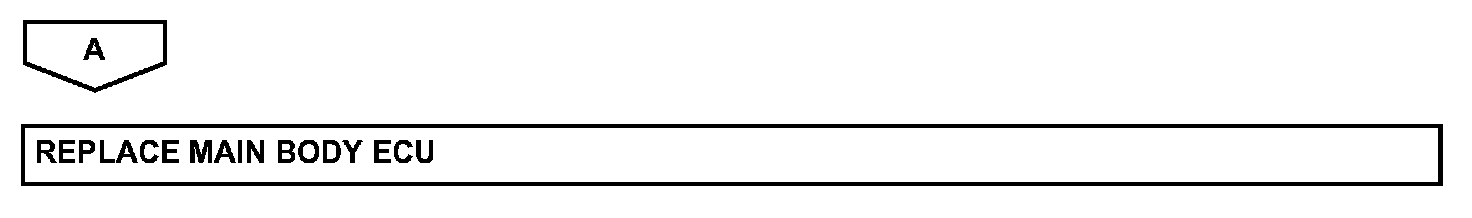

Step 5(Continued):

INSPECTION PROCEDURE
