Transmission Removal

MANUAL TRANSAXLE ASSEMBLY

COMPONENTS (Part 1):

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

COMPONENTS (Part 5):

COMPONENTS (Part 6):

COMPONENTS (Part 7):

COMPONENTS (Part 8):

COMPONENTS (Part 9):

REMOVAL
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
2. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
3. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
4. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

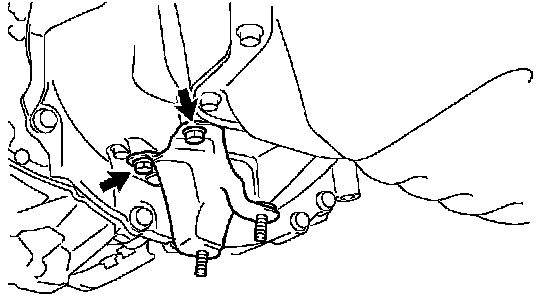

5. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY
6. DISCONNECT WIRE HARNESS

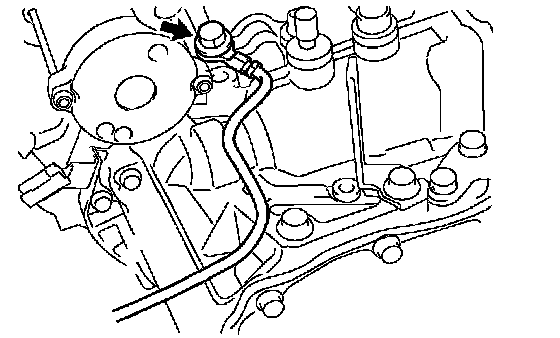

(a) Disconnect the wire harness clamp.
(b) Disconnect the back-up lamp switch connector, speedometer sensor connector and starter connector.





7. REMOVE ENGINE WIRE NO.3

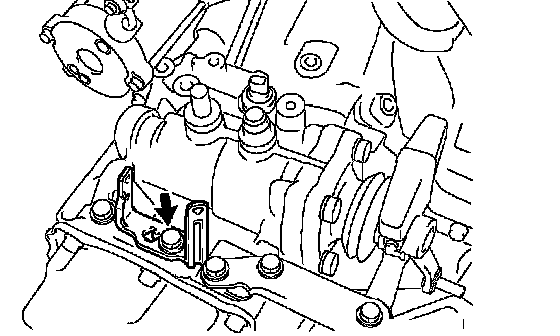

(a) Remove the bolt and disconnect the engine wire No.3.





8. REMOVE WIRE HARNESS CLAMP
(a) Remove the bolt and wire harness clamp.





9. REMOVE STARTER ASSEMBLY

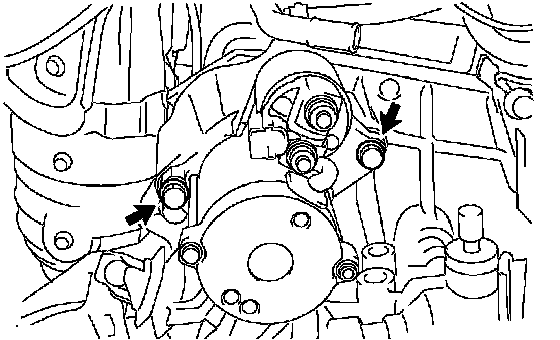

(a) Remove the 2 bolts and starter assembly.





10. REMOVE ENGINE MOUNTING BRACKET FR

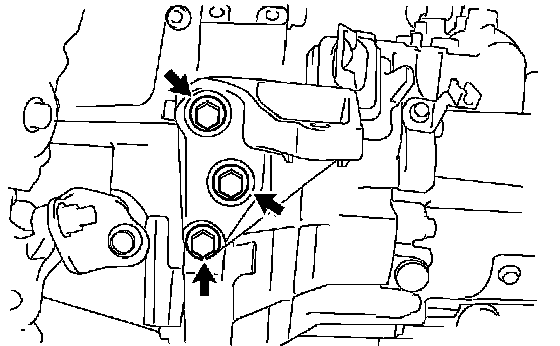

(a) Remove the 3 bolts and engine mounting bracket FR.





11. REMOVE MANUAL TRANSMISSION CASE PROTECTOR

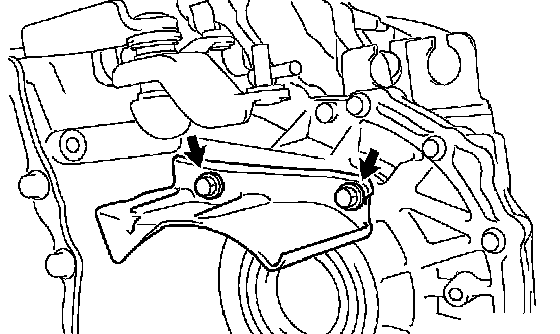

(a) Remove the 2 bolts and manual transmission case protector.





12. REMOVE EXHAUST PIPE SUPPORT BRACKET NO.1
(a) Remove the 2 bolts and exhaust pipe support bracket No. 1.





13. REMOVE ENGINE MOUNTING INSULATOR LH

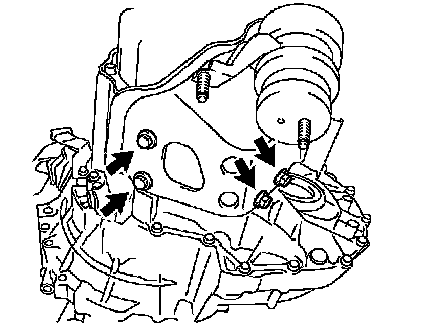

(a) Remove the 4 bolts and engine mounting insulator LH.





14. REMOVE MANUAL TRANSAXLE ASSEMBLY

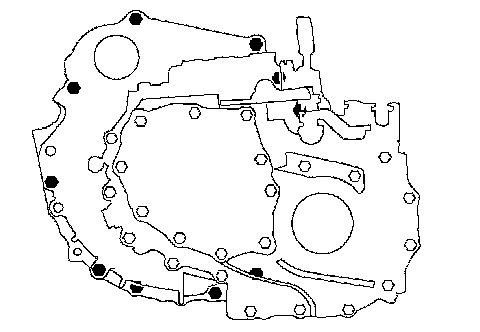

(a) Remove the 10 bolts.
(b) Separate and remove the transaxle from the engine.
