Pressure Plate

Pressure Plate

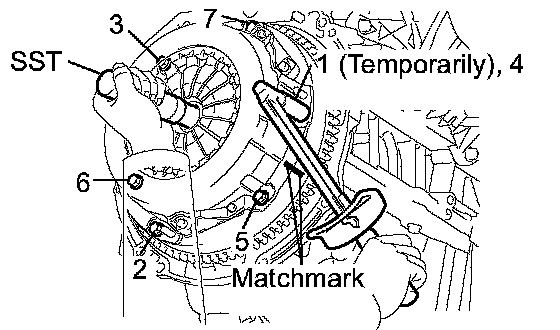

Following the procedures shown in the illustration, tighten the 6 bolts in order, starting with the bolt located near the knock pin on the top.
Torque 19 Nm (195 kgf-cm, 14 ft. lbs.)

HINT:
Following the order in the illustration, evenly tighten the bolts one turn at a time.
Lightly move SST up and down, and right and left after checking that the disc is in the center to tighten the bolts.

SST 09301-00210
