Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

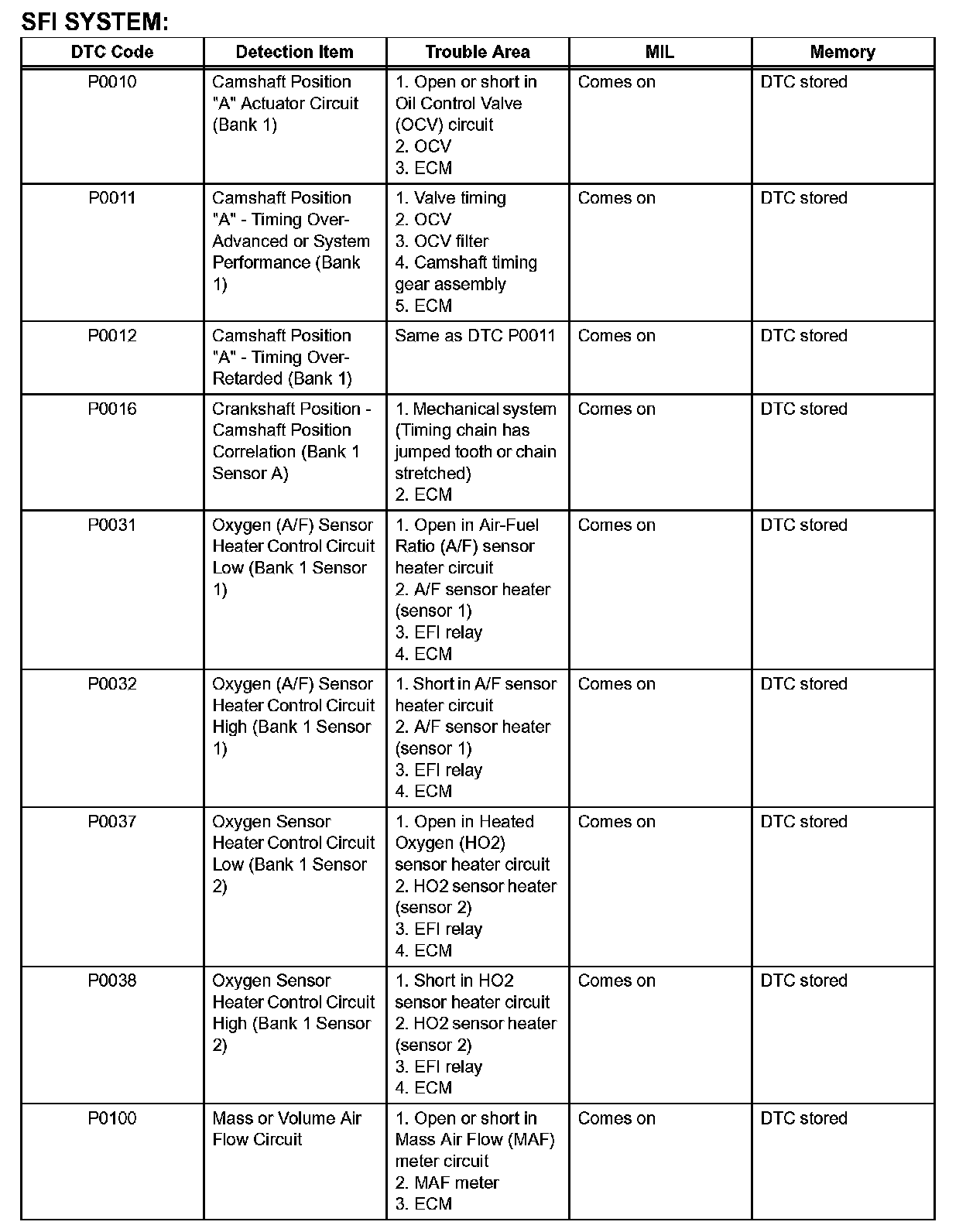

P0010-P0100:

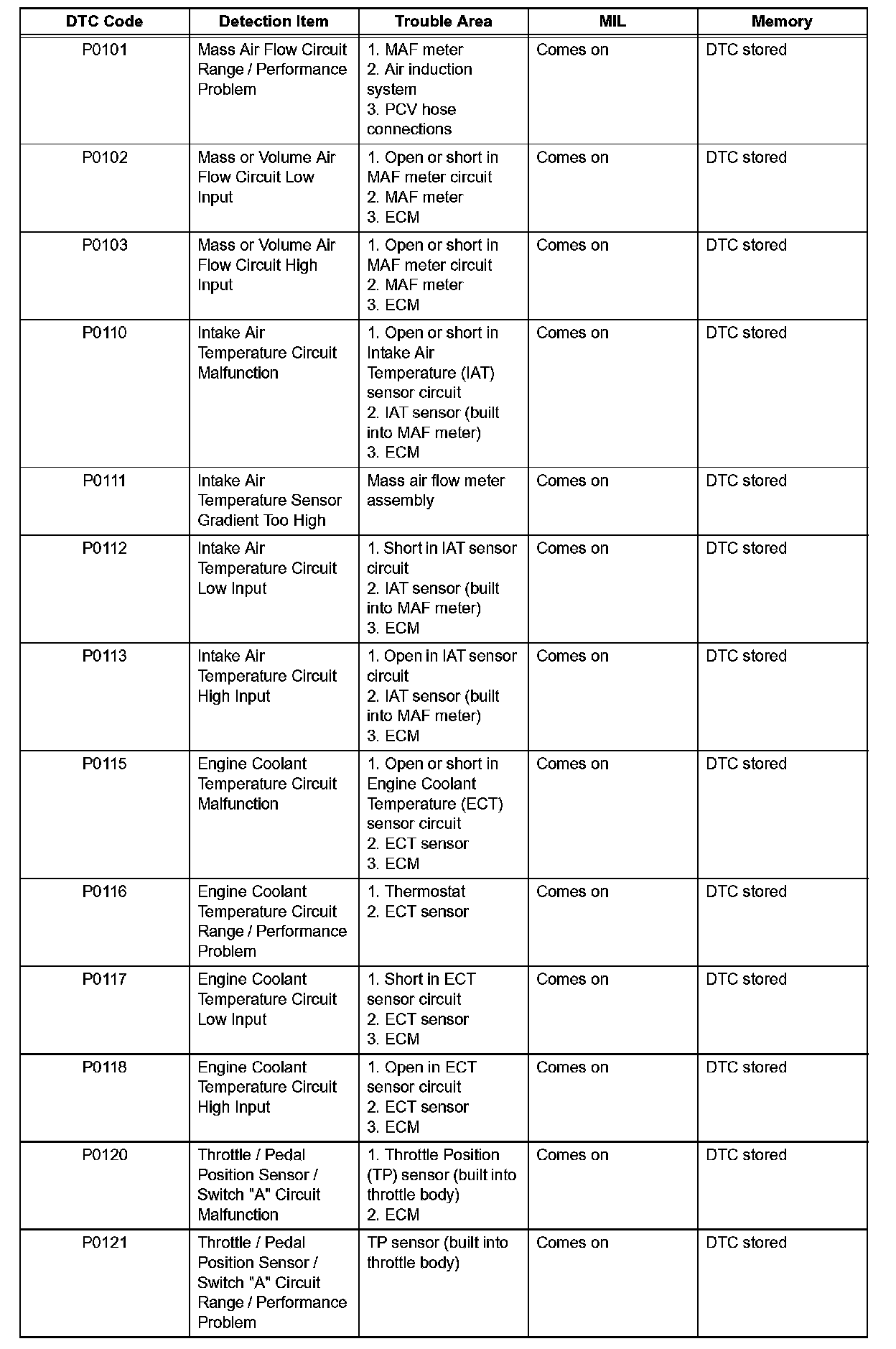

P0101-P0121:

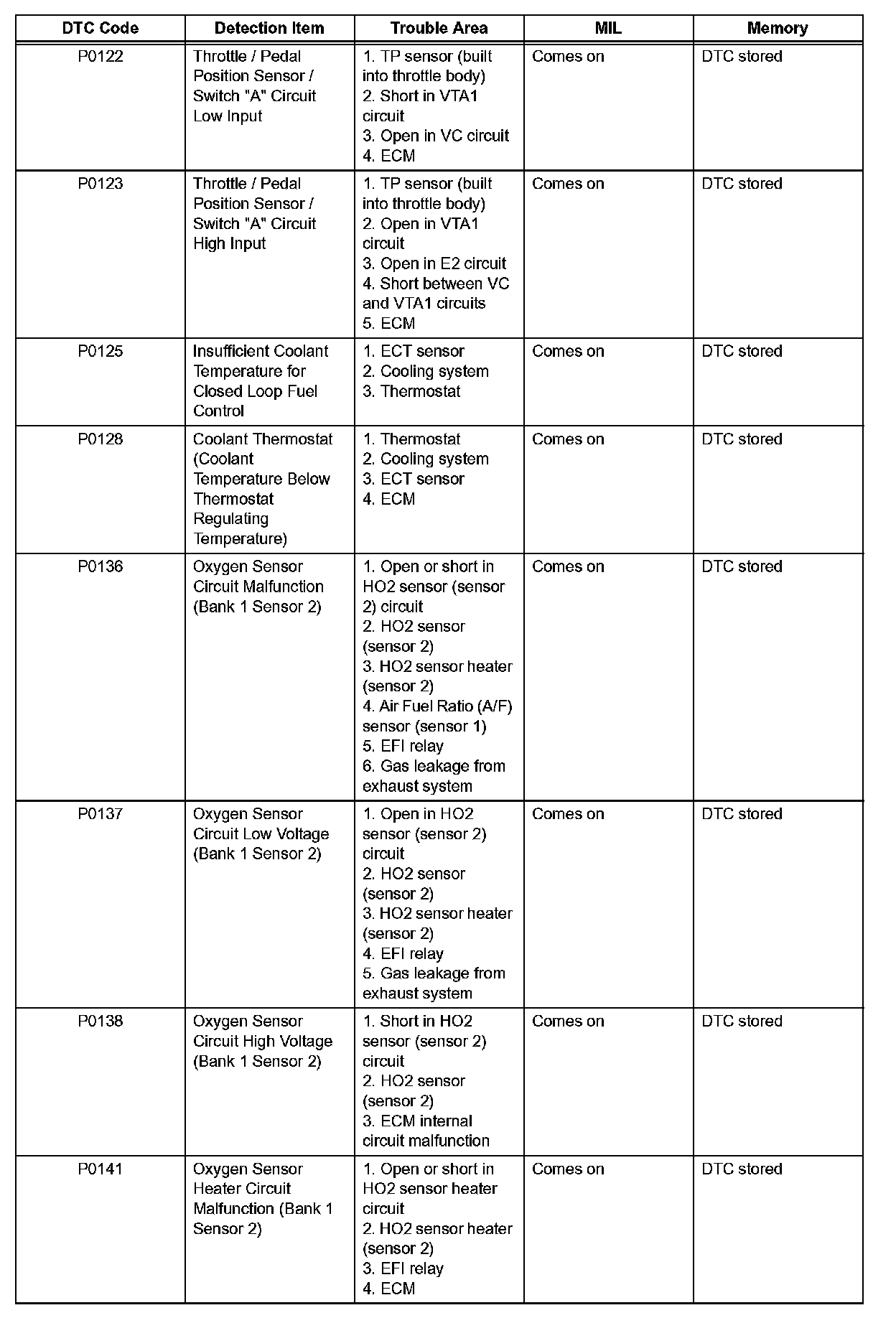

P0122-P0141:

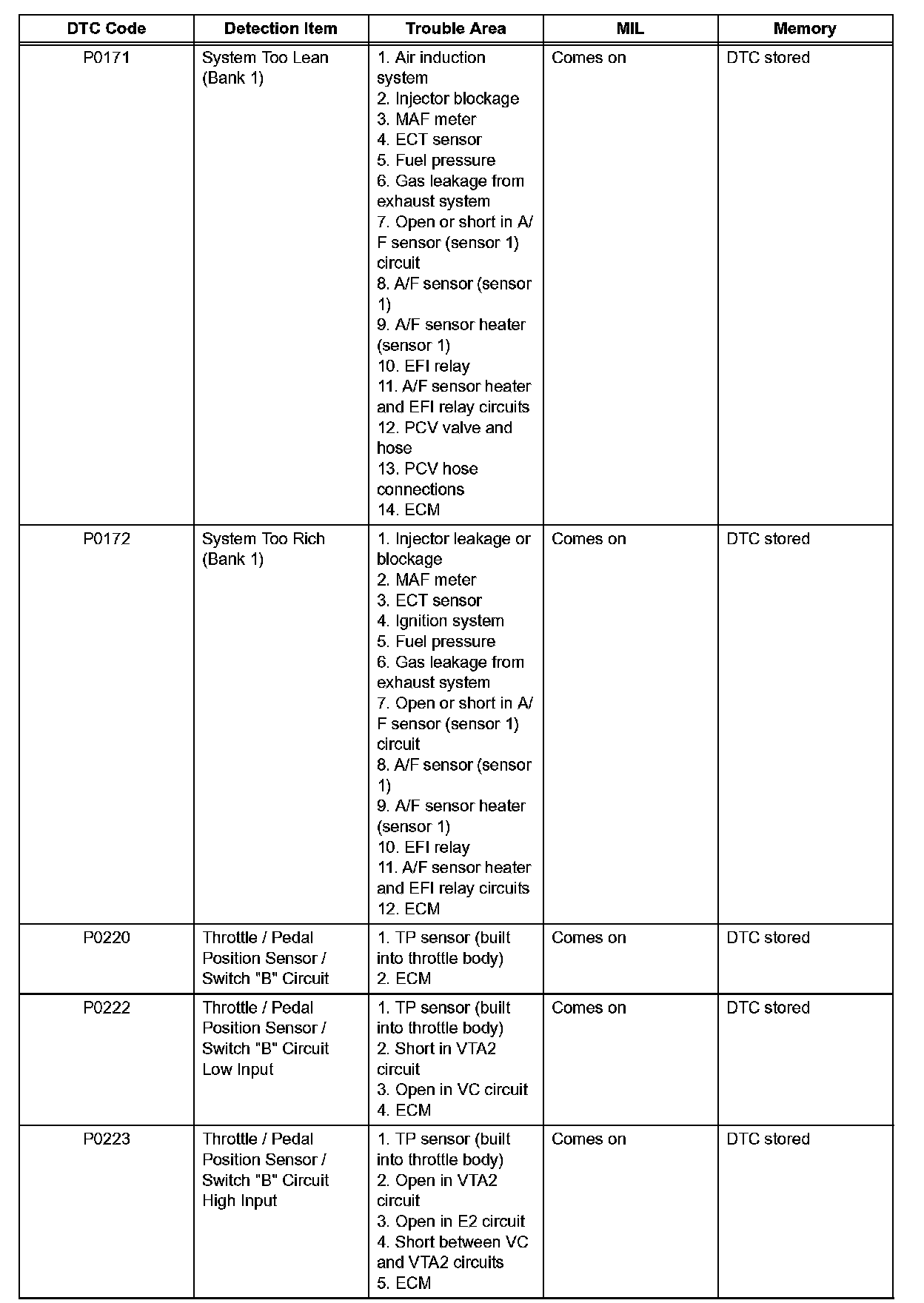

P0171-P0223:

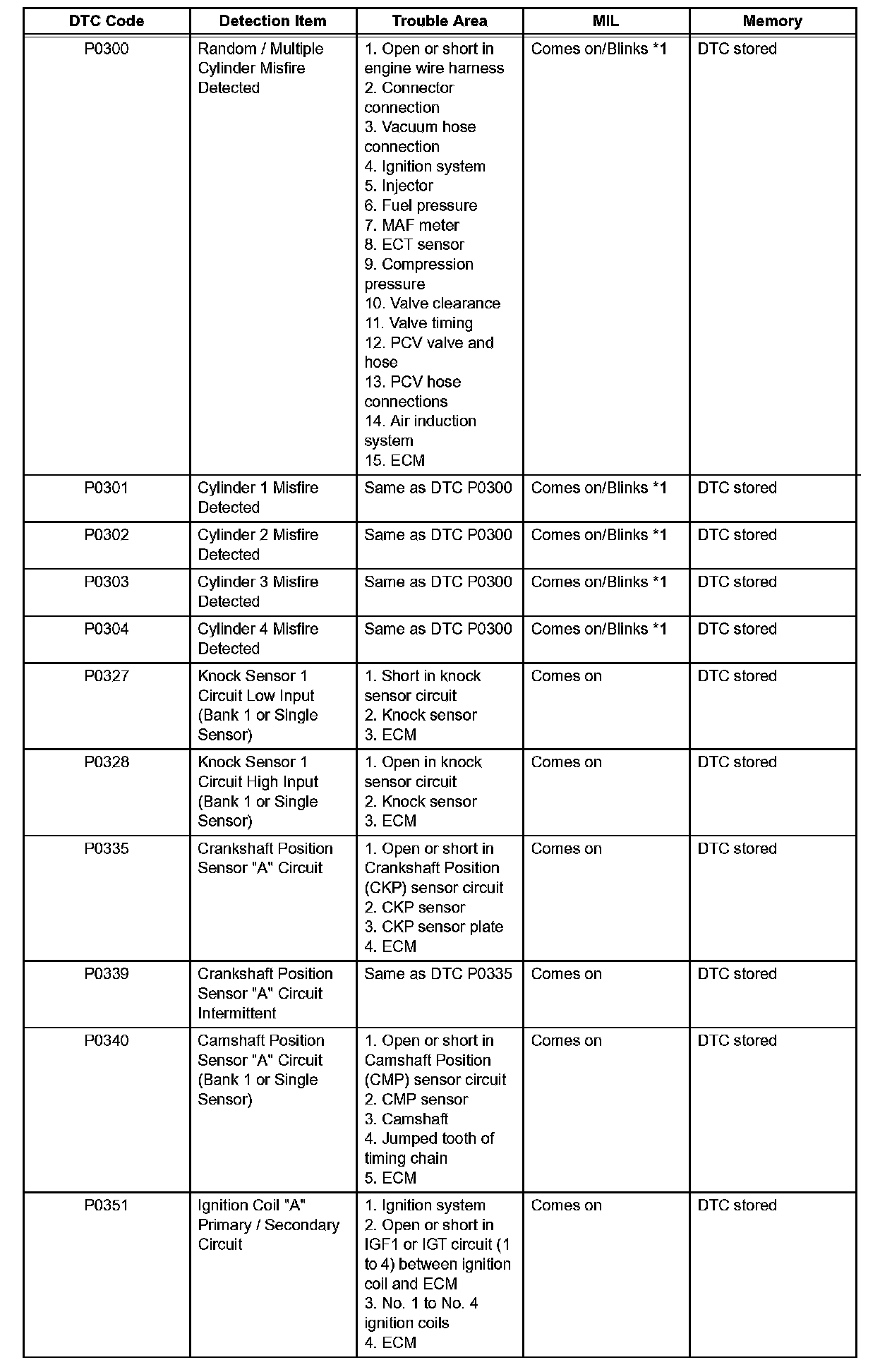

P0300-P0351:

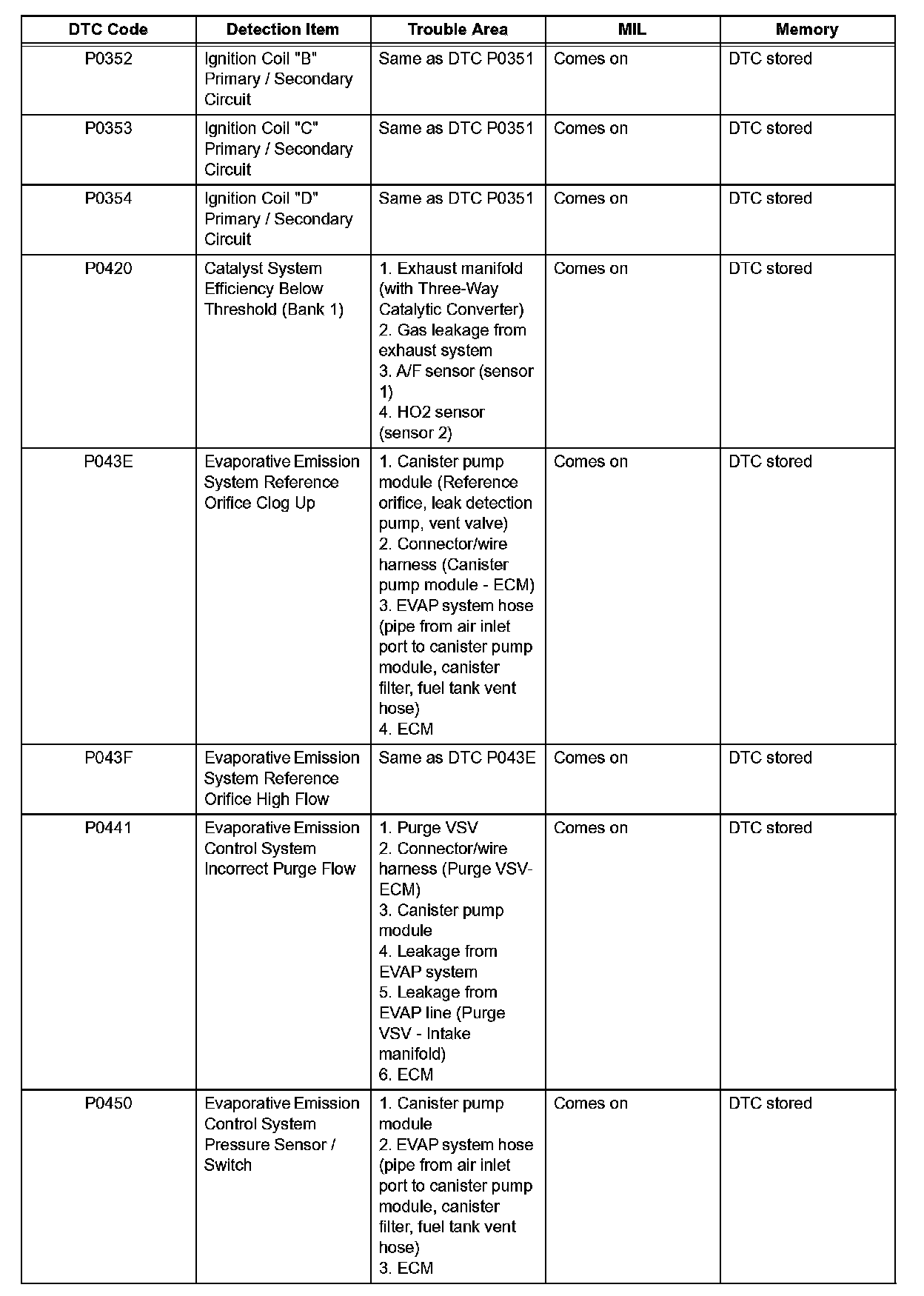

P0352-P0450:

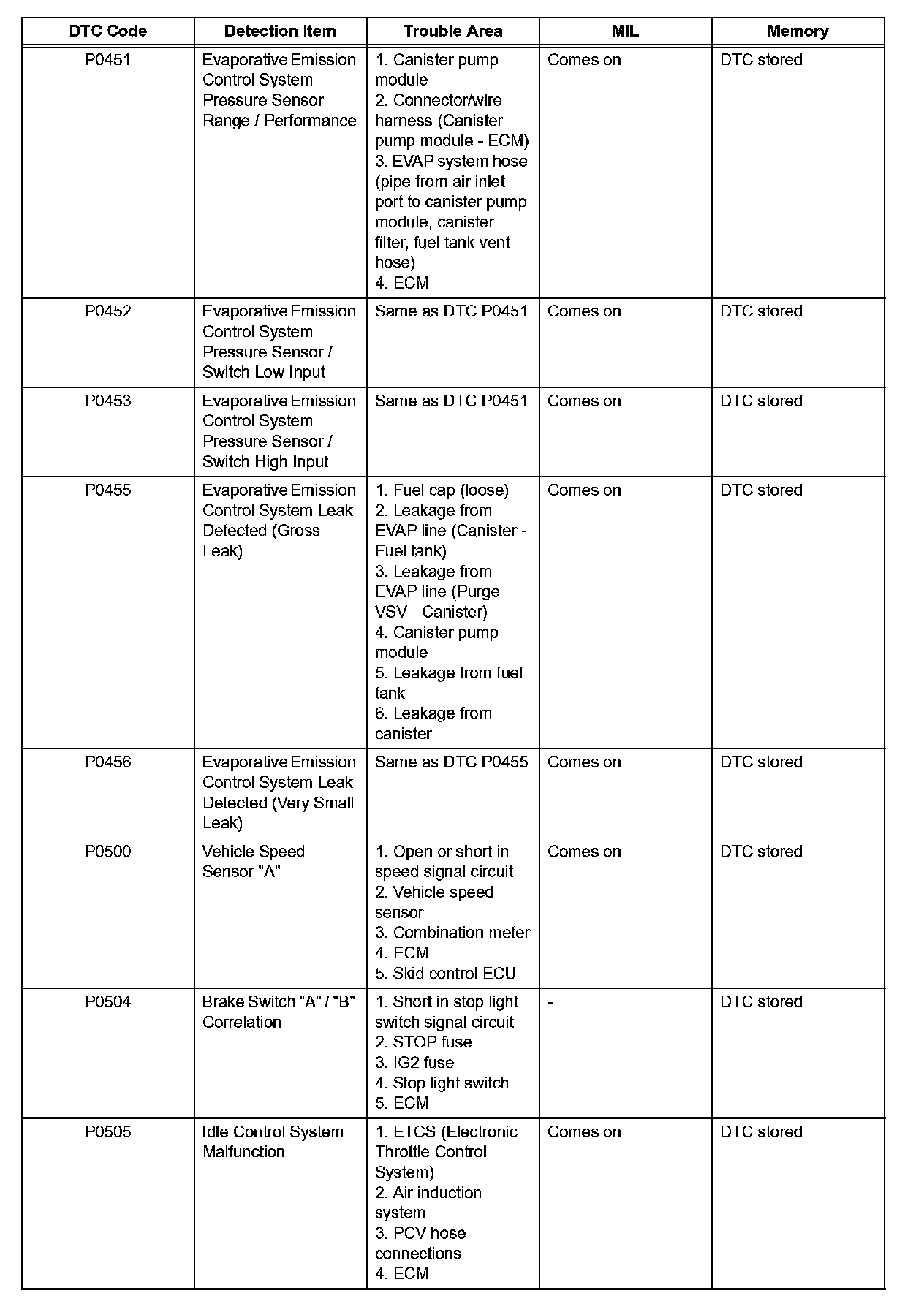

P0451-P0505:

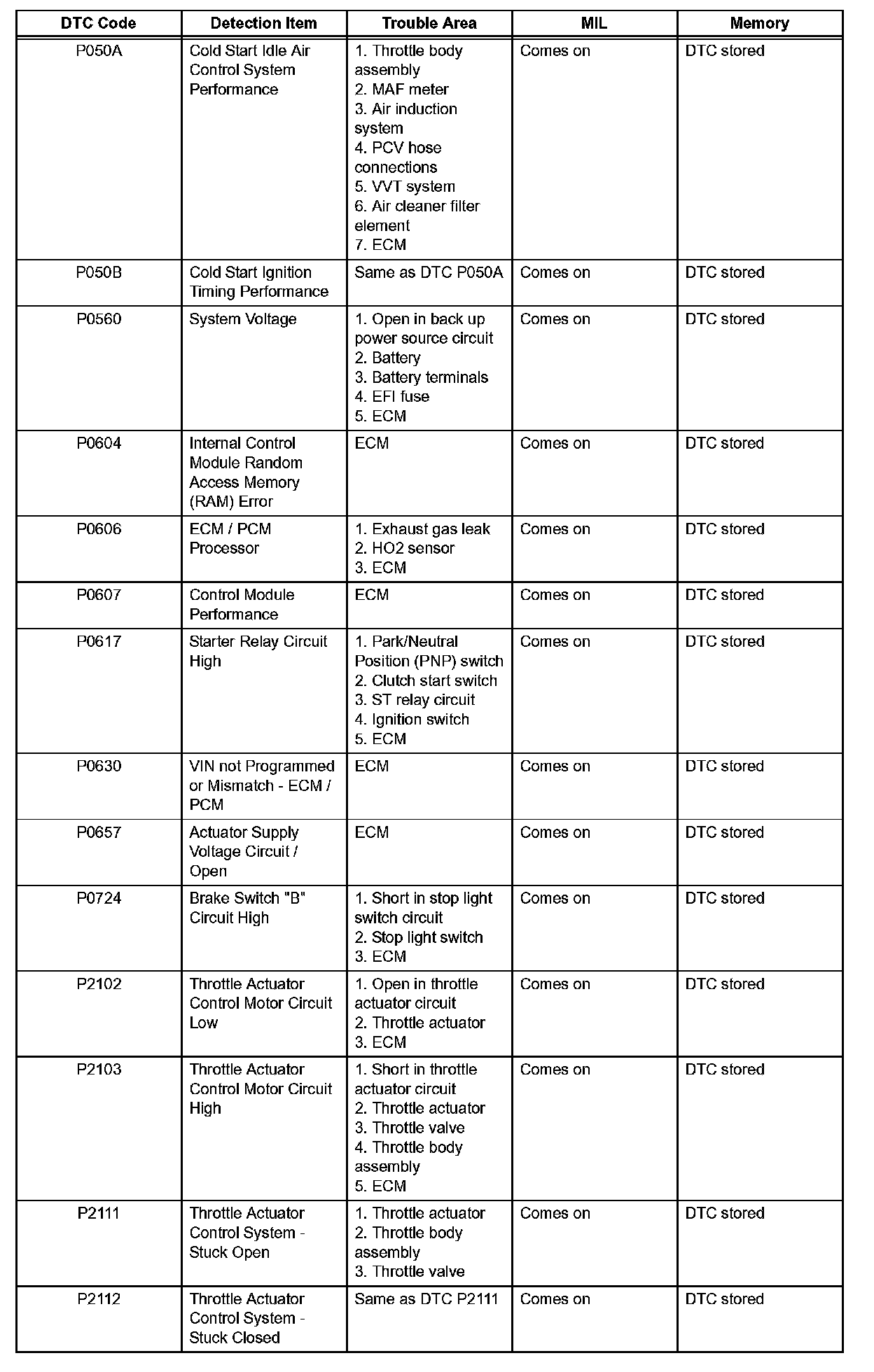

P050A-P2112:

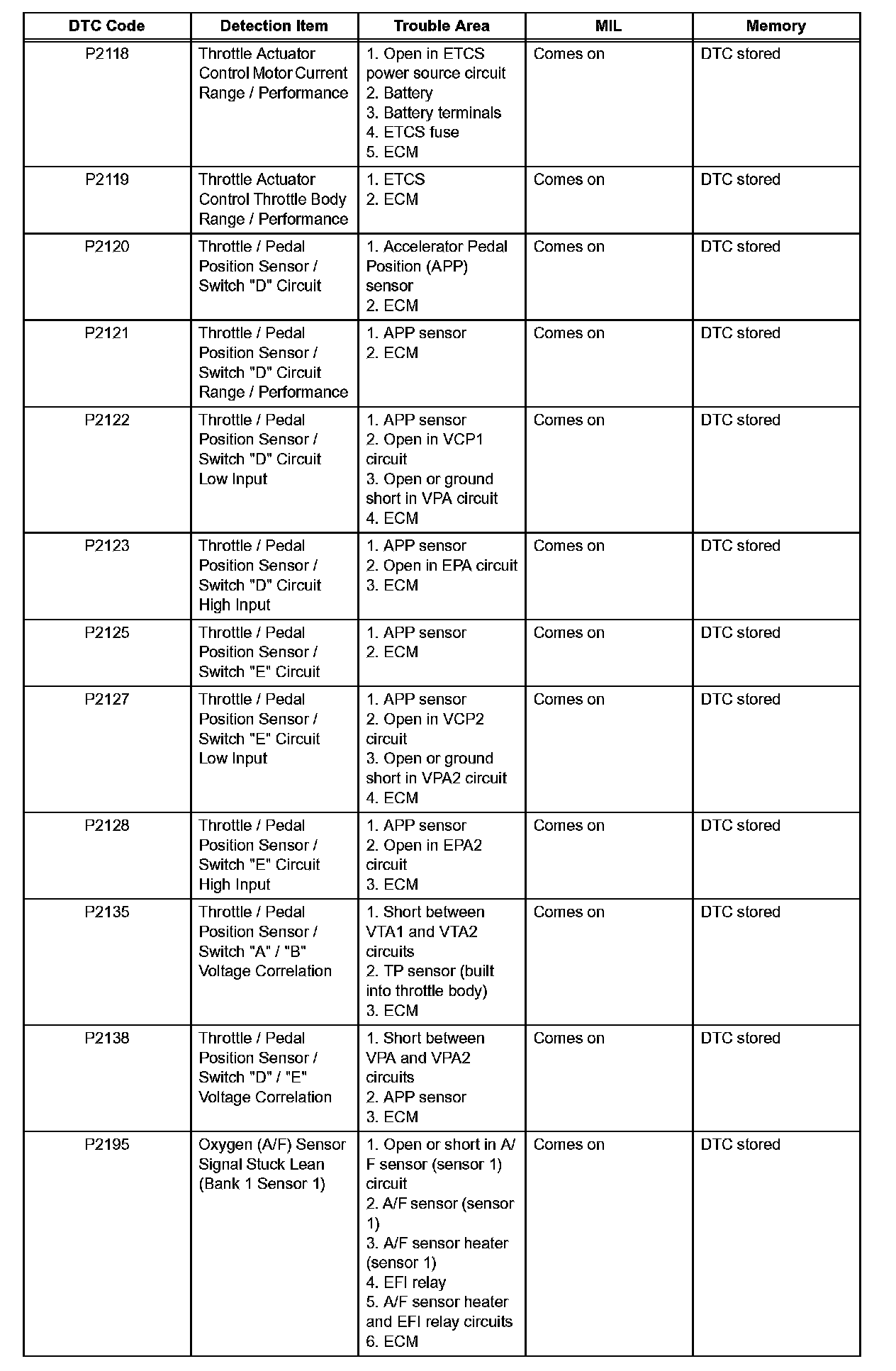

P2118-P2195:

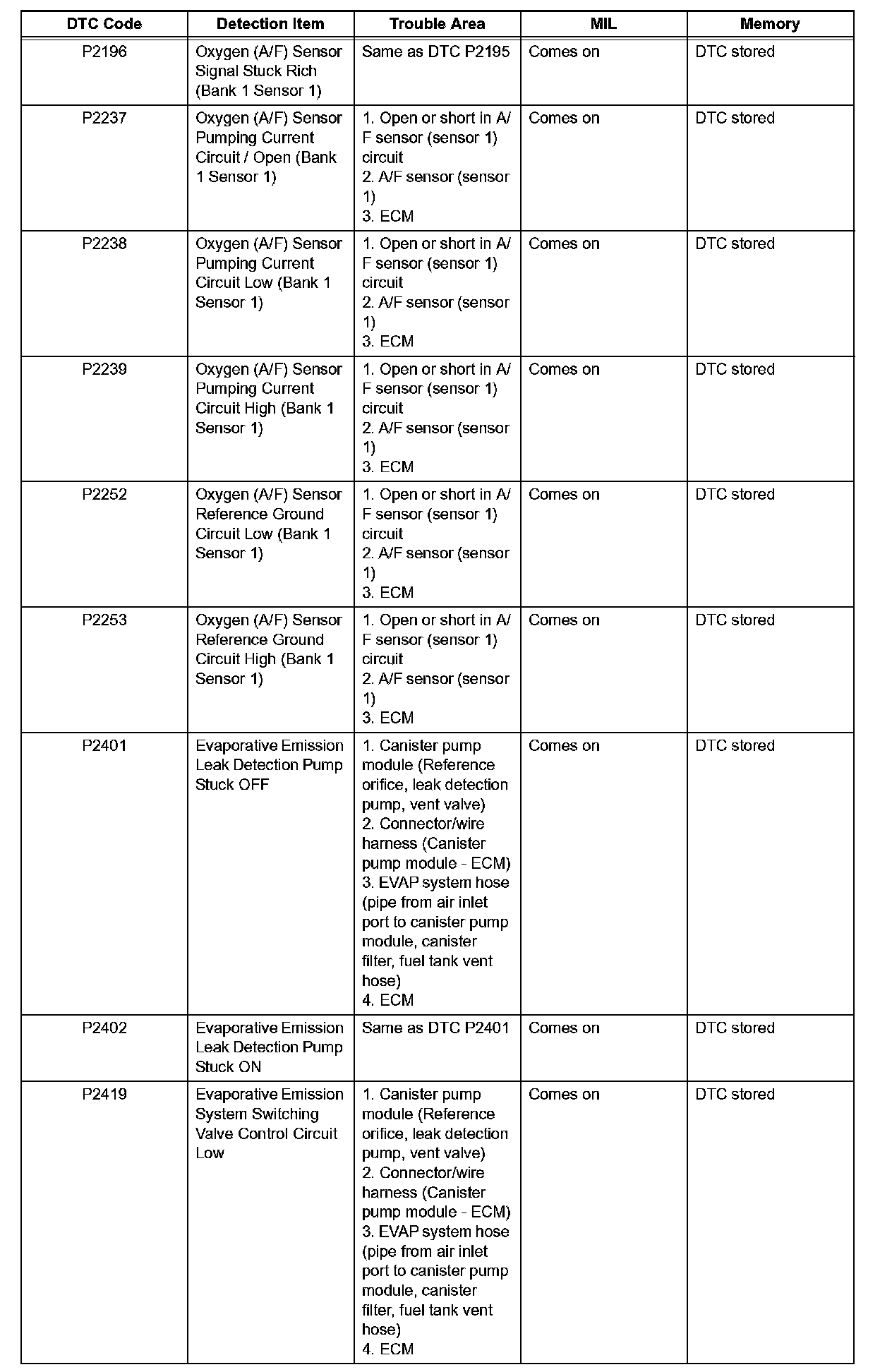

P2196-P2419:

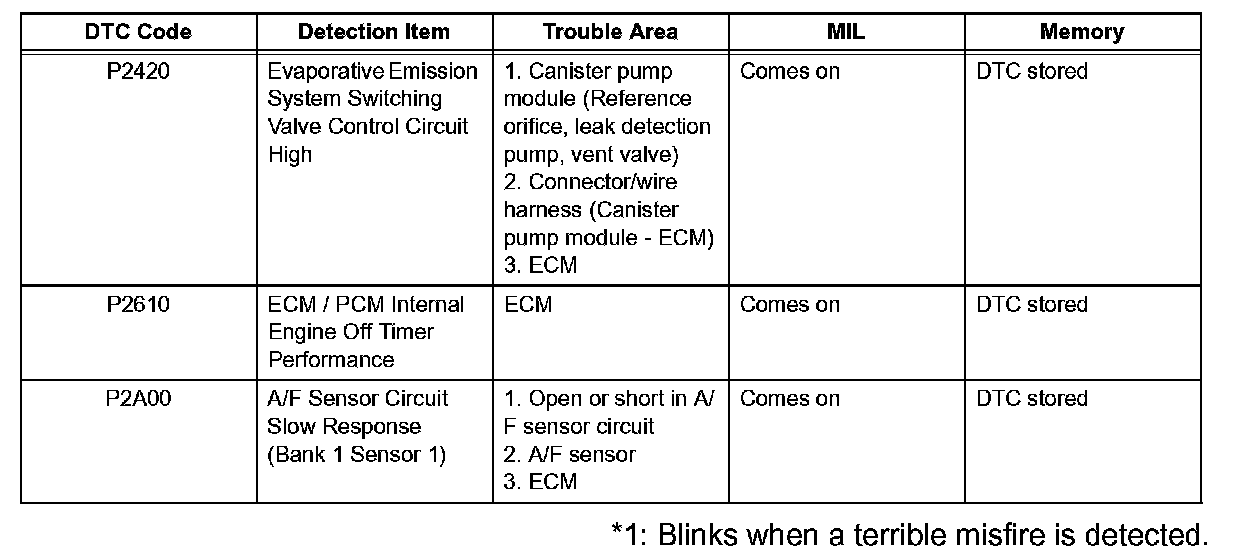

P2420-P2A00:

HINT: Parameters listed in the chart may be different than your readings depending on the type of instruments and other factors. If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table.
