Solara Convertible V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

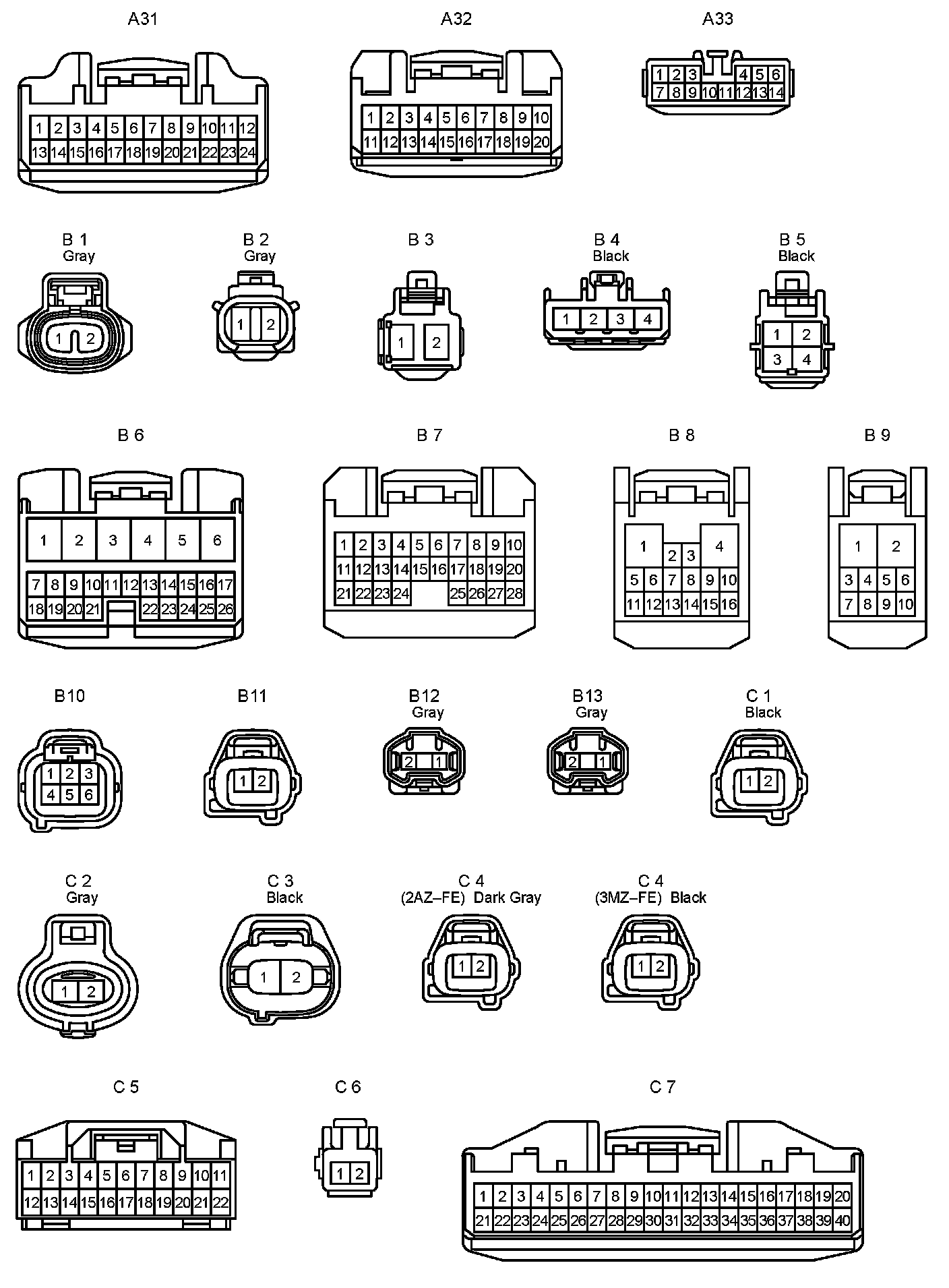

A31 - C7
A31 - C7
A31 - C7:
