Home >> Toyota >> 2007 >> Solara Convertible V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Description and Operation

Seat Temperature Element: Description and Operation

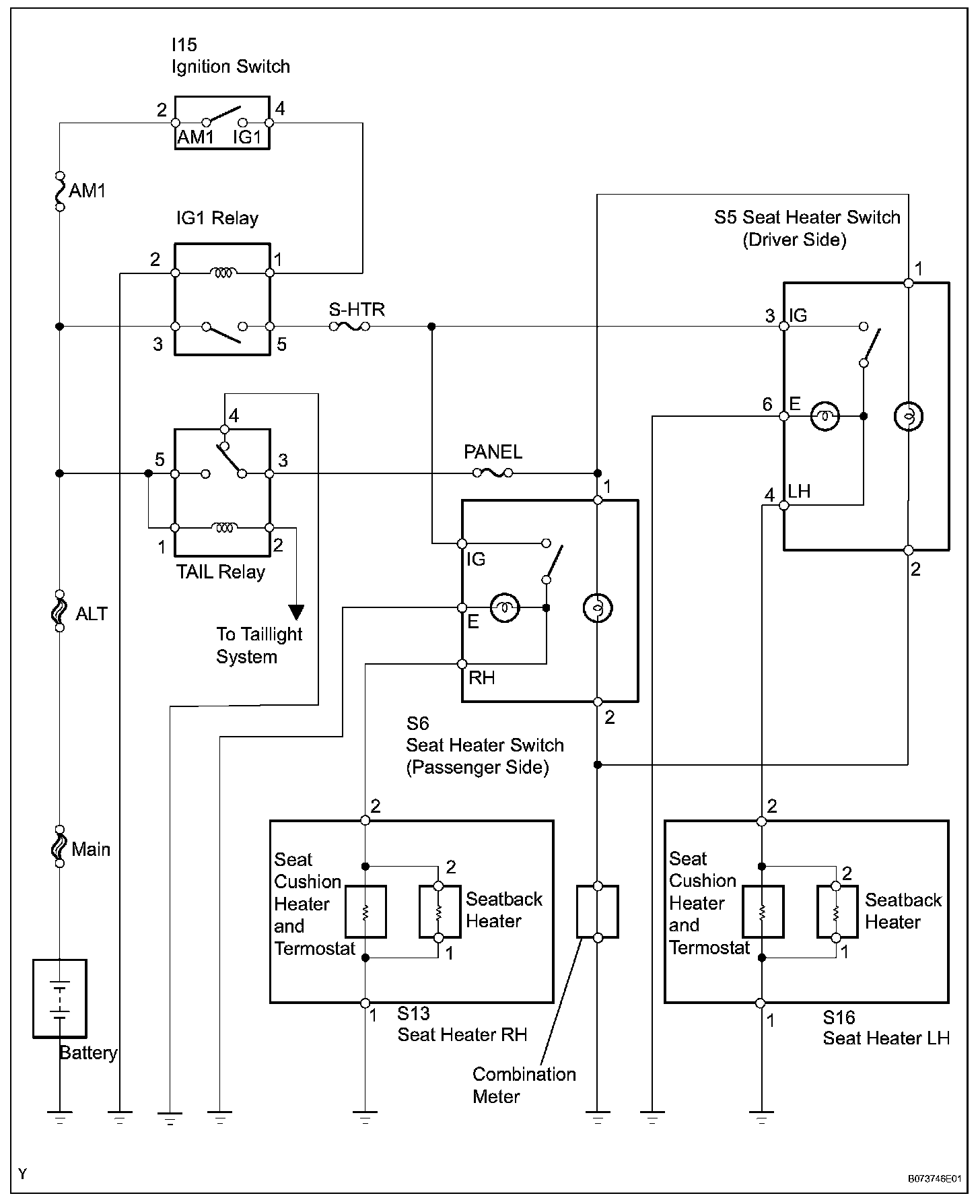

System Diagram:
