Description and Operation
>>
Front Power Seat Control System
Front Power Seat Control System

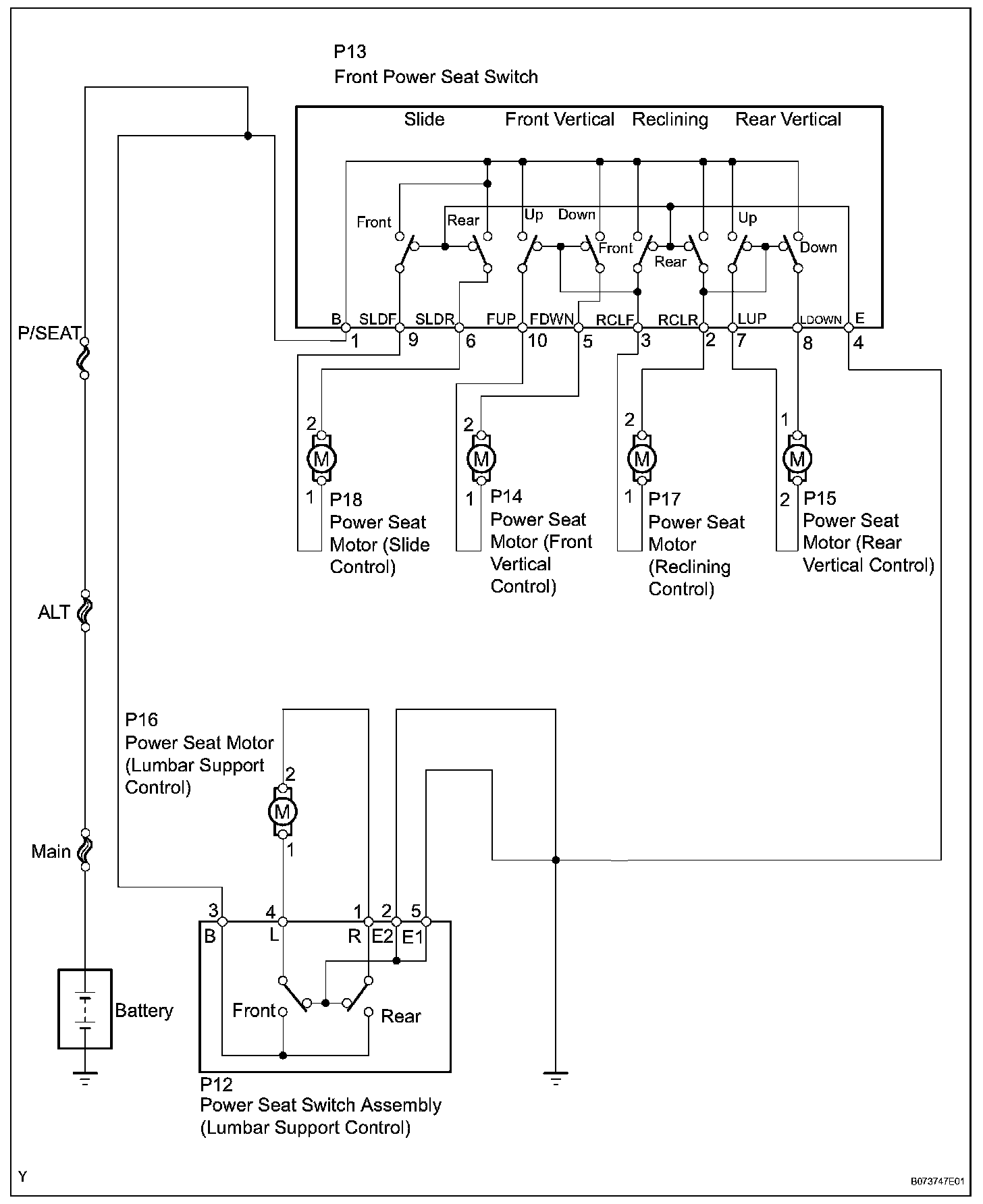

System Diagram:
