Key Reminder Warning System
Key Reminder Warning System

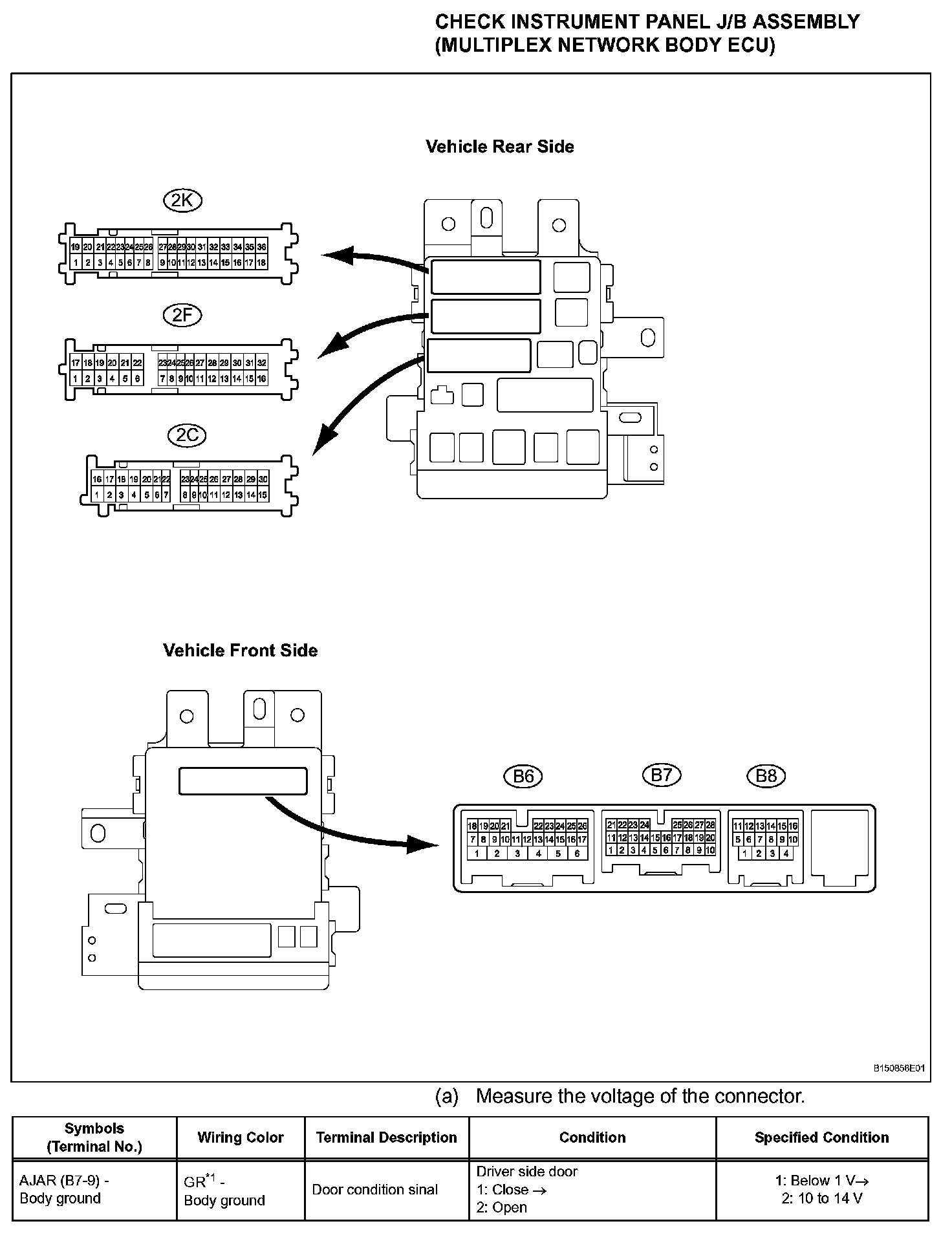

Terminals Of Control Module/Pinouts (Part 1):

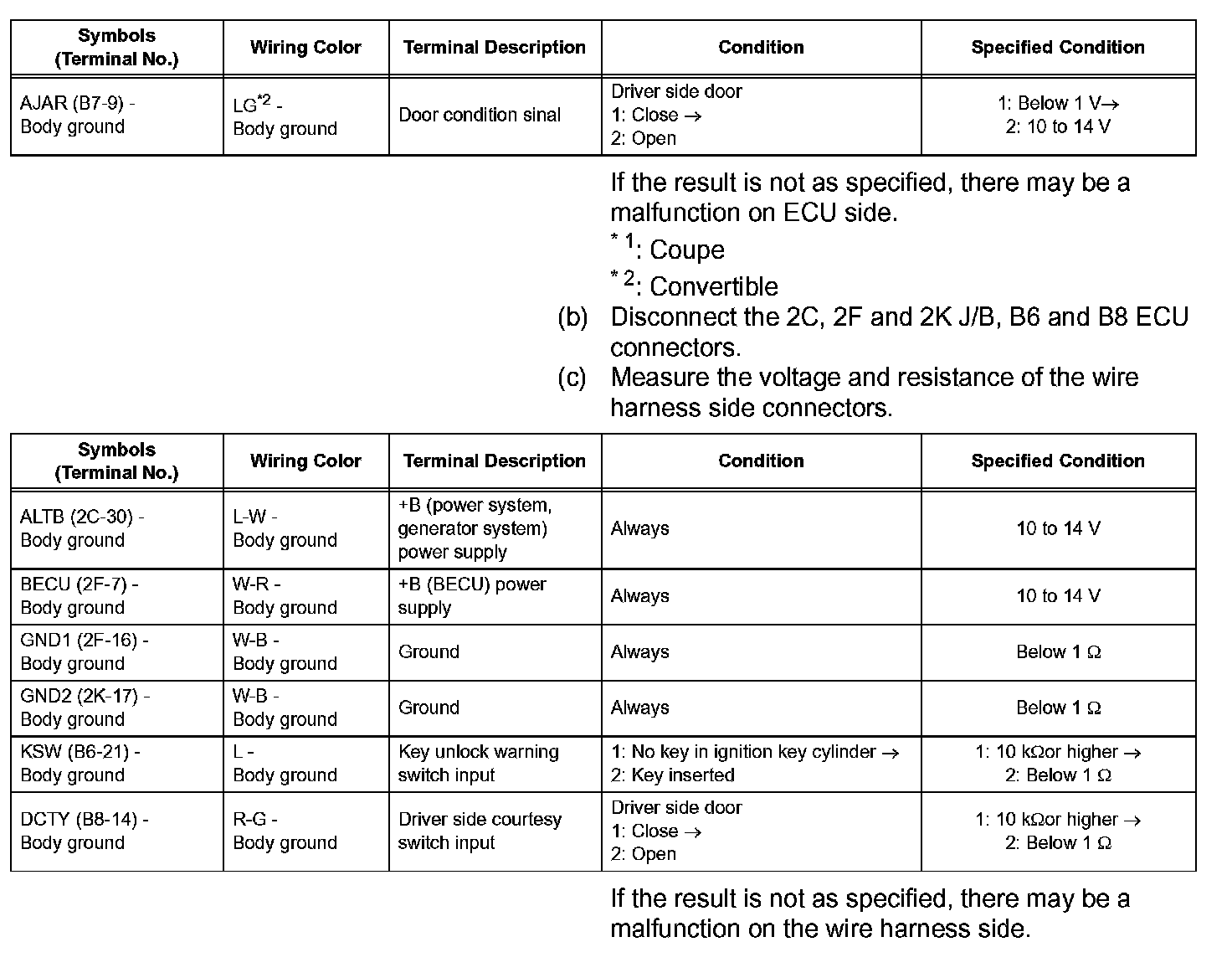

Terminals Of Control Module/Pinouts (Part 2):
