Theft Deterrent System
Theft Deterrent System

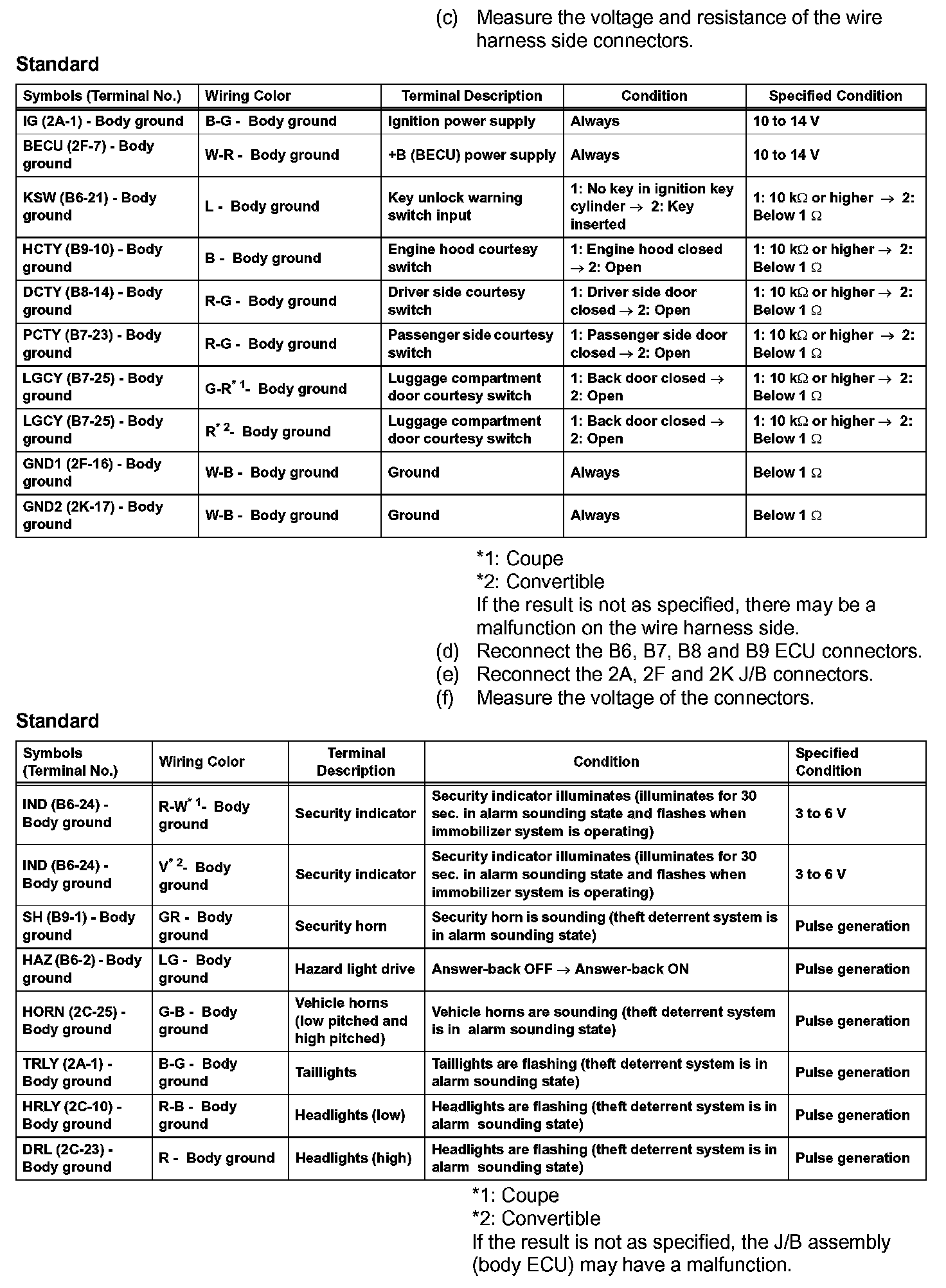

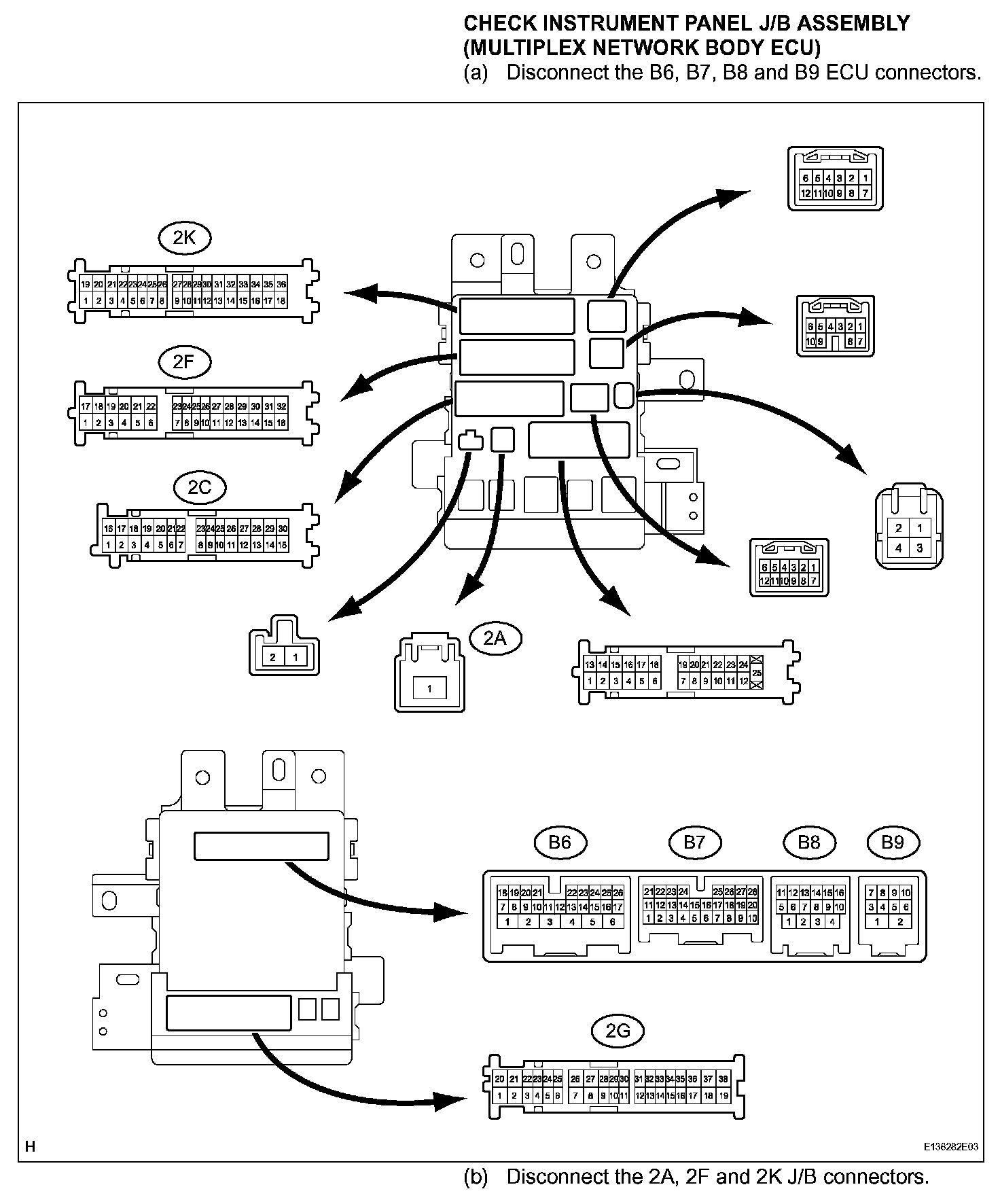

Terminals Of Control Module/Pinout (Part 1):
Terminals Of Control Module/Pinout (Part 2):
