Windshield Washer Spray Nozzle: Adjustments

ADJUSTMENT

1. INSPECT WASHER NOZZLE
a. With the power switch ON (IG), check the position that the washer fluid hits the windshield.

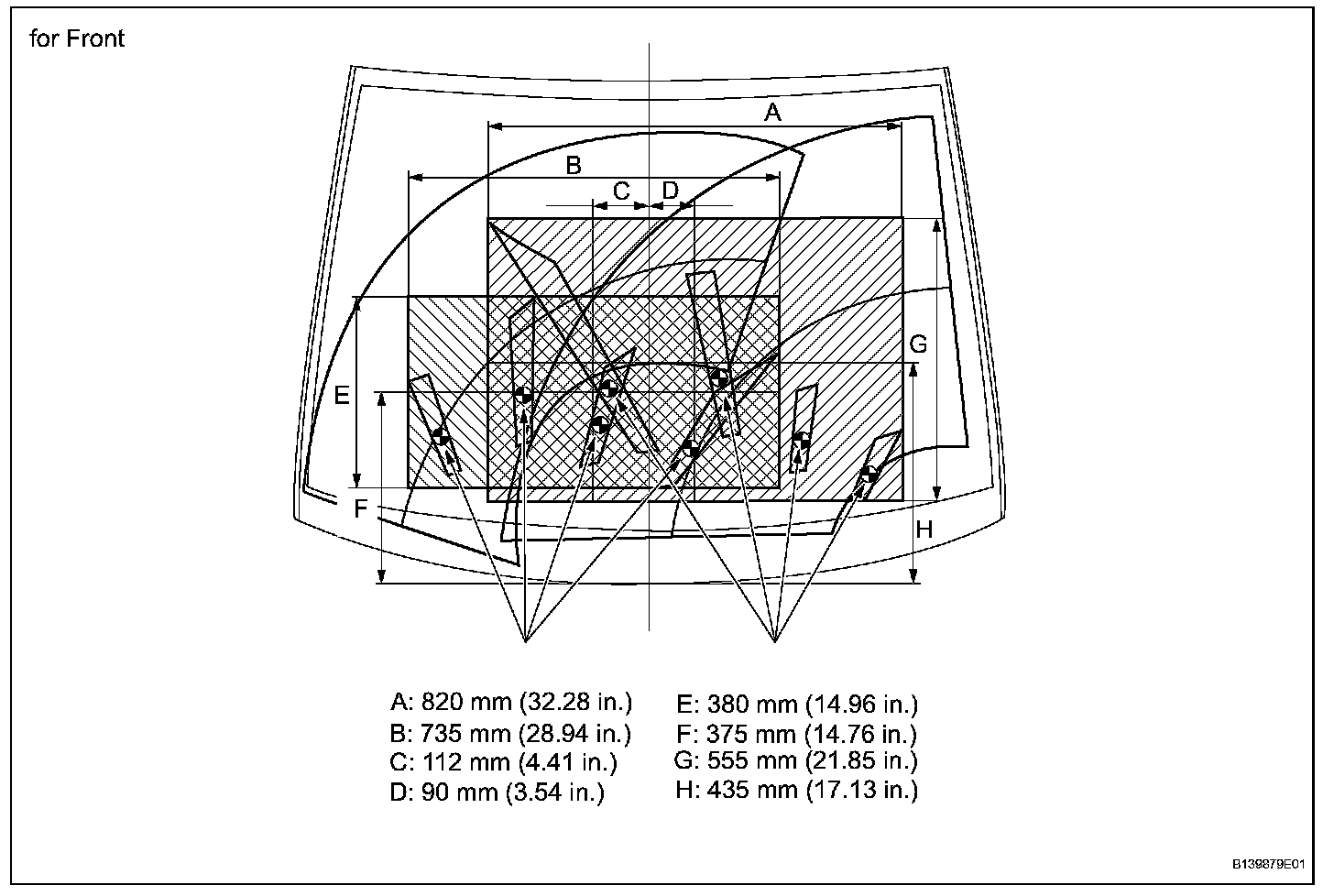

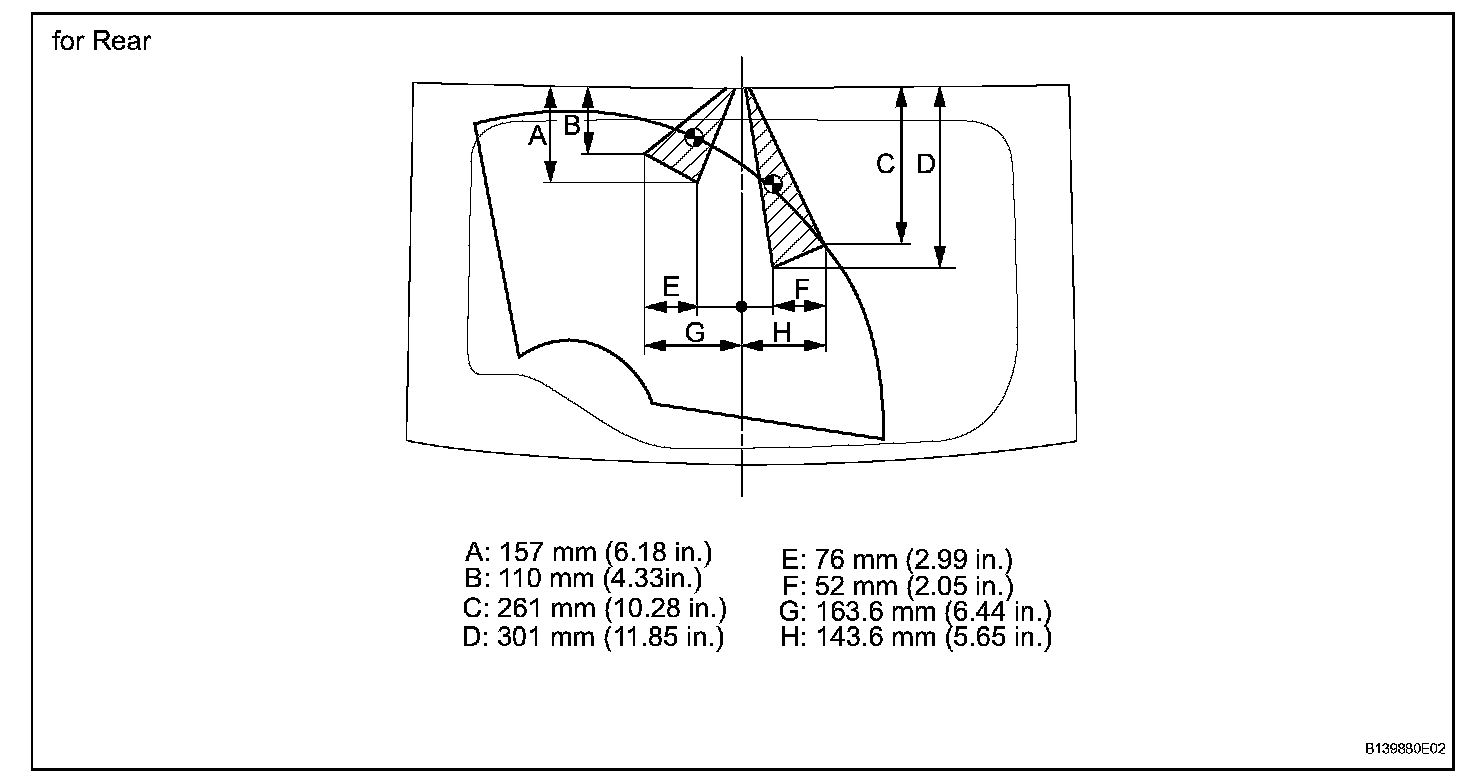

Standard: Washer fluid hits the windshield in the areas indicated in the illustration.

2. ADJUST WASHER NOZZLE

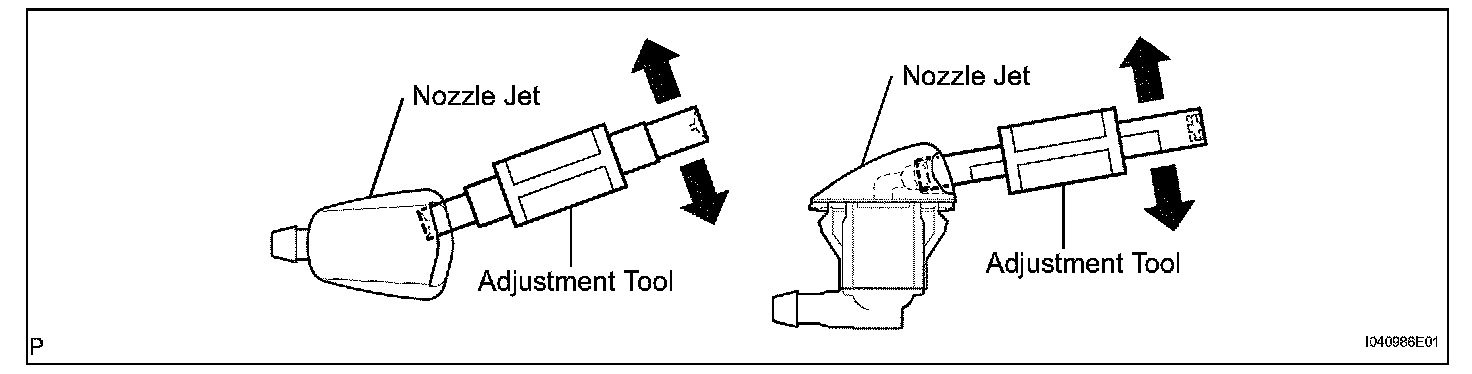

a. Using a TOYOTA 4 Way Nozzle Adjustment Tool, insert the bumpy part of the adjustment tool into the bumpy part of the nozzle jet and make the adjustment.

NOTE:
- Clarify if the 4 mm or 5 mm diameter washer nozzle is being adjusted.
- Do not use a tool such as metal pin as it may damage the nozzle jet.
