Power Window Can Be Operated After Power Switch Is Turned Off Even If Operative Conditions Are Not Met
Power Window can be Operated After Power Switch is Turned OFF Even if Operative Conditions are not MetDESCRIPTION
The body ECU keeps power supplied to the power window regulator master switch and the regulator switch for 43 seconds after the power switch is turned OFF. However, the body ECU will cut power to the master switch if: 1) either front door is opened, 2) a signal from either of the front door courtesy light switches is input to the ECU within the 43 seconds, or 3) 43 seconds have passed.

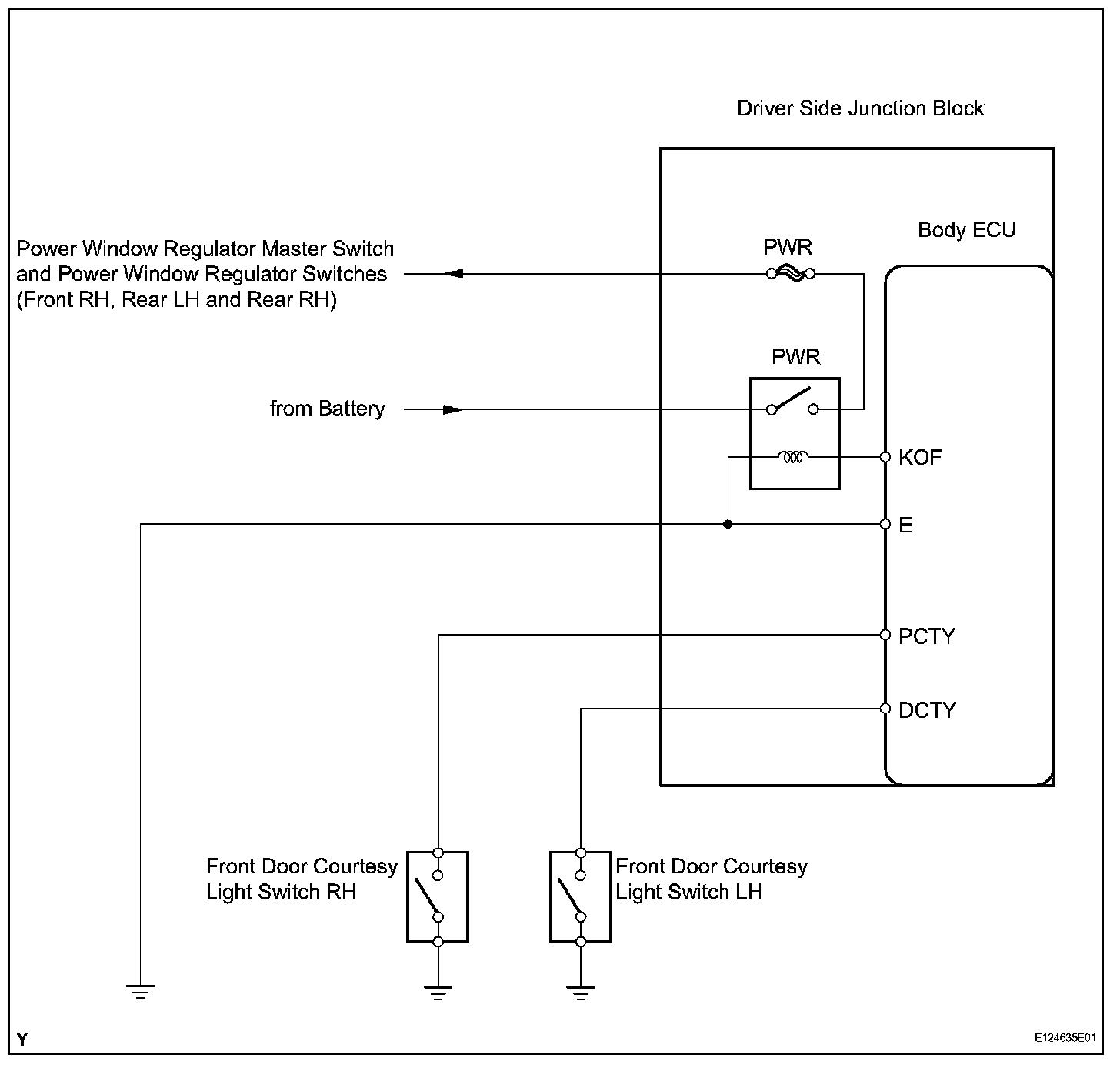

Wiring Diagram:

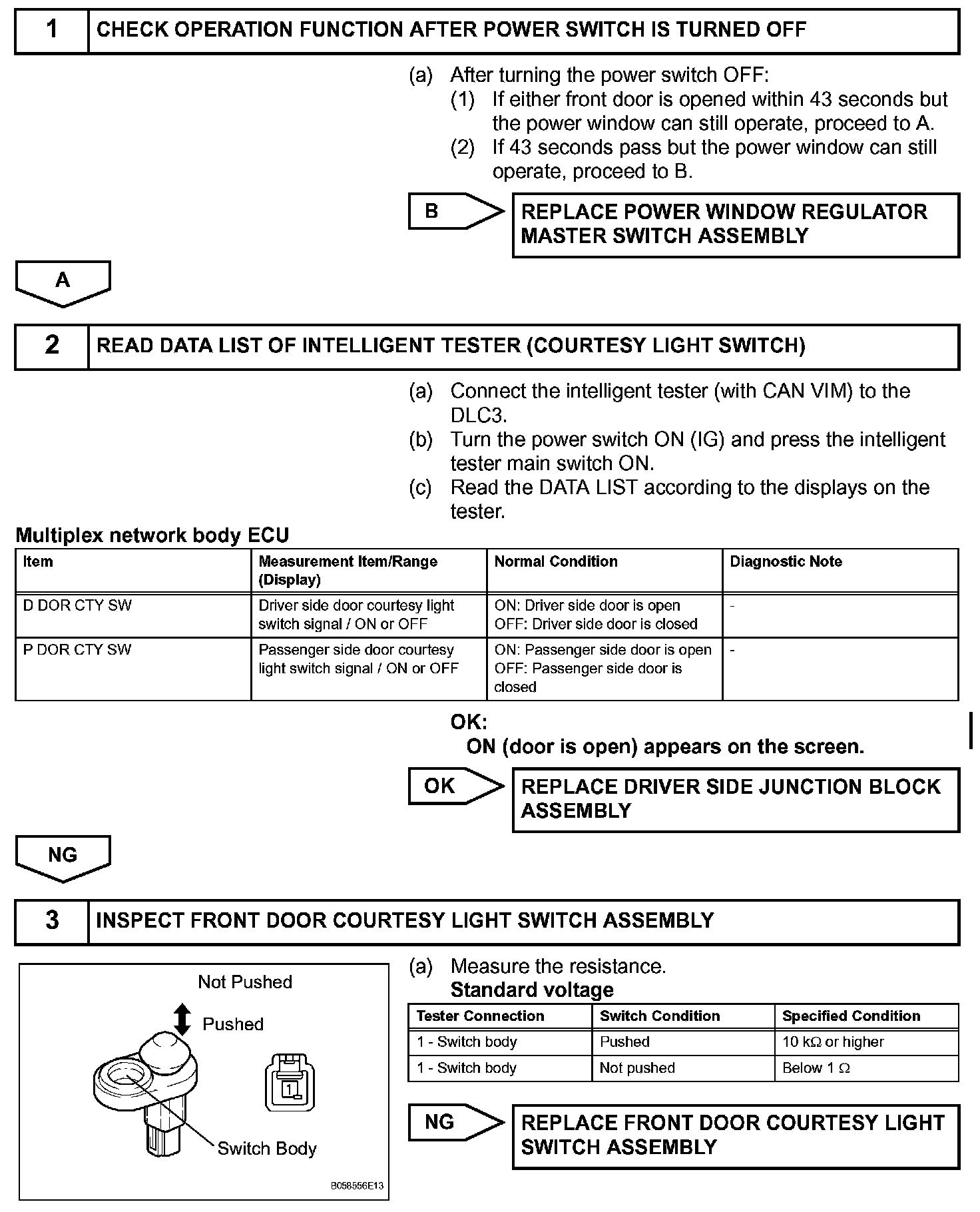

Step 1-3:

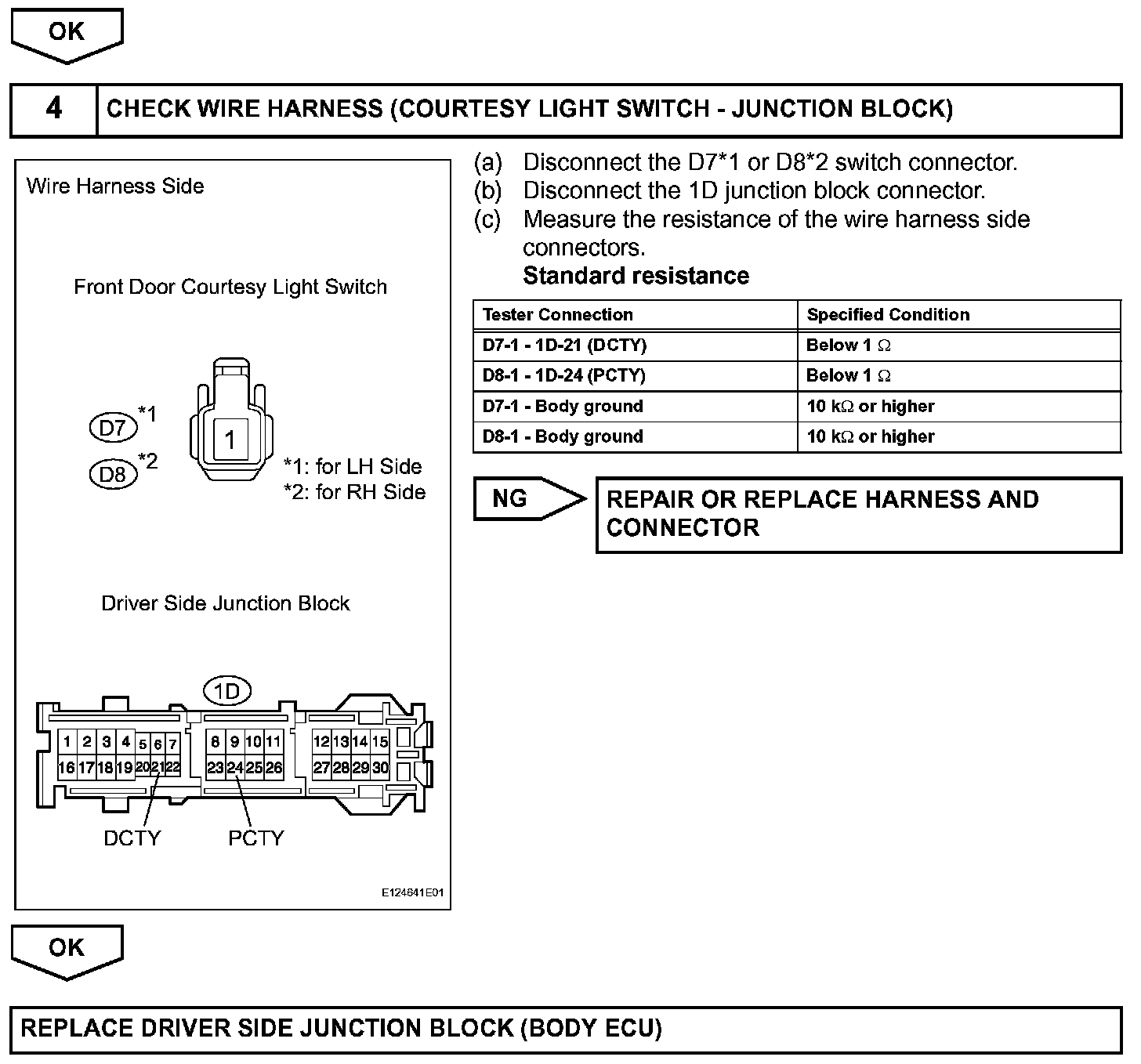

Step 3(Continued)-4:
INSPECTION PROCEDURE
