Manual Up / Down Function Does Not Operate on Rear RH Only
Manual Up / Down Function does not Operate on Rear RH OnlyDESCRIPTION
If the rear RH side manual UP / DOWN function does not operate, a malfunction may be present in the power window regulator motor, power window regulator switch, power window regulator master switch or wire harness.

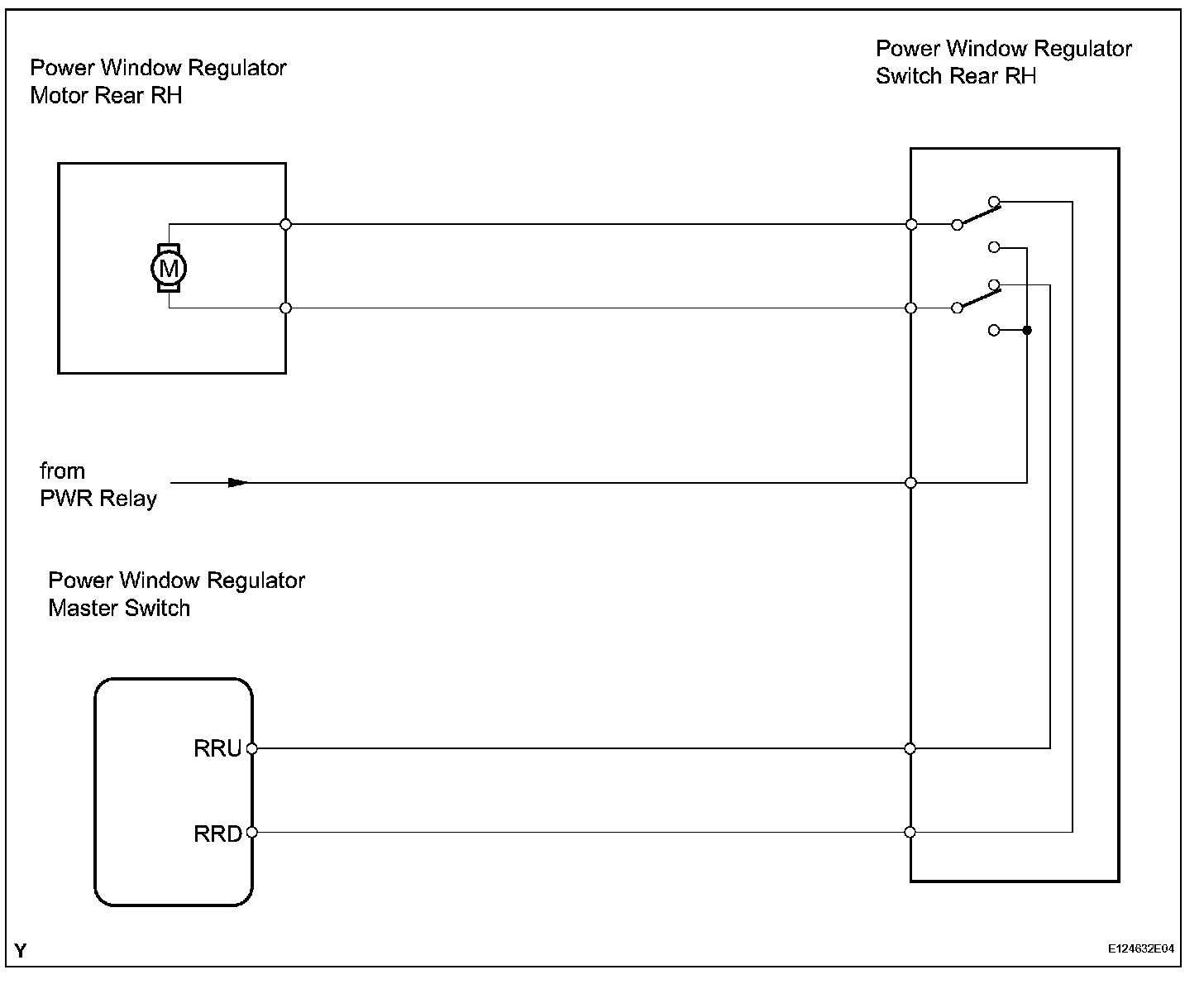

Wiring Diagram:

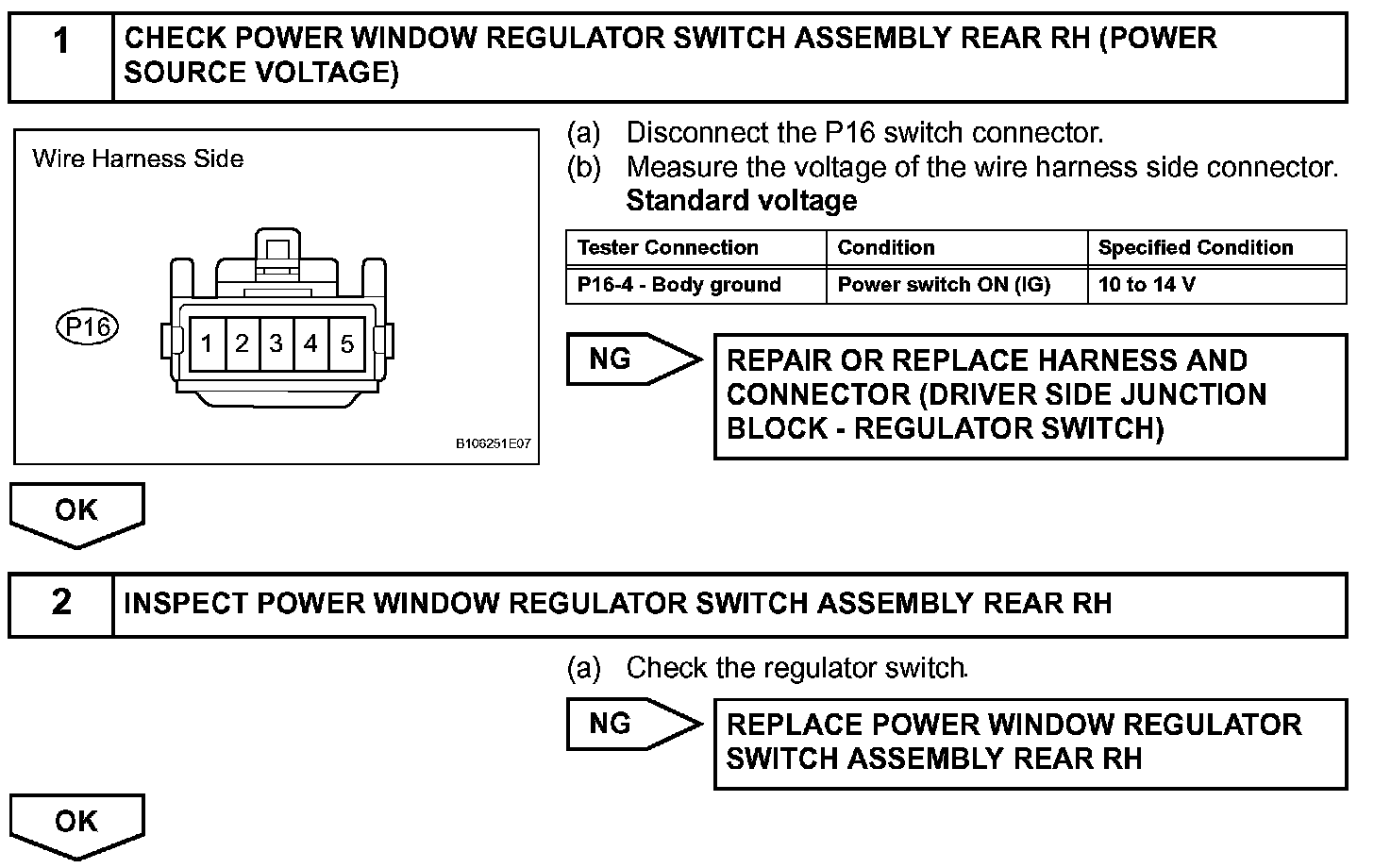

Step 1-2:

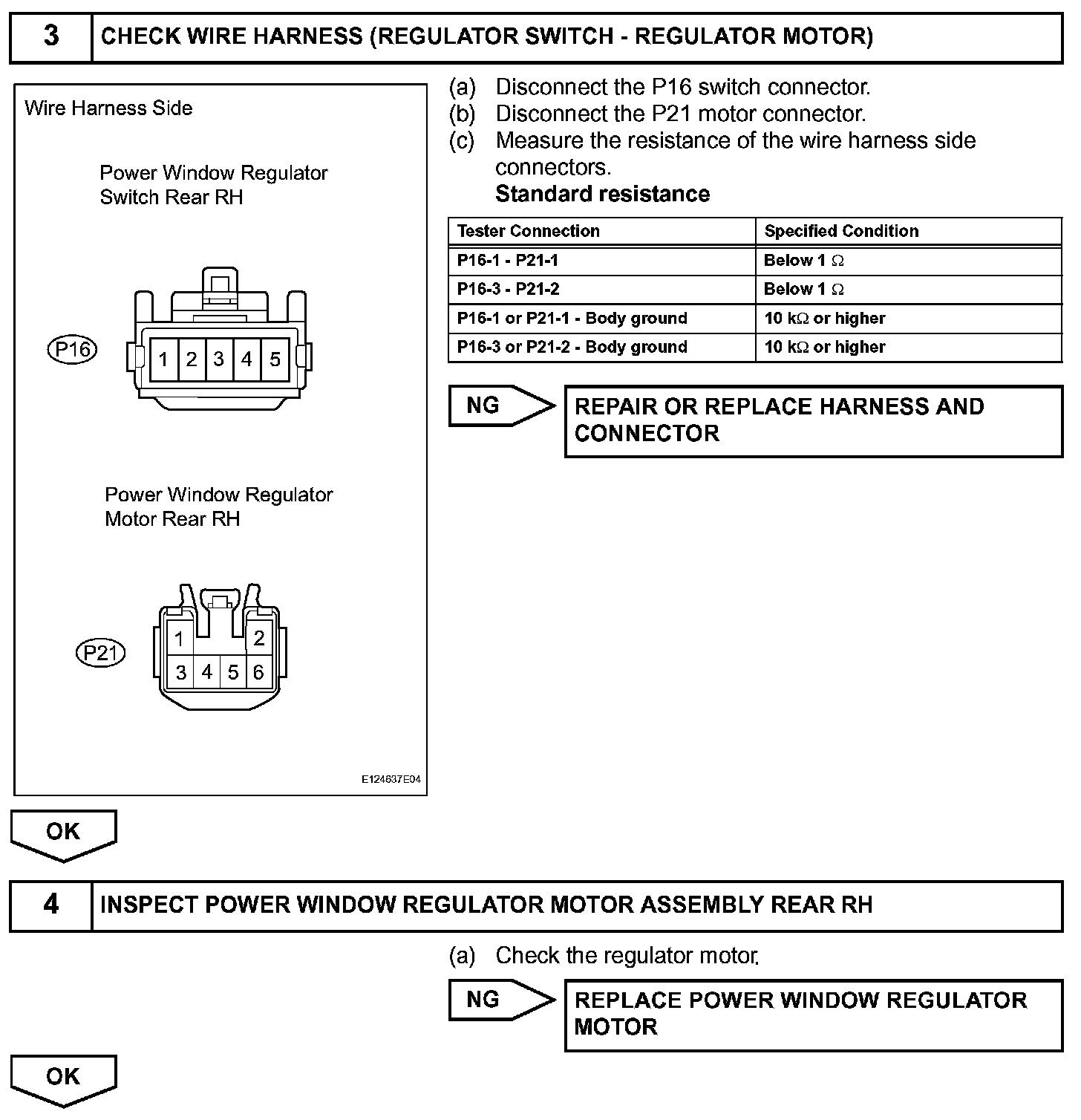

Step 3-4:

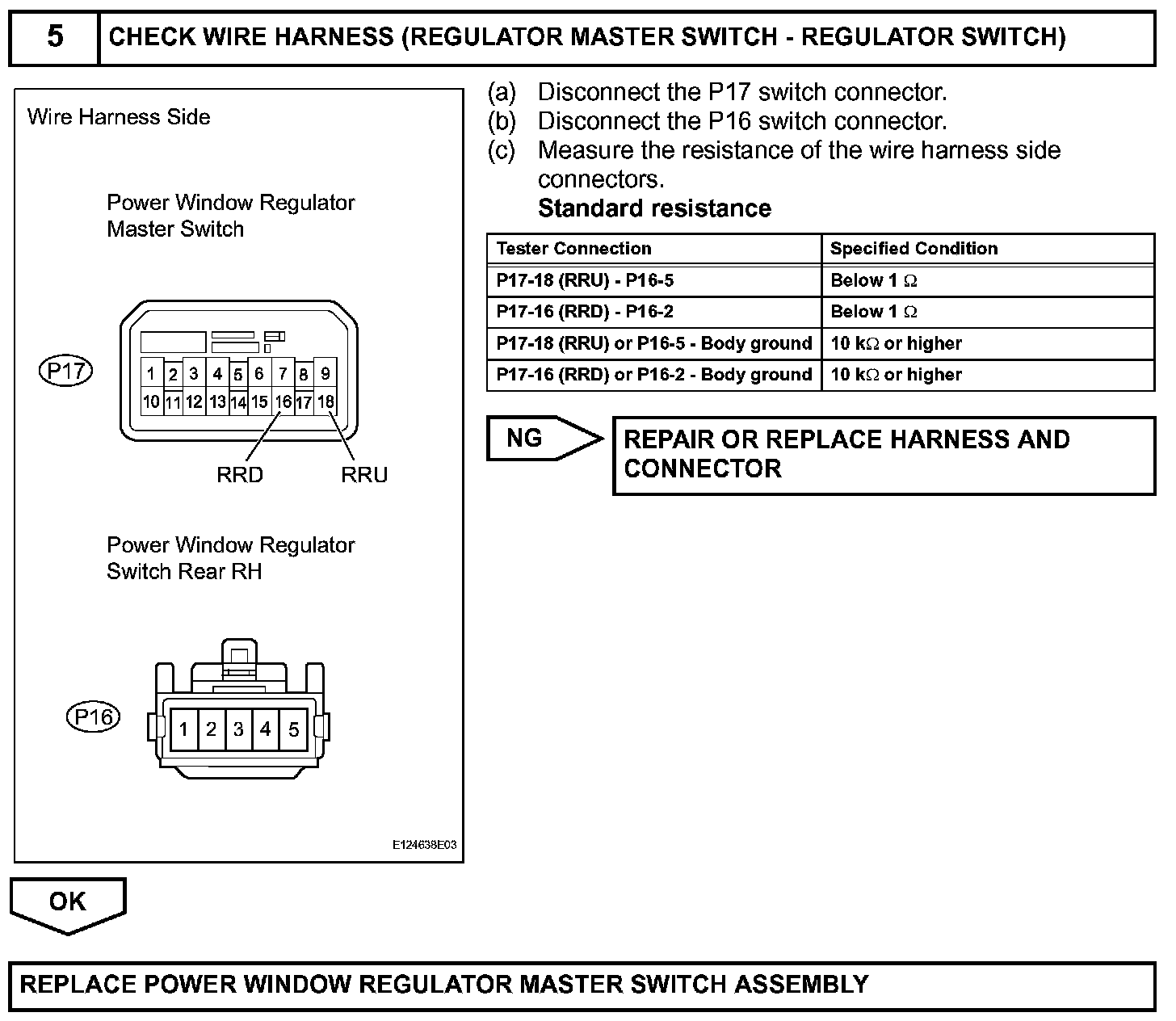

Step 5:
INSPECTION PROCEDURE
