Manual Up / Down Function Does Not Operate on Driver Side

Manual Up / Down Function does not Operate on Driver Side

DESCRIPTION
If the manual UP / DOWN function does not operate, a malfunction may be present in the power window regulator master switch assembly, the power window regulator motor or the wire harness.

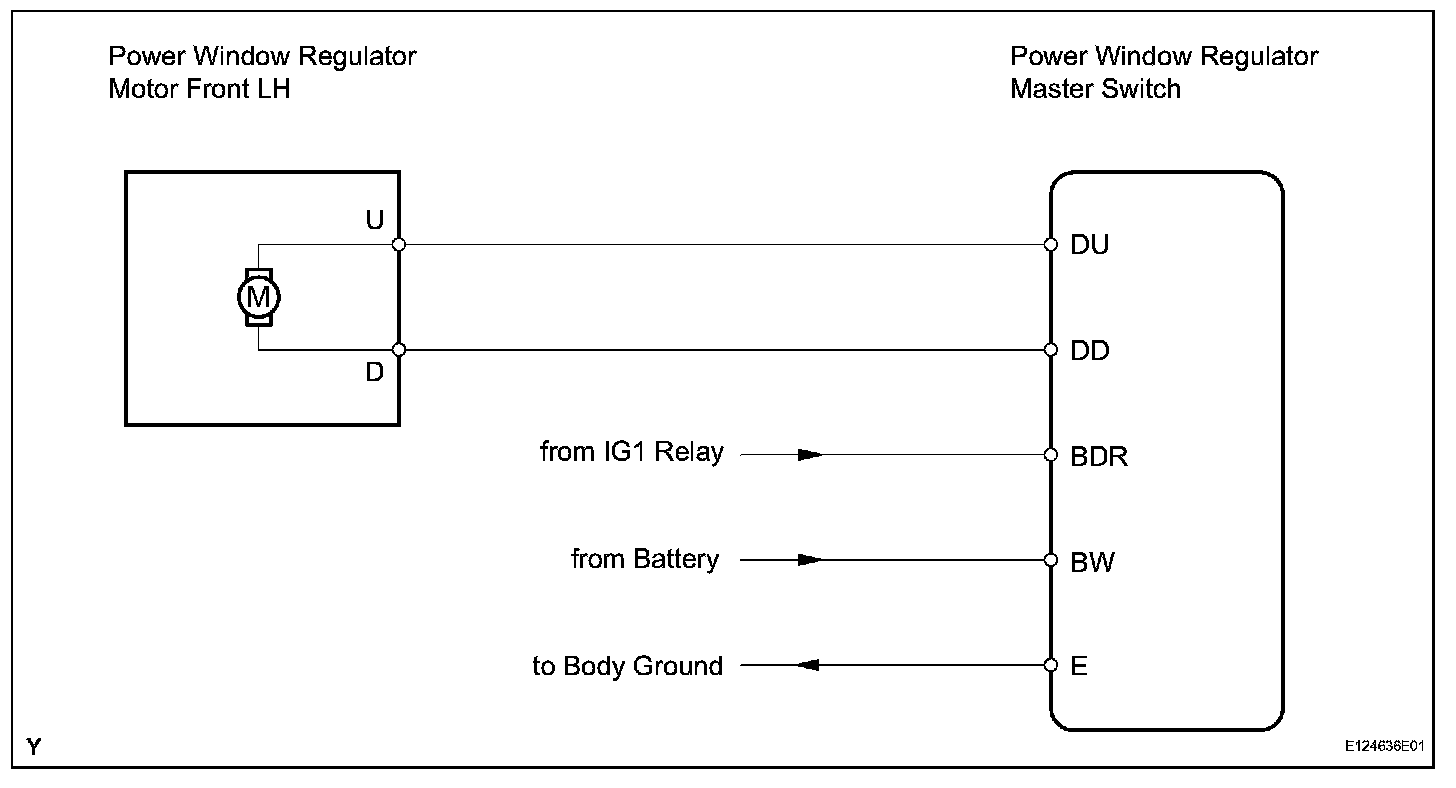

Wiring Diagram:

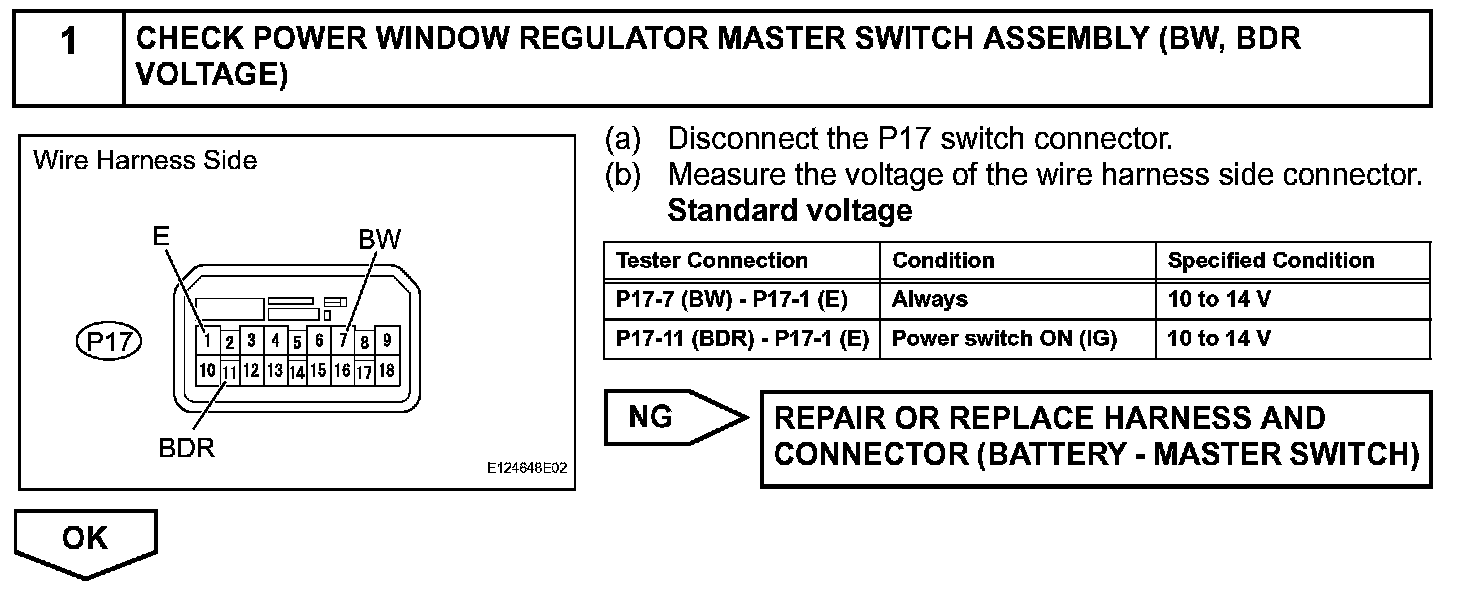

Step 1:

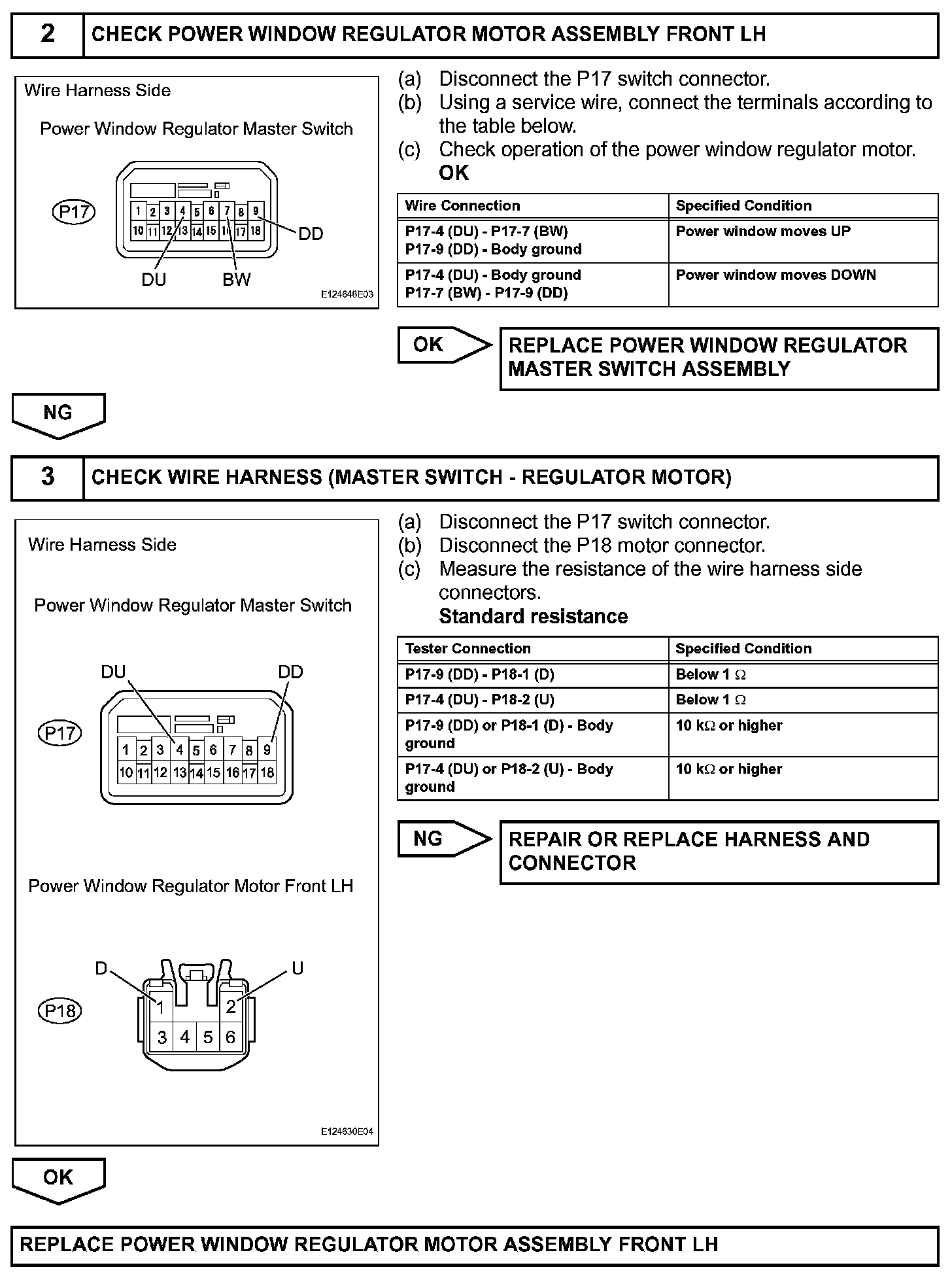

Step 2-3:

INSPECTION PROCEDURE
