Pinout Values and Diagnostic Parameters

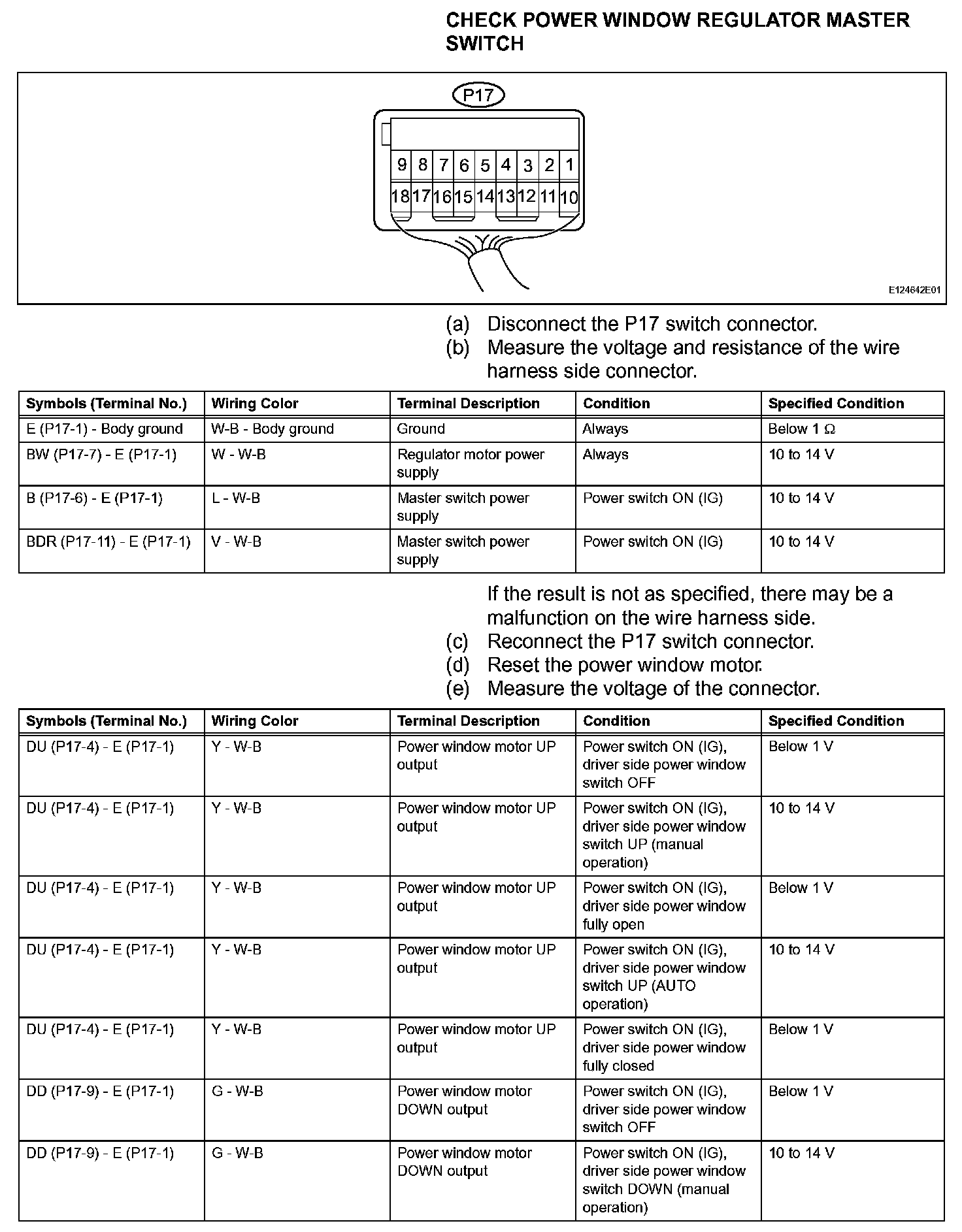

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch (Part 1):

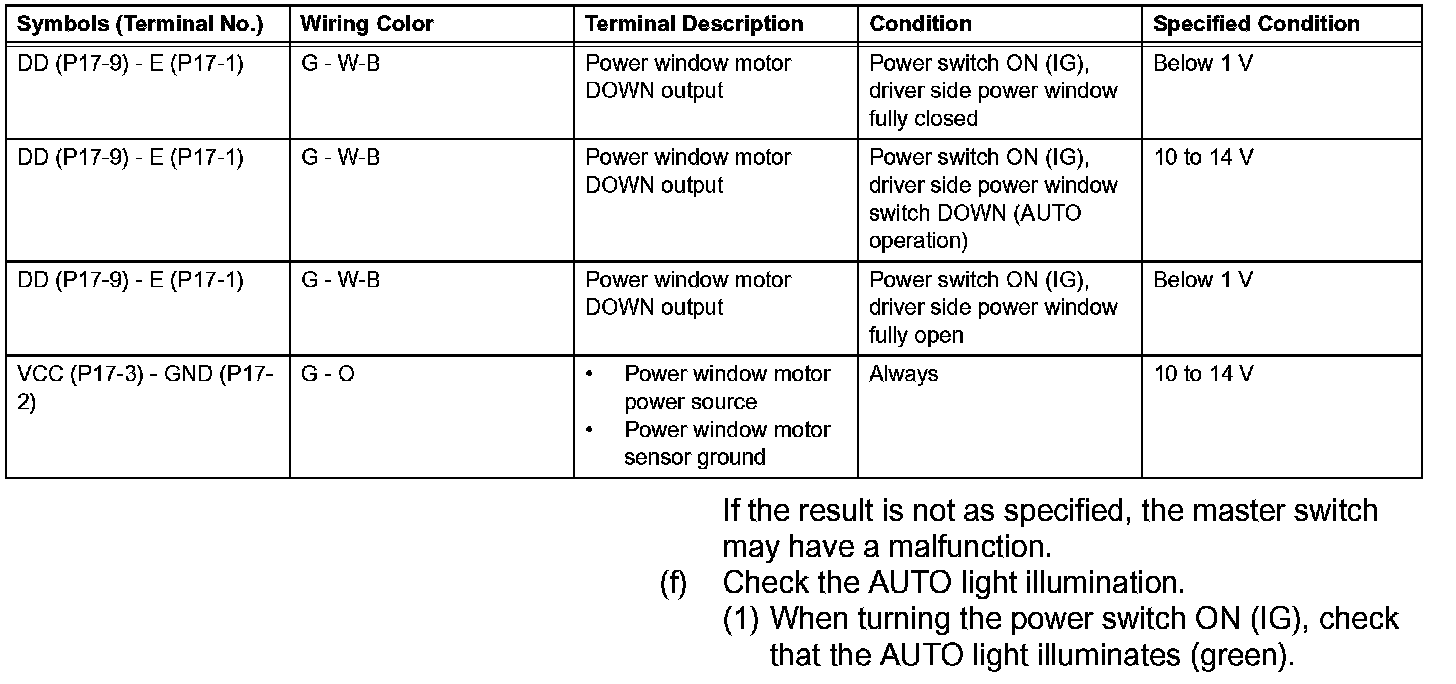

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch (Part 2):

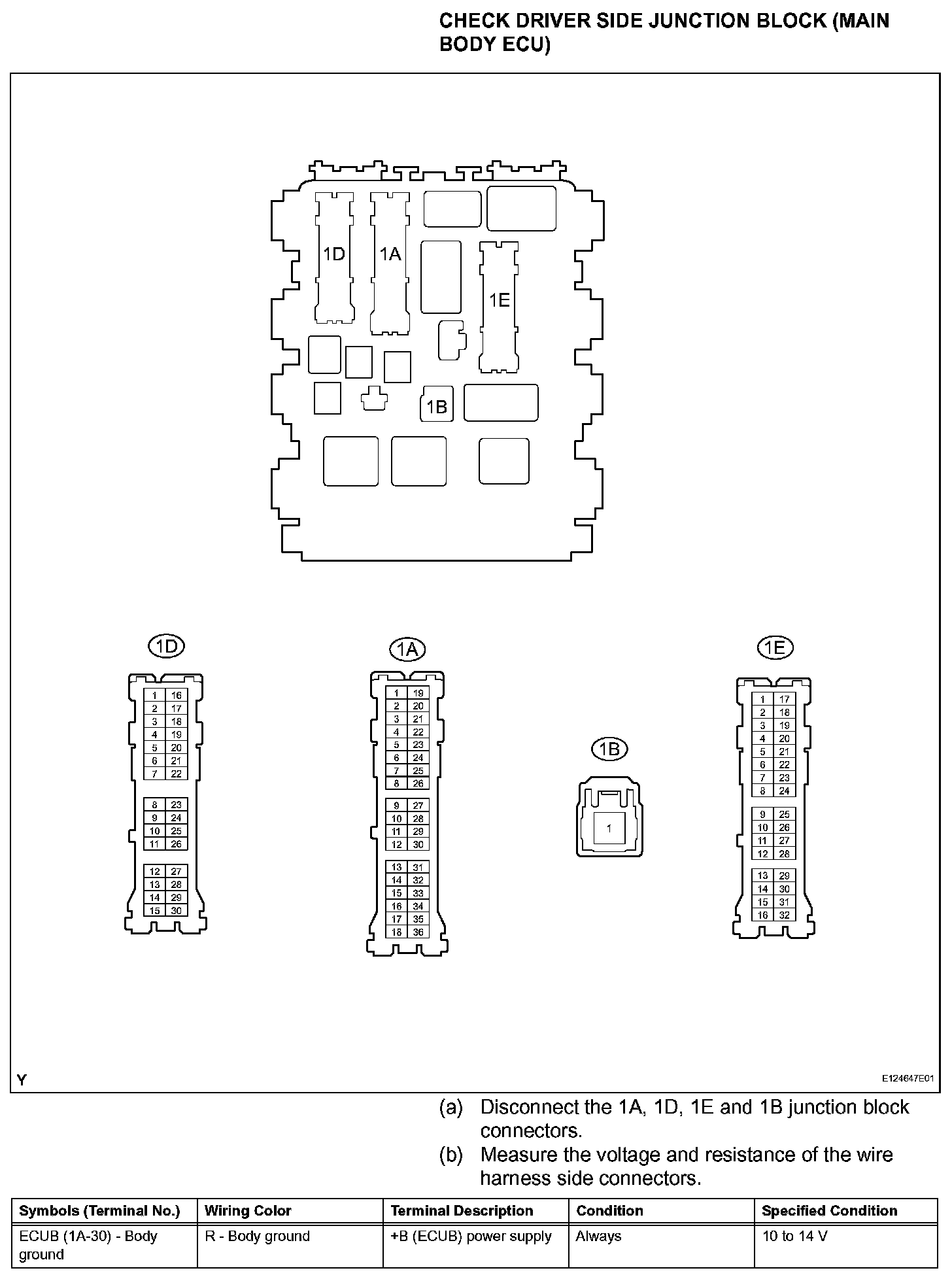

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 1):

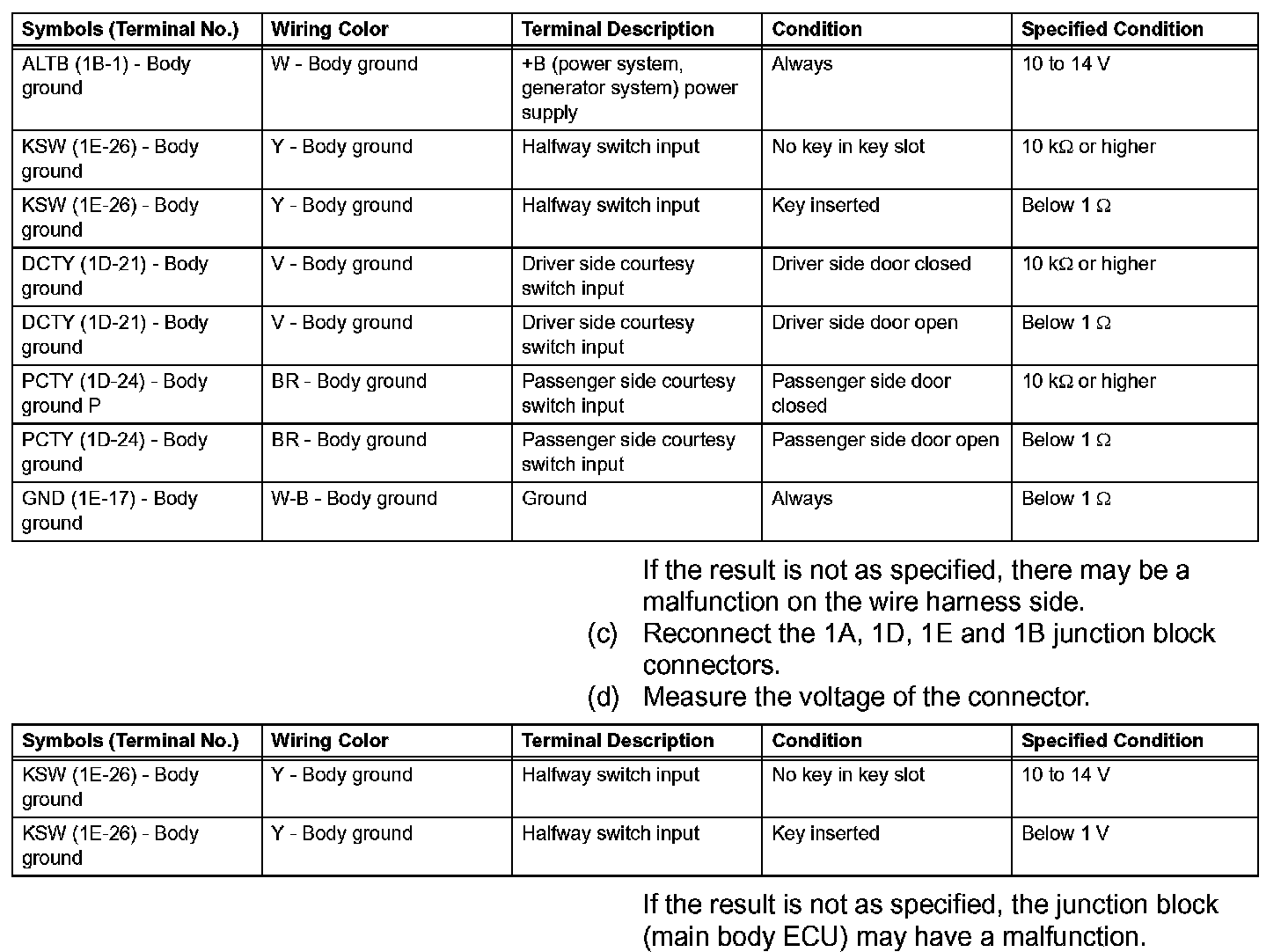

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 2):
