Component Inspection

INSPECTION

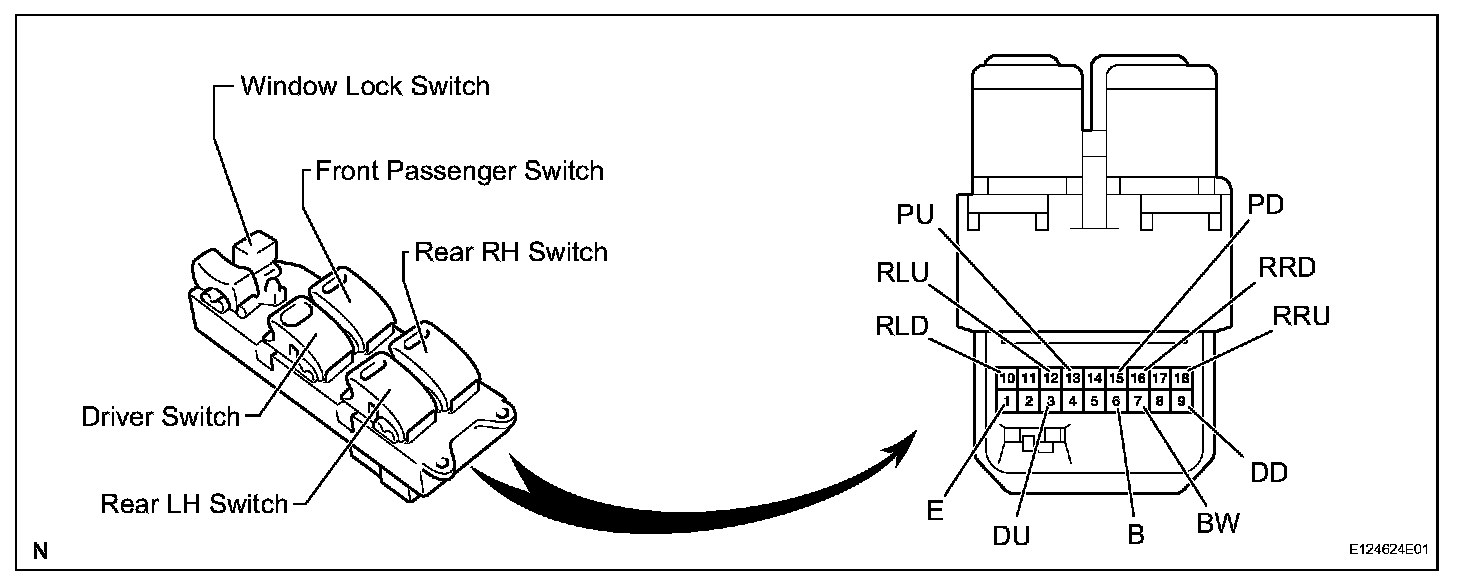

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

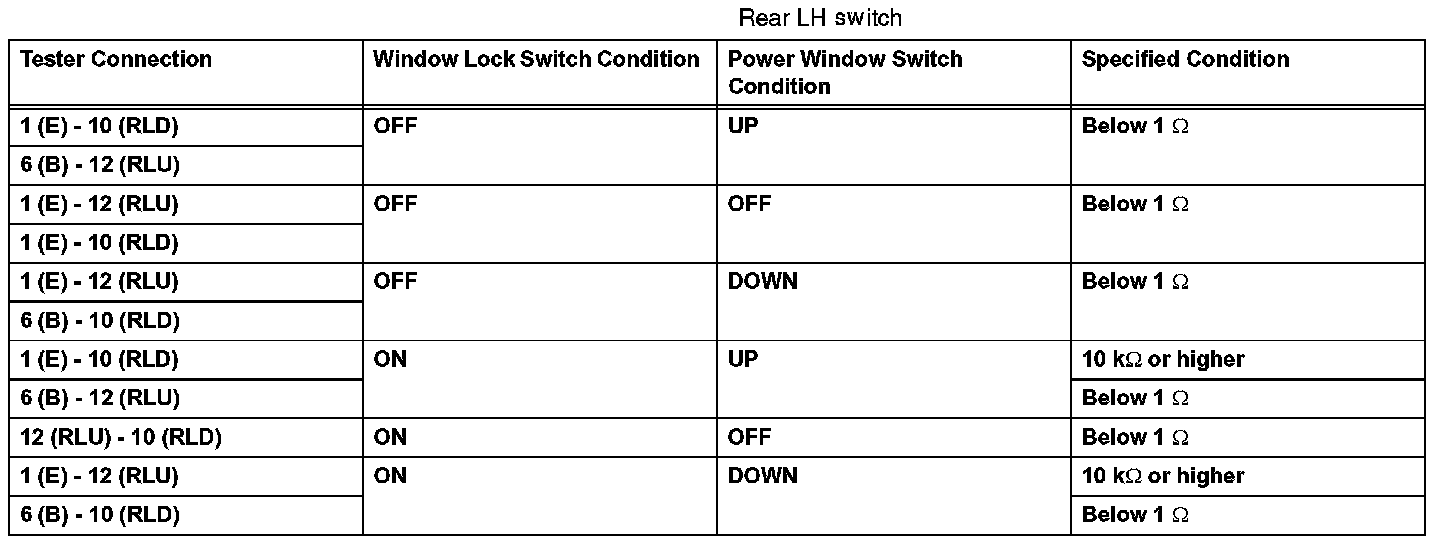

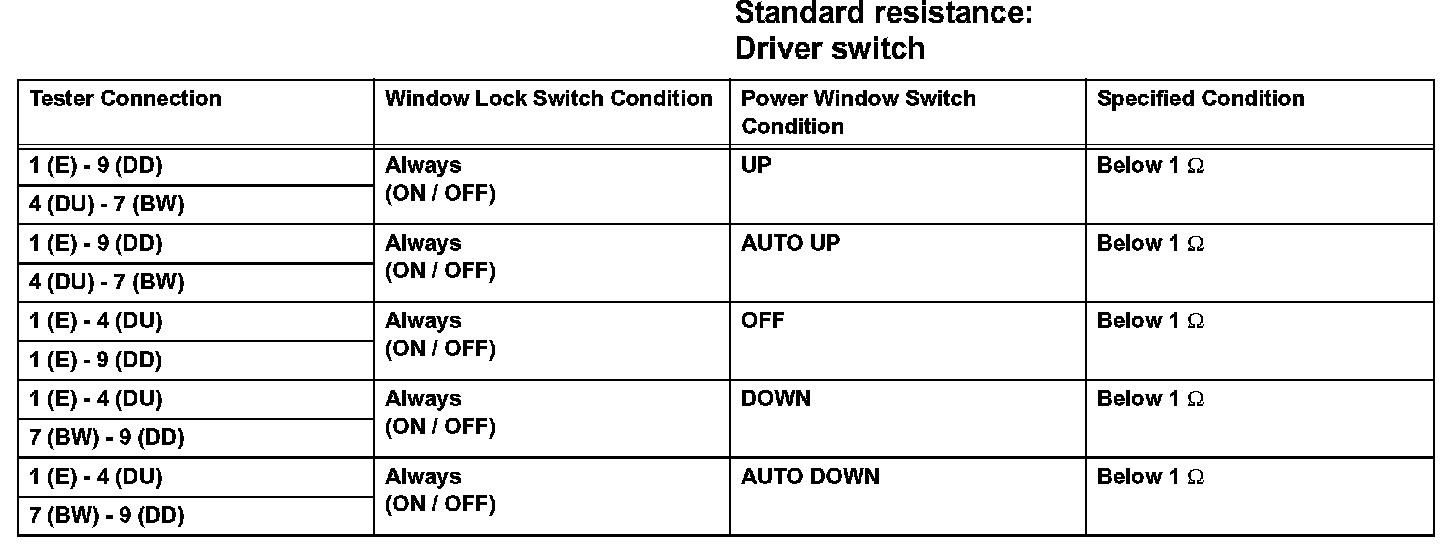

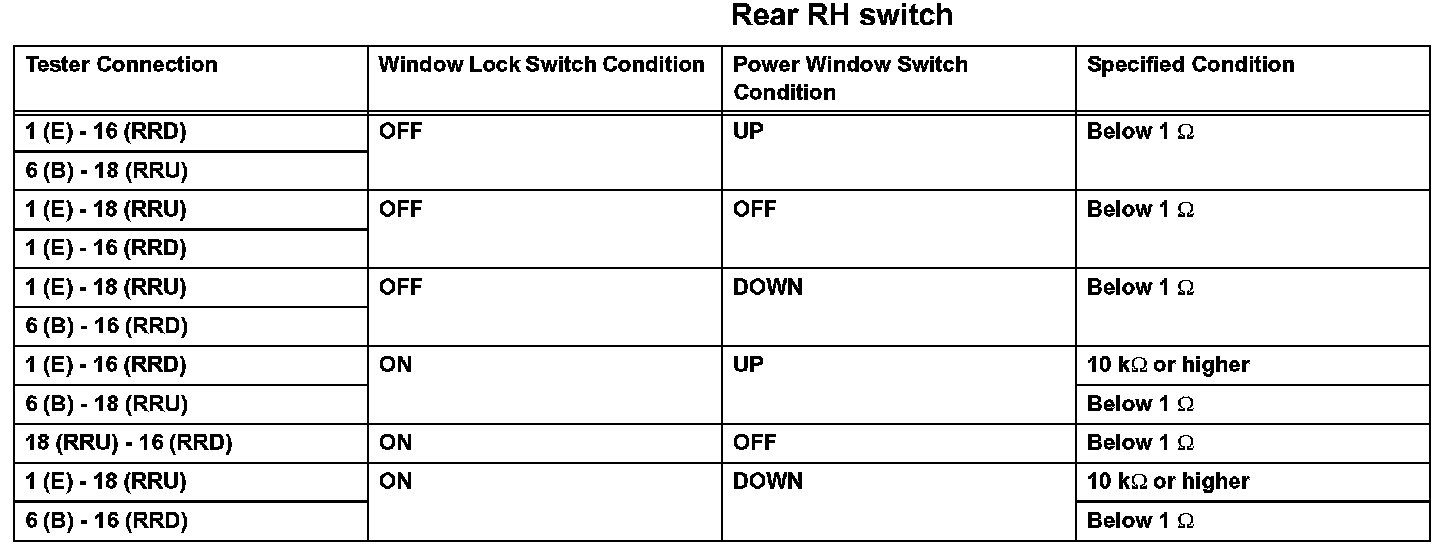

a. Measure the resistance of the switch when the switch is operated.

If the result is not as specified, replace the master switch assembly.

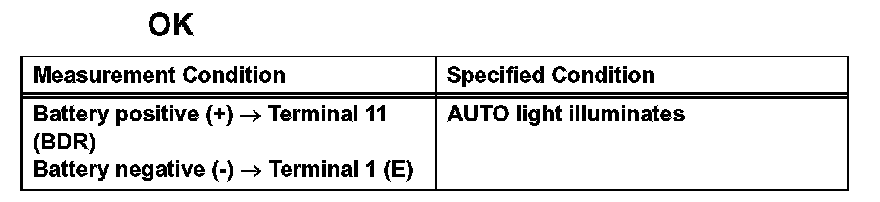

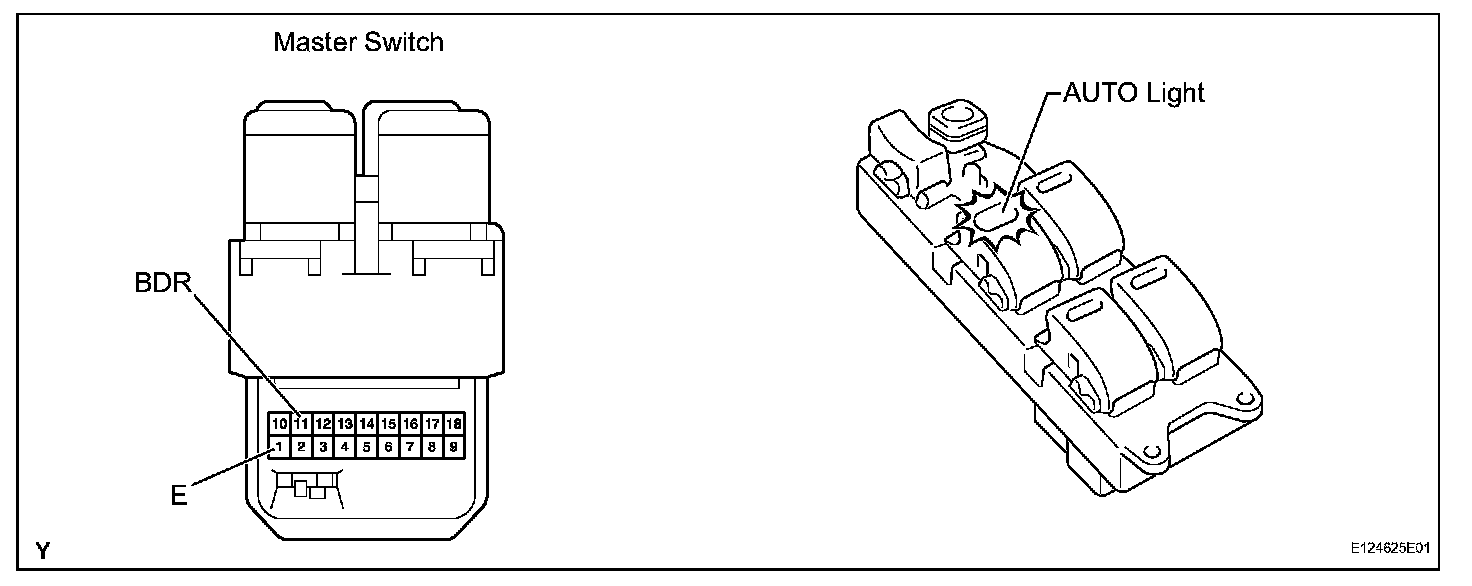

b. Apply battery voltage to the master switch and check that the AUTO light illuminates.

If the result is not as specified, replace the master switch assembly.

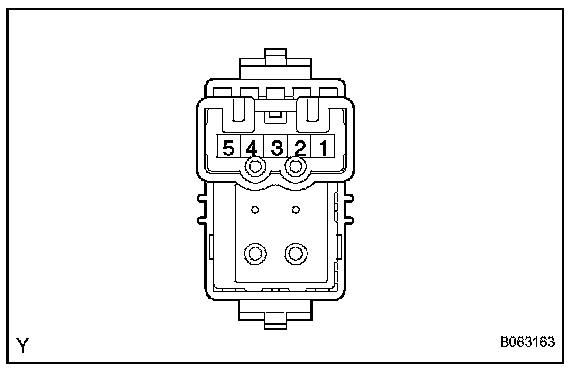

2. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

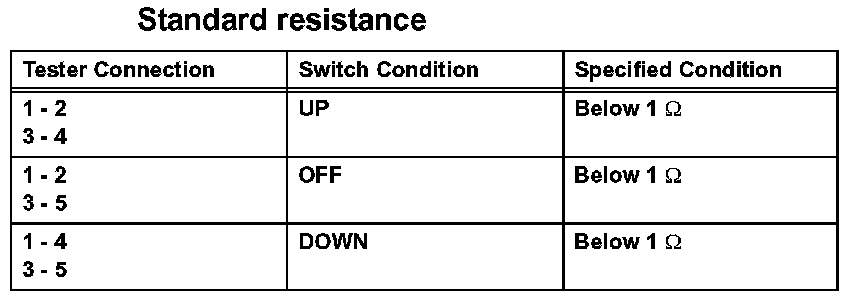

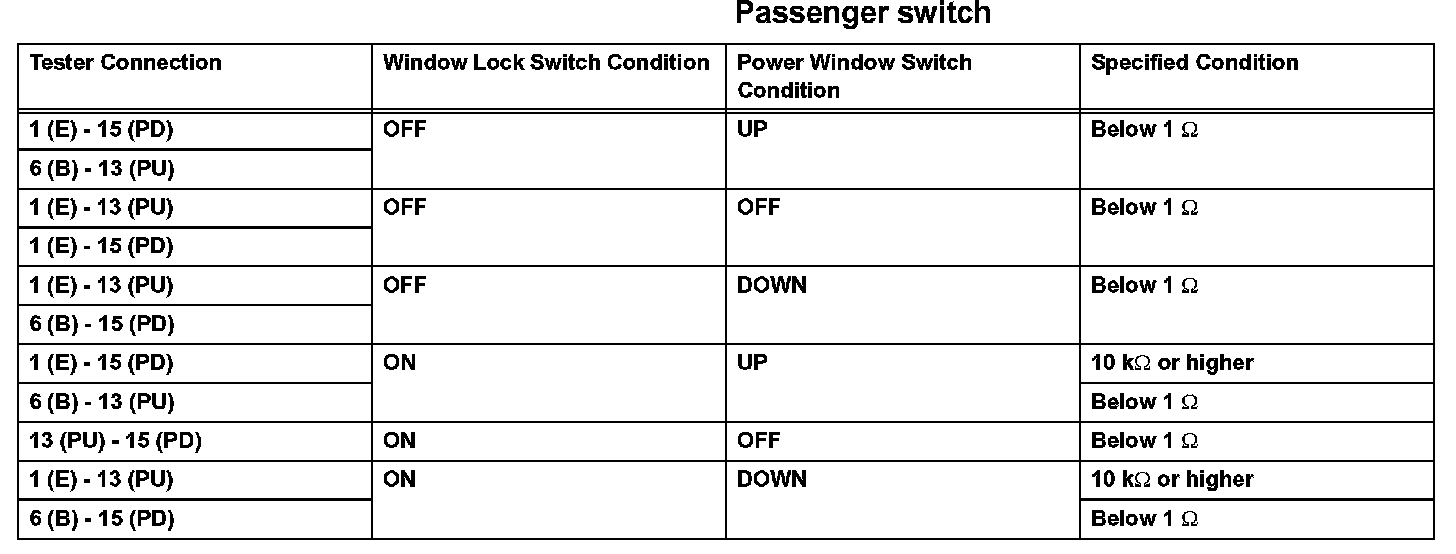

a. Measure the resistance of the switch when the switch is operated.

If the result is not as specified, replace the regulator switch assembly.

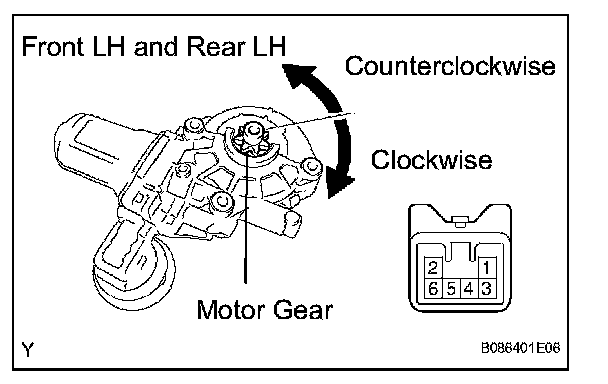

3. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front LH and Rear LH)




a. Apply battery voltage to connector terminals 1 and 2.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

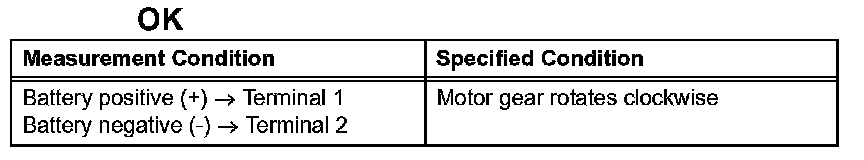

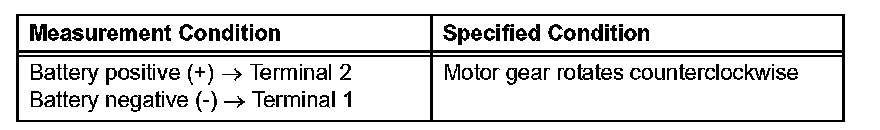

b. Check that the motor gear rotates smoothly as follows.

If the result is not as specified, replace the regulator motor assembly.

4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front RH and Rear RH)




a. Apply battery voltage to connector terminals 1 and 2.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.







b. Check that the motor gear rotates smoothly as follows.

If the result is not as specified, replace the regulator motor assembly.
