On-Vehicle Inspection

ON-VEHICLE INSPECTION

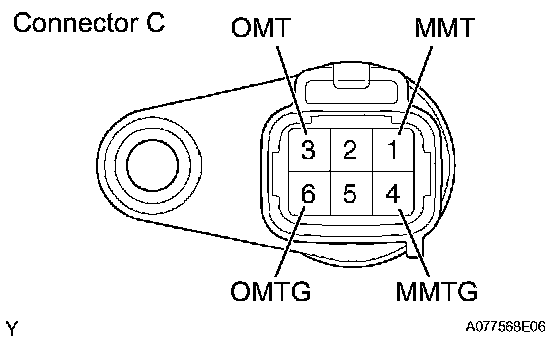

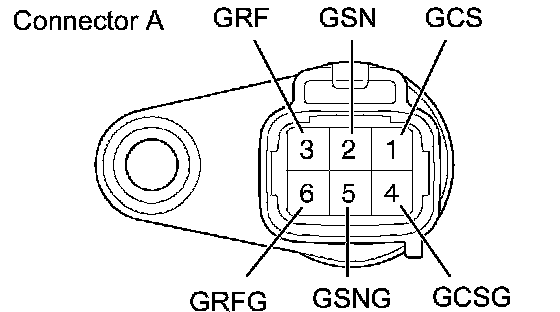

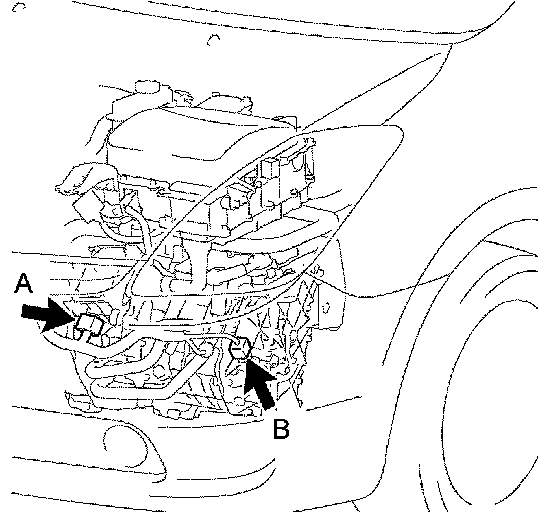

1. INSPECT SPEED SENSOR (RESOLVER)








a. Using an ohmmeter, measure the resistance between the terminals.

Standard Resistance:

If the results are not as specified, replace the hybrid vehicle transaxle assembly

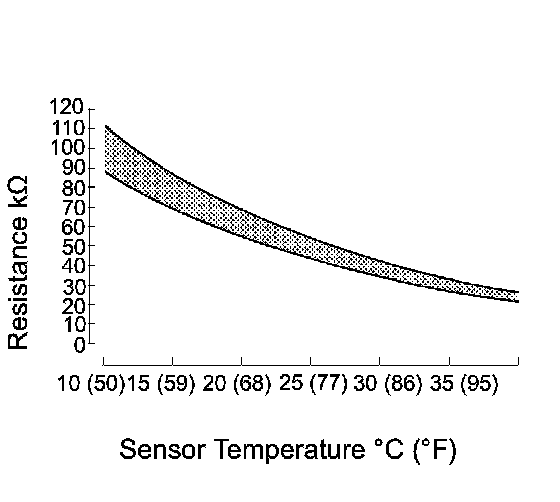

2. INSPECT TEMPERATURE SENSOR








a. Using an ohmmeter, measure the resistance between the terminals.

Standard Resistance:

HINT: The standard varies according to the sensor temperature. If the results are not as specified, replace the hybrid vehicle transaxle assembly
