Shifter CVT: Service and Repair

SHIFT LEVER

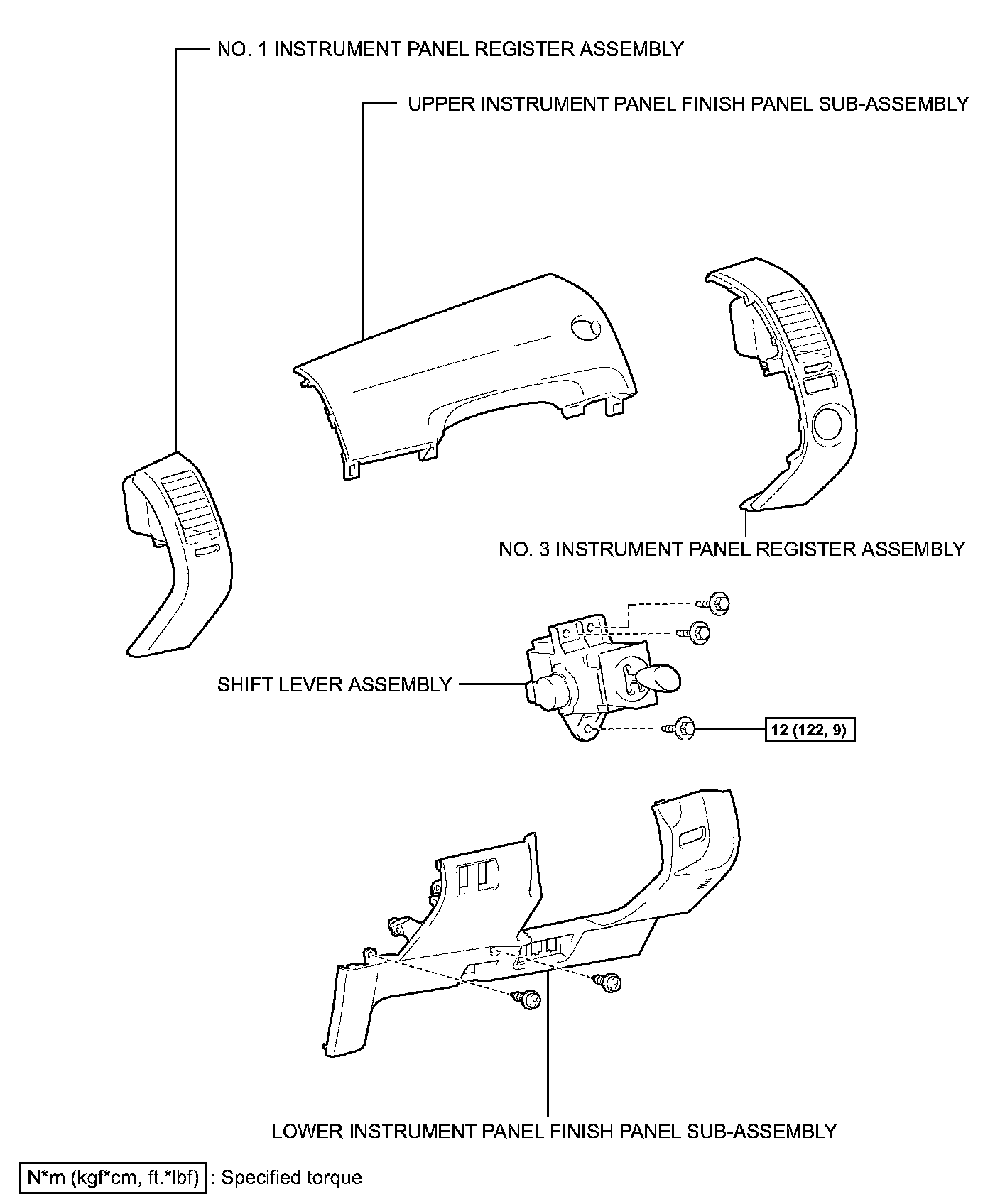

Components:

Components:

REMOVAL
1. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
3. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
4. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY





5. REMOVE SHIFT LEVER ASSEMBLY

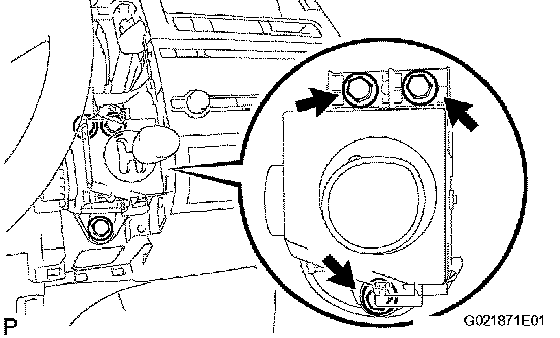

a. Remove the 3 bolts.
b. Disconnect the 2 connectors and remove the shift lever.

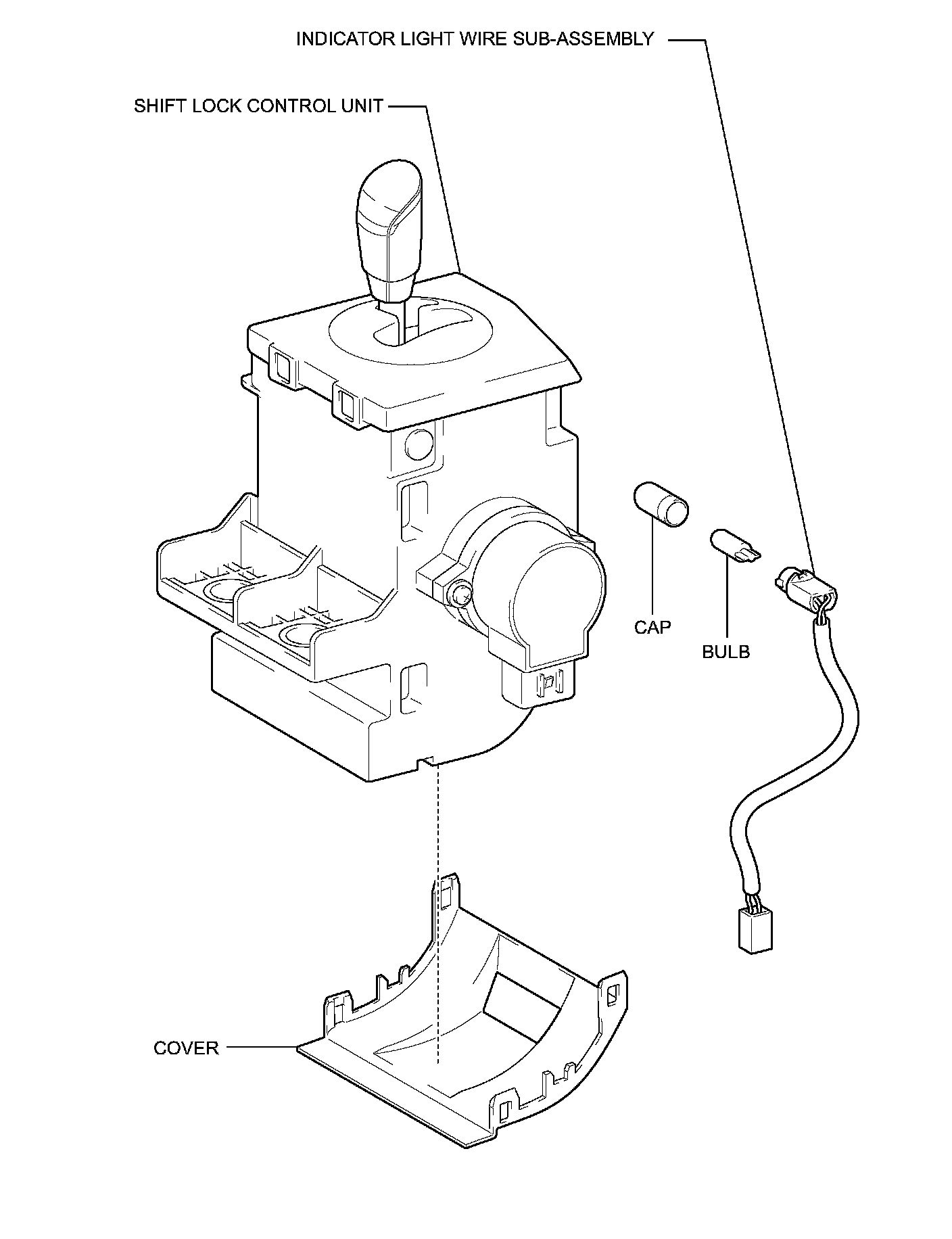

DISASSEMBLY
1. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

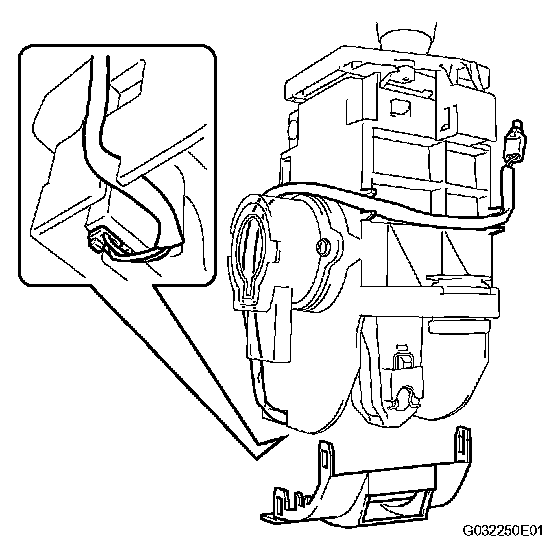

a. Remove the position indicator light wire from the position indicator housing.





b. Remove the cover.

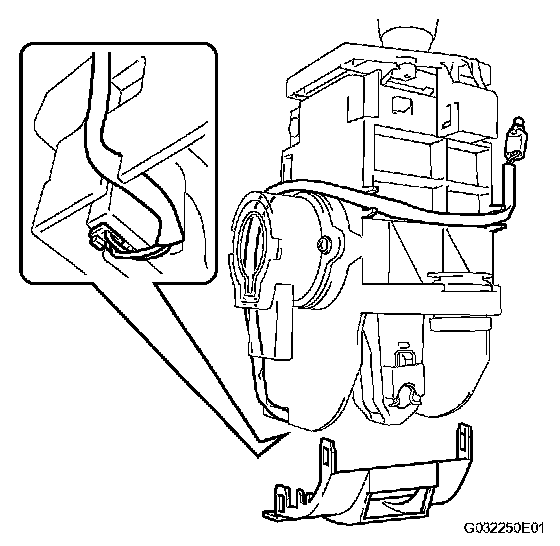

c. Disconnect the connector from the 3 clamps and remove the position indicator light wire.

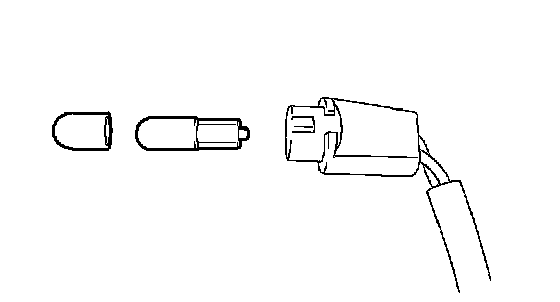

d. Remove the bulb and cap from the position indicator light wire.

REASSEMBLY
1. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY





a. Install the bulb and cap to the position indicator light wire.





b. Connect the connector to the 3 clamps.
c. Install the cover.





d. Install the position indicator light wire to the position indicator housing.

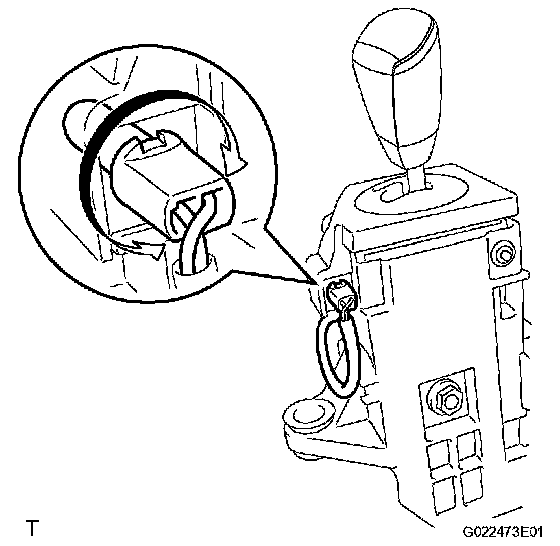

NOTICE: Securely attach the wire by twisting to the right.

INSTALLATION





1. INSTALL SHIFT LEVER ASSEMBLY
a. Connect the 2 connectors to the shift lever.
b. Install the shift lever with the 3 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)
2. INSPECT SHIFT LEVER ASSEMBLY
a. Inspect the shift lever.
3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
4. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
6. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
