Shift Solenoid: Service and Repair

SHIFT CONTROL ACTUATOR

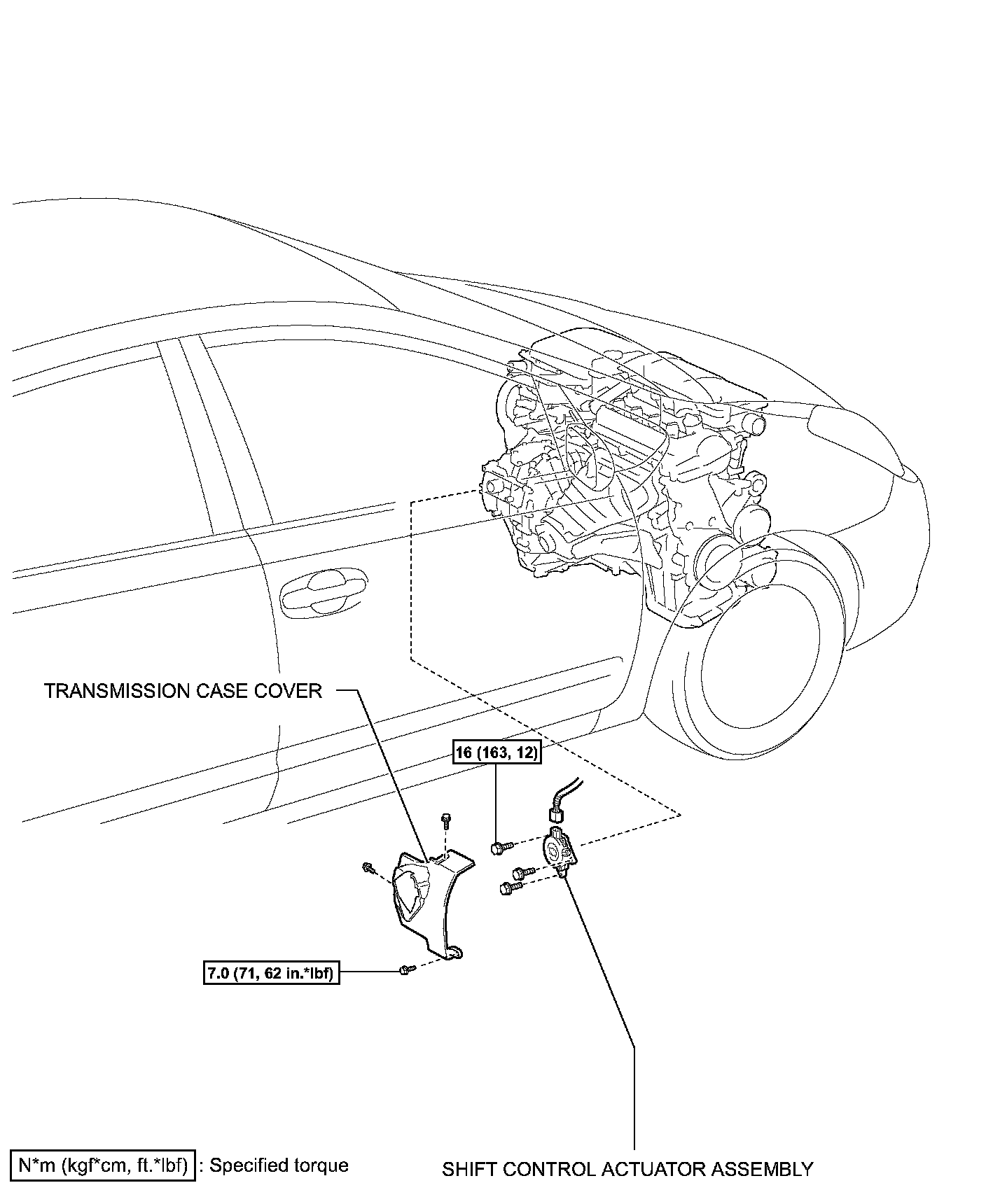

Components:

REMOVAL
1. REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY





a. Disconnect the connector.

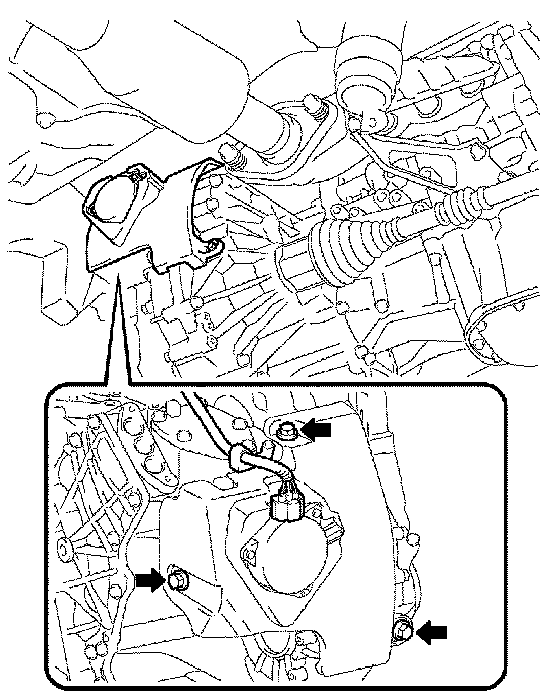

b. Remove the 3 bolts and transmission case cover from the hybrid vehicle transaxle.

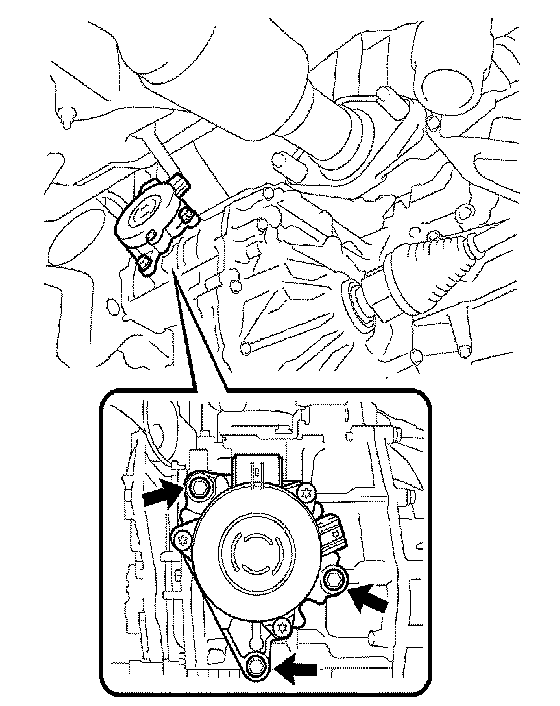

c. Remove the 3 bolts and shift control actuator from the hybrid vehicle transaxle.

INSTALLATION
1. INSTALL SHIFT CONTROL ACTUATOR ASSEMBLY

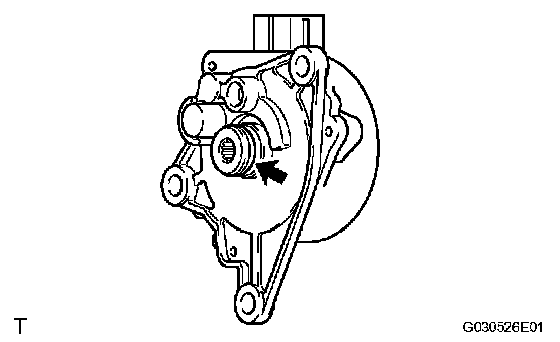

a. Apply a small amount of ATF WS to the O-ring.

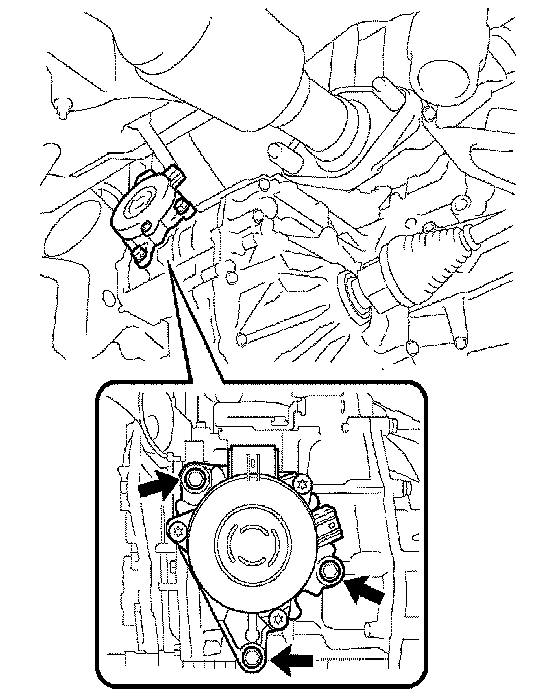

b. Install the shift control actuator to the hybrid vehicle transaxle with the 3 bolts.
Torque: 16 Nm (163 kgf-cm, 12 ft. lbs.)





c. Install the transmission case cover to the hybrid vehicle transaxle with the 3 bolts.
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
d. Connect the connector.
