Transmission Drive Sprocket

TRANSMISSION DRIVE SPROCKET

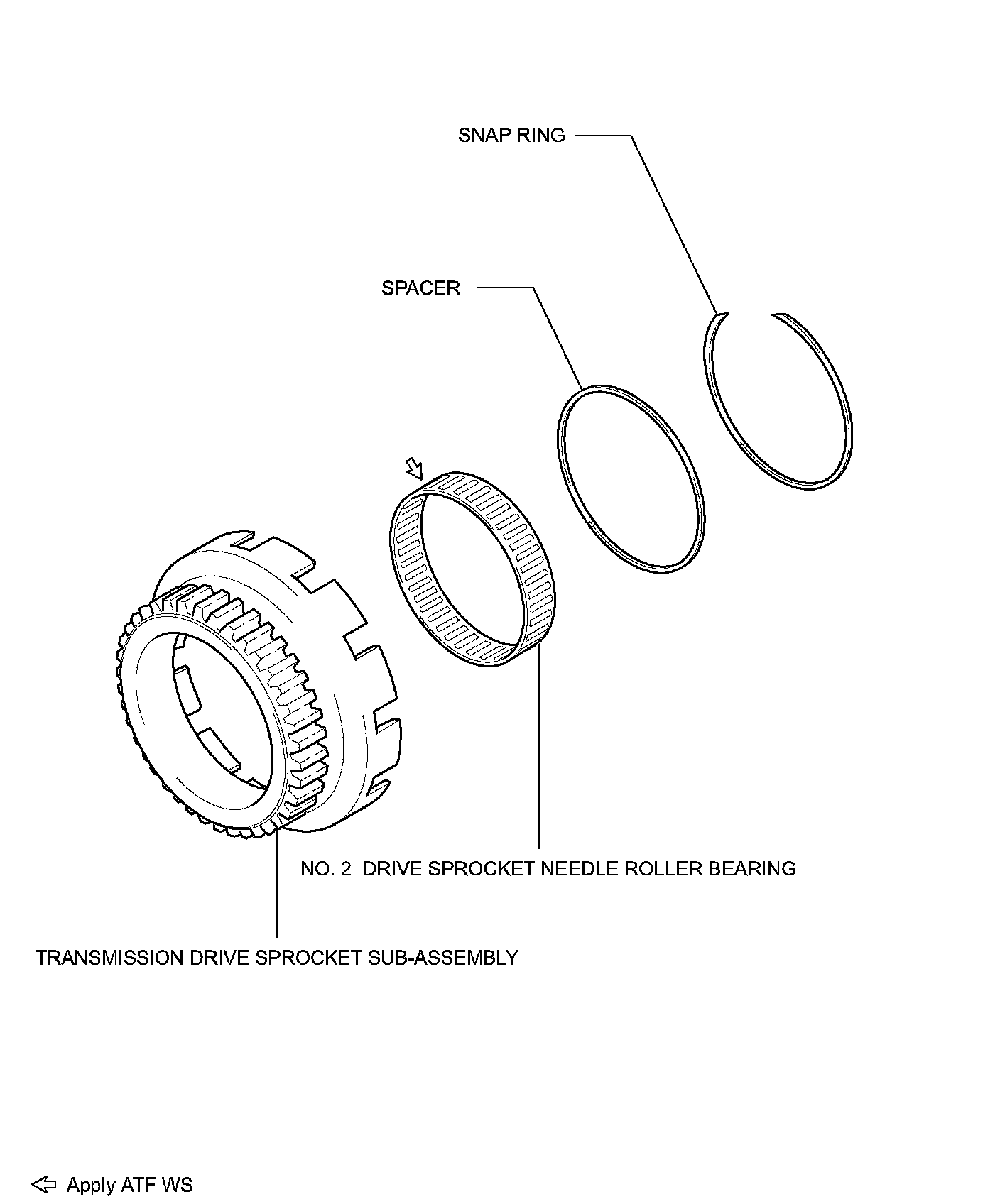

Components:

DISASSEMBLY
1. REMOVE TRANSMISSION DRIVE SPROCKET SUB-ASSEMBLY

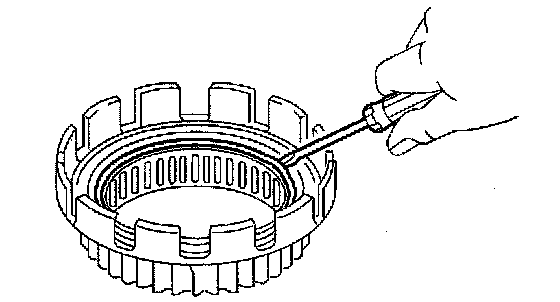

a. Using a thin screwdriver, pry out the snap ring from the transmission drive sprocket.





b. Remove the spacer and the needle roller bearing from the transmission drive sprocket.

INSPECTION





1. INSPECT NO. 2 DRIVE SPROCKET NEEDLE ROLLER BEARING

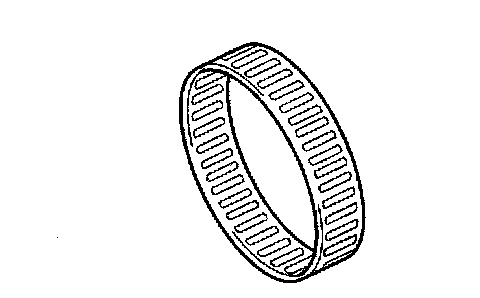

a. Check the bearing for abnormal wear or discoloration.

HINT: Replace the needle roller bearing with a new one if abnormal wear or discoloration is found.

REASSEMBLY
1. INSTALL TRANSMISSION DRIVE SPROCKET SUB-ASSEMBLY

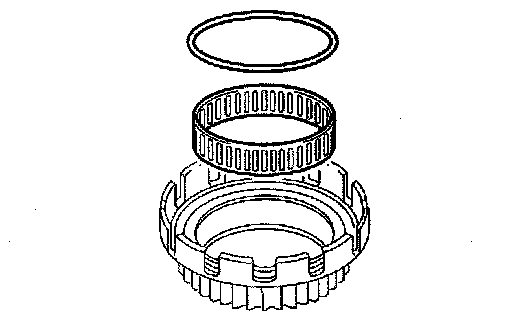

a. Apply ATF WS to the sliding surfaces of the bearing and install the needle roller bearing to the transmission drive sprocket.
b. Install the spacer to the transmission drive sprocket.

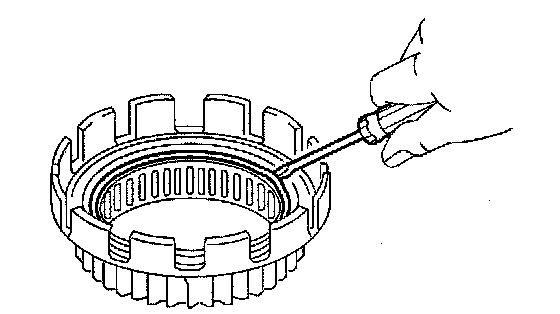

c. Using a thin screwdriver, install the snap ring to the transmission drive sprocket.
