Differential Drive Pinion

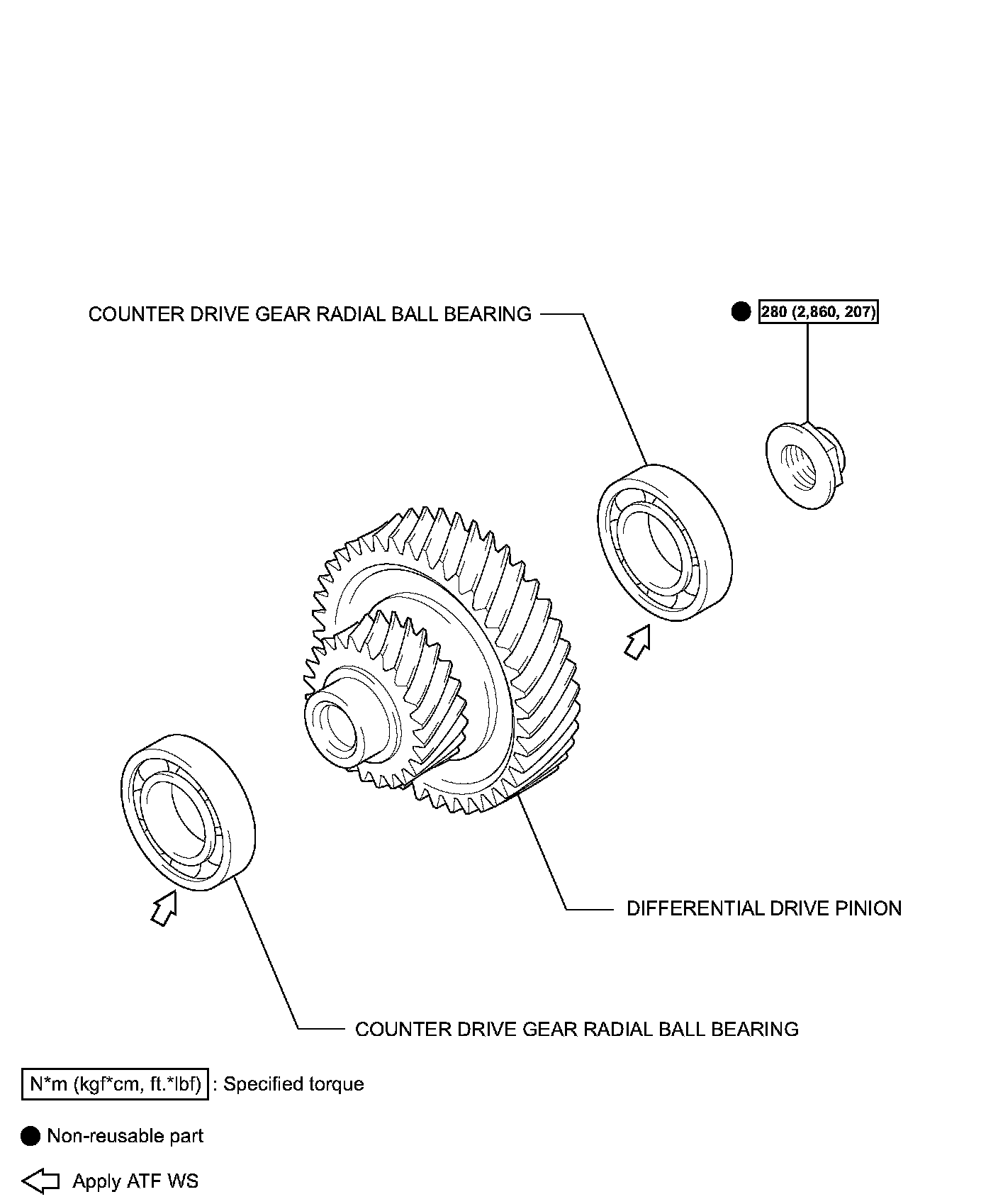

DIFFERENTIAL DRIVE PINIONComponents:
DISASSEMBLY
1. REMOVE COUNTER DRIVE GEAR RADIAL BALL BEARING

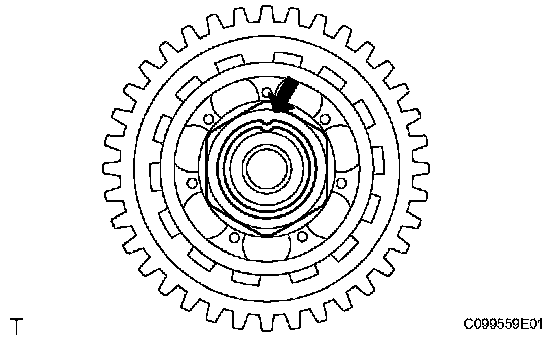

a. Loosen the staked part of the nut.

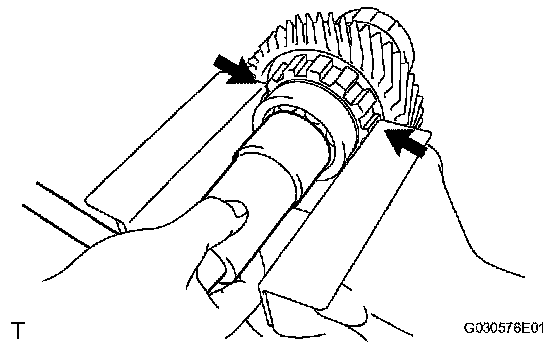

b. Set the differential drive pinion in a vise and remove the nut using a deep socket wrench.
HINT: Set the drive pinion in a vise as shown in the illustration.

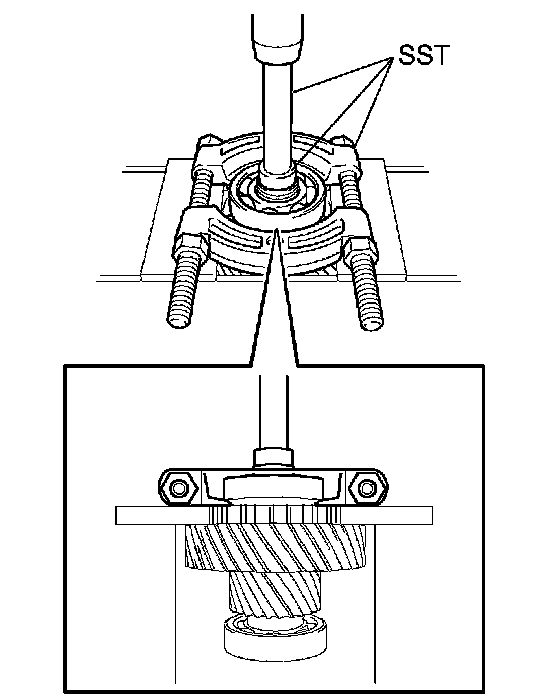

c. Using SST and a press, press out the bearing from the differential driver pinion.
SST 09527-10011, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

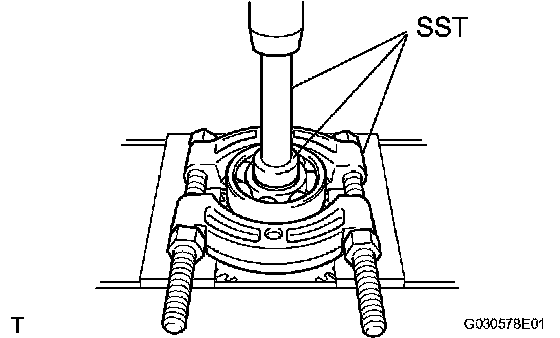

d. Using SST and a press, press out the bearing from the differential drive pinion.
SST 09527-10011, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)
INSPECTION
1. INSPECT COUNTER DRIVE GEAR RADIAL BALL BEARING
a. Check the bearing for abnormal wear or discoloration.
HINT: Replace the bearing with a new one if abnormal wear or discoloration is found.
REASSEMBLY
1. INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING

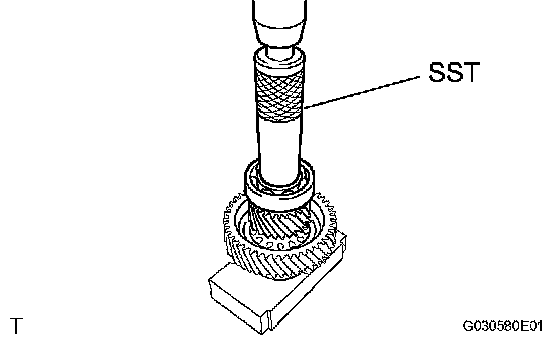

a. Using SST and a press, press in the bearing to the differential drive pinion.
SST 09608-06041

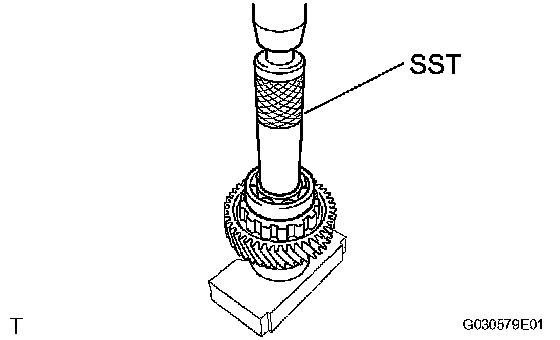

b. Using SST and a press, press in the bearing to the differential drive pinion.
SST 09608-06041, 09950-60010 (09951-00370)
c. Set the differential drive pinion in a vise and tighten a new nut using a deep socket wrench.
Torque: 280 Nm (2,860 kgf-cm, 207 ft. lbs.)
HINT: Set the vise as shown in the illustration.

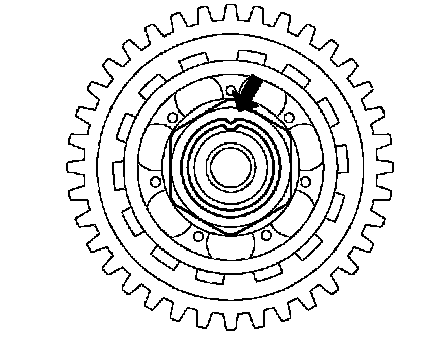

d. Stake the nut.
