Initial Inspection and Diagnostic Overview
>>
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
HOW TO PROCEED WITH TROUBLESHOOTING

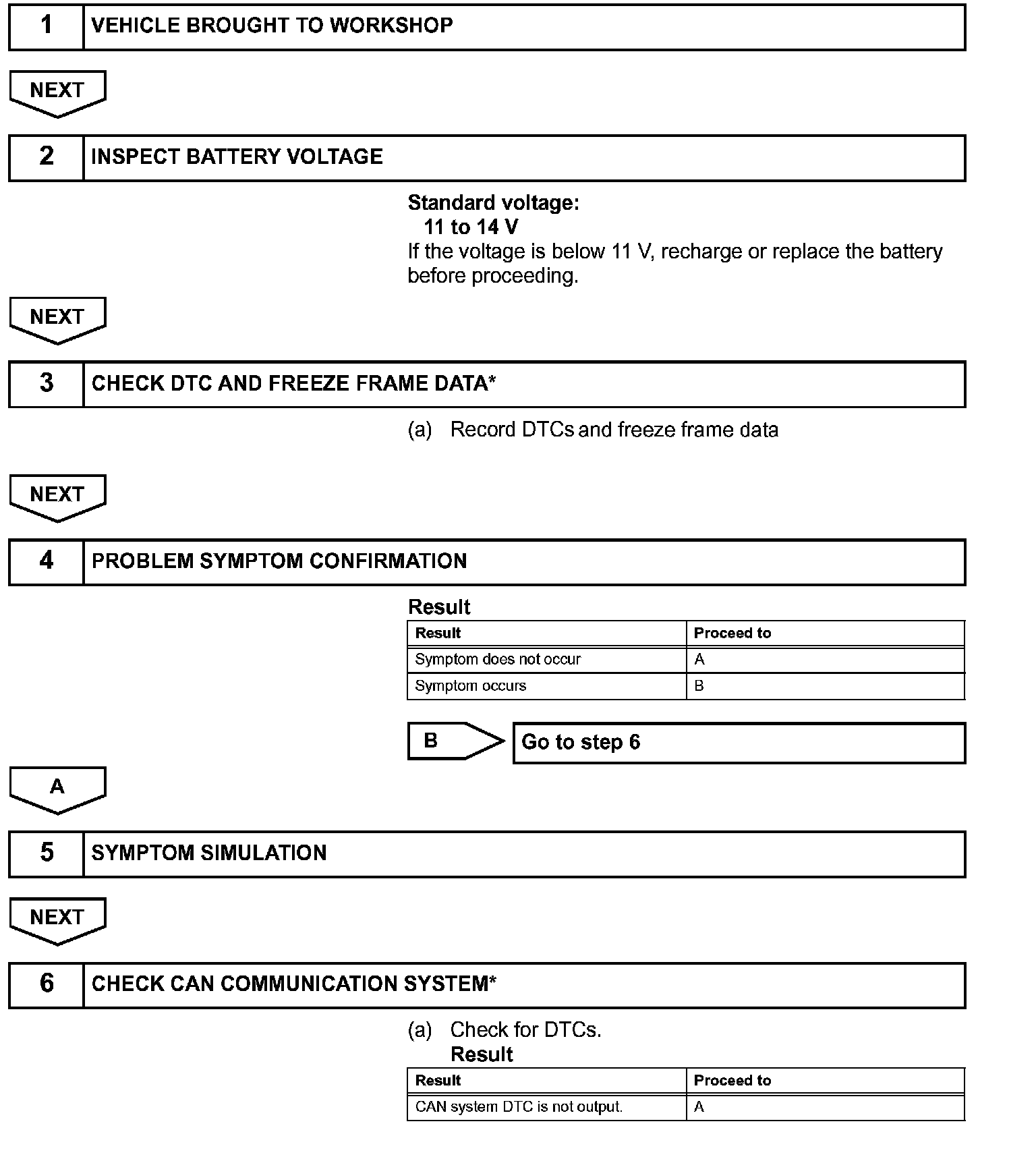

Steps 1-6:

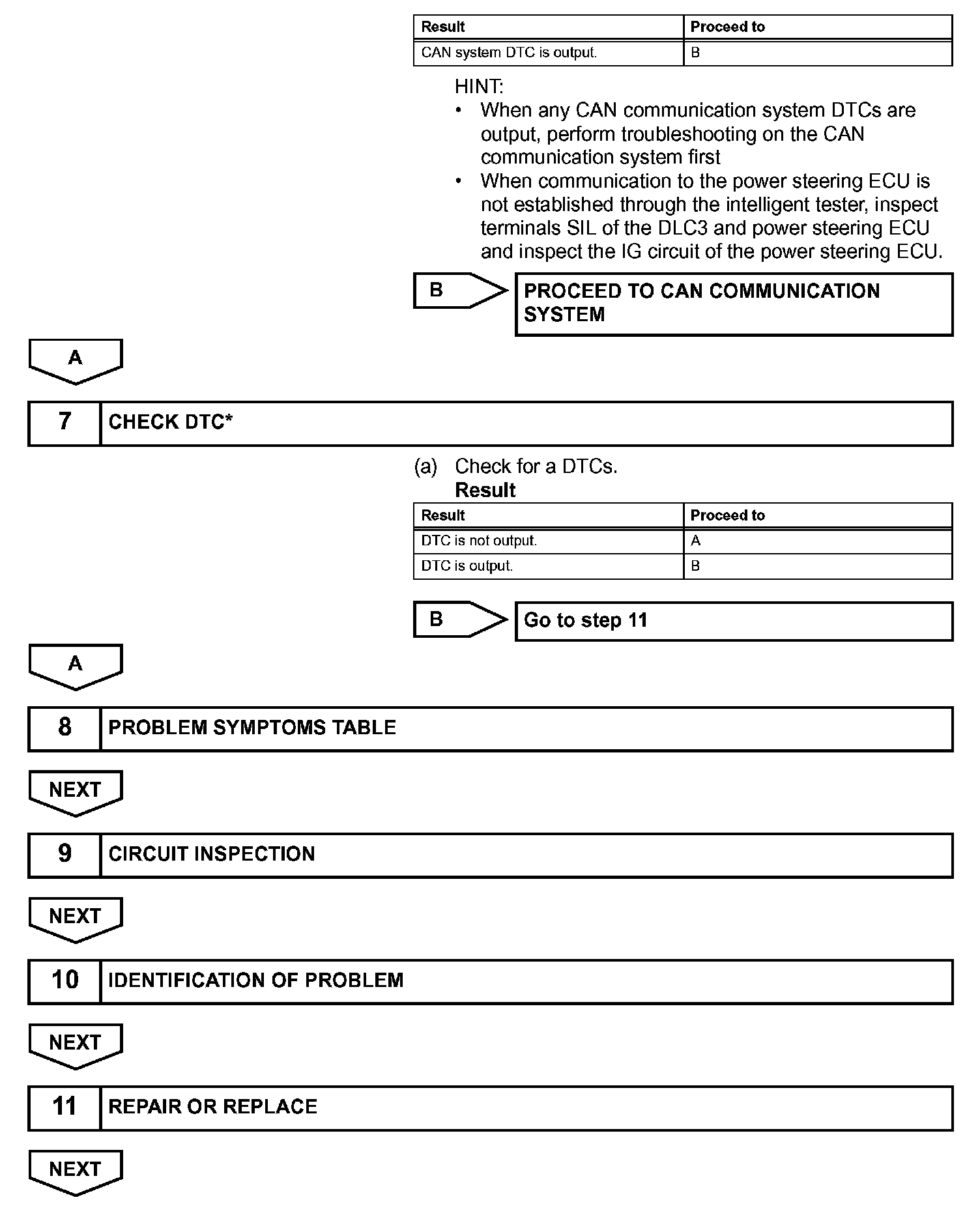

Steps 6-11:

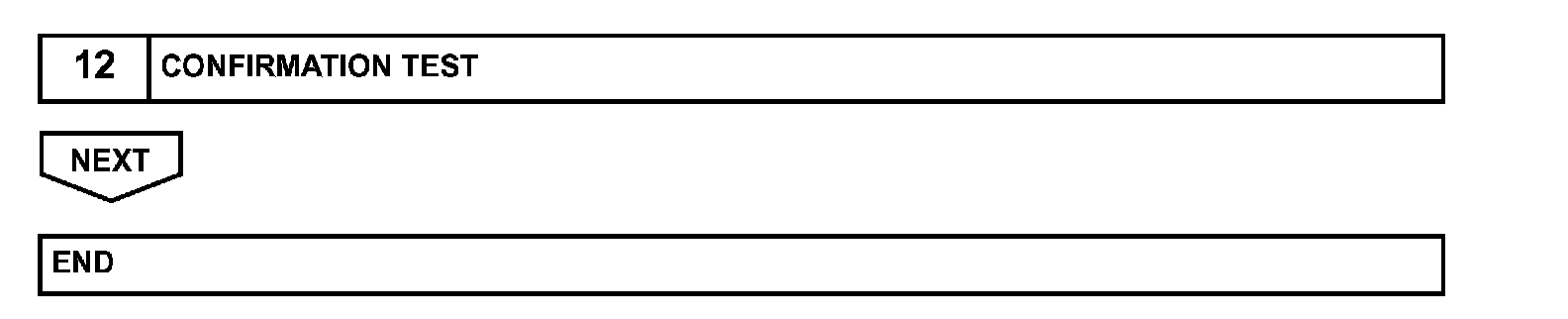

Step 12:
HINT:
^
Use these procedures to troubleshoot the Electronic
Power Steering
System (EPS).
^
*: Use the intelligent tester.
