Power Mode Does Not Change to ON (Ready)

Power Mode does not Change to ON (Ready)

DESCRIPTION
When the key is inserted into the key slot and the power switch is pressed, signals are input to the power source control ECU. Selection of the power mode, which cycles between OFF, ON (ACC) and ON (IG), is performed by pressing and releasing the power switch until the desired power mode is selected (the power modes cycle in the order shown above). When the shift position is P, the brake pedal is depressed and held and the power switch is pressed, the power switch mode changes to ON (READY), signifying that the hybrid system has started operating.

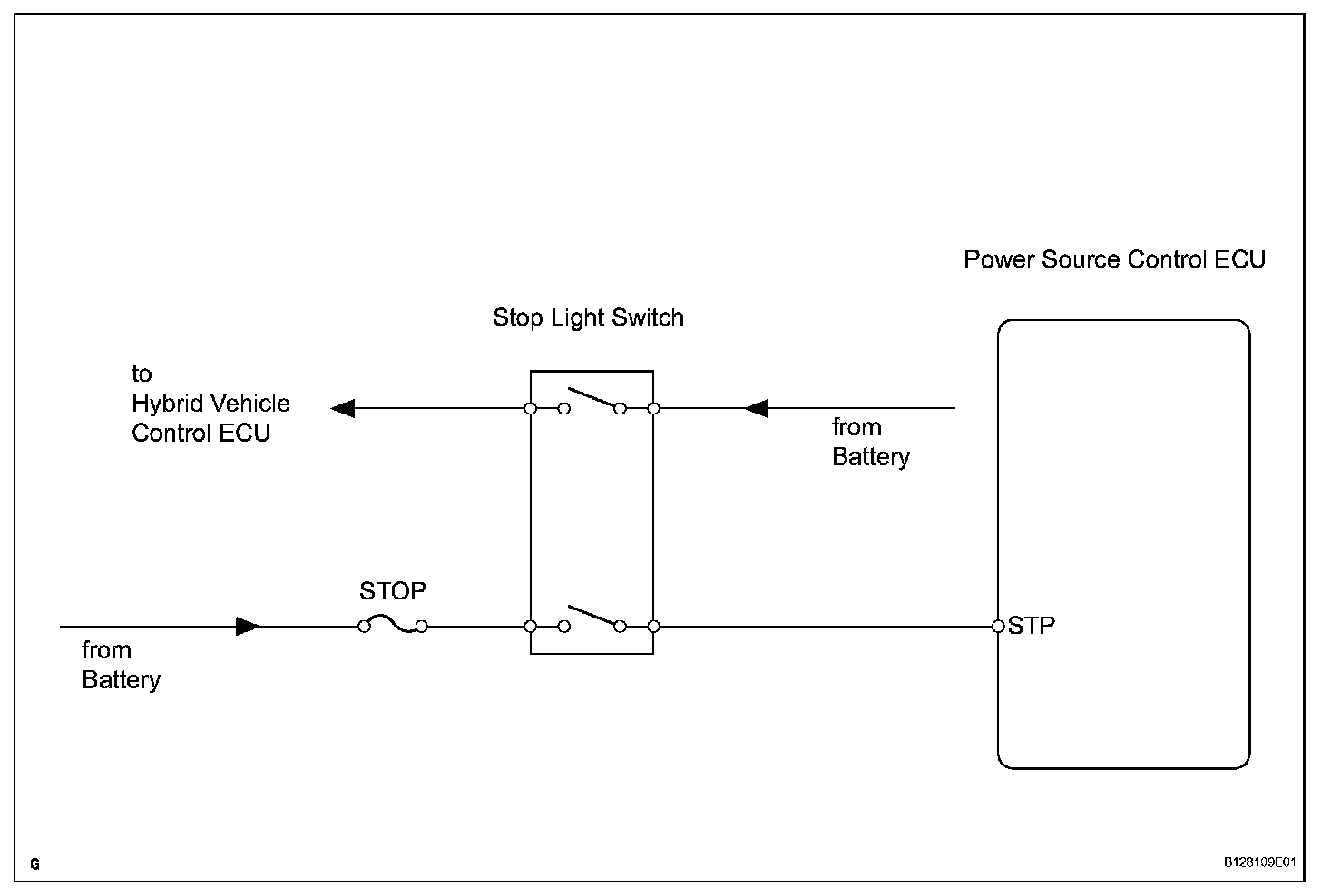

Wiring Diagram:

Step 1:

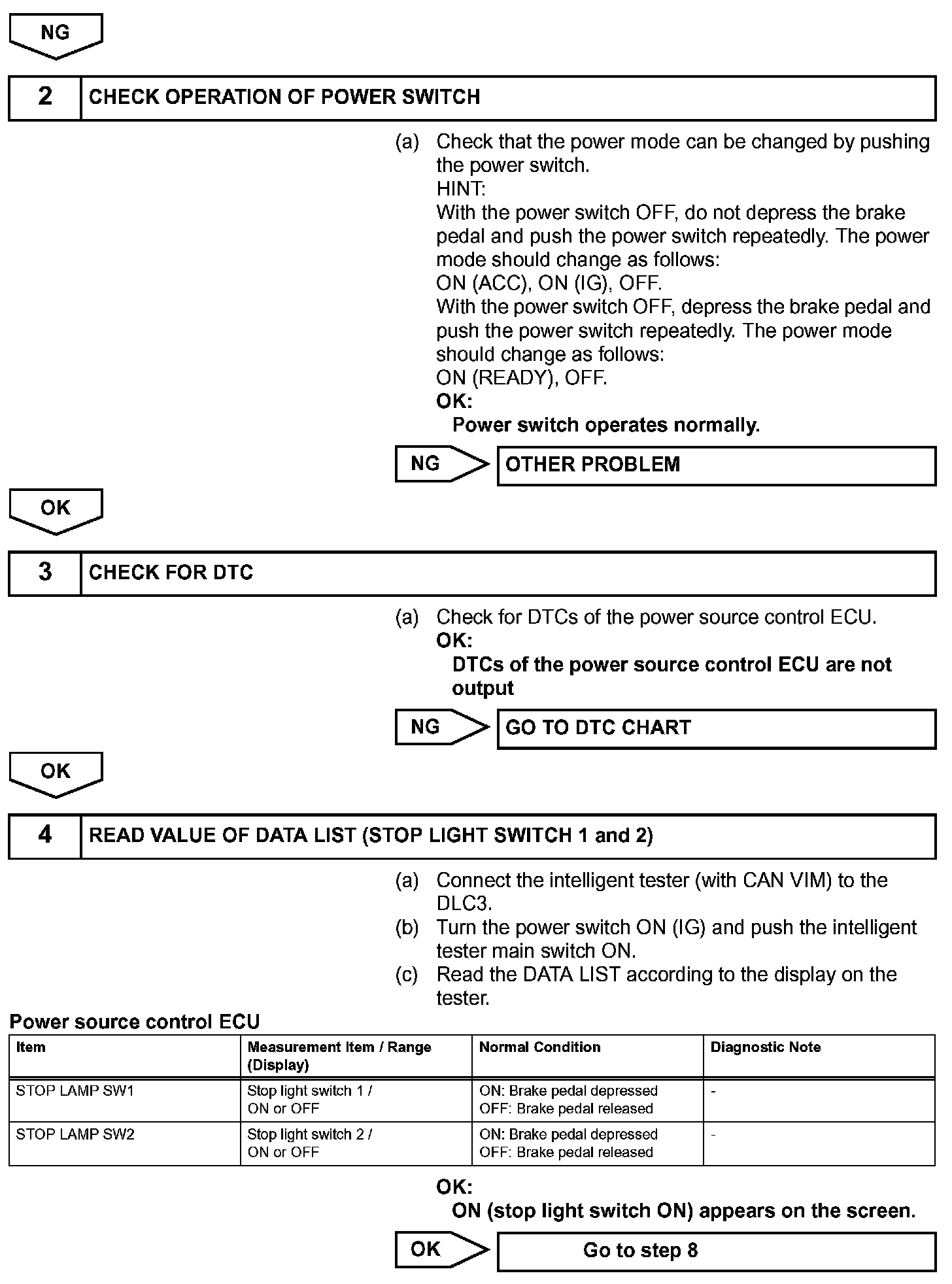

Step 1(Continued)-4:

Step 4(Continued)-6:

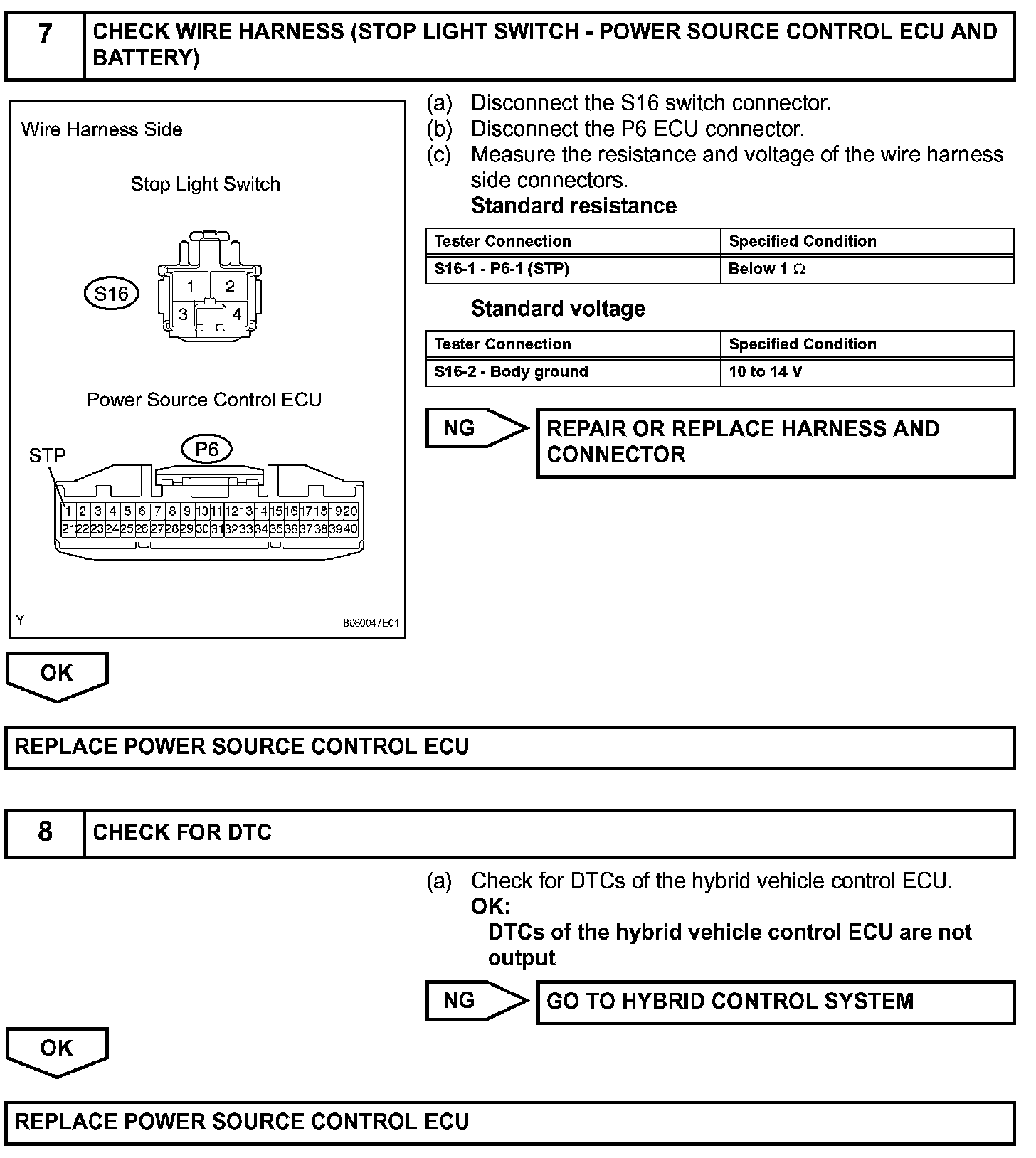

Step 7-8:

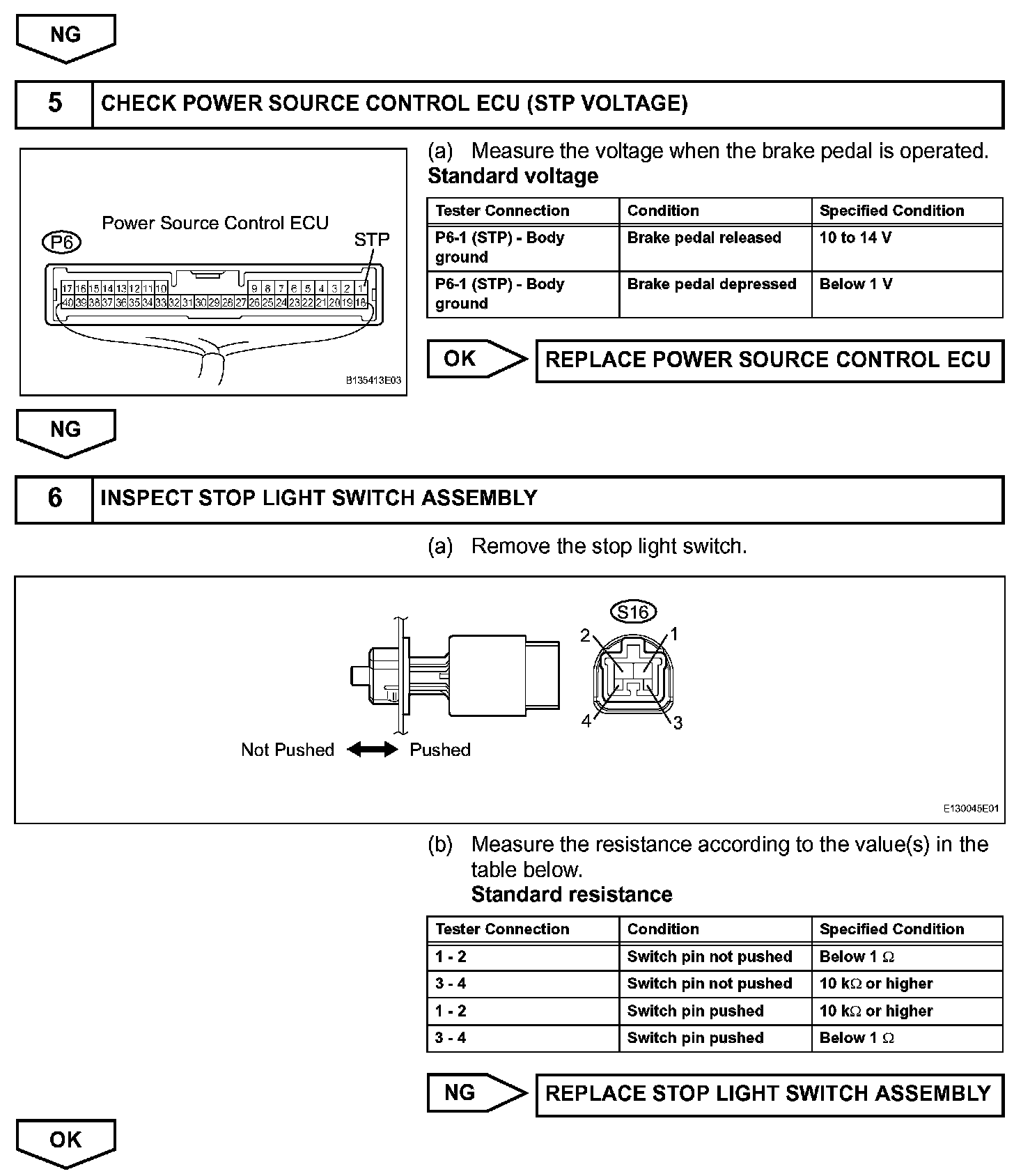

INSPECTION PROCEDURE
