Door Lock - Smart Key System

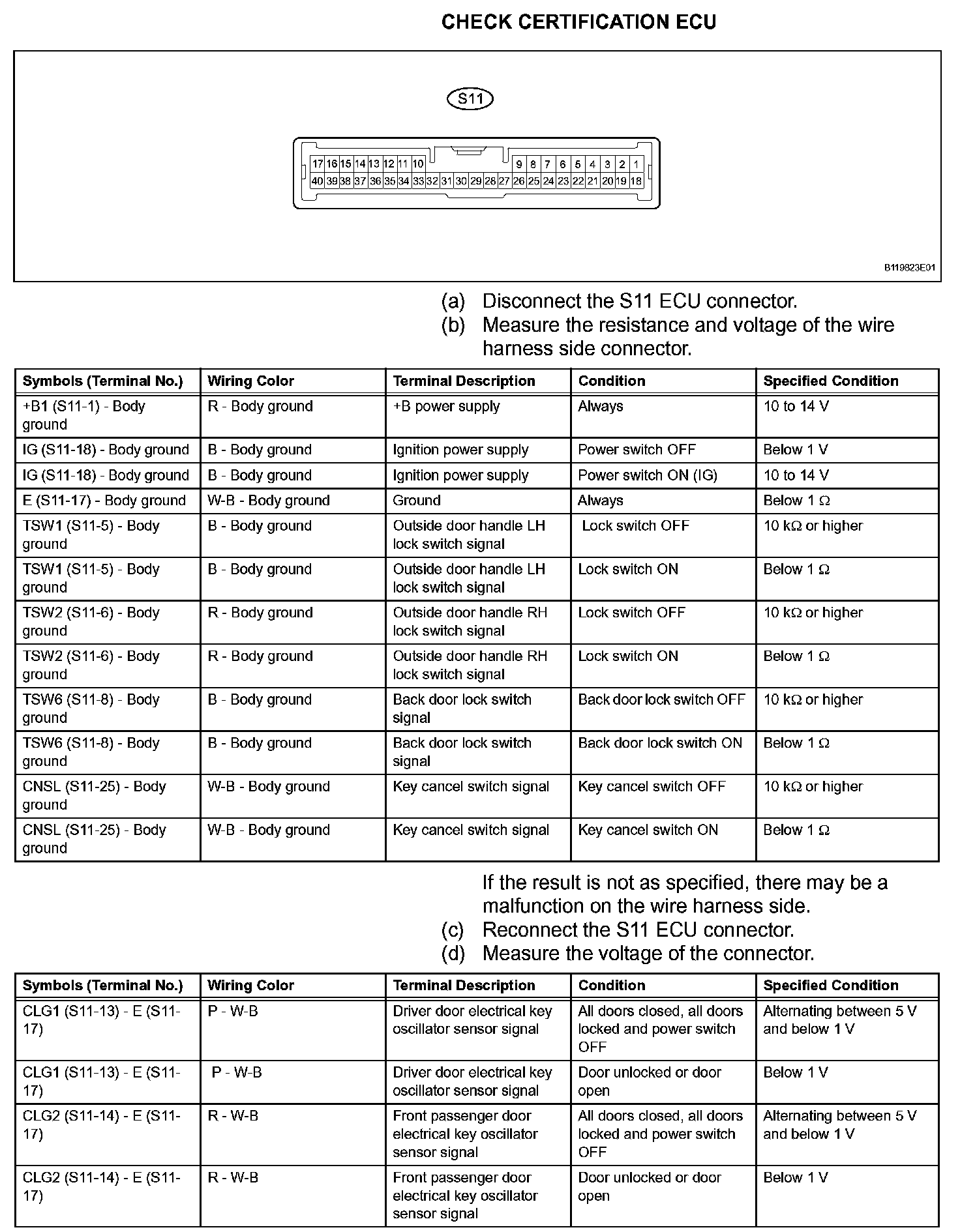

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

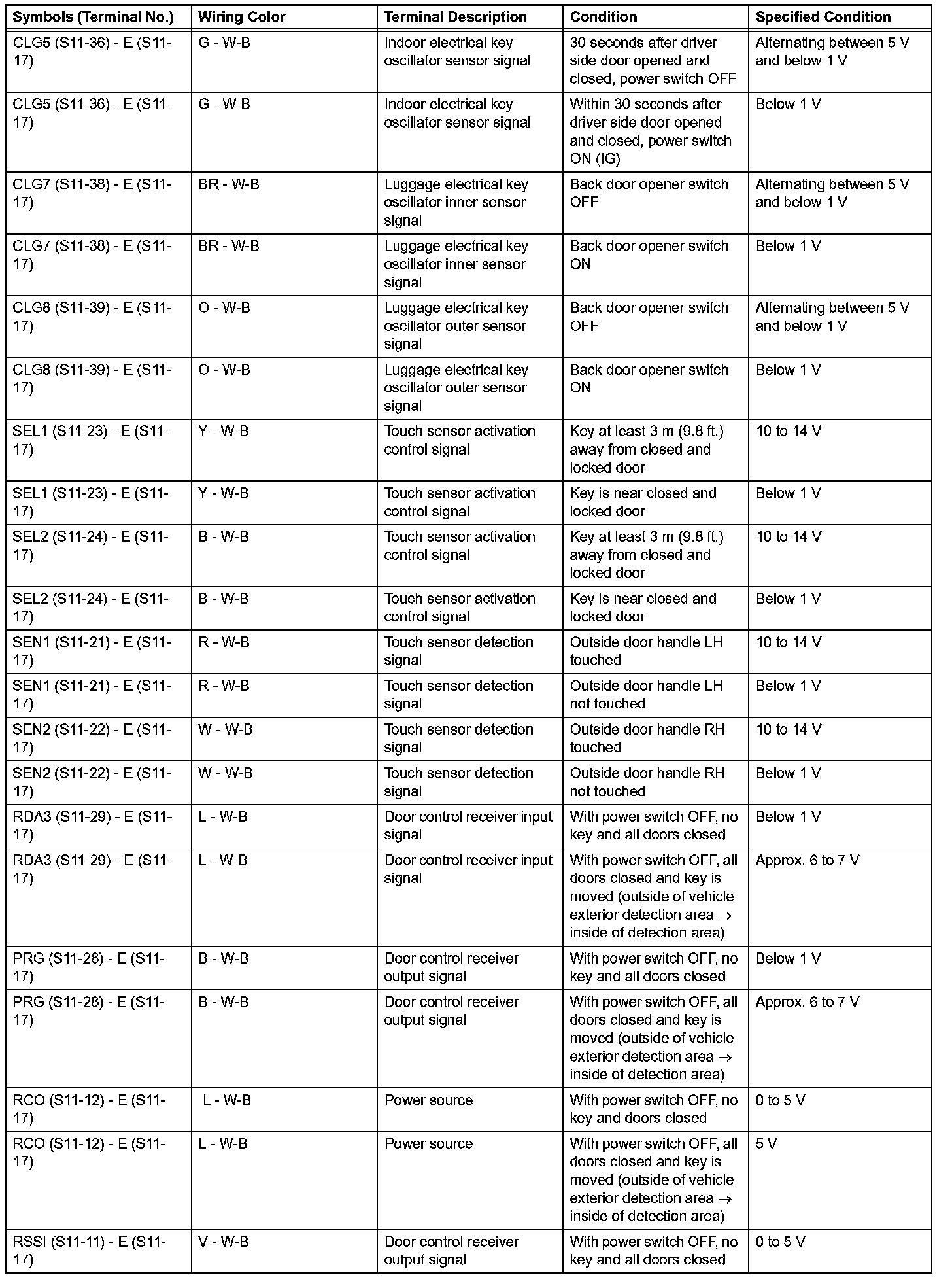

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 3):

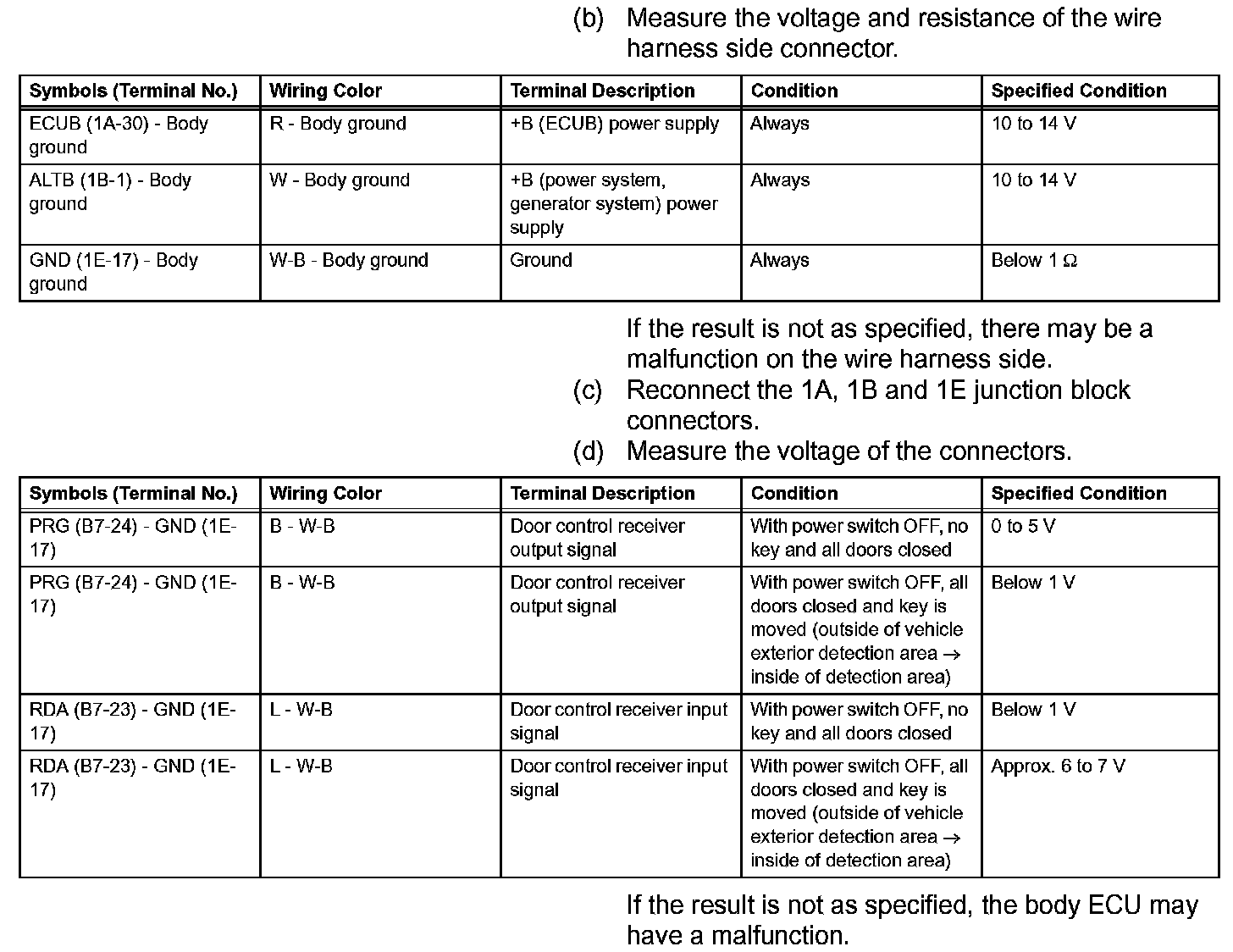

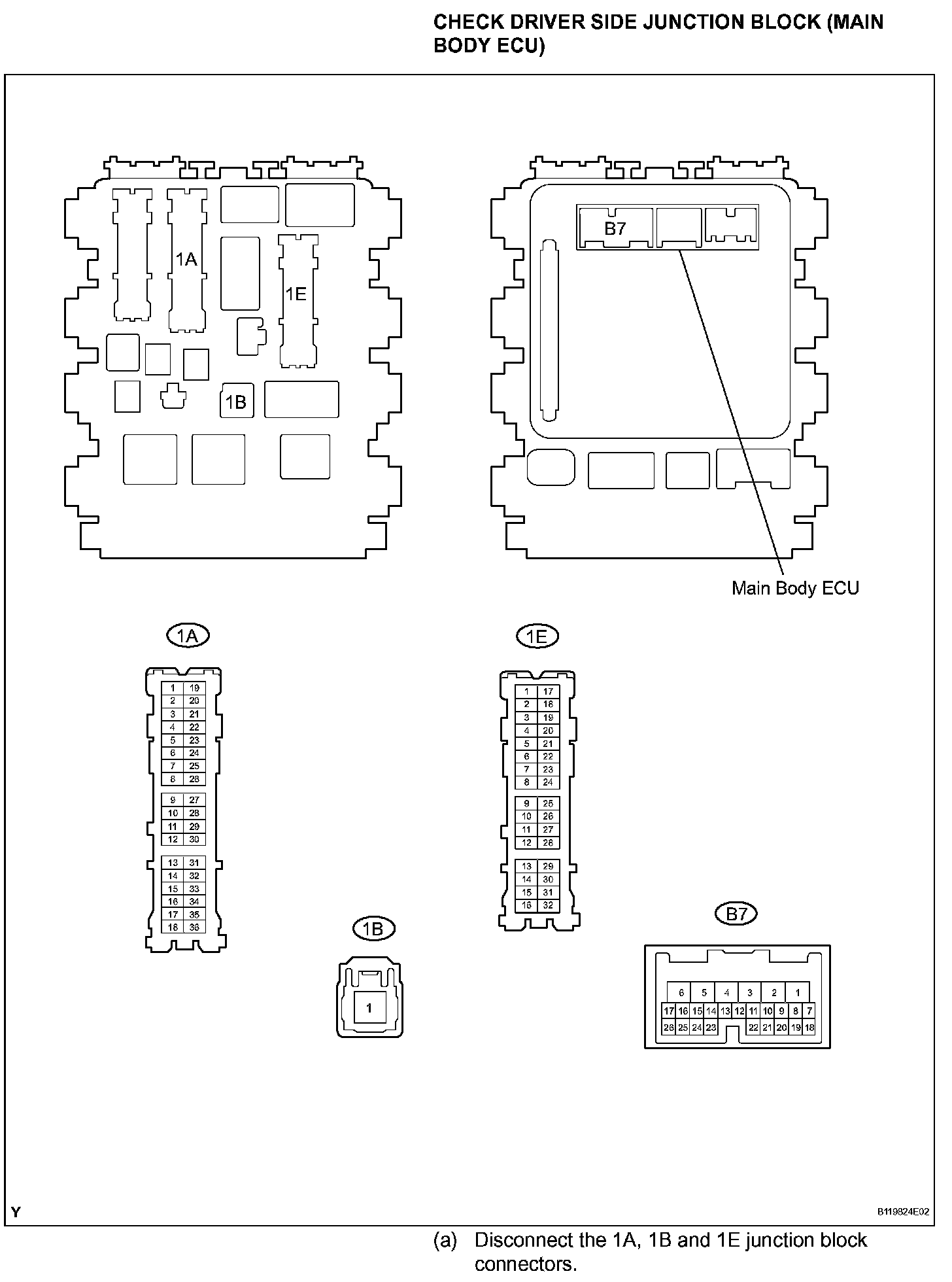

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 2):

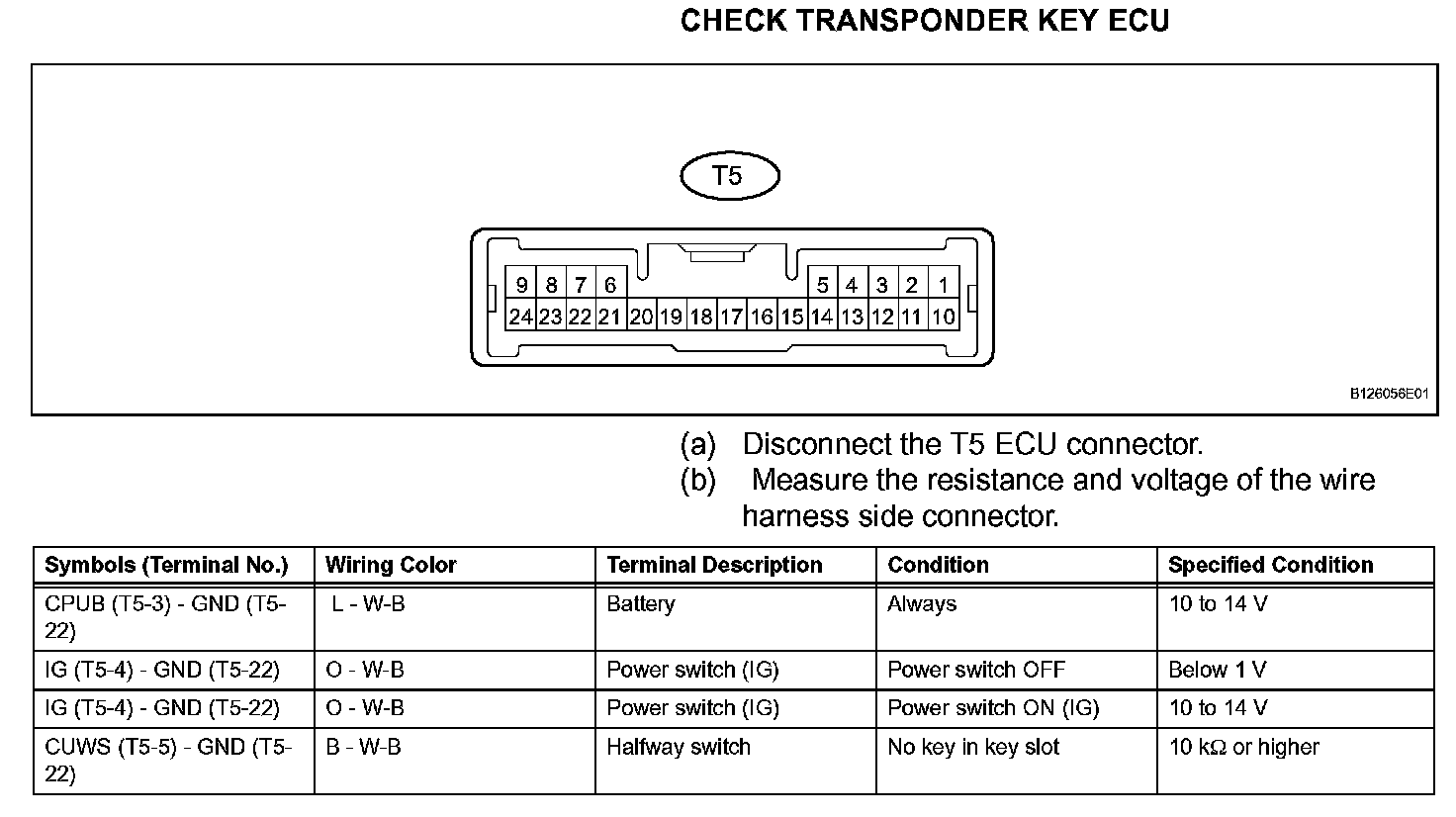

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 1):

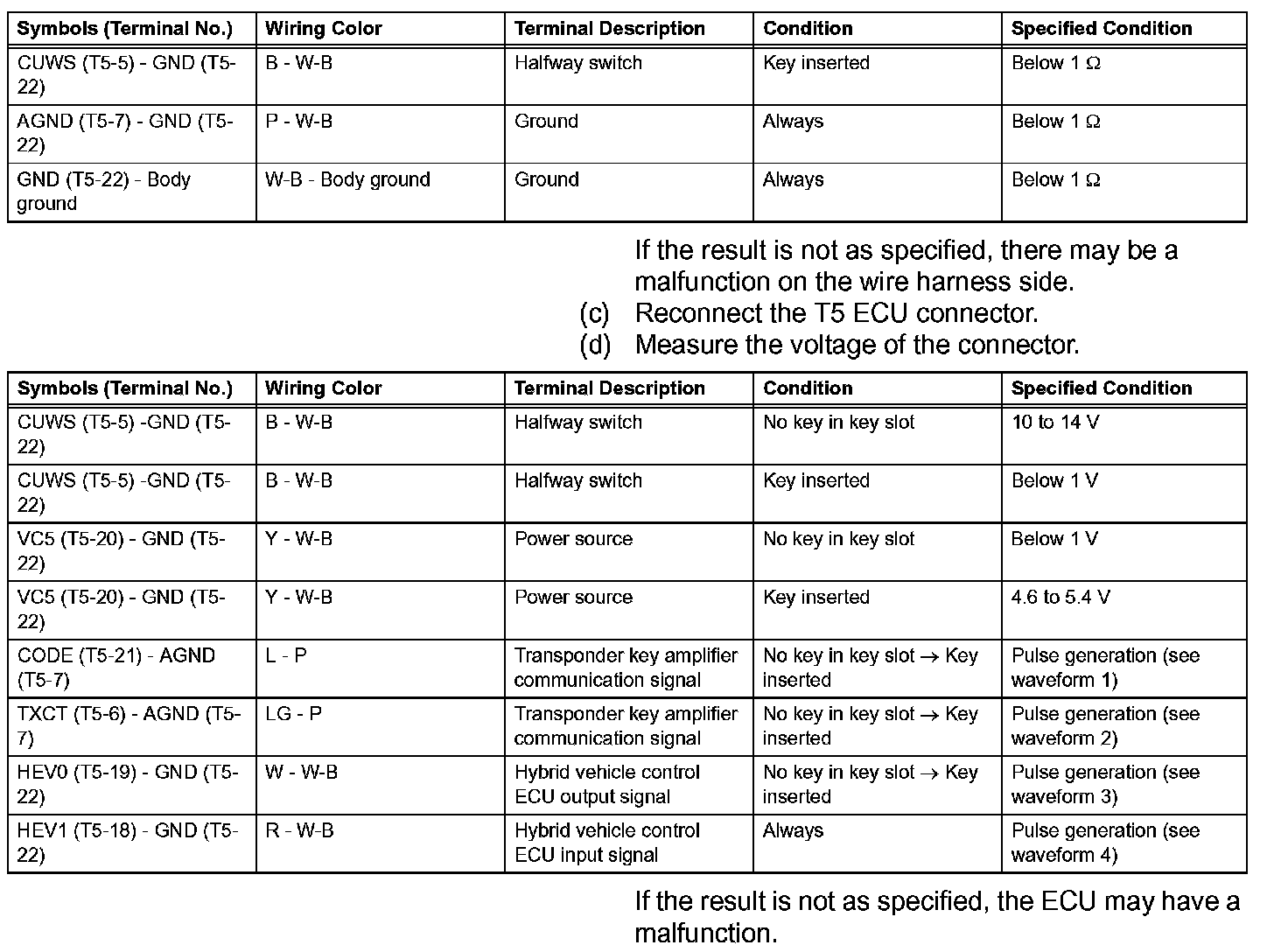

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 2):

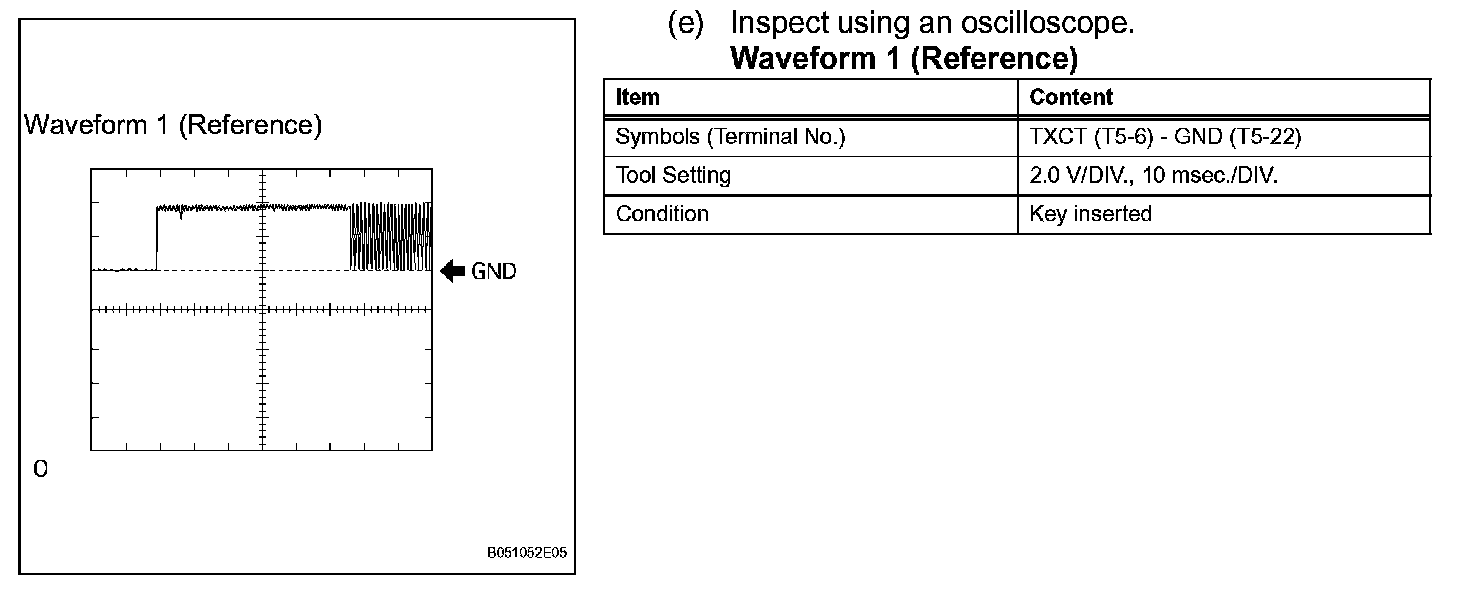

Check Transponder Key ECU - Oscilloscope Waveforms:

Check Transponder Key ECU - Oscilloscope Waveforms:
