Component Tests and General Diagnostics

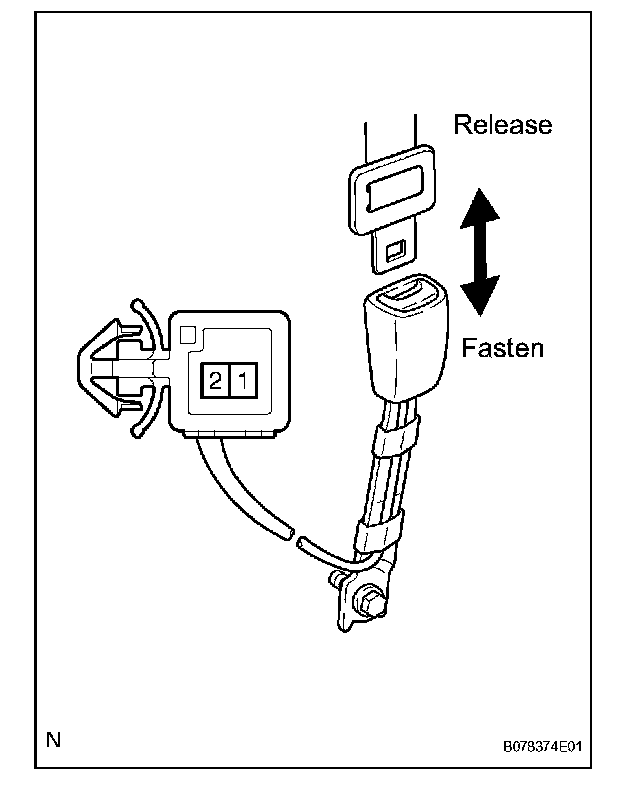

INSPECTION1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

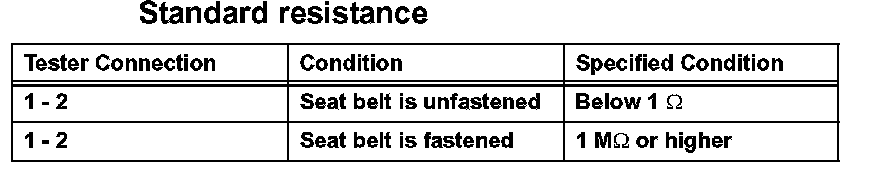

a. Measure the resistance of the buckle switch.
If the result is not as specified, replace the belt assembly.
1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
a. Measure the resistance of the buckle switch.
If the result is not as specified, replace the belt assembly.
