Scan Tool Testing and Procedures

DATA LIST / ACTIVE TEST

HINT: Using the intelligent tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

Part 1:

Part 2:

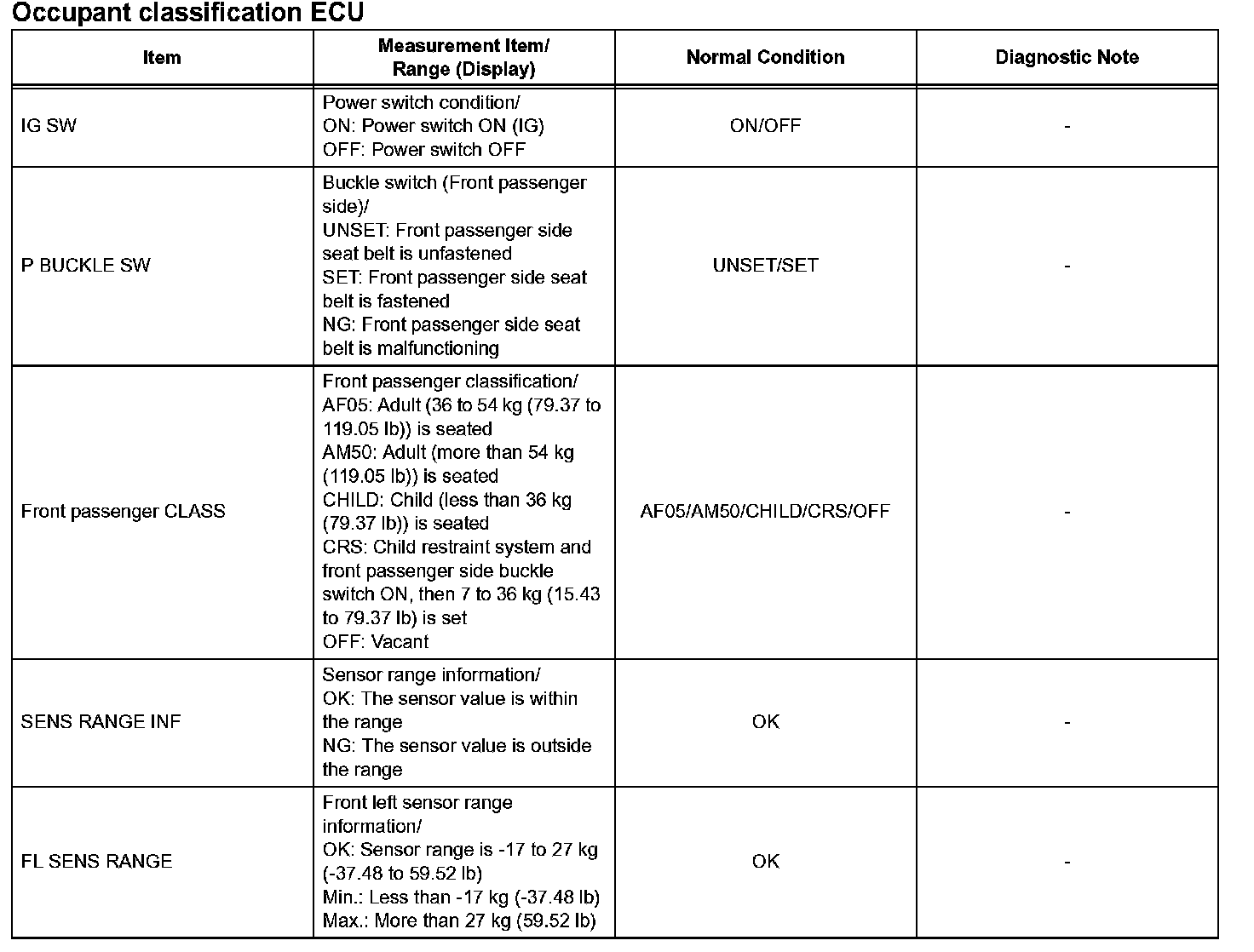

1. DATA LIST FOR OCCUPANT CLASSIFICATION ECU

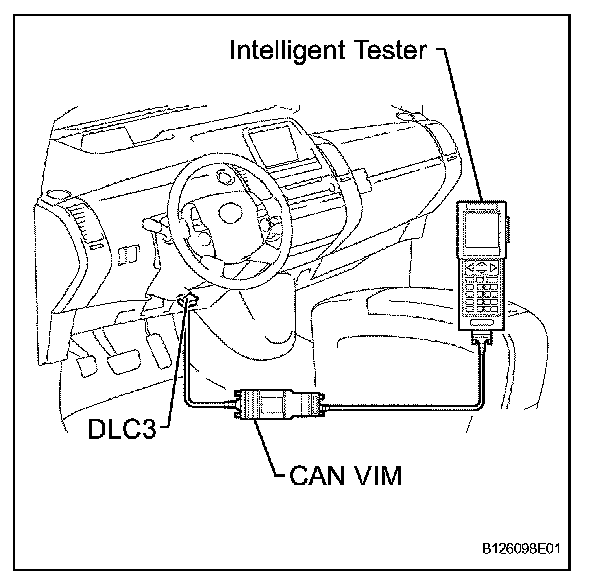

a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the power switch ON (IG).
c. Read the DATA LIST on the tester's screen.
