Headlamp Relay: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT RELAY (Marking: H-LP)

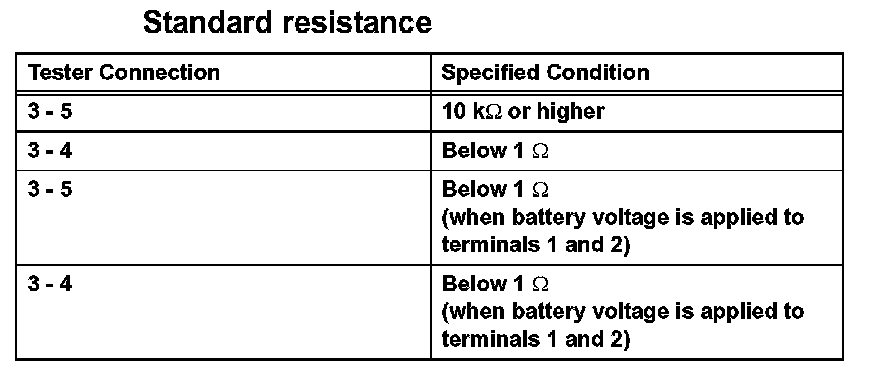

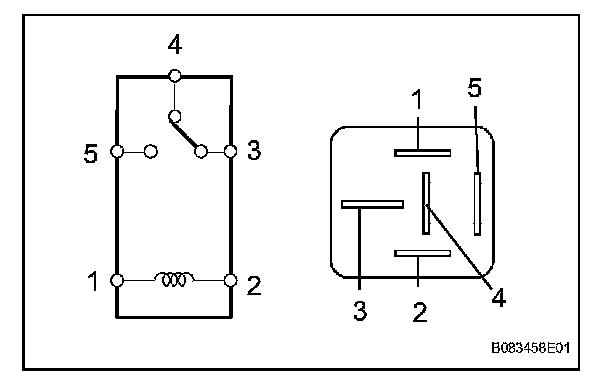

a. Measure the resistance according to the value(s) in the table.




If the result is not as specified, replace the relay.

2. INSPECT NO. 2 HEADLIGHT RELAY (Marking: DIM)

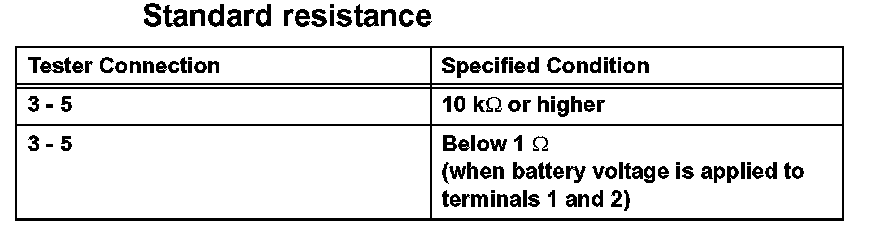

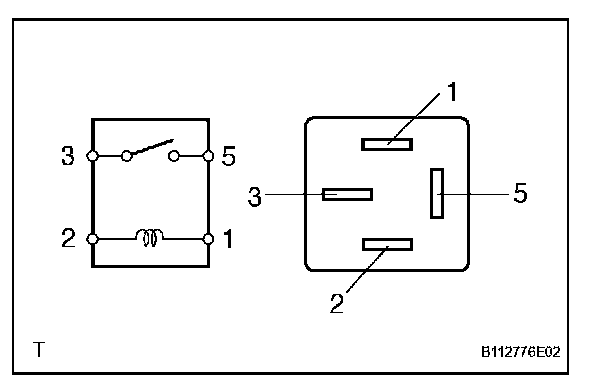

a. Measure the resistance according to the value(s) in the table.




If the result is not as specified, replace the relay.
