Fog/Driving Lamp Relay: Testing and Inspection

ON-VEHICLE INSPECTION

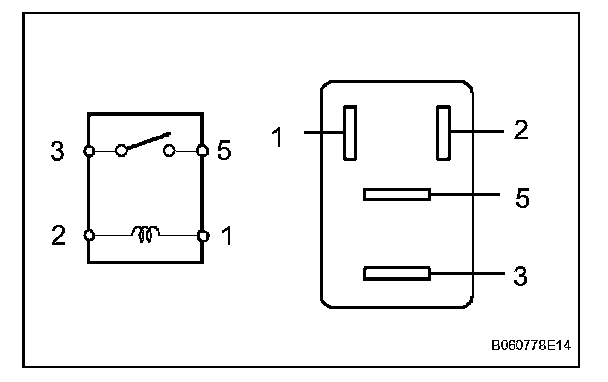

1. INSPECT FOG LIGHT RELAY (Marking: FR-FOG)

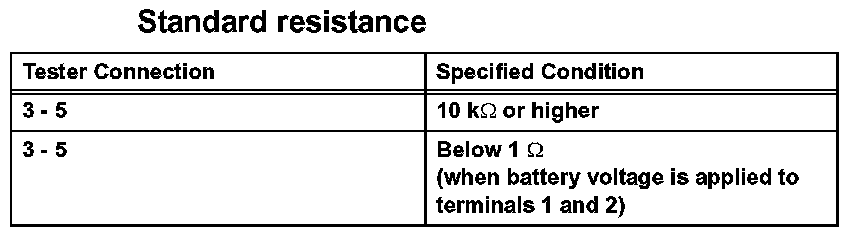

a. Measure the resistance according to the value(s) in the table.




If the result is not as specified, replace the relay.
