Daytime Running Lamp Relay: Testing and Inspection

ON-VEHICLE INSPECTION

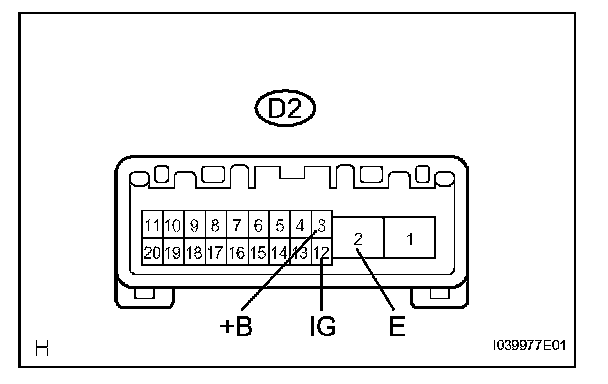

1. CHECK DAYTIME RUNNING LIGHT RELAY

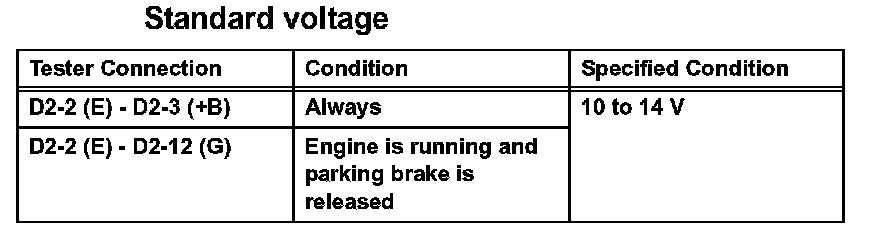

a. Measure the voltage according to the value(s) in the table.




If the result is not as specified, replace the relay.

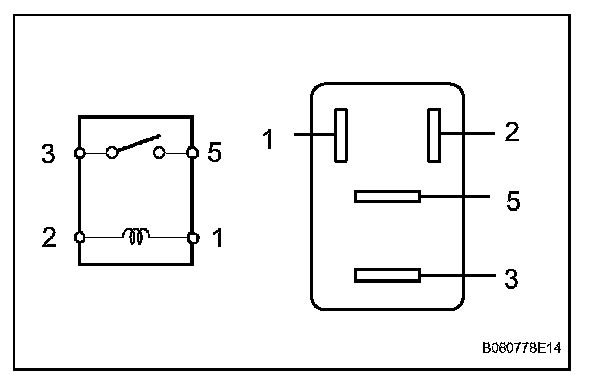

2. CHECK DAYTIME RUNNING LIGHT RELAY (Marking: DRL NO. 4)

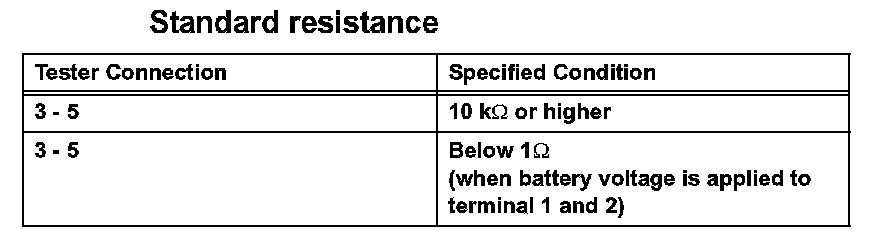

a. Measure the resistance according to the value(s) in the table.




If the result is not as specified, replace the relay.
