Heated Mirror Relay: Testing and Inspection

MIRROR HEATER RELAY

ON-VEHICLE INSPECTION

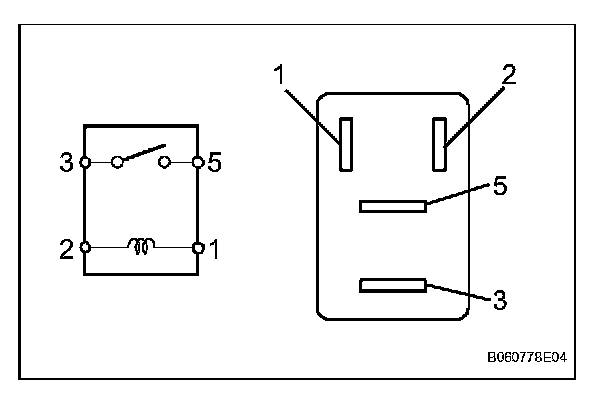

1. INSPECT MIRROR HEATER RELAY
a. Remove the mirror heater relay.

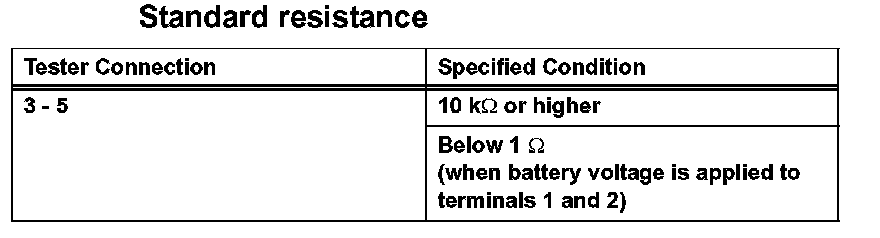

b. Measure the resistance of the relay.






If the result is not as specified, replace the relay,

c. Install the mirror heater relay.
