"P" Position Switch Indicator Light Circuit
"P" Position Switch Indicator Light CircuitDESCRIPTION
The parking lock switch indicator light comes on or goes off to indicate the on/off status of the P position switch and blinks to indicate malfunction conditions of the system.

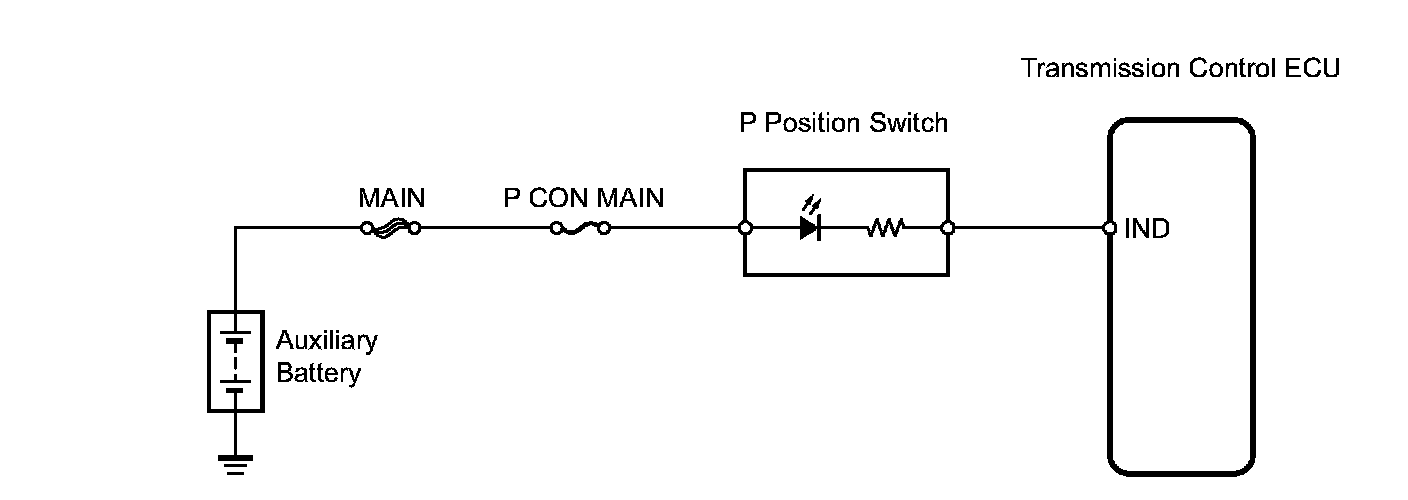

Wiring Diagram:
INSPECTION PROCEDURES

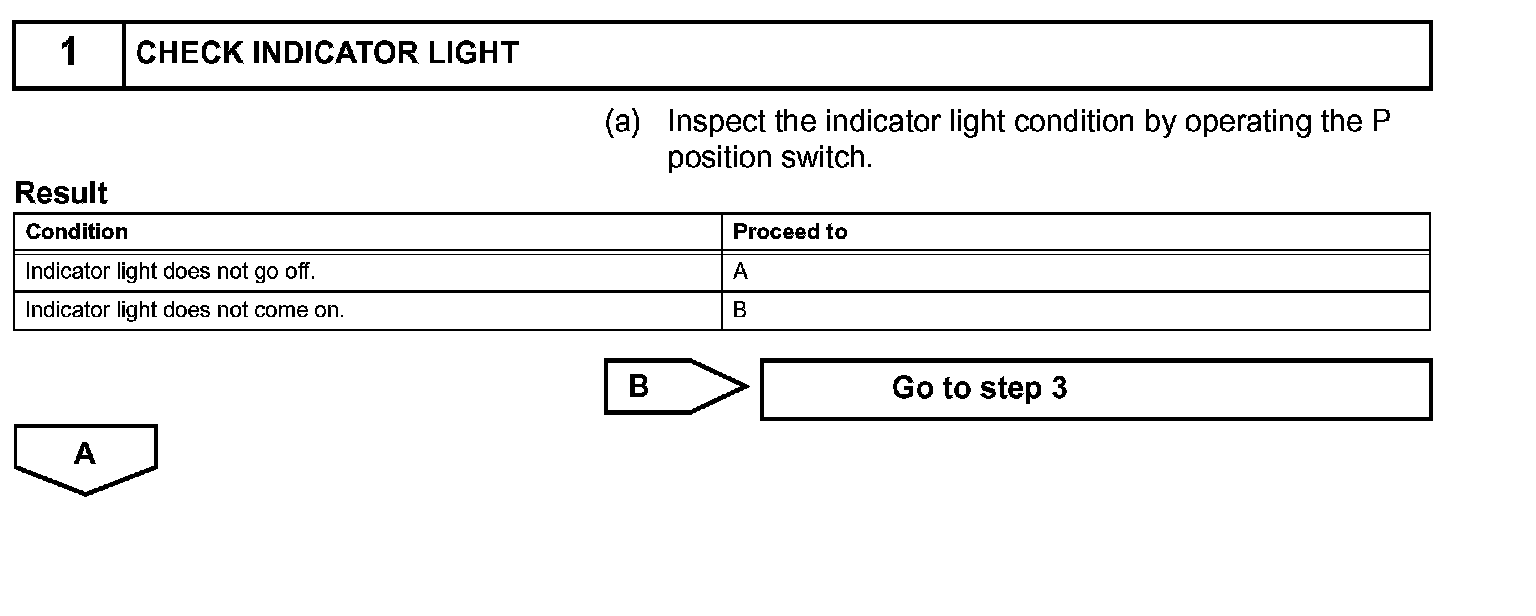

Step 1:
Steps 2-3:
Steps 4-5:

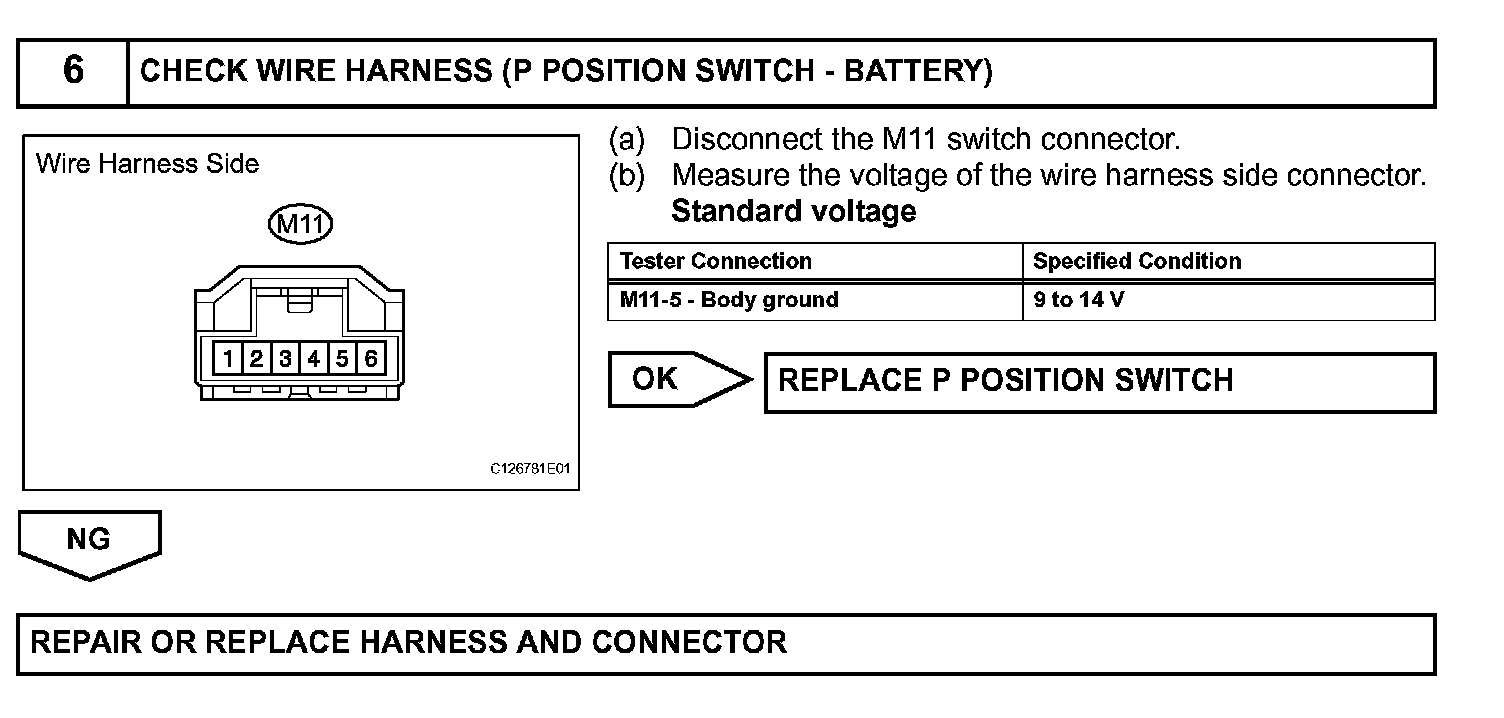

Step 6:
