Pinout Values and Diagnostic Parameters

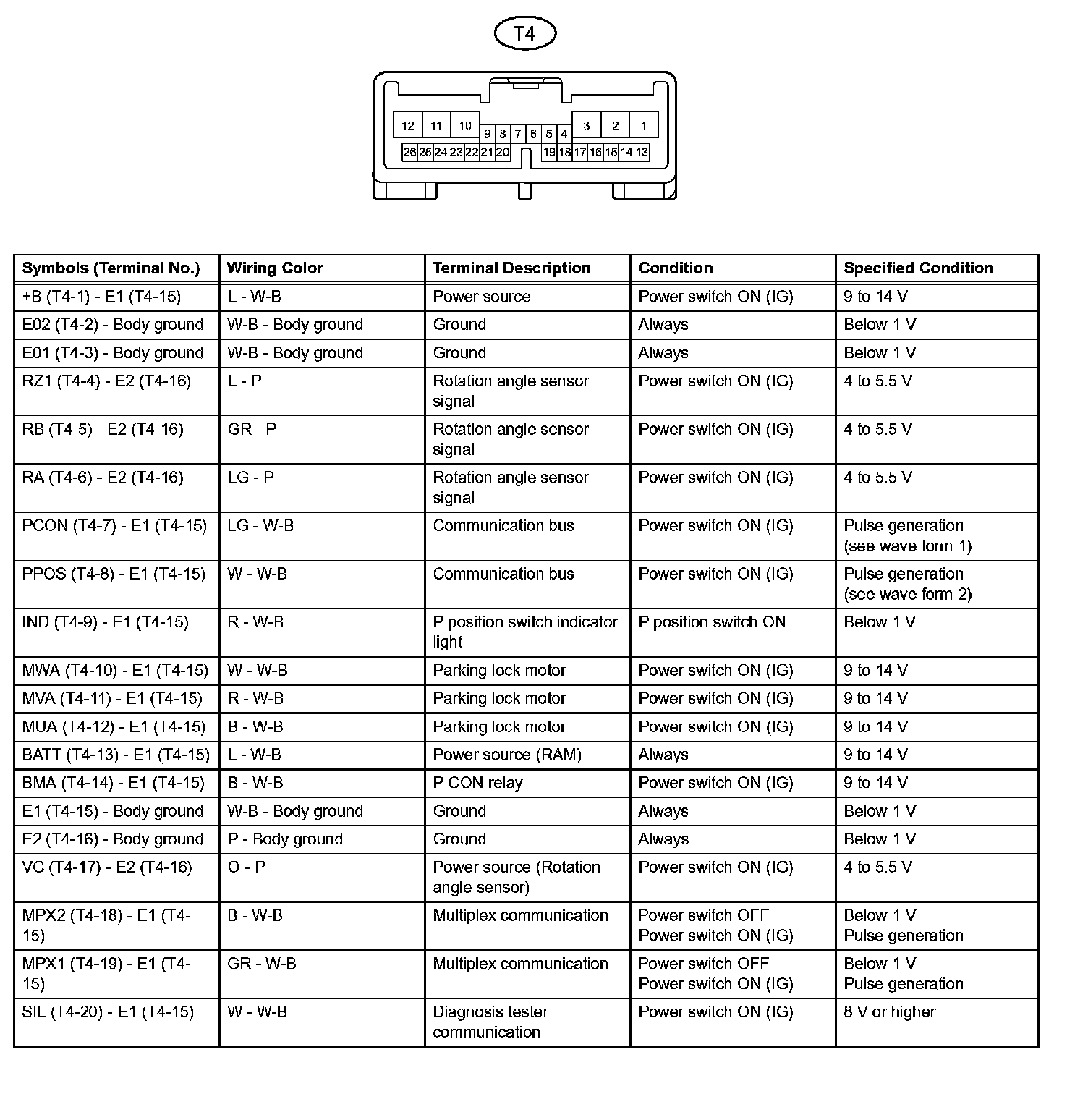

TERMINALS OF ECU





1. CHECK TRANSMISSION CONTROL ECU

HINT: Inspect the connectors from the back side while the connector is connected.

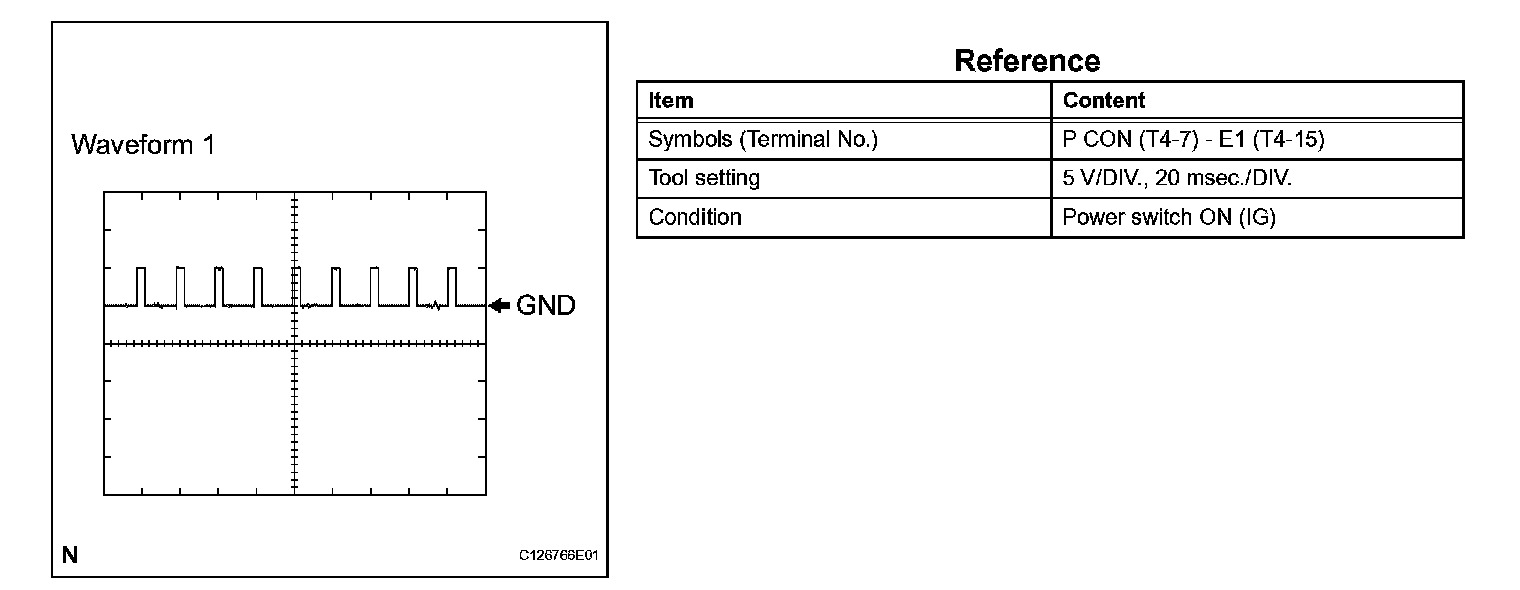

Waveform 1 (Reference):

a. Using an oscilloscope, check the waveform 1.

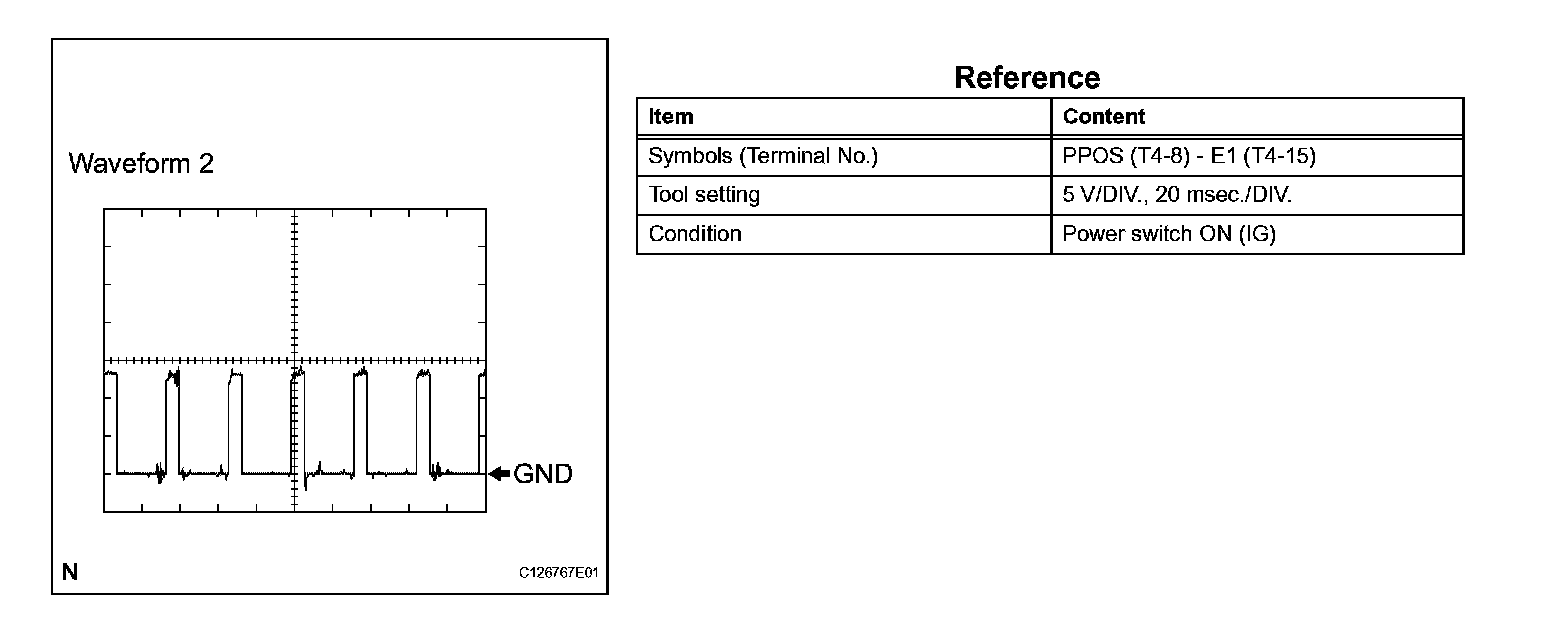

Waveform 2 (Reference):

b. Using an oscilloscope, check the waveform 2.
