Inspect Shift Lever

INSPECT SHIFT LEVER





a. Inspect the shift lever operation with the hybrid system operating.

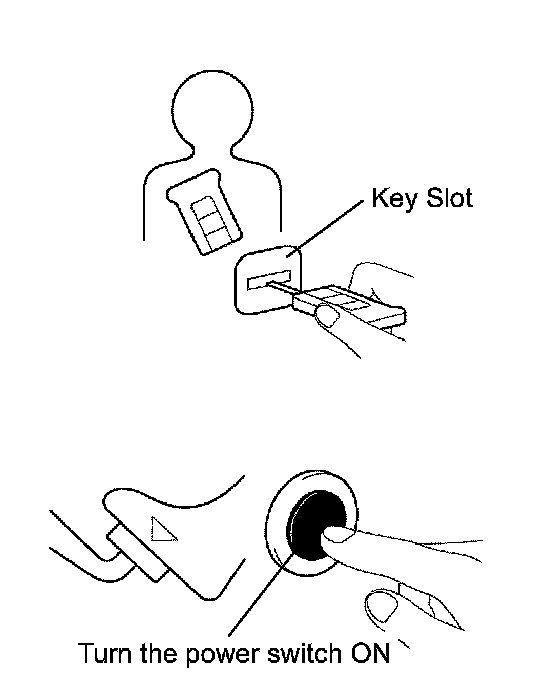

1 Carry the key into the indoor electrical key oscillator detection area or insert the key in the key slot.
2 Turn the power switch ON (READY ON) while depressing the brake pedal. Check that the gear changes according to the shift operation pattern. If the check result is abnormal, replace the shift lever assembly.

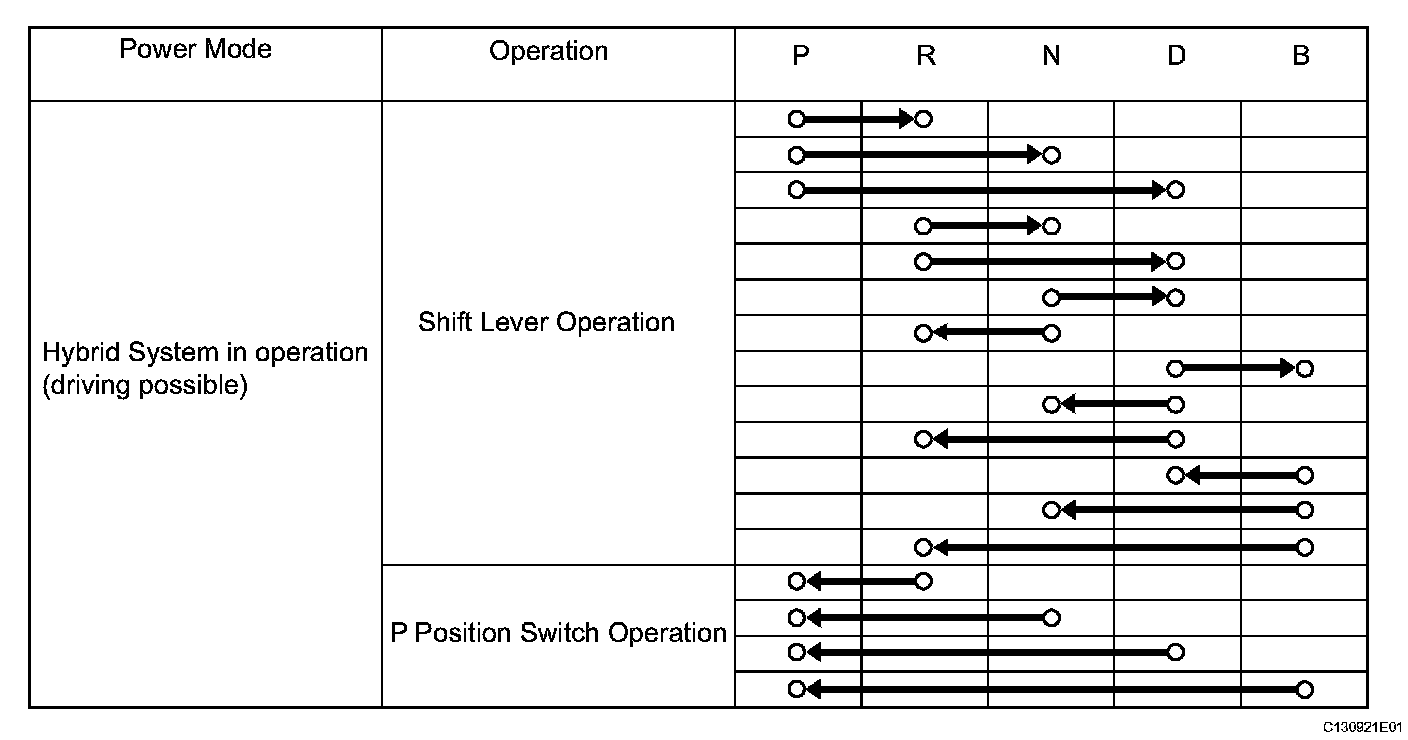

HINT: The shift operation pattern in power switch ON (READY ON) (when the vehicle is stopped) is shown below.

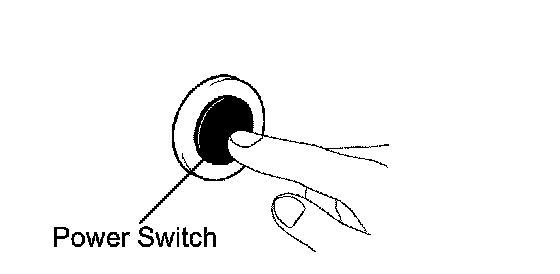

b. Turn the power switch OFF when the vehicle is stopped.





c. Inspect the shift lever operation with the power switch's power mode ON (IG).
1 Carry the key into the indoor electrical key oscillator detection area or insert the key in the key slot.

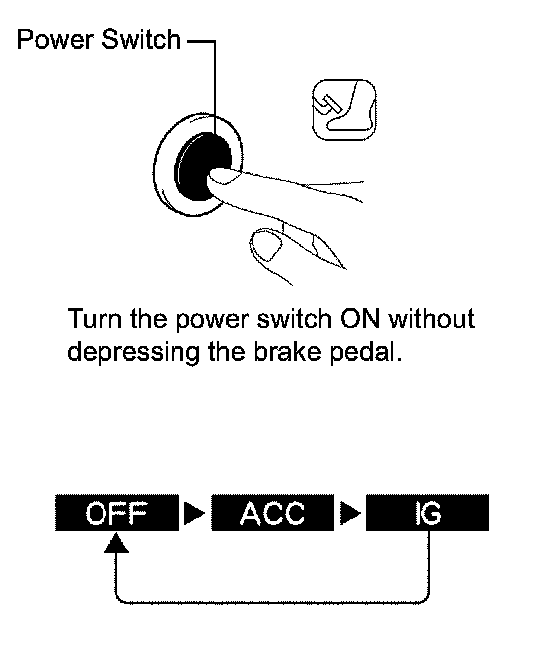

d. Turn the power switch ON (IG) without depressing the brake pedal.

HINT: The power switch's power mode changes between OFF, ON (ACC) and ON (IG) each time the power switch is pressed.

e. Check that the gear changes according to the shift operation pattern. If the check result is not as specified, replace the shift lever assembly.

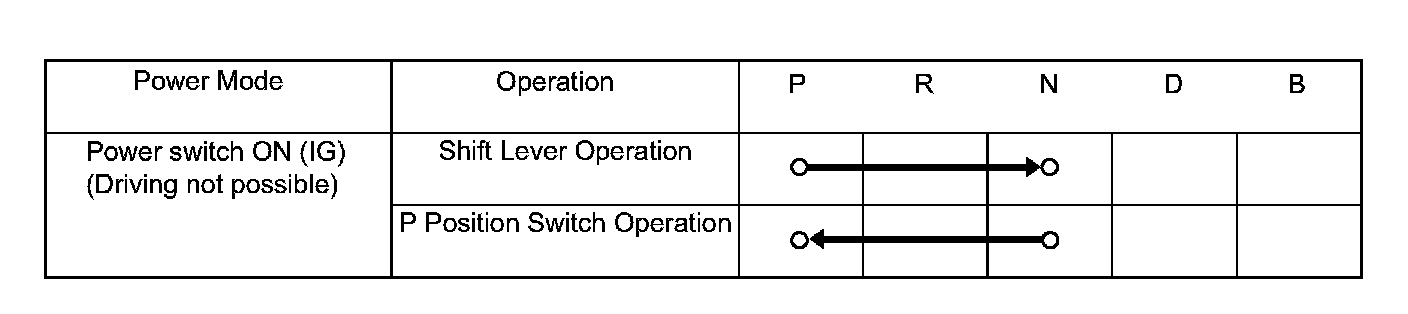

HINT: The shift operation pattern with the power switch's power mode ON (IG) is shown below.
