Power Switch

INSPECTION

INSPECT POWER SWITCH

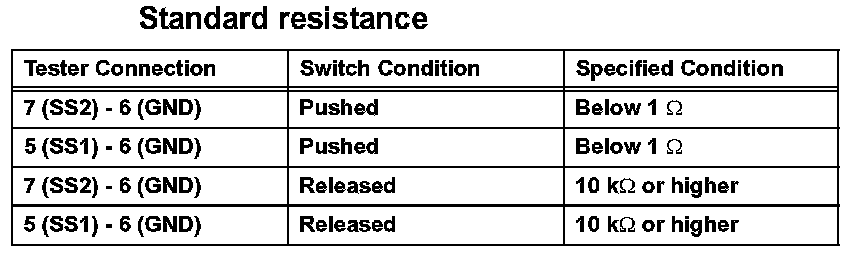

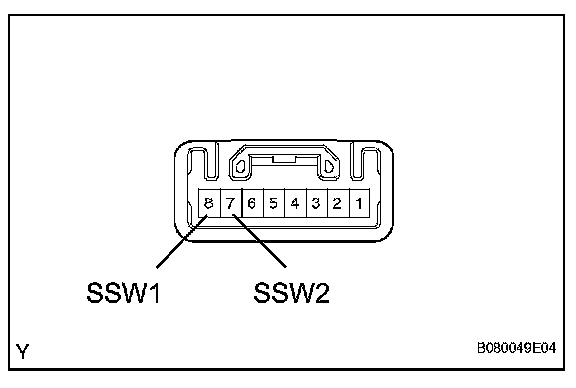

a. Measure the resistance of the switch.

If the resistance is not as specified, replace the power switch.
