Fuel Tank: Testing and Inspection

INSPECTION

INSPECT FUEL TANK ASSEMBLY WITH FUEL PUMP

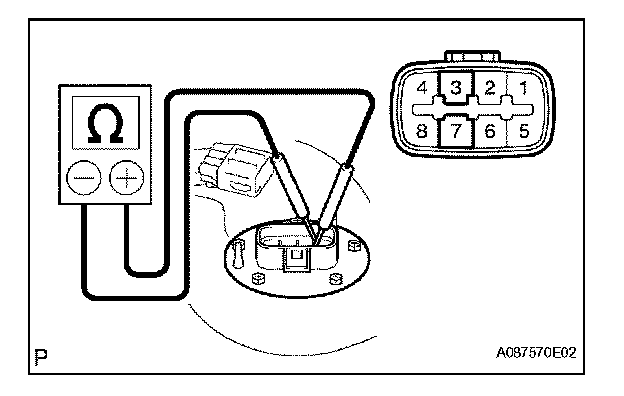

a. Measure the resistance between terminals 3 and 7.

Standard resistance: 0.2 to 3.0 ohms at 20 °C (68 °F)

If the resistance is not as specified, replace the fuel tank assembly.

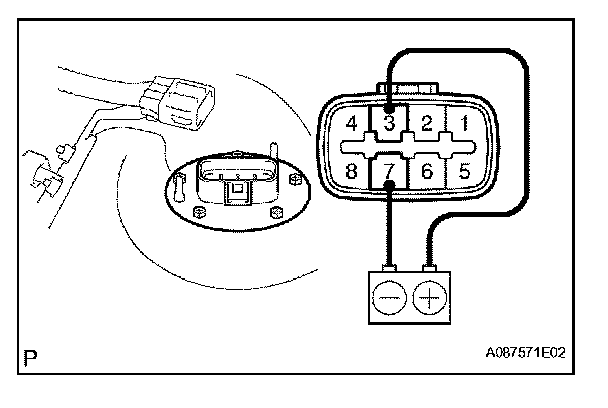

b. Check that the motor operates when battery voltage is applied across the terminals.

NOTE:
- Perform the check quickly (shorter than 10 seconds).
- Keep the battery as far away the fuel tank as possible.
- Always turn the voltage on and off on the battery side, not the fuel tank side.

If the motor does not operate, replace the fuel tank assembly.
