Canister Purge Control Valve: Service and Repair

Vacuum Switching Valve:

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD
2. REMOVE REAR DECK FLOOR BOX
3. REMOVE REAR NO. 3 FLOOR BOARD
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

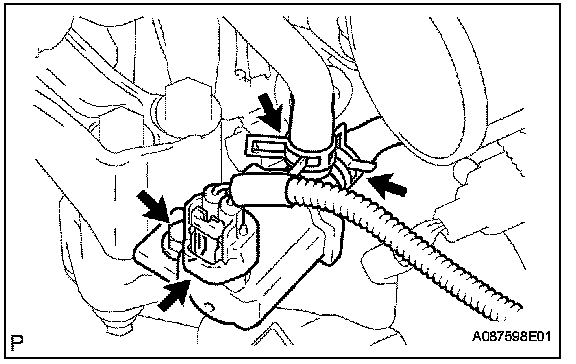

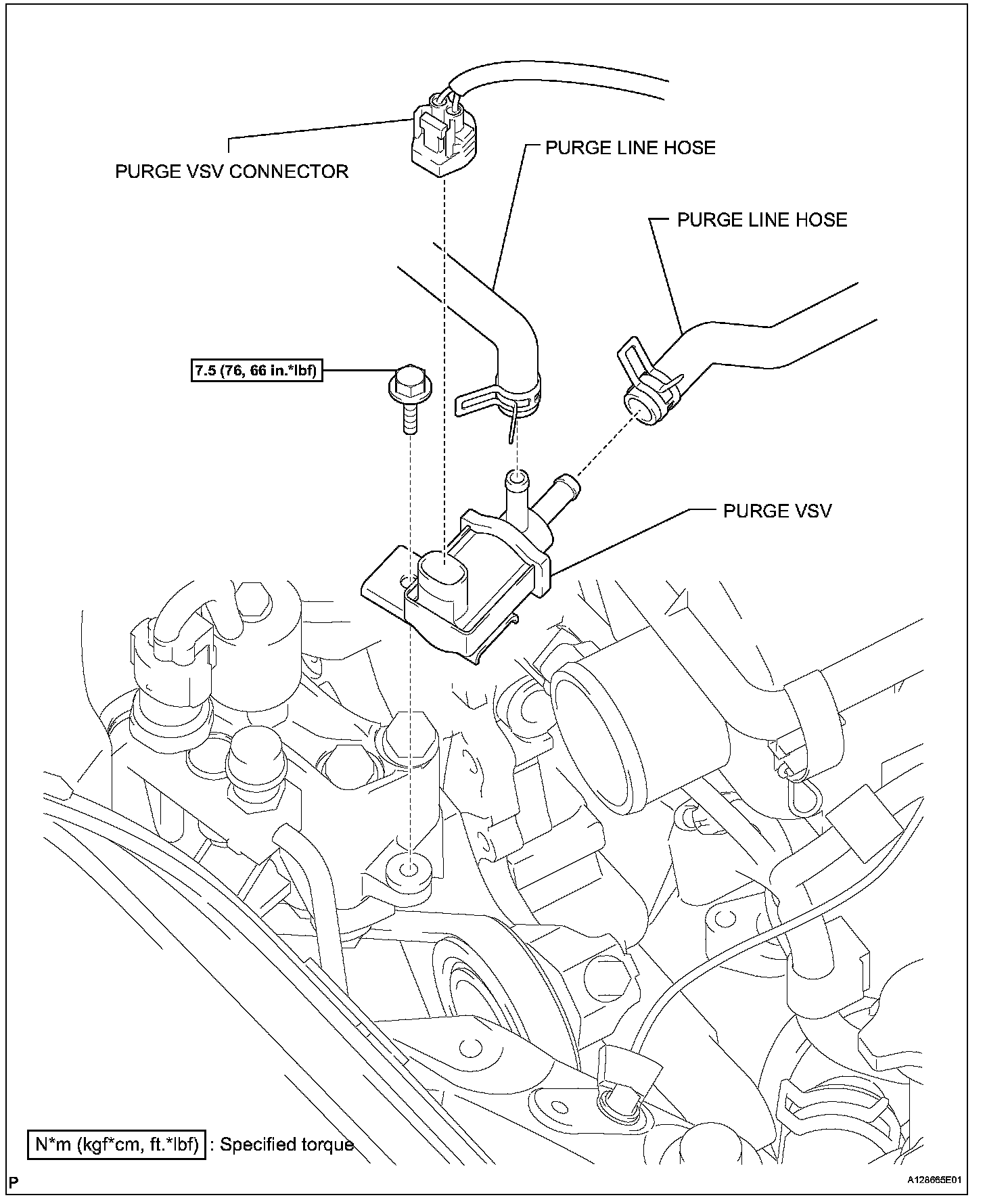

5. REMOVE PURGE VSV
a. Disconnect the purge VSV connector.
b. Disconnect the 2 purge line hoses from the purge VSV.
c. Remove the bolt, then remove the purge VSV.

INSTALLATION




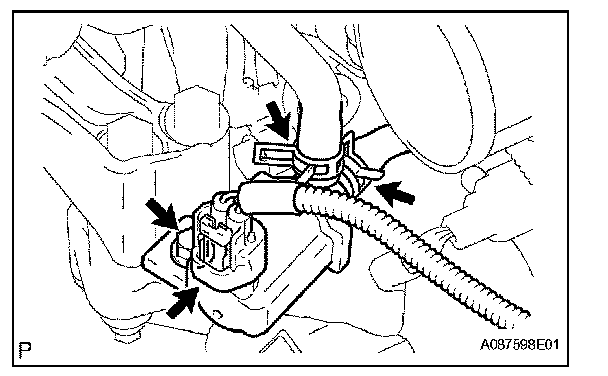

1. INSTALL PURGE VSV
a. Install the purge VSV with the bolt.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

b. Connect the 2 purge line hoses to the purge VSV.
c. Connect the purge VSV connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. INSTALL REAR NO. 3 FLOOR BOARD
4. INSTALL REAR DECK FLOOR BOX
5. INSTALL REAR NO. 2 FLOOR BOARD
6. PERFORM INITIALIZATION
a. Perform initialization

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
