Air-Fuel Ratio Sensor

INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR

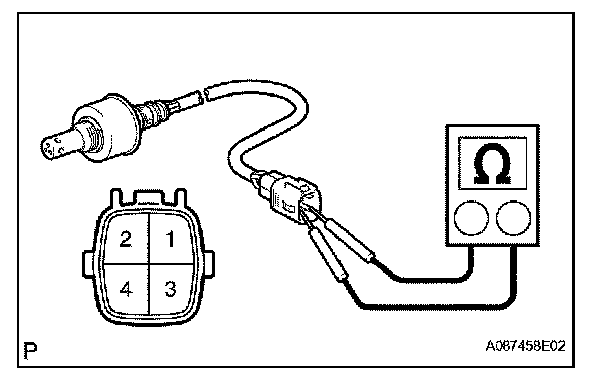

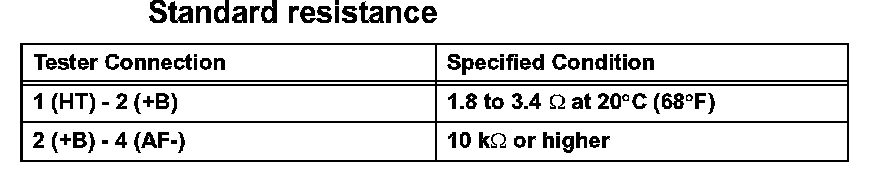

a. Measure the resistance between the terminals.

If the result is not as specified, replace the sensor.
