Camshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CAMSHAFT POSITION SENSOR

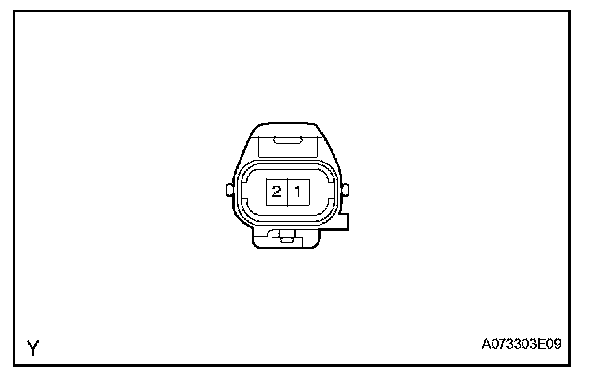

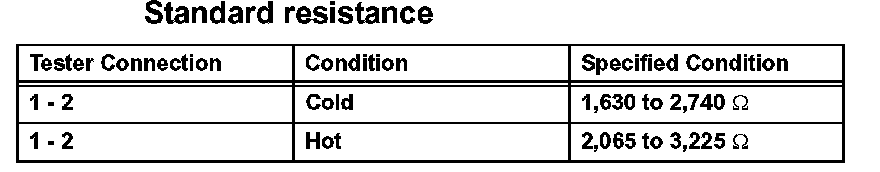

Measure the resistance of the sensor.

NOTE: The terms "Cold" and "Hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50 °C (14 to 122 °F). "Hot" means approximately 50 to 100 °C (122 to 212 °F).

If the result is not as specified, replace the camshaft position sensor.
