Power Outlet Socket

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

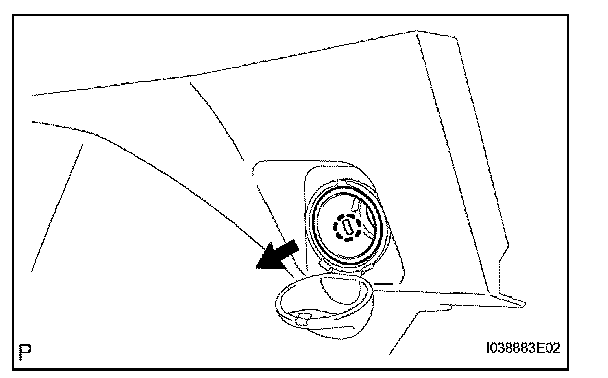

2. REMOVE POWER OUTLET SOCKET ASSEMBLY




a. Detach the claw to remove the power outlet socket.

INSTALLATION

1. INSTALL POWER OUTLET SOCKET ASSEMBLY
a. Align the power outlet socket and power outlet socket cover. Insert them from the front side into the vehicle body and install the power outlet socket.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
