Tire Pressure Monitor Receiver / Transponder: Service and Repair

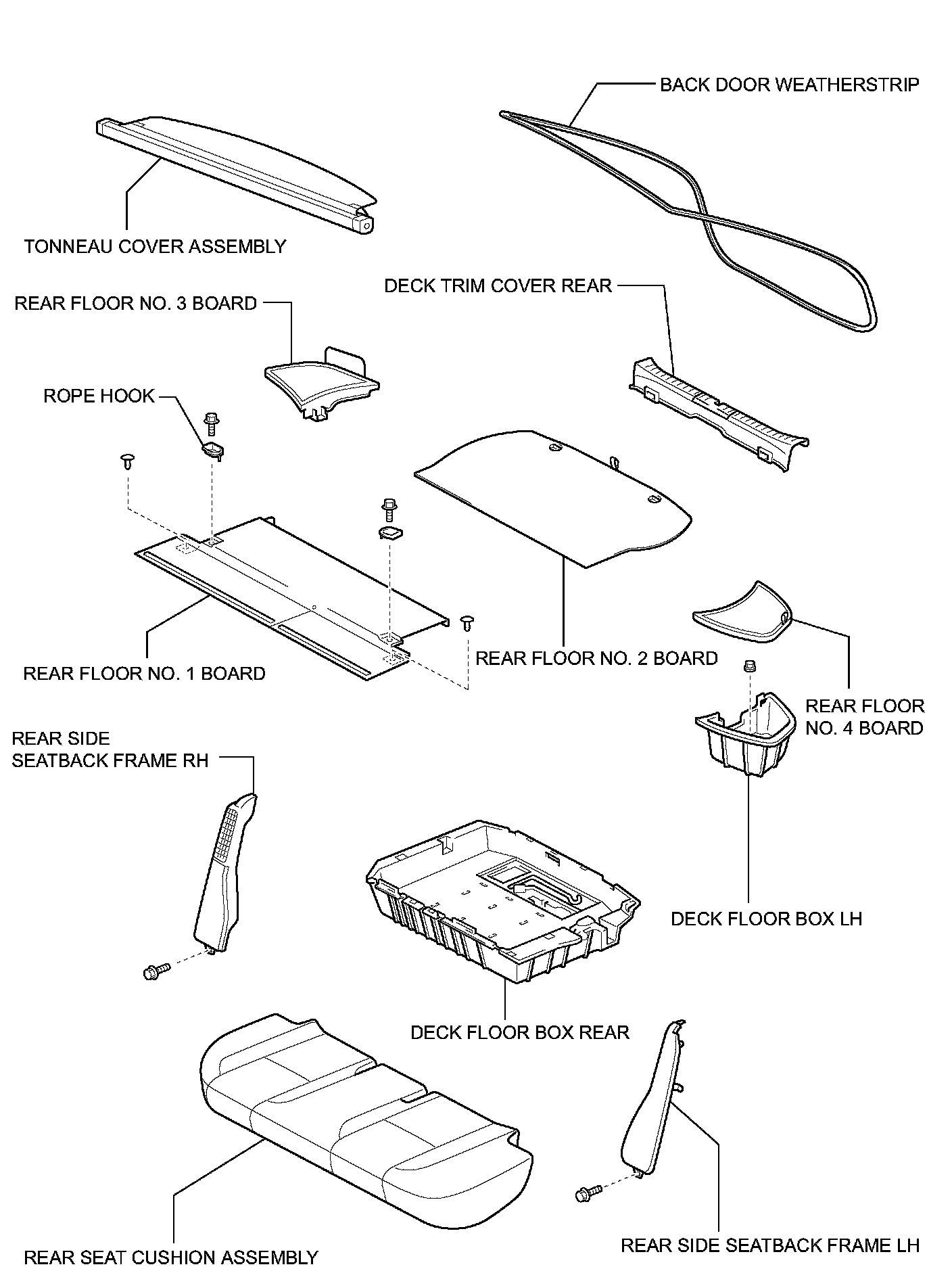

TIRE PRESSURE WARNING RECEIVERCOMPONENTS (Part 1):

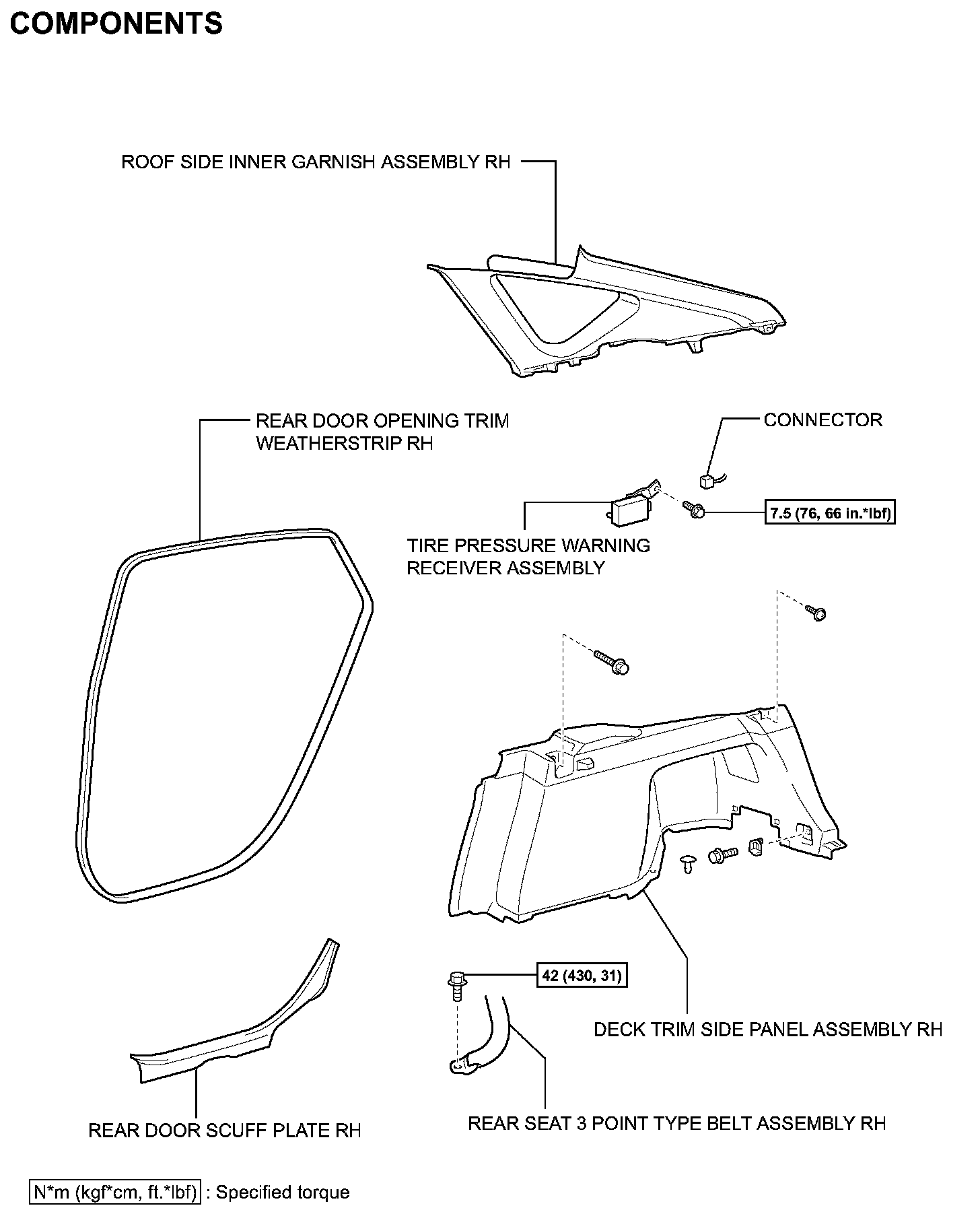

COMPONENTS (Part 2):
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR DOOR SCUFF PLATE RH
4. REMOVE REAR SIDE SEATBACK FRAME LH
5. REMOVE REAR SIDE SEATBACK FRAME RH
6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
8. REMOVE BACK DOOR WEATHERSTRIP
9. REMOVE TONNEAU COVER ASSEMBLY
10. REMOVE REAR FLOOR NO. 2 BOARD
11. REMOVE REAR FLOOR NO. 3 BOARD
12. REMOVE REAR FLOOR NO. 4 BOARD
13. REMOVE DECK FLOOR BOX REAR
14. REMOVE DECK FLOOR BOX LH
15. REMOVE REAR FLOOR NO. 1 BOARD
16. REMOVE DECK TRIM COVER REAR
17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
18. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

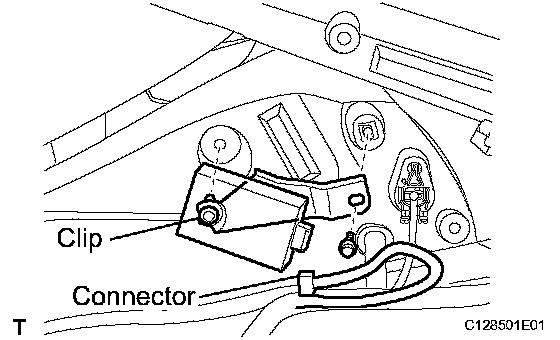

19. REMOVE TIRE PRESSURE WARNING RECEIVER ASSEMBLY
(a) Disconnect the connector.
(b) Remove the bolt.
(c) Using a clip remover, detach the clip and remove the receiver.
INSTALLATION

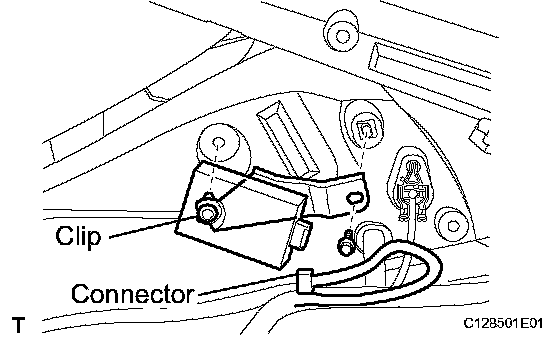

1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY
(a) Attach the clip and install the bolt with the receiver.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
(b) Connect the connector.
2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
4. INSTALL REAR DECK TRIM COVER
5. INSTALL REAR FLOOR NO. 1 BOARD
6. INSTALL DECK FLOOR BOX LH
7. INSTALL DECK FLOOR BOX REAR
8. INSTALL REAR FLOOR NO. 4 BOARD
9. INSTALL REAR FLOOR NO. 3 BOARD
10. INSTALL REAR FLOOR NO. 2 BOARD
11. INSTALL TONNEAU COVER ASSEMBLY
12. INSTALL BACK DOOR WEATHERSTRIP
13. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
14. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
15. INSTALL REAR SIDE SEATBACK FRAME LH
16. INSTALL REAR SIDE SEATBACK FRAME RH
17. INSTALL REAR DOOR SCUFF PLATE RH
18. INSTALL REAR SEAT CUSHION ASSEMBLY
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
- When the warning light is illuminated or the battery has been disconnected and reconnected, pressing the power switch may not start the system on the first try. If so, press the power switch again.
- With the power switch's power mode changed to ON (IG), disconnect the battery. If the key is not in the key slot during reconnection, DTC B2799 may be output.
20. REGISTER TRANSMITTER ID
21. INSPECT TIRE PRESSURE WARNING SYSTEM
22. PERFORM INITIALIZATION
(a) Perform initialization. Initialization
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
